Electrocompaniet EC 4.8 MKII Reference Preamplifier

With outstanding performance, excellent resolution, superb control and precise musical reproduction, the EC 4.8 MKII is a reference preamplifier true to the Electrocompaniet slogan “Closing the gap to the master”. The two-channel EC 4.8 MKII enhances its predecessor and is sure to make any good power amplifier sound even better.

Technical specifications
Input impedance: 47 kΩ
Output impedance: 100 Ω
Max input: ±15 Vp-p (±30 Vp-p balanced)
Max output: ±30 Vp-p (±30 Vp-p balanced)
Gain range: -111 dB to +6 dB
Noise floor (0 dB gain): < -130 dB
Frequency response: 1 Hz – 200 kHz
Channel separation: > 120 dB
THD (1 V in, 1 V out): < 0.002 %

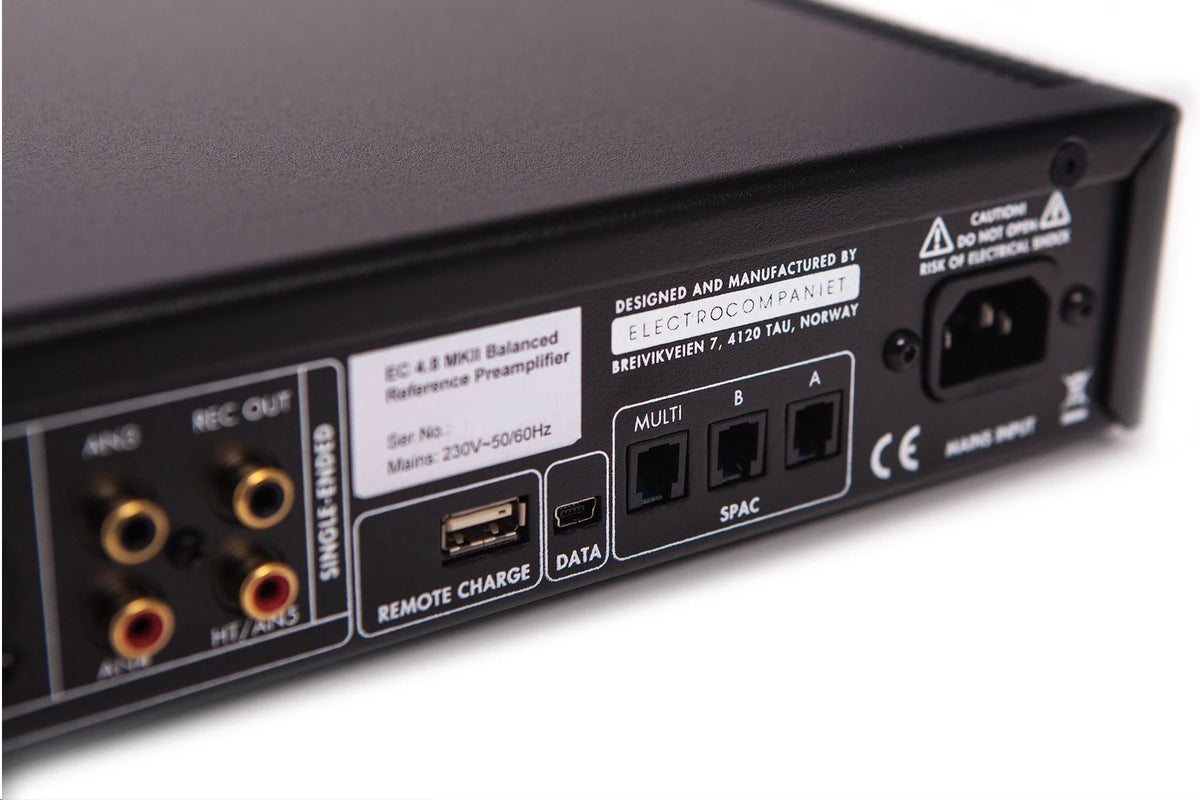

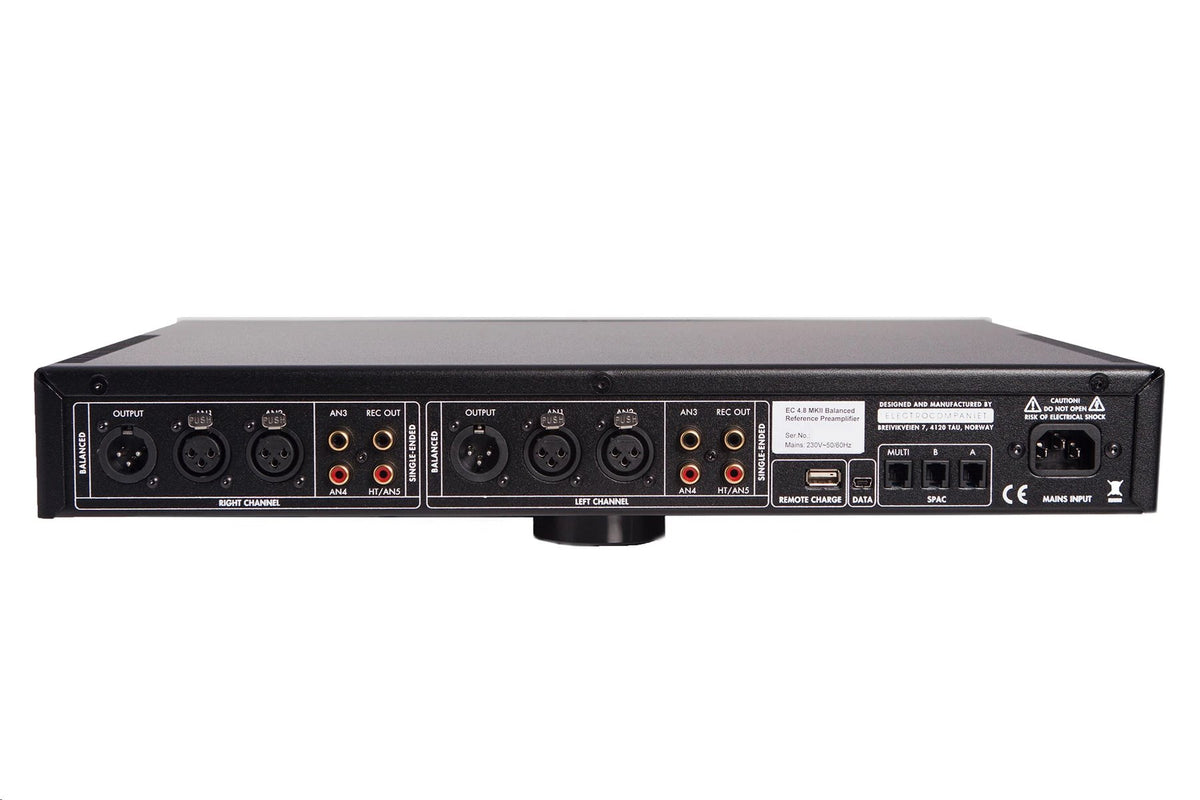

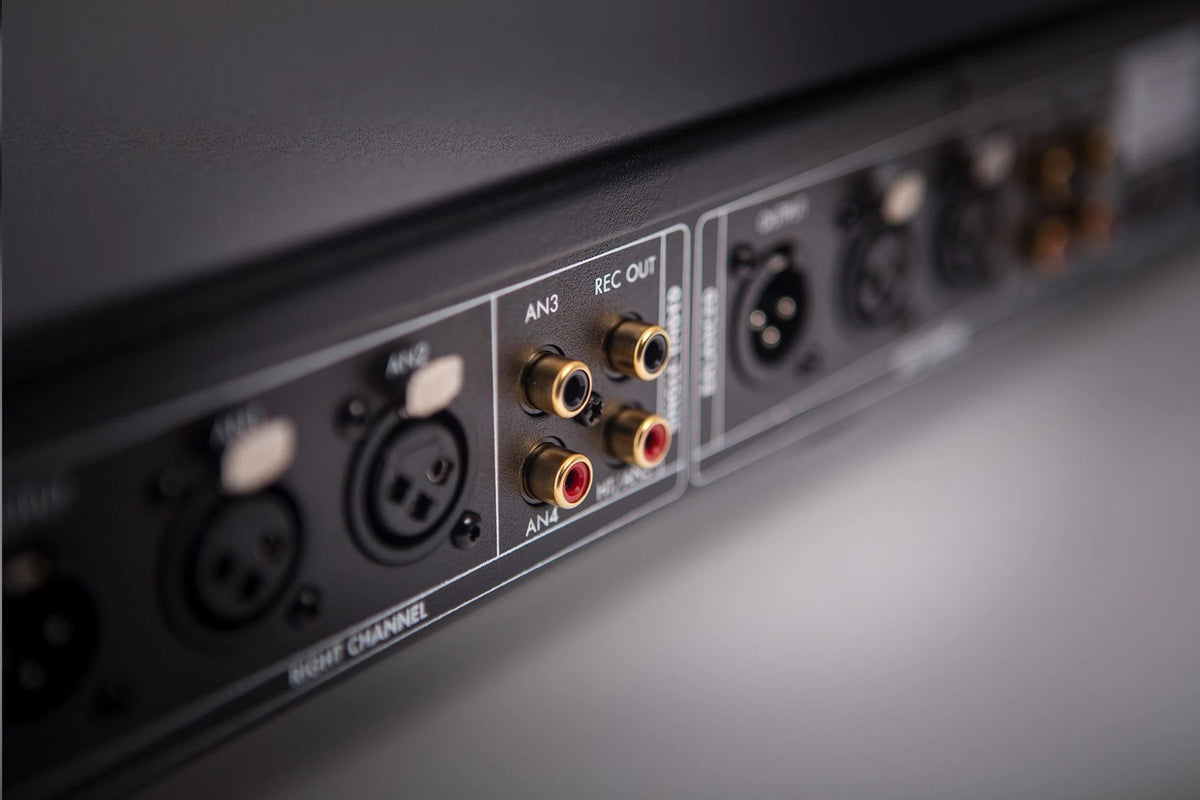

Inputs: 2x balanced (XLR), 3x single-ended (RCA)
Outputs: 1x balanced (XLR), single-ended record out
Control ports: 3x SPAC network, 1x USB (programming)
Power consumption (no load or signal): 30 W
Dimensions (W x D x H): 470 x 372 x 80 mm
Weight: 11.3 kg
