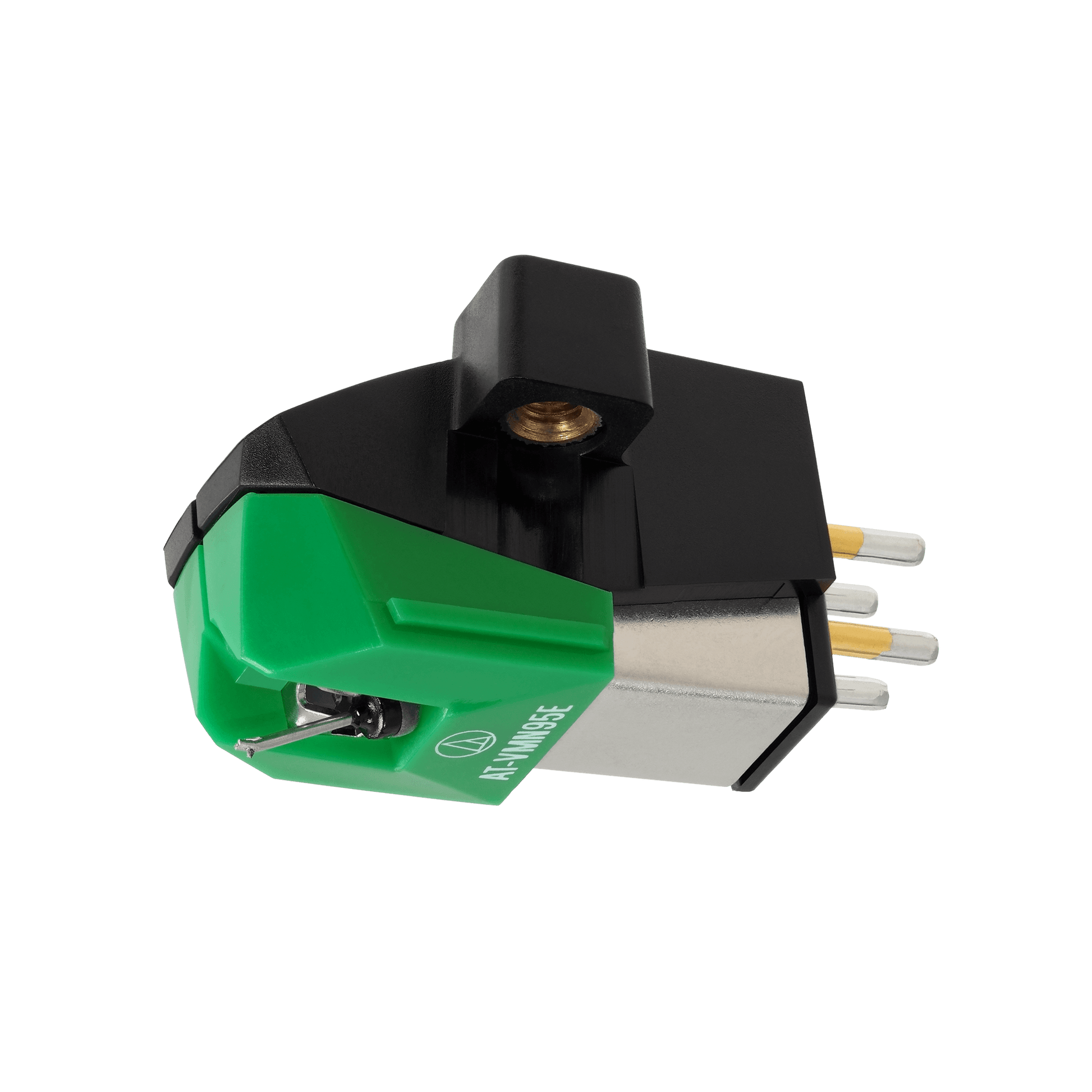

Audio-Technica AT-VM95E VM95 Series Elliptical Stereo Cartridge

AT-VM95E
The AT-VM95E, the new Audio-Technica entry model Elliptical cartridge will replace the legendary AT95E and take advantage of the developments of the AT95EX introduced in 2015. The AT-VM95E features an improved and distinctive design resulting in a more rigid low resonance housing, and two threaded inserts in the cartridge body enabling it to be mounted to the headshell or on an integral tonearm with just two screws, no nuts.

Our VM95 Series dual moving magnet cartridges can be used almost forever by replacing the interchangeable stylus. It is no longer necessary to purchase a complete cartridge when your diamond is worn out, you can simply buy the matching replacement stylus, but also enjoy the experience of upgrading your cartridge with a different stylus.

Elliptical Bonded Stylus
Elliptical diamond stylus follows the groove modulation with greater precision compared to a conical stylus, offering improved frequency and phase responses whilst reducing distortion.

No use of nuts
VM95 Series cartridges features two M2.6 threaded inserts allowing the installation of the cartridge onto tonearm or removable headshell without the use of nuts.Each cartridge is provided with one pair of 8mm M2.6 screws, one pair of 11mm M2.6 screws and two plastic washers.

Cartridge & Stylus
Frequency Response    20 - 22,000 Hz
Channel Separation    20 dB (1 kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Bonded Round Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    3.3 kΩ (1 kHz)
DC Resistance    485 Ω
Coil Inductance    550 mH (1 kHz)
Output Voltage    4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    2.0 dB (1 kHz)
Stylus Shape    Elliptical
Cantilever    Aluminium Pipe
Static Compliance    17 x 10 – 6 cm / dyne
Dynamic Compliance    7 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centres
Cartridge Weight    6.1g
Dimensions    17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included    Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model    AT-VM95E
Recommended Load Capacitance    100-200 pF
Replacement Stylus    AT-VMN95E
Stylus Size    0.3 x 0.7 mil
Type    VM Stereo Dual Magnet
Wire Used for Coil    T.P. Copper
Notes    For product improvement, the product is subject to modification without notice.
