Audio-Technica AT-VM95EN/H Headshell/Cartridge Combo Kit

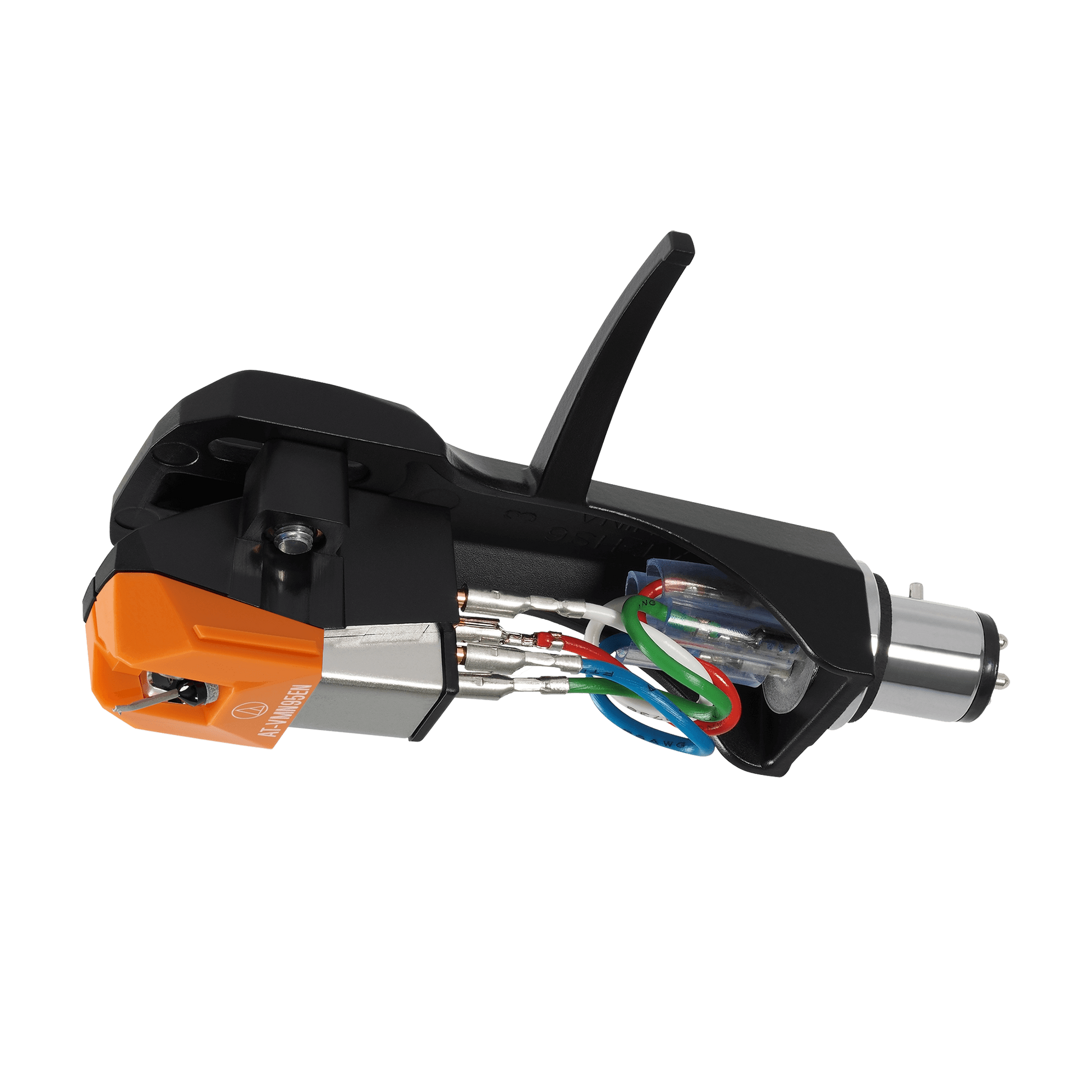

The AT-VM95EN/H combo kit includes the AT-VM95EN dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Cartridge & Stylus
Frequency Response    20 - 23,000 Hz
Channel Separation    22 dB (1 kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Nude Round Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    3.3 kΩ (1 kHz)
DC Resistance    485 Ω
Coil Inductance    550 mH (1 kHz)
Output Voltage    3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    2.0 dB (1 kHz)
Stylus Shape    Elliptical
Cantilever    Aluminium Pipe
Static Compliance    20 x 10 – 6 cm / dyne
Dynamic Compliance    7 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centres
Dimensions    21.2 × 21.4 × 62.4 ( H x W x D mm)
Model    AT-VM95EN/H
Recommended Load Capacitance    100-200 pF
Replacement Stylus    AT-VMN95EN
Stylus Size    0.3 x 0.7 mil
Type    VM Stereo Dual Magnet
Weight    15.5 g
Wire Used for Coil    T.P. Copper
