Audio-Technica AT-VM95SH/H Headshell/Cartridge Combo Kit

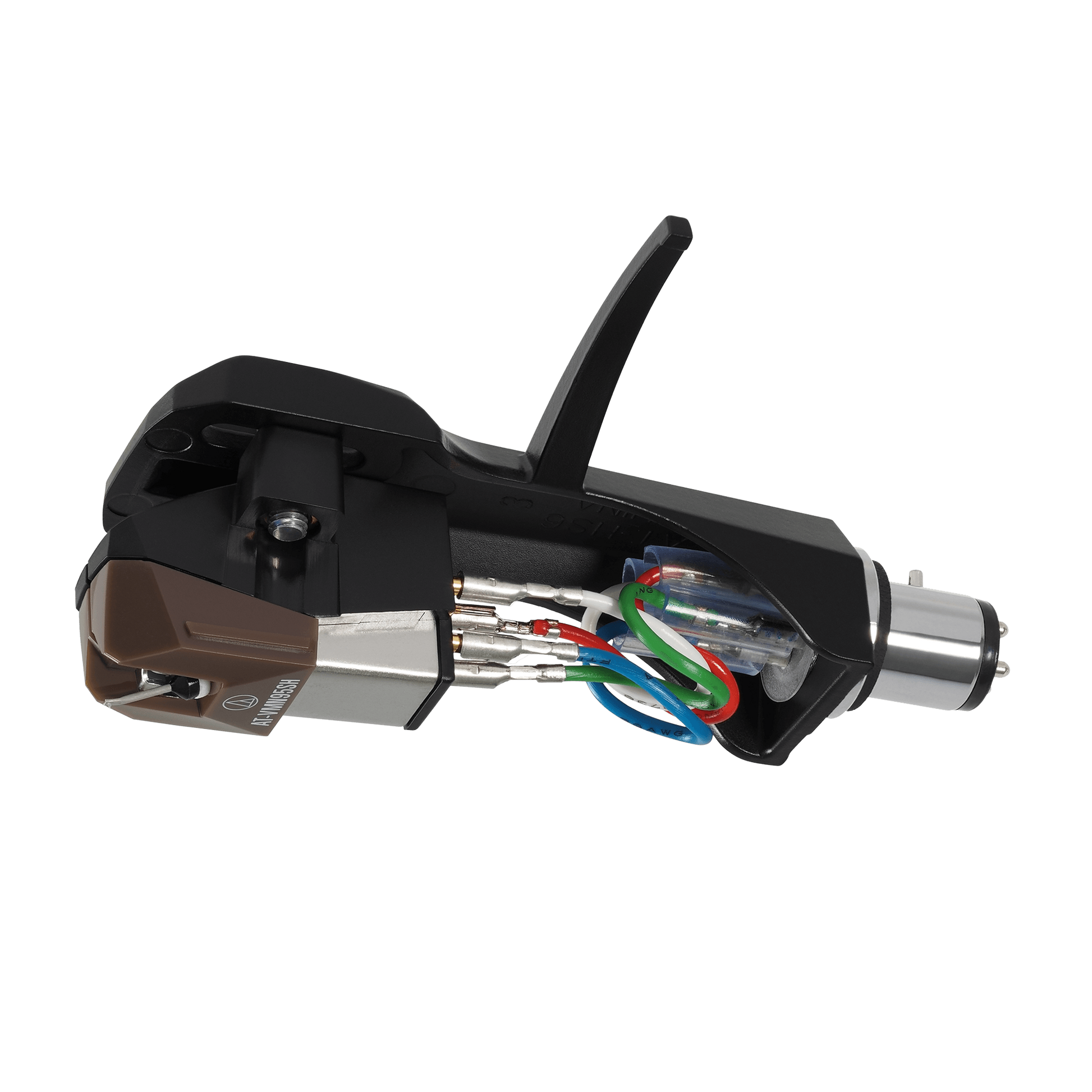

The AT-VM95SH/H combo kit includes the AT-VM95SH dual moving magnet cartridge premounted on the AT-HS6BK headshell.

Cartridge & Stylus
Frequency Response    20 - 25,000 Hz
Channel Separation    23 dB (1 kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Nude Square Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    3.3 kΩ (1 kHz)
DC Resistance    485 Ω
Coil Inductance    550 mH (1 kHz)
Output Voltage    3.5 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    1.5 dB (1 kHz)
Stylus Shape    Shibata
Cantilever    Aluminium Pipe
Static Compliance    20 x 10 – 6 cm / dyne
Dynamic Compliance    10 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centres
Dimensions    21.2 × 21.4 × 62.4 ( H x W x D mm)
Recommended Load Capacitance    100-200 pF
Replacement Stylus    AT-VMN95SH
Stylus Size    2.7 x 0.26mil
Type    VM Stereo Dual Magnet
Weight    15.5 g
Wire Used for Coil    T.P. Copper
