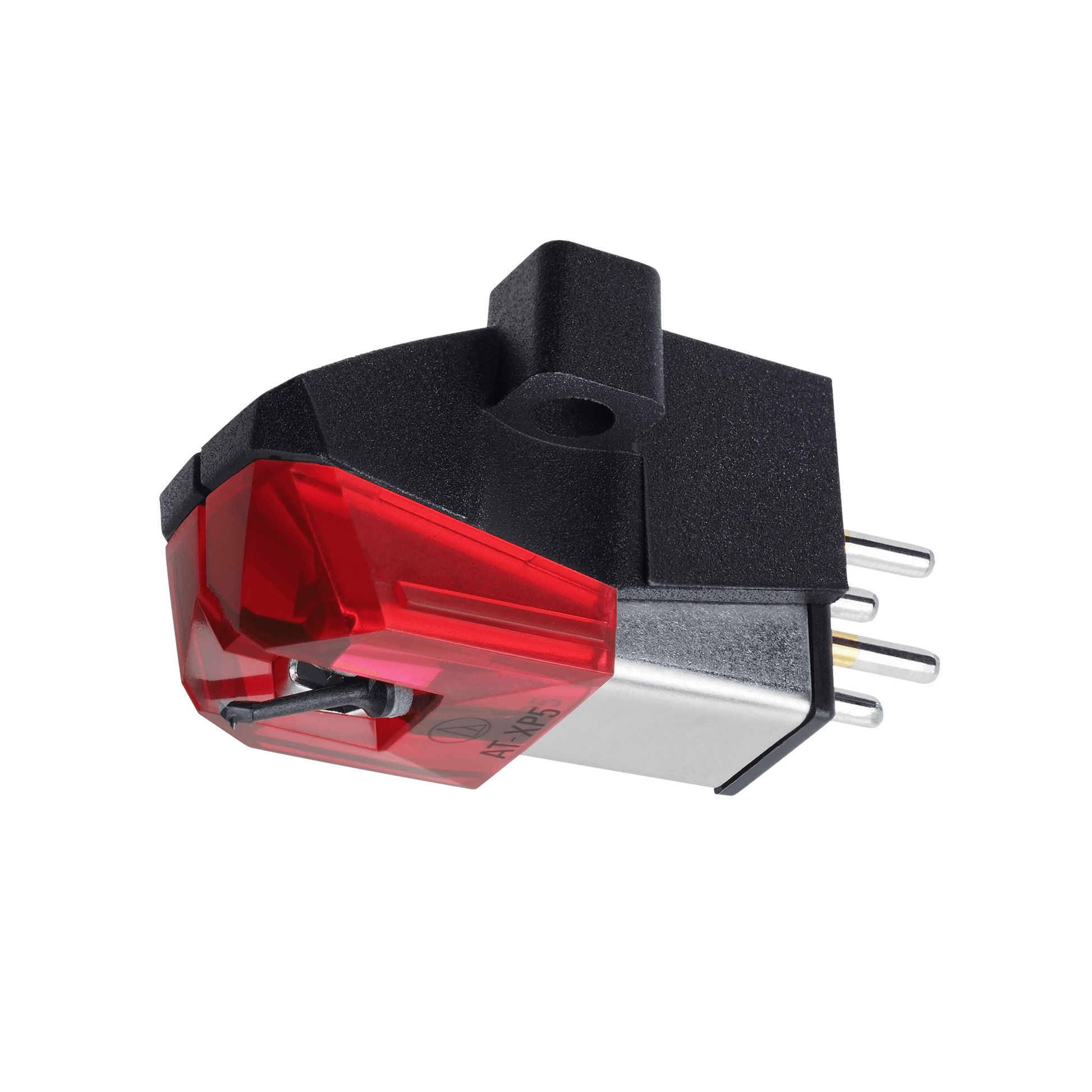

Audio-Technica AT-XP5 DJ Cartridge

AT-XP5
The AT-XP5 is specially designed for the needs of DJs. This cartridge features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body and a tracking force of 2 to 4 grams. It also offers a powerful output level of 5.5 mV, and its 0.3 x 0.7 mil elliptical bonded stylus tracks the record groove with high accuracy for outstanding audio reproduction. Plus, the cartridge is specifically designed to provide maximum visibility of the stylus tip.

Cartridge & Stylus
Frequency Response    20 - 18,000 Hz
Channel Separation    20 dB at 1kHz
Vertical Tracking Angle    20°
Vertical Tracking Force    2.0 to 4.0 g (standard 3g)
Recommended Load Impedance    47,000 ohms
Coil Inductance    1.0 H (1 kHz)
Output Voltage    5.5 mV (mV at 1 kHz, 5 cm/sec)
Output Channel Balance    2.0 dB
Stylus Shape    Elliptical
Cantilever    Carbon Fibre Reinforced ABS
Static Compliance    20 x 10-6 cm/dyne
Dynamic Compliance    6.0x10-6cm/dyne (100Hz)
Mounting    Half-inch
Dimensions    H17.2×W17.8×D28.3mm
Accessories Included    Cartridge installation slotted screws 11.0 mm (0.43”) x 2 and 8.0 mm (0.31”) x 2,
Washer x 2, Round nut x 2, Non-magnetic screwdriver x 1
Recommended Load Capacitance    100-200 pF
Replacement Stylus    ATN-XP5
Stylus Size    0.3 x 0.7 mil
Type    VM Dual Magnet
Weight    6.2g
