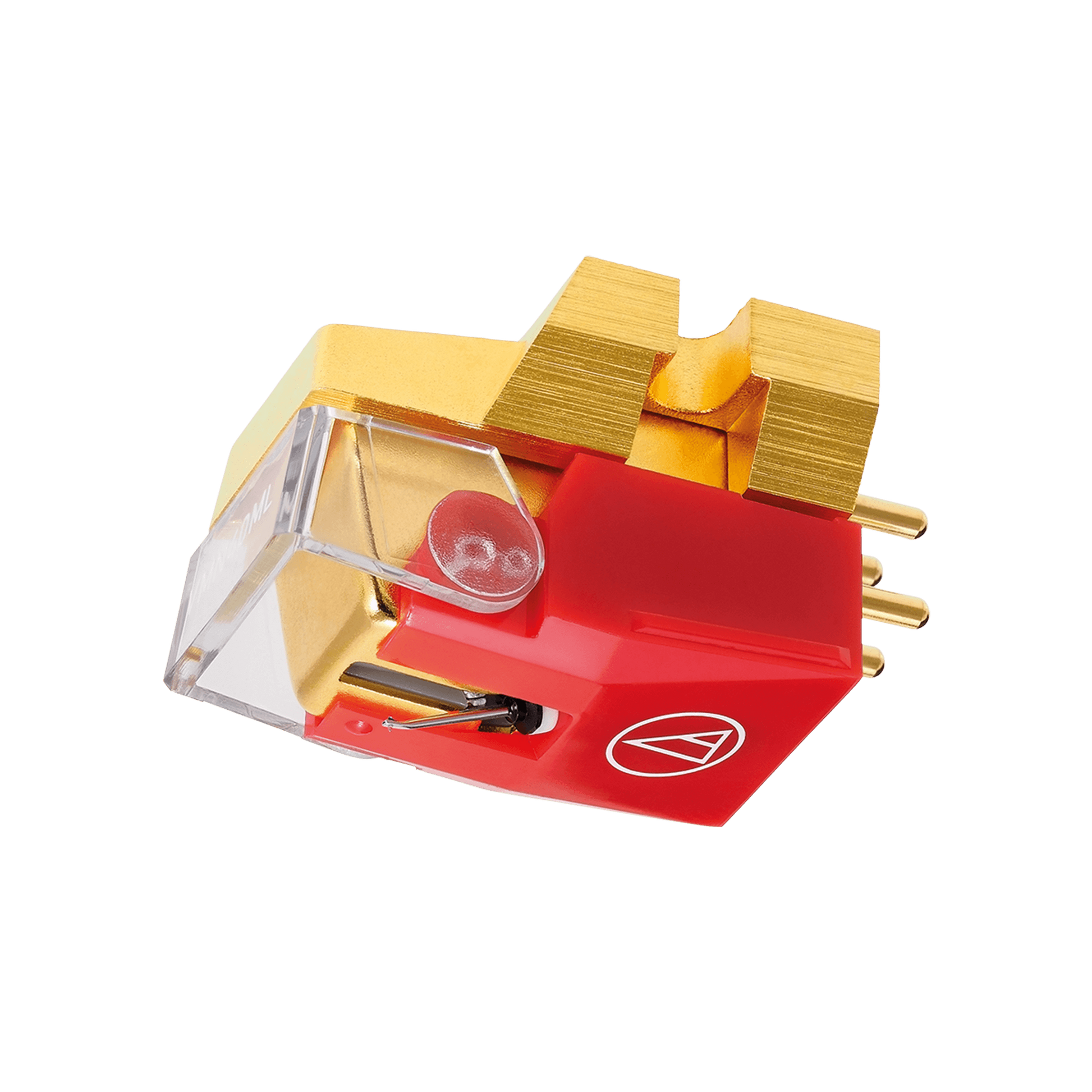

Audio-Technica VM740ML Dual Moving Magnet Cartridge

VM740ML
The VM740ML MicroLine® stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM740ML is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s MicroLine® stylus allows it to trace the record groove with incredible accuracy, resulting in nuanced audio reproduction that elliptical and conical styli simply can’t match. The stylus’s multilevel shape also wears better than other styli, while reducing the wear on your records. Includes mounting hardware.

Cartridge & Stylus
Frequency Response    20 - 27,000Hz
Channel Separation    28dB (1kHz)
Vertical Tracking Angle    23˚
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Nude Square Shank
Recommended Load Impedance    47,000Ω
Coil Impedance    2,700Ω (1kHz)
Output Voltage    4.0mV (1kHz, 5cm/sec.)
Output Channel Balance    1.0dB (1kHz)
Stylus Shape    Microlinear
Cantilever    Aluminium Tapered Pipe
Static Compliance    40 x 10-6 cm/dyne
Dynamic Compliance    10 x 10-6 cm/dyne (100Hz)
Mounting    1/2” centres
Dimensions    17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included    Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
Recommended Load Capacitance    100 – 200pF
Replacement Stylus    VMN40ML
Stylus Size    0.12 x 2.2 mil
Type    VM Type
Weight    8.0g
