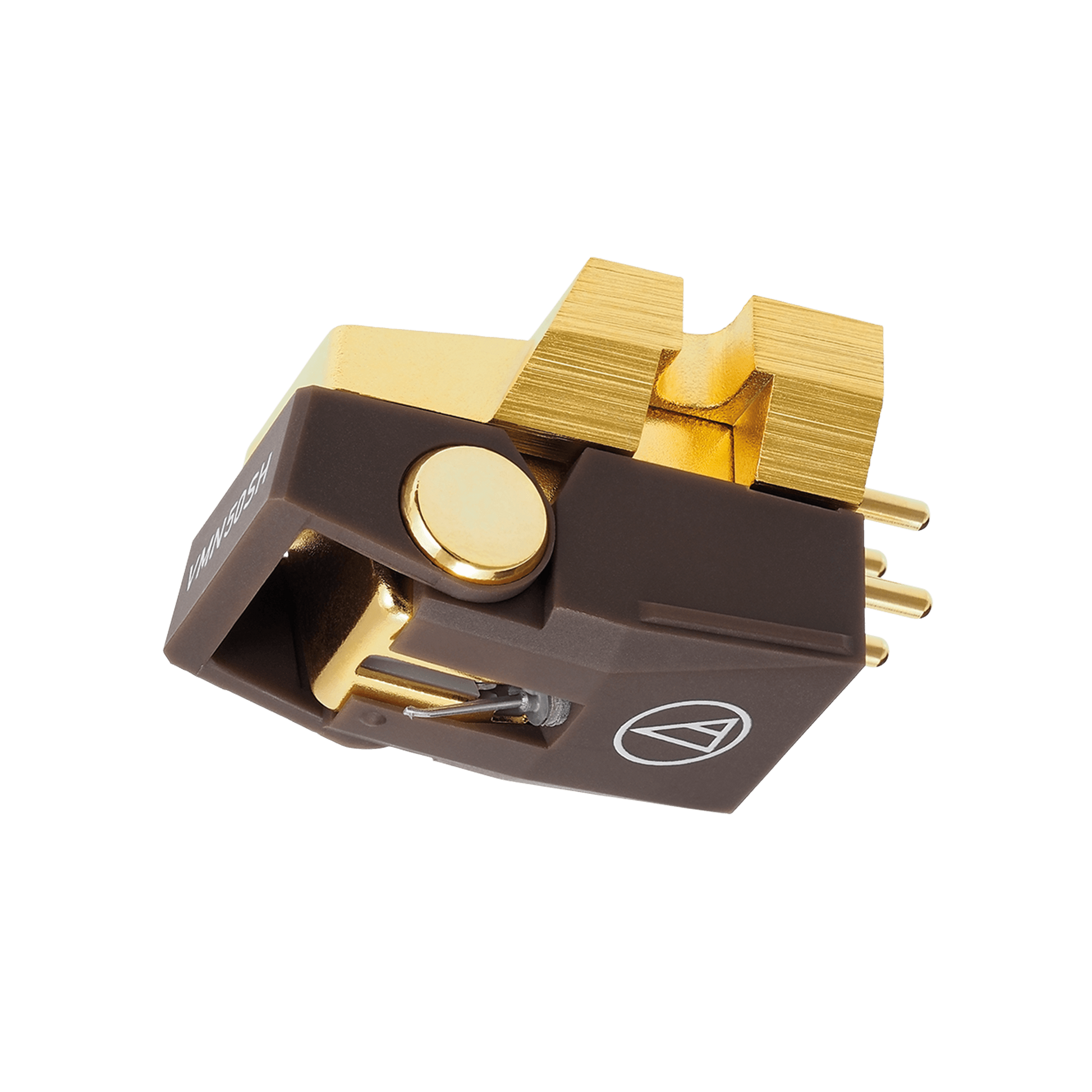

Audio-Technica VM750SH Dual Moving Magnet Cartridge

VM750SH
The VM750SH Shibata stylus cartridge is a premier 700 Series model in Audio-Technica’s new VM cartridge line – a line that harks back to A-T’s early days as a manufacturer primarily of high-end phono cartridges, while also incorporating today’s advanced technology. Like all VM cartridges, the VM750SH is equipped with dual magnets that are positioned to match the left and right channels in the stereo record groove for outstanding channel separation and extended frequency response. The cartridge’s Shibata stylus provides greater surface contact with the record groove than an elliptical stylus does, resulting in the pickup of ultra-high frequencies with less groove stress and distortion. Includes mounting hardware.

Cartridge & Stylus
Frequency Response    20 - 27,000Hz
Channel Separation    30dB (1kHz)
Vertical Tracking Angle    23˚
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Nude Square Shank
Recommended Load Impedance    47,000Ω
Coil Impedance    2,700Ω (1kHz)
Output Voltage    4.0mV (1kHz, 5cm/sec.)
Output Channel Balance    1.0dB (1kHz)
Stylus Shape    Shibata
Cantilever    Aluminium Tapered Pipe
Static Compliance    40 x 10-6 cm/dyne
Dynamic Compliance    10 x 10-6 cm/dyne (100Hz)
Mounting    1/2” centres
Dimensions    17.3 (H) x 17.0 (W) x 28.2 (L) mm
Accessories Included    Cartridge installation screws 5mm ×2 and 10mm ×2, Washer ×2, Hexagon nut ×2, Non-magnetic screwdriver ×1, Brush ×1, Lead wire set ×1
Recommended Load Capacitance    100 – 200pF
Replacement Stylus    VMN50SH
Stylus Size    0.26 x 2.7 mil
Type    VM Type
Weight    8.0g
