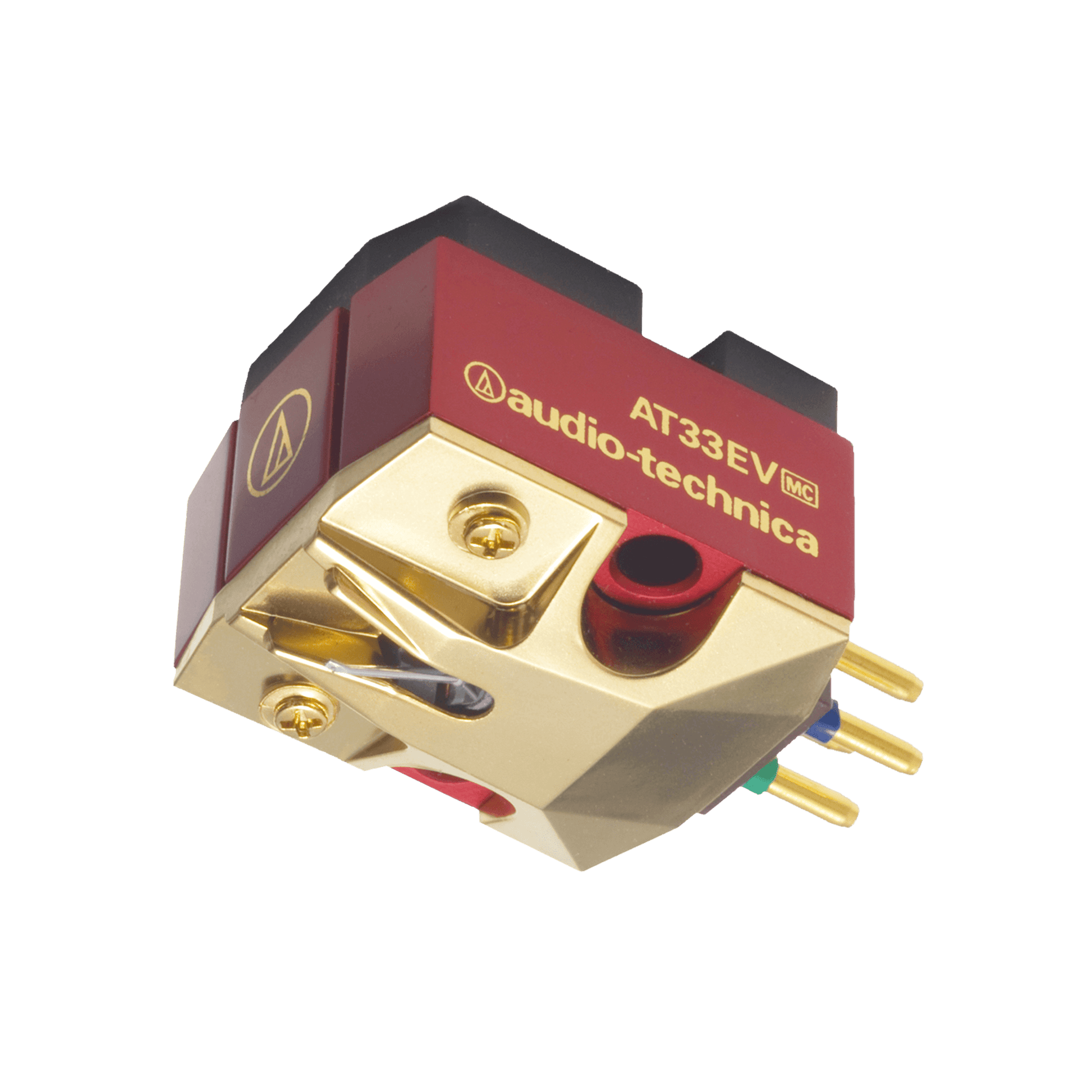

Audio-Technica AT33EV Dual Moving Coil Cartridge

The new half-inch standard mount .3 x .7 mil elliptical AT33EV cartridge features a tapered duralumin cantilever. Dual Moving Coil cartridge design increases channel separation and extends the frequency response range delivering extraordinary audio quality. Internally constructed with neodymium magnet for enhanced magnetic energy and PCOCC wire for pure audio transmission.

Cartridge & Stylus
Frequency Response    15 - 50,000Hz
Channel Separation    30dB (1kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8 to 2.2 g (standard 2.0 g)
Stylus Construction    Nude Square Shank
Recommended Load Impedance    More than 100Ω (when head amp connected)
Coil Impedance    10Ω (1kHz)
DC Resistance    10Ω
Coil Inductance    22µH (1kHz)
Output Voltage    0.3mV (1kHz and 3.54cm/sec.)
Output Channel Balance    0.5dB (1kHz)
Stylus Shape    Elliptical
Cantilever    Duralumin
Static Compliance    40×10-6cm/dyne
Dynamic Compliance    10×10-6cm/dyne (100Hz)
Mounting    1/2" Centers
Dimensions    H16×W16.6×D26.5mm
Accessories Included    Non-magnetic screwdriver × 1, Washer × 2, Protector × 1, Cartridge installation screws 13 mm × 2 and 19 mm × 2, Nut × 2, Brush × 1, PCOCC lead set × 1
Body Material    Aluminium/Synthetic Resin
Stylus Curvature Radius    0.3 x 0.7 mil
Terminal Pins    Brass
Type    Dual Moving Coil
Weight    6.9g
