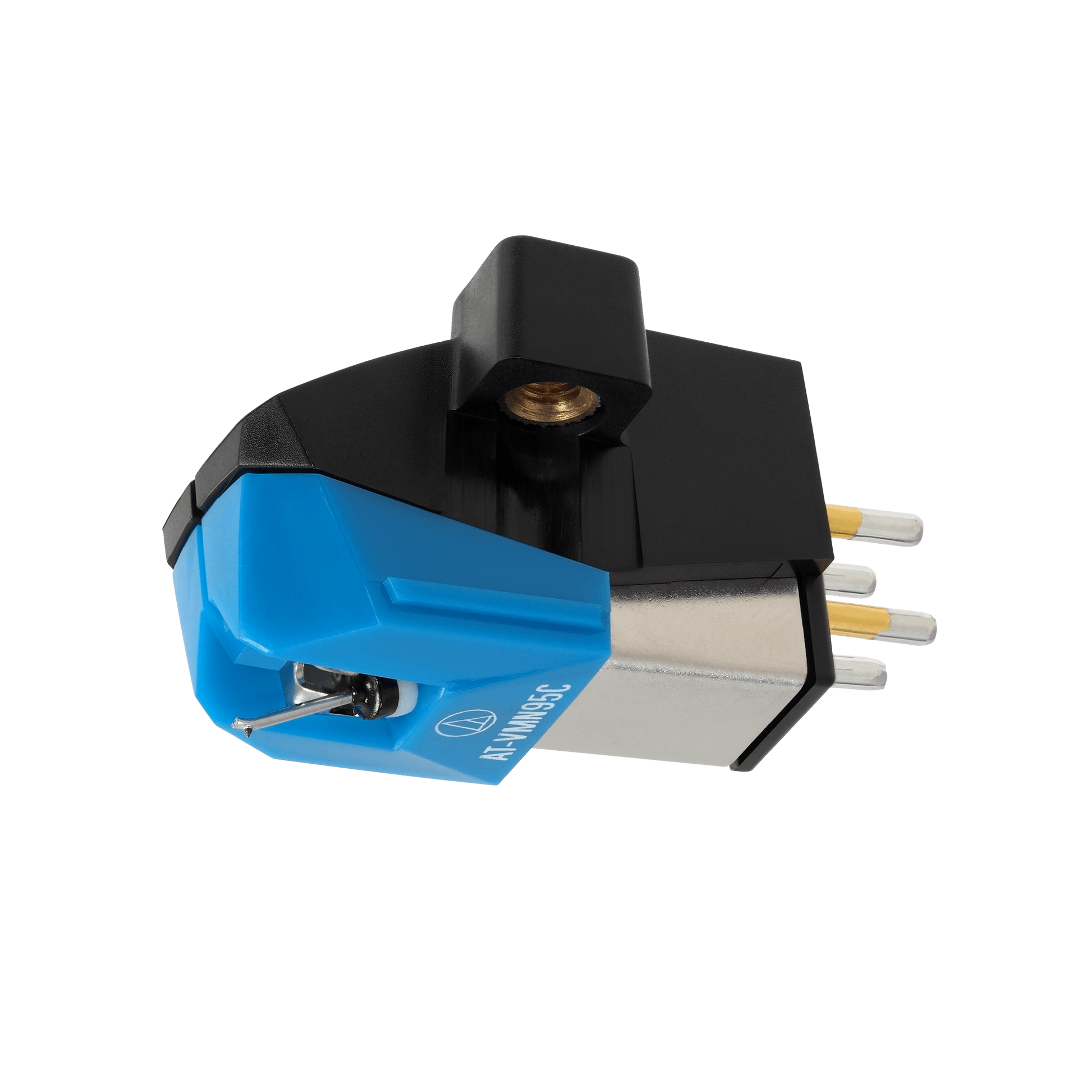

Audio-Technica AT-VM95C Dual Moving Magnet Cartridge

AT-VM95C
This VM95 Series cartridge with 0.6 mil conical stylus fits half-inch mount turntables. The cartridge’s special coil design delivers a powerful output level of 4.0 mV. It also offers excellent channel separation and low distortion for outstanding tonal quality. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Cartridge & Stylus
Frequency Response    20 - 20,000 Hz
Channel Separation    18 dB (1 kHz)
Vertical Tracking Angle    23°
Vertical Tracking Force    1.8 to 2.2g (2.0g standard)
Stylus Construction    Bonded Round Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    3.3 kΩ (1 kHz)
DC Resistance    485 Ω
Coil Inductance    550 mH (1 kHz)
Output Voltage    4.0 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    2.5 dB (1 kHz)
Stylus Shape    Conical
Cantilever    Aluminium Pipe
Static Compliance    17 x 10 – 6 cm / dyne
Dynamic Compliance    6.5 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centres
Cartridge Weight    6.1g
Dimensions    17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included    Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model    AT-VM95C
Recommended Load Capacitance    100-200 pF
Replacement Stylus    AT-VMN95C
Stylus Size    0.6 mil
Type    VM Stereo Dual Magnet
Wire Used for Coil    T.P. Copper
