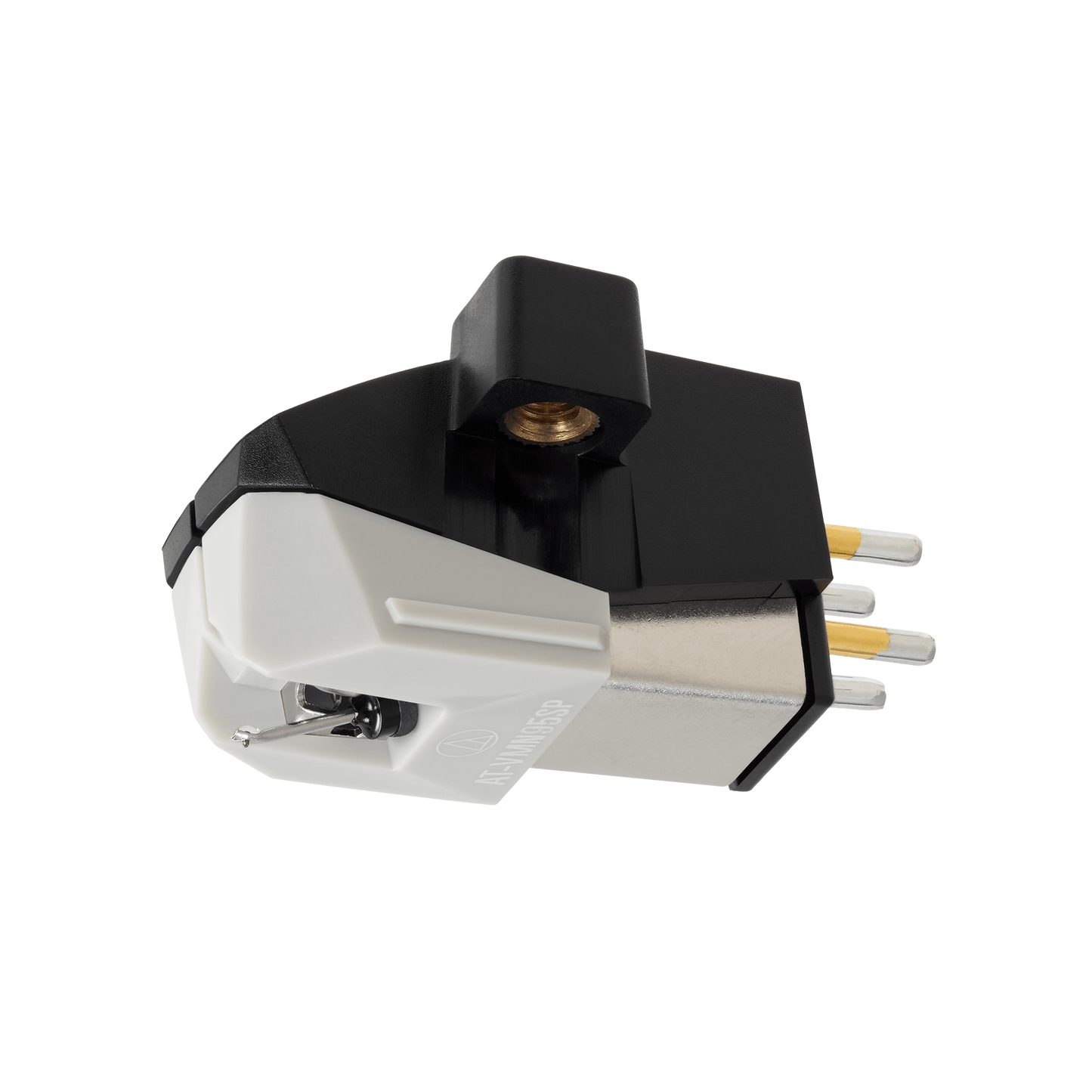

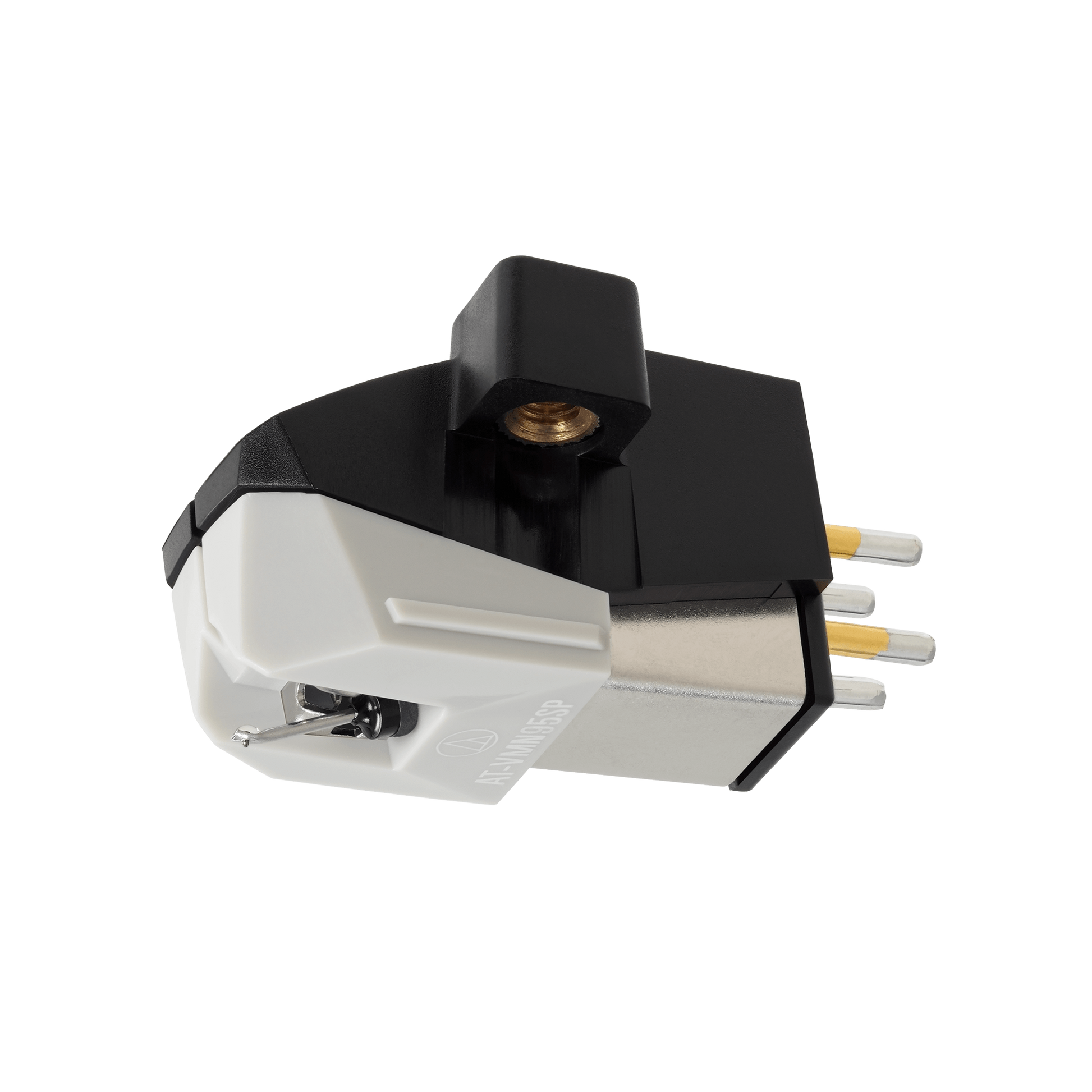

Audio-Technica AT-VM95SP Dual Moving Magnet Cartridge

This VM95 Series cartridge with 3.0 mil conical stylus fits half-inch mount turntables. While this cartridge is designed to play 78 RPM mono records, it is, nevertheless, a stereo cartridge, allowing users to choose between the left and right channels, which can be especially helpful in archiving applications to minimize noise and distortion. The durable, low-resonance housing includes threaded inserts that enable the cartridge to be mounted to the headshell with just two screws – no nuts required. And since all VM95 Series share the same body, the stylus can be replaced with any of the six interchangeable AT-VMN95 replacement styli.

Cartridge & Stylus
Frequency Response    20 - 20,000 Hz
Vertical Tracking Angle    23°
Vertical Tracking Force    4.5 to 5.5g (standard 5.0g)
Stylus Construction    Bonded Round Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    3.3 kΩ (1 kHz)
DC Resistance    485 Ω
Coil Inductance    550 mH (1 kHz)
Output Voltage    2.7 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    1.5 dB (1 kHz)
Stylus Shape    SP 3 mil Conical Bonded
Cantilever    Aluminium Pipe
Static Compliance    12 x 10 – 6 cm / dyne
Dynamic Compliance    2 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centres
Cartridge Weight    6.1g
Dimensions    17.2 x 18.9 x 28.3 ( H x W x D mm)
Accessories Included    Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Model    AT-VM95SP
Recommended Load Capacitance    100-200 pF
Replacement Stylus    AT-VMN95SP
Stylus Size    3 mil
Type    VM Stereo Dual Magnet
Wire Used for Coil    T.P. Copper
