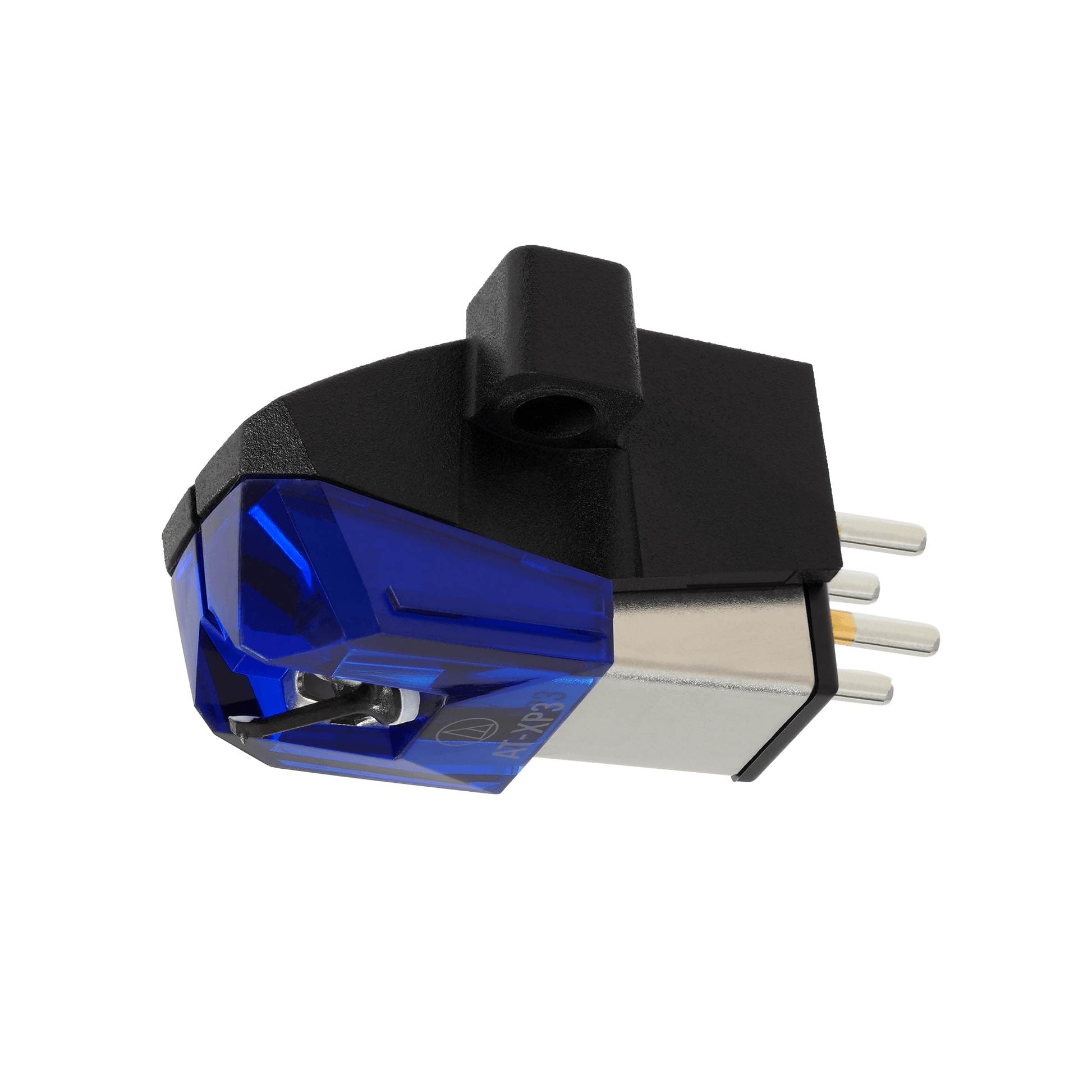

Audio-Technica AT-XP3 DJ Cartridge

AT-XP3
The AT-XP3 cartridge is specially designed for DJs. It features a highly-rigid polyphenylene sulfide (PPS)/glass fiber body, has a tracking force of 2 to 4 grams, and offers a powerful output level of 5.5 mV. Its 0.6 mil conical bonded stylus tracks the center of the record groove for reliable performance and excellent fidelity. And the cartridge design provides maximum visibility of the stylus tip. The AT-XP3 cartridge is compatible with any XP or VM95 Series replacement stylus, offering a wide choice of options for every budget and application.

Cartridge & Stylus
Frequency Response    20 to 18,000 Hz
Channel Separation    20 dB (1 kHz)
Vertical Tracking Angle    20 degrees
Vertical Tracking Force    2.0 to 4.0 g (standard 3g)
Stylus Construction    Bonded Round Shank
Recommended Load Impedance    47,000 Ω
Coil Impedance    6,700 ohms (1 kHz)
Coil Inductance    550 mH (1 kHz)
Output Voltage    5.5 mV (at 1 kHz, 5 cm/sec)
Output Channel Balance    2.0 dB (1 kHz)
Stylus Shape    Conical
Cantilever    Carbon reinforced ABS
Static Compliance    20 x 10 – 6 cm / dyne
Dynamic Compliance    6.0 x 10 – 6 cm / dyne (100 Hz)
Mounting    Half-inch
Cartridge Weight    6.2g
Dimensions    17.2 x 17.8 x 28.3 ( H x W x D mm)
Accessories Included    Two 11 mm installation screws;
Two 8 mm installation screws;
Two washers
Two Nut
Non-magnetic screwdriver
Model    AT-XP3
Recommended Load Capacitance    100-200 pF
Replacement Stylus    ATN-XP3
Stylus Size    0.6 mil
