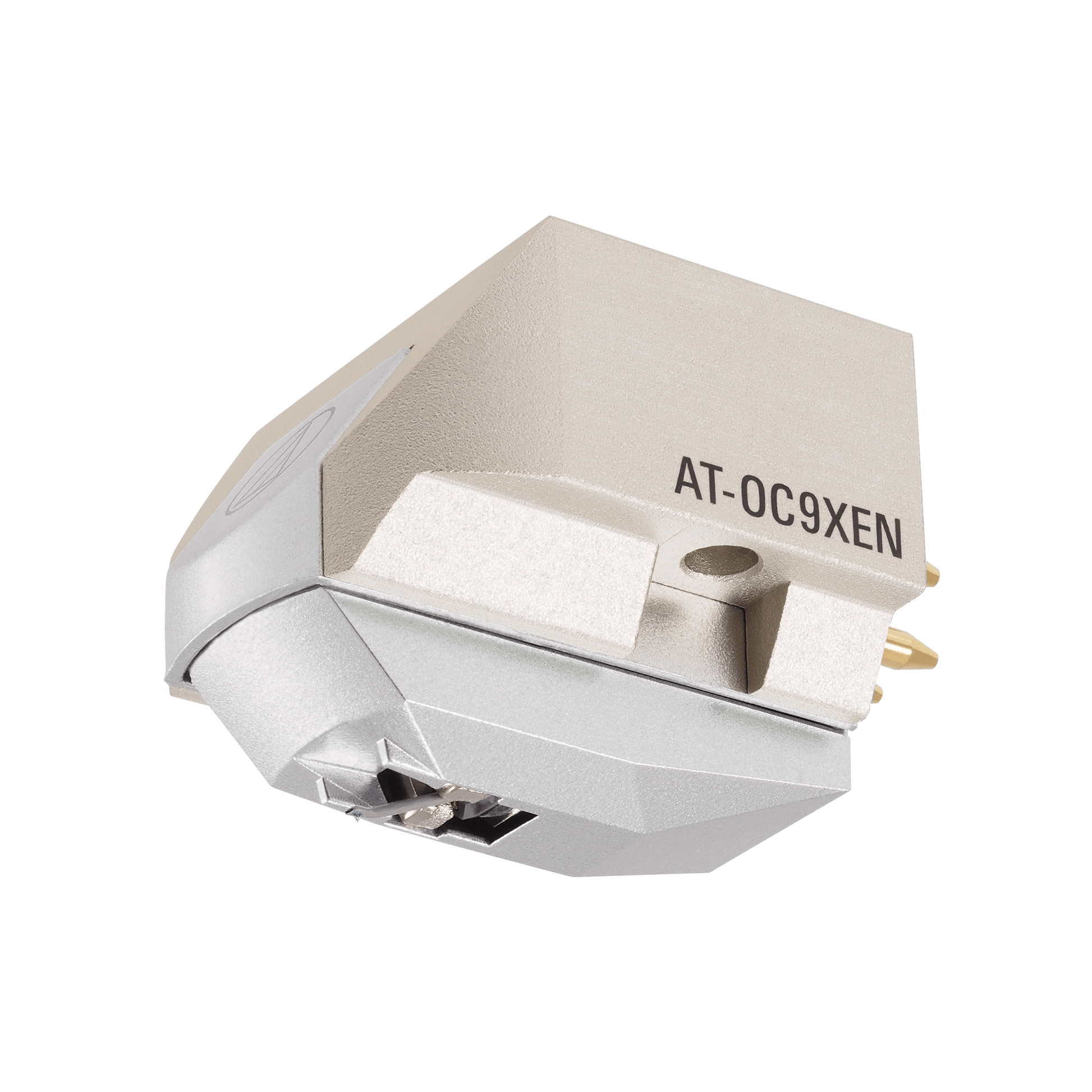

Audio-Technica AT-OC9XEN Dual Moving Coil Cartridge

AT-OC9XEN
The AT-OC9XEN Dual Moving Coil cartridge with nude elliptical stylus is designed to provide outstanding channel separation. The Pure Copper by Ohno Continuous Casting (PCOCC) coils ensure pure audio transmission and are aligned in a reverse V-shaped formation to exert less pressure on the stylus, thereby minimizing distortion. Audio quality is further enhanced by a rigid aluminum body that reduces resonance, a neodymium magnet and pure iron yoke that increase the magnetic energy, and the low-mass nude elliptical stylus on an aluminum cantilever that accurately tracks the record groove. The cartridge body has been pre-threaded, enabling it to be mounted to a headshell or integral tonearm with just two screws – no nuts required.

Cartridge & Stylus
Frequency Response    20 - 30,000 Hz
Channel Separation    25 dB (1 kHz)
Vertical Tracking Angle    20 degrees
Vertical Tracking Force    1.8 to 2.2 g (standard 2.0 g)
Stylus Construction    Nude square shank
Recommended Load Impedance    Min 100 Ohms
Coil Impedance    12 Ohms (1 kHz)
DC Resistance    12 Ohms
Coil Inductance    25 μH (1 kHz)
Output Voltage    0.35 mV (@ 1 kHz, 5 cm/sec)
Output Channel Balance    1.5 dB (1 kHz)
Stylus Shape    Elliptical Nude
Cantilever    Aluminium pipe
Static Compliance    20 x 10 – 6 cm / dyne
Dynamic Compliance    9 x 10 – 6 cm / dyne (100 Hz)
Mounting    1/2” centers / Threaded inserts
Cartridge Weight    7.6 g
Dimensions    17.3 (H) x 16.8 (W) x 25.7 (L) mm
Accessories Included    1 non magnetic screw driver
1 brush
2 washers
4 pairs of mounting screws: 5mm, 8mm, 10mm, 12mm
1 plastic protector
Body Material    Aluminium
Model    AT-OC9XEN
Stylus Size    0.3 x 0.7 mil
Terminal Pins    Brass
Wire Used for Coil    PCOCC (Copper by Ohno Continuous Casting process.)
