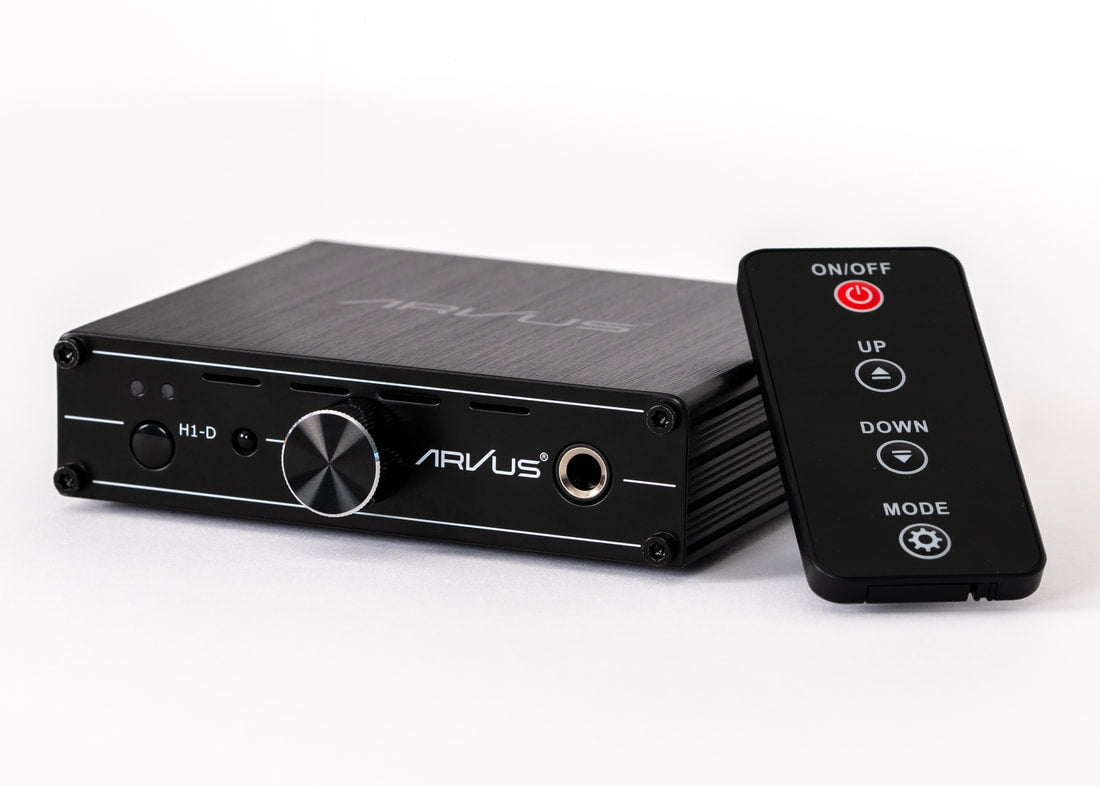

Arvus H1-D multi-codec spatial audio HDMI converter for Audio over IP

PRIMARY FEATURES

CONVERT up to 16 Channels of HDMI audio
AES67  (up to 16 Channels)
DANTE® (up to 16 Channels)
BINAURAL - Analog & Digital (2 Channels

DECODE / RENDER
DOLBY - Atmos®, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Surround, Dolby Vision (passthrough)
DTS - DTS-X®, ES, HD Master Audio, IMAX Enhanced, HD High Resolution Audio, Express-HD LBR, Neural:X
AURO-3D
MPEG-H
360 Reality Audio
PCM - 2ch, PCM Multi-channel, Downmix

INPUTS
HDMI
ARC / eARC (via HDMI OUT)

OUTPUTS
HDMI x 1 – Full A/V Pass-through
NETWORK AUDIO via RJ45 -  16 Channel AES67 & DANTE
DIGITAL RCA - 2 Channel COAX (for Binaural mastering)
6.5mm Jack - 2 Channel Analog (for Binaural mastering)

ADDITIONAL FEATURES

Linux / Shark platform architecture
HDMI v2.1
4 function IR remote control
(power, mute, volume-up, volume-down)
16 & 24 bit compatible
Decodes up to 16 channels at:
up to 24 bit / 48kHz (for Dante)
up to 24 bit / 96kHz (for AES67)
Digital COAX - up to 24 bit / 192kHz (2 channel)
Variable Digital Output (AES67/Dante and COAX) controlled via GUI / Network / IR
Manual Volume control assignable via GUI for Headphone or AoIP output
ARC & eARC support
ARC & eARC Lip-sync delay
HDMI 2.1 pass-through output
Includes Power over Ethernet (PoE)

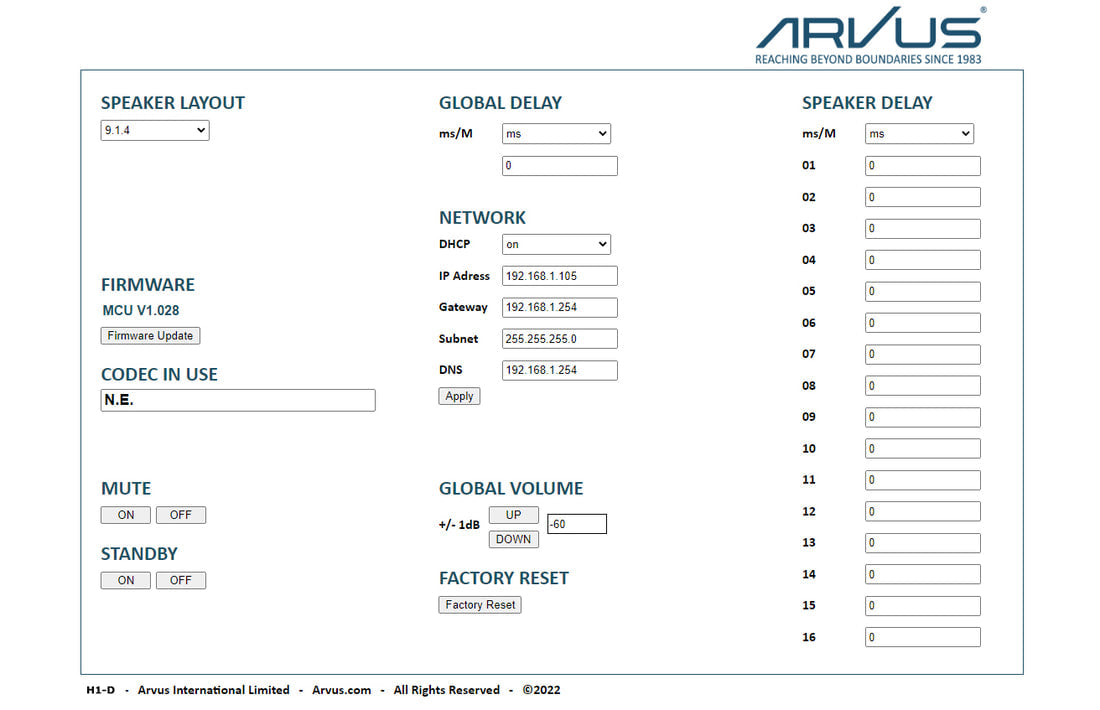

GUI for system set up (via ethernet)
Firmware upgrade over ethernet
Object based rendering from 5.1.2 to 9.1.6
HDMI OUT has EDID emulation for stable device communication
Supported in Crestron system control

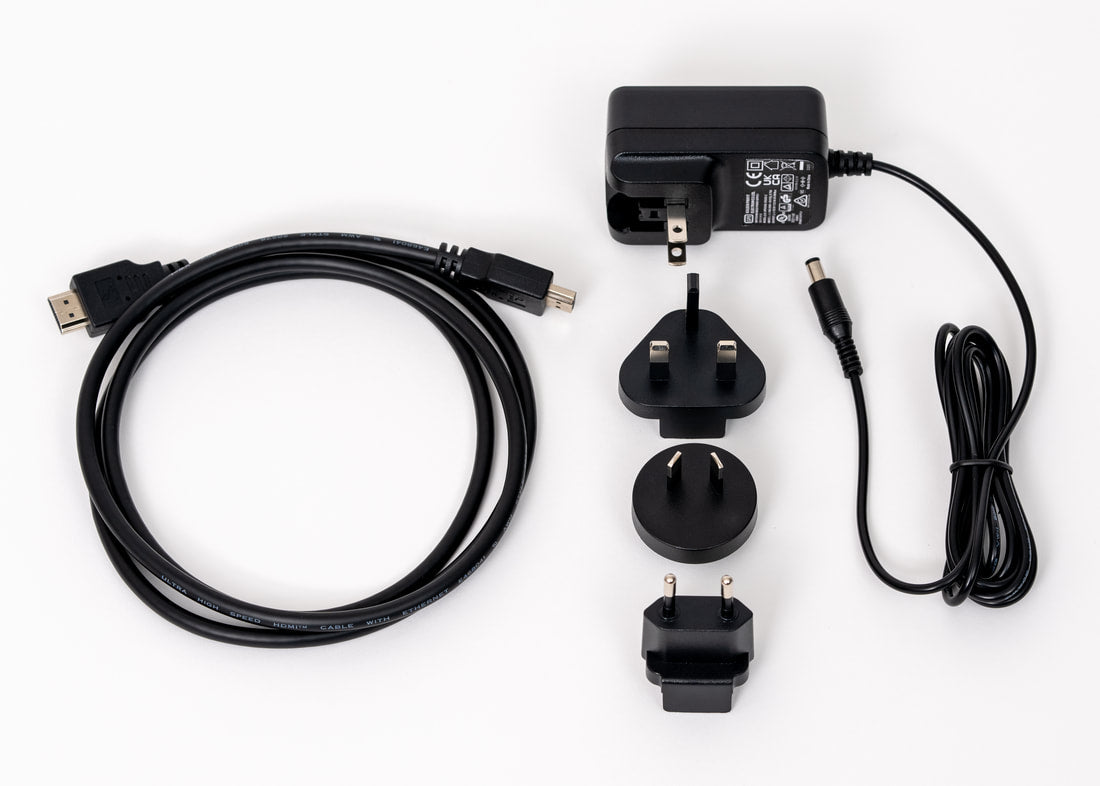

Supplied with:
Remote control
1M HDMI cable
International power-supply
The H1-D has a dedicated flash memory for a default firmware which cannot be changed. When the reset button is used the device reverts to the original Firmware
5 Years Warranty

PHYSICAL FEATURES

Tough extruded aluminum case, with metal panels.
Front and rear air-slots for ventilation.

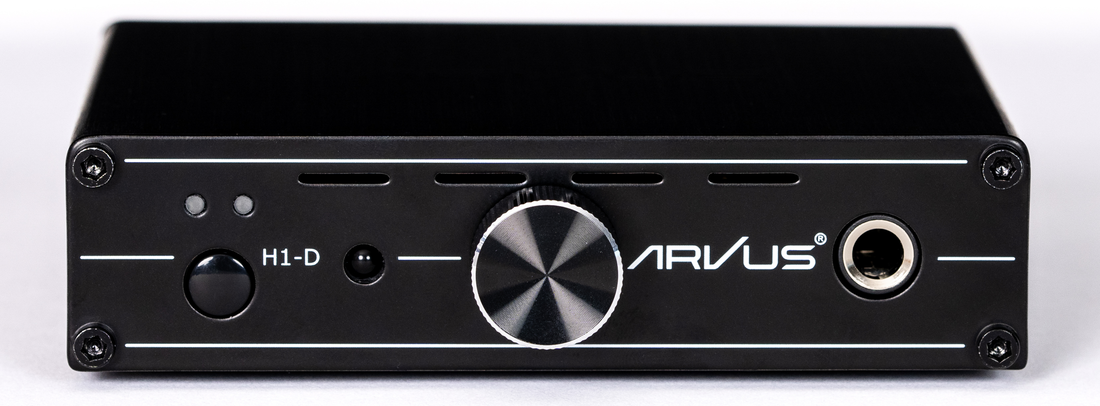

Power switch and LEDs on the front panel.

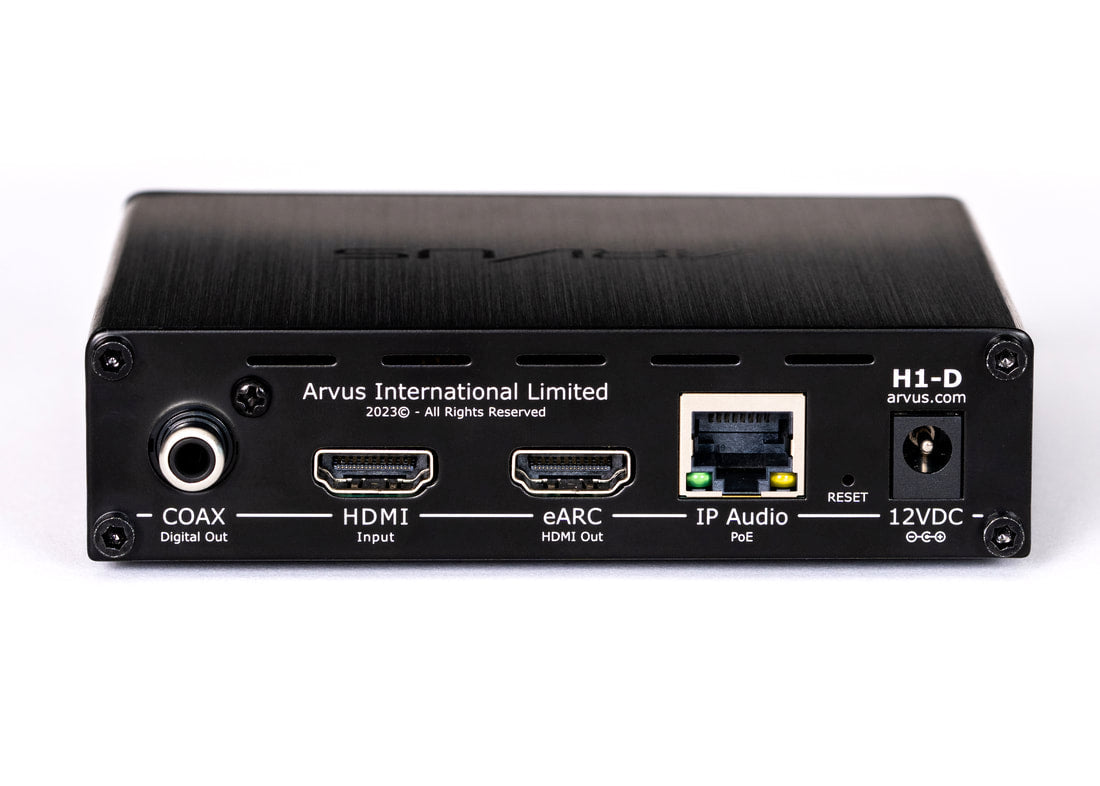

Inputs and outputs mounted on the back panel.
Professional grade product for 24/7 operation
External international power supply (100v/240v)
Weight – 1kg / 2.2 Ibs
120mm W x 100mm D x 30mm H
