Arvus H2-4D 16-channel Dolby ATMOS® digital audio decoder

In Stock – EU Warehouse – Ships Today, Arrives in 2 Days!

PRIMARY FEATURES

CONVERT up to 16 Channels of HDMI audio simultaneously:
DANTE® or RAVENNA® (AES67 included in both)
BALANCED ANALOG
HDMI® (Audio Only)
AES/EBU (AES3)

DECODE / RENDER
DOLBY - Atmos®, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Surround, Dolby Vision (passthrough)
DTS - DTS-X®, ES, HD Master Audio, HD High Resolution Audio, Express-HD LBR, Neural:X
PCM - 2ch, PCM Multi-channel, Downmix

INPUTS
HDMI
ARC / eARC (via HDMI OUT)
Word Clock (BNC)
Ethernet (GUI & PoE)

OUTPUTS
HDMI x 2 – Full A/V Pass-through and Audio Only (video 720p black)
Word Clock (BNC)
DANTE or RAVENNA® via RJ45 (AES67 Compatibility)
BALANCED ANALOG via 2 x DB25
AES/EBU via 1 x DB25 (Tascam Configuration)

ADDITIONAL FEATURES

16 & 24 bit compatible
Decodes up to 16 channels at :
44.1kHz / 48kHz
88.2kHz / 96kHz
176.4kHz / 192kHz
ARC & eARC Lip-sync delay
HDMI 2.0 pass-through output
Includes Power over Ethernet (PoE)
GUI for system set up (via Ethernet)
Ethernet access for firmware upgrades
Object based rendering from 5.1.2 to 9.1.6
Decoding status LED (Dolby/Green, DTS/Blue, PCM/Purple)
HDMI OUTS have EDID emulation for stable device communication
5 years warranty

Control options on GUI:
-channel delay
-sub level (no other channels level adjustments, you will need to adjust channel levels at the signal source or at the speakers)

PHYSICAL FEATURES

No internal fans

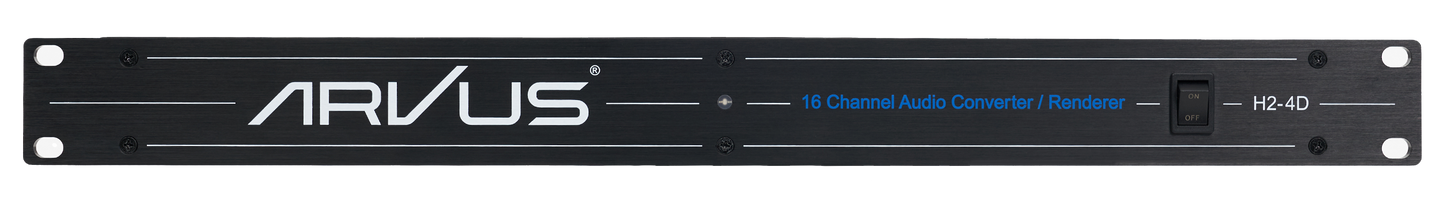

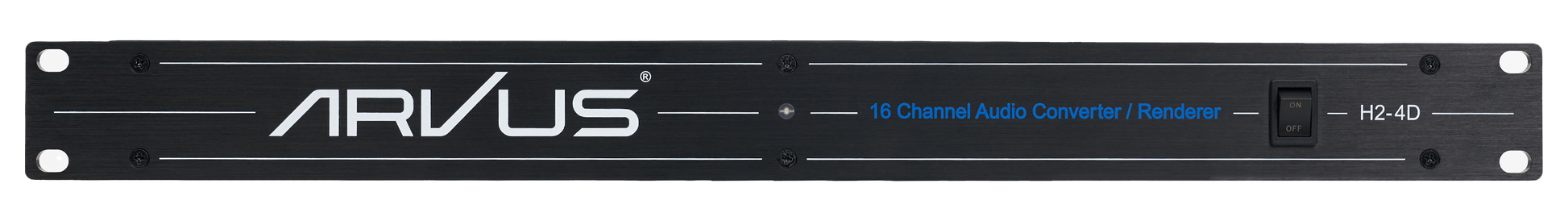

LED and power switch on the front panel

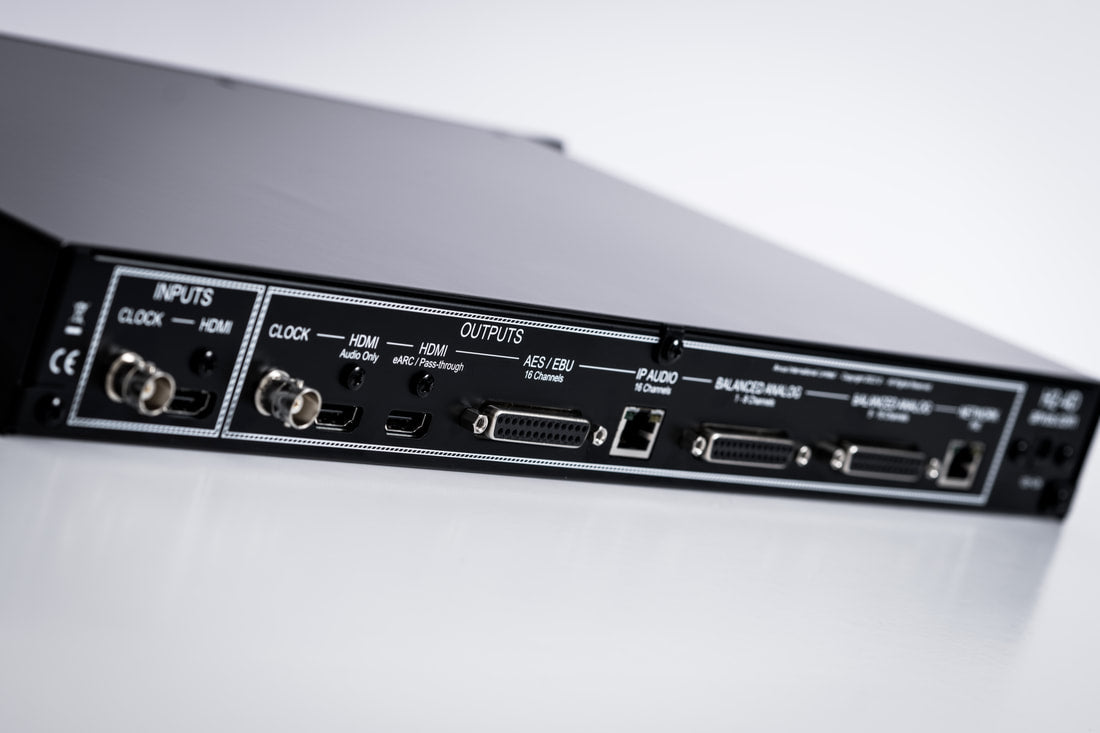

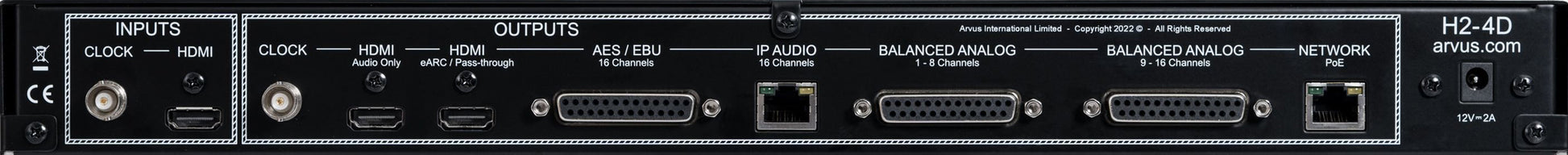

Inputs and outputs mounted on the back panel
Professional grade product for 24/7 operation
External international power supply (100v/240v)
Weight – 3.5kg / 7.7 pounds
483mm x 44mm x 245mm (1U - 19“)
