Audiolab 8300XP Stereo Power Amplifier

The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior. Delivering 140W per channel into 8 Ohms, the AUDIOLAB 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

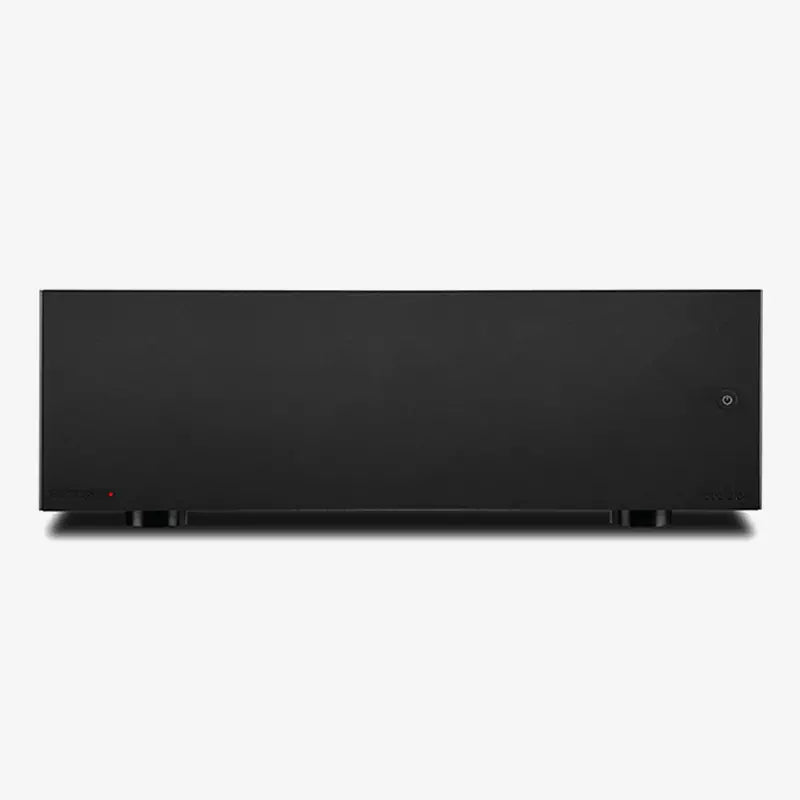

Minimalist exterior

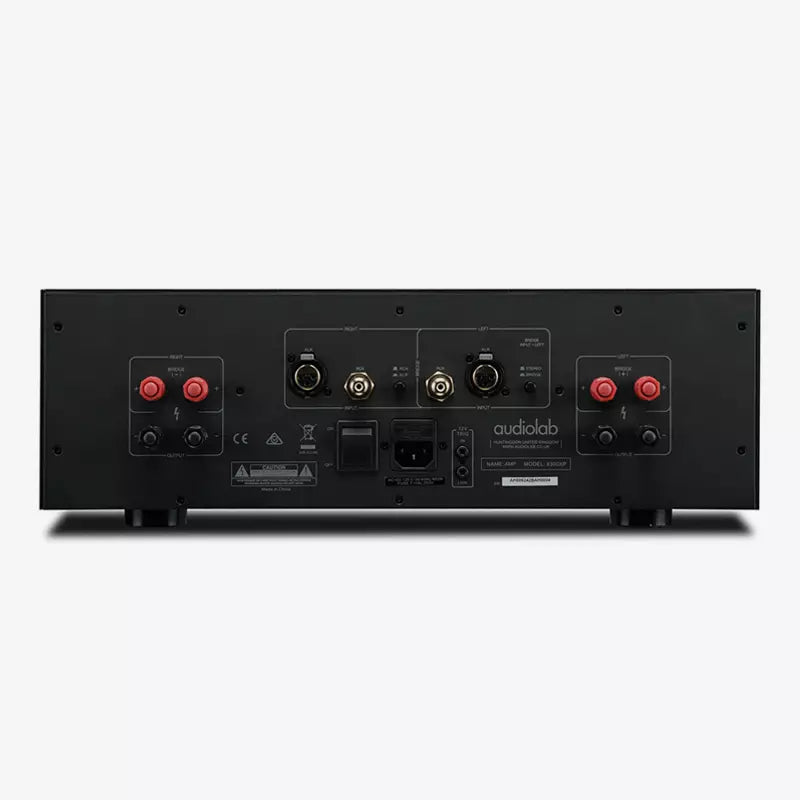

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.
Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components.
Thrilling to listen to and utterly dependable, the 8300XP is a genuine audio thoroughbred – the perfect partner for audiolab 8300CD, or peerless M-DAC range.

Model    8300XP
Rate power output    140W RMS (8Ω <1% THD, 1kHZ stereo)
230W RMS (4Ω <1% THD, 1kHZ stereo)
480W RMS (8Ω <1% THD, 1kHZ bridge)
Gain    29dB @ 1kHz (stereo)
36dB @ 1kHz (bridge)
Input sensitivity    1100mV
Input impedance    15k (balanced) 10k (unbalanced)
Frequency response -3dB    20Hz - 80kHz
+/-1dB    20Hz - 30kHz
Total harmonic distortion (THD)    0.004% (20W, ref. 1kHZ)
Intermodulation distortion (IM)    0.004% (20W, ref. 7kHz + 60Hz)
Transient inermodulation distortion (TID)    113dB (A Weighted, ref. 140W)
Signal-to-noise ratio (S/N)    140W / 113dB
Damping factor    160
Power Requirement    240V ~ 50-60Hz
230V ~ 50-60Hz
115V ~ 50-60Hz
100V ~ 50-60Hz
Dimension (mm) (WxHxD)    444 x 149 x 367
Carton Size (mm) (WxHxD)    550 x 260 x 580
Weight    16Kg (Net) 18.5Kg (Gross)
