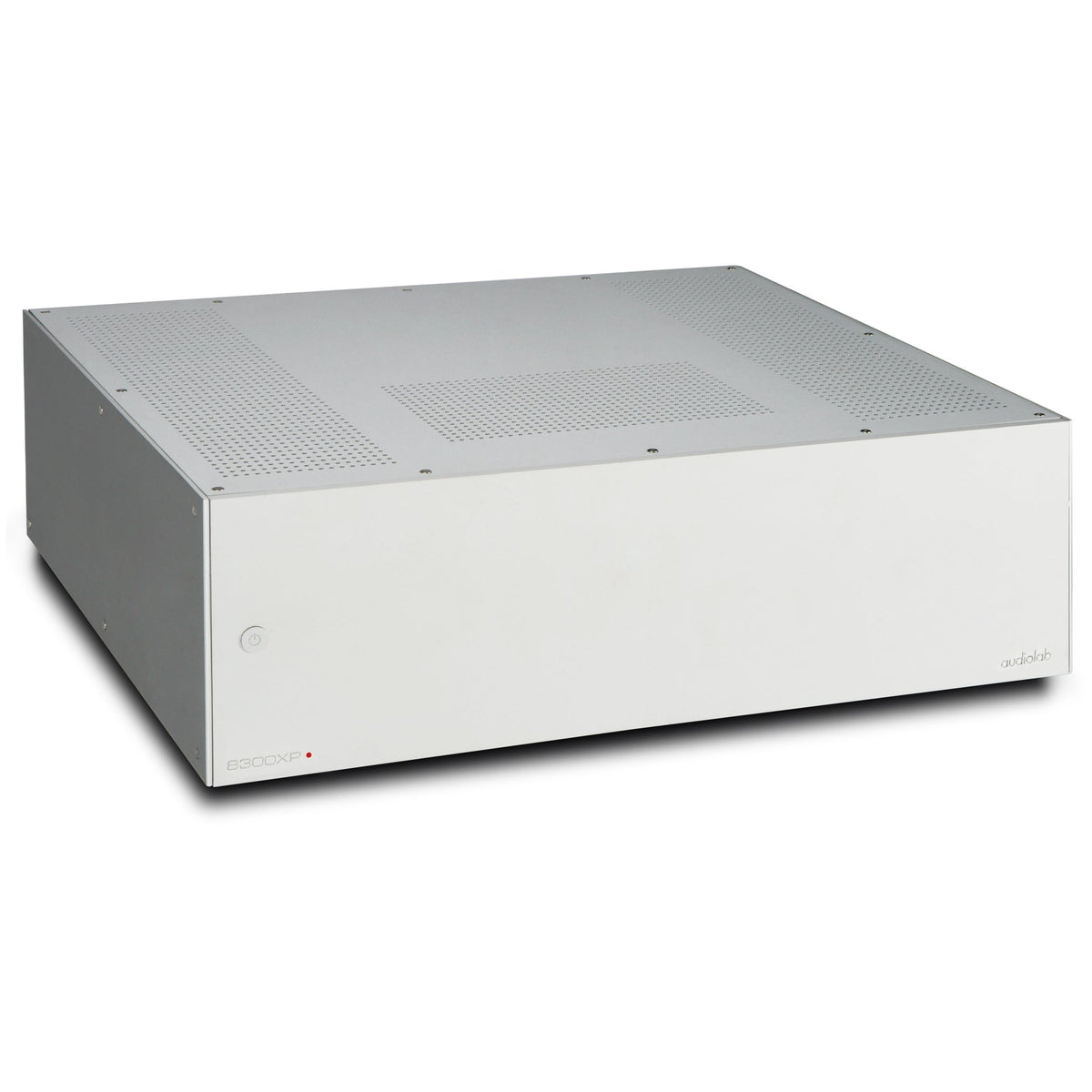

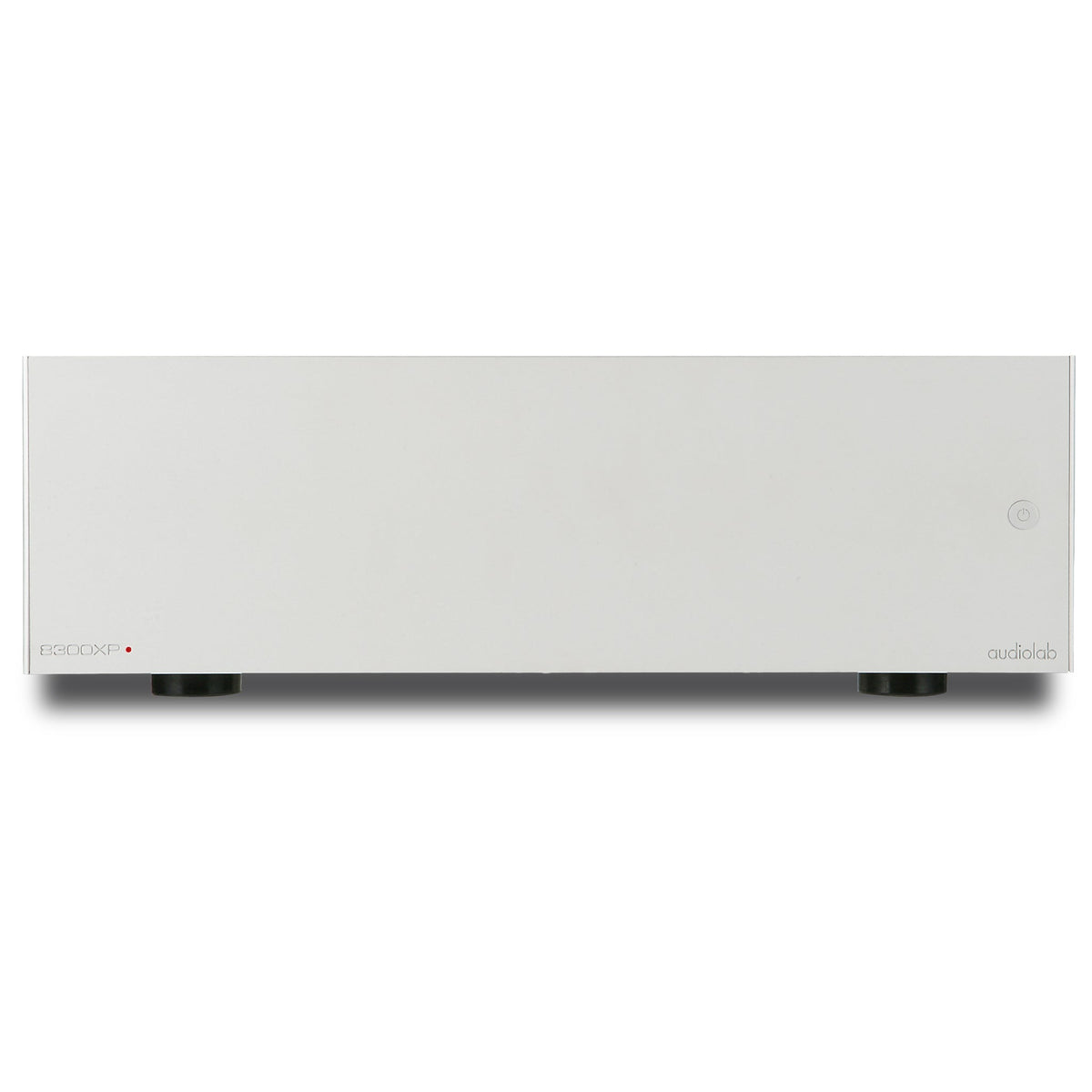

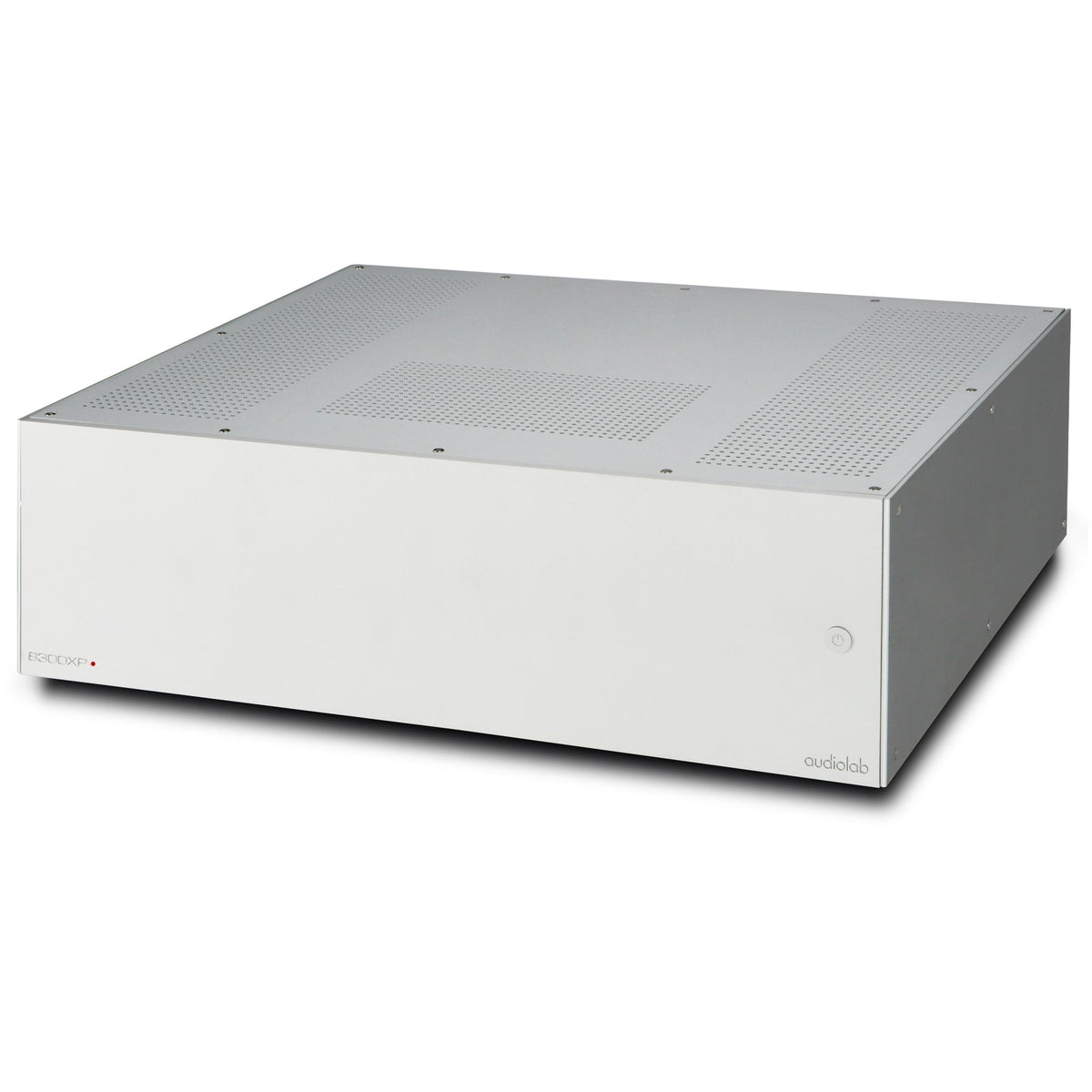

Audiolab 8300XP Stereo Power Amplifier Silver

The 8300XP is a classic audiolab stereo power amplifier, with a sound as clean and crisp as its minimalist exterior.

Delivering 140W per channel into 8 Ohms, the 8300XP is capable of driving even the toughest of loudspeakers with sure-footed authority, combining audiolab’s class-leading neutrality with an unerring ability to engage the listener throughout a musical performance.

Minimalist Exterior

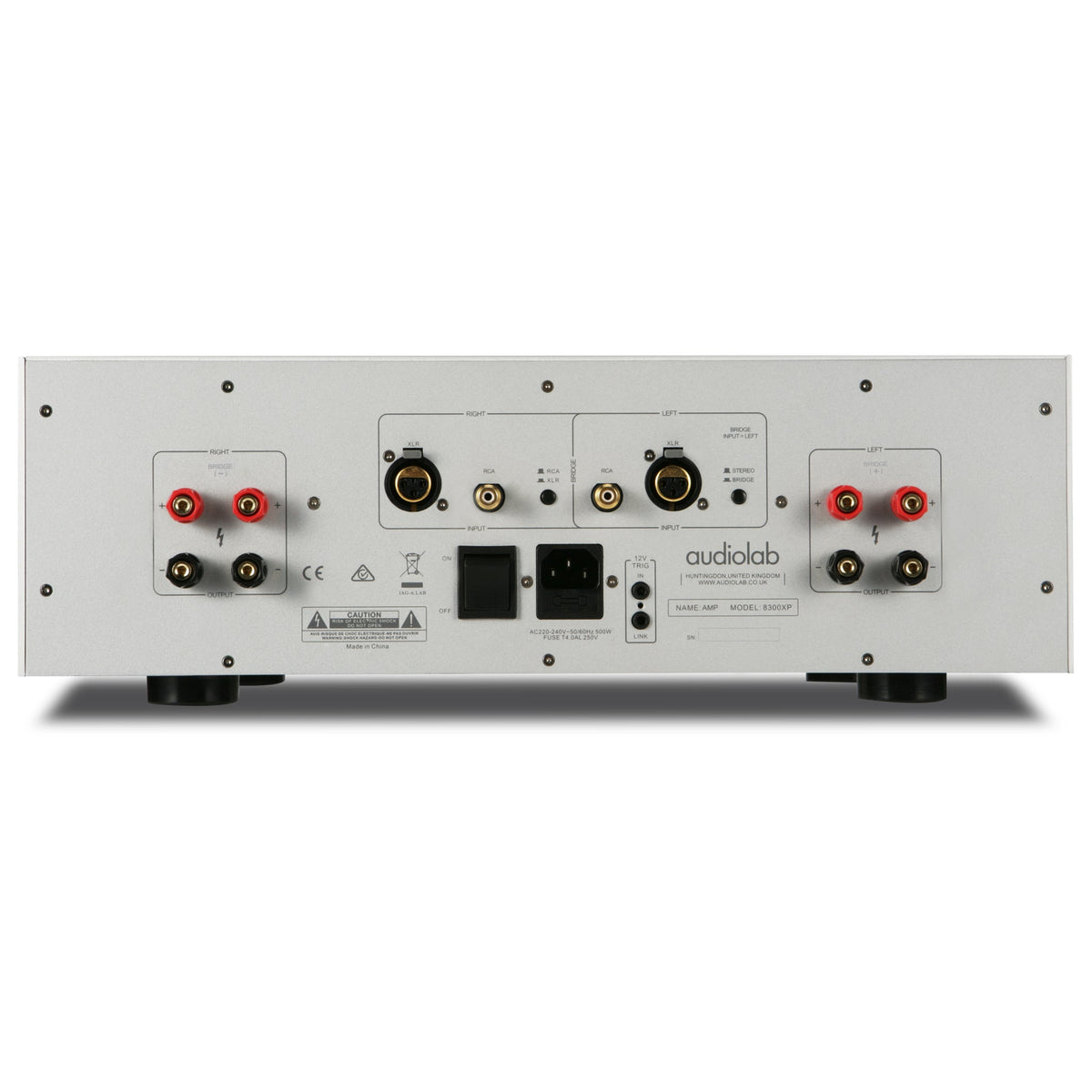

Exemplary build quality and reliability ensure that this is a power amp for all seasons, its versatility increased by a choice of balanced XLR and single-ended RCA inputs, bi-wire speaker terminals and a pair of 12v trigger inputs. Internal circuit components are of the highest quality, right down to the power and signal wiring, which is made of ultra-pure OCC (Ohno Continuous Cast) copper – all in aid of minimising distortion and maximising sonic clarity.

Flexibility is further enhanced by the ability to add a second 8300XP and operate in bridged mode, thus increasing the power output to 480W per channel into 8 Ohms. All audiolab amplifiers are gain-matched, ensuring perfect integration with other audiolab components.

Specifications

• Rated power output: 140W RMS (8Ω <1% THD, 1kHz stereo), 230W RMS (4Ω <1% THD, 1kHz stereo), 480W RMS (8Ω <1% THD, 1kHz bridge)
• Gain: 29dB @ 1kHz (stereo), 36dB @ 1kHz (bridge)
• Input sensitivity: 1100mV
• Input impedance: 15k (balanced), 10k (unbalanced)
• Frequency response -3dB: 20Hz - 80kHz
• Frequency response +/-1dB: 20Hz - 30kHz
• Total harmonic distortion (THD): 0.004% (20W, ref. 1kHz)
• Intermodulation distortion (IM): 0.004% (20W, ref. 7kHz + 60Hz)
• Signal-to-noise ratio (S/N): 113dB (A Weighted, ref. 140W)
• Damping factor: 160
• Power Requirement: 240V / 230V / 115V / 100V ~ 50-60Hz
• Dimension (mm) (WxHxD): 444 x 149 x 367
• Carton Size (mm) (WxHxD): 550 x 260 x 580
• Weight: 16kg (Net), 18.5kg (Gross)
