Audiolab 9000P Stereo Power Amplifier Black

The logical development of the 9000Q preamplifier raised the question of system expansion and thus led to the birth of the 9000P - the dedicated power amplifier option for the 9000 series.

Technological Features

A key to the audiolab performance is the Audiolab-standard CFB (Complementary Feedback) topology, which ensures superior linearity and excellent thermal stability, as the idle current is kept independent of the temperature of the output transistors. An all-new and custom specified 320VA toroidal transformer, followed by 4 x 15,000uF reservoir capacity (60,000uF in total), helps the amp to maintain firm control of the music whilst enabling excellent dynamic range.

Power and Performance

The 9000P power amplifier matches the 9000A with a dedicated 100W per channel into 8 ohms, making it the perfect like-for-like accompaniment for the 9000Q preamplifier.

Design and Build

Designed inline with the smart aesthetic of the 9000 series - solidly built and impeccably finished – the 9000P is the perfect match for all 9000 components.

Specifications

• General Description: Power Amplifier
• Design Philosophy and Core Technology: Class AB power amplifier, CFB (Complementary Feedback Technology), Stereo/Bridge mode

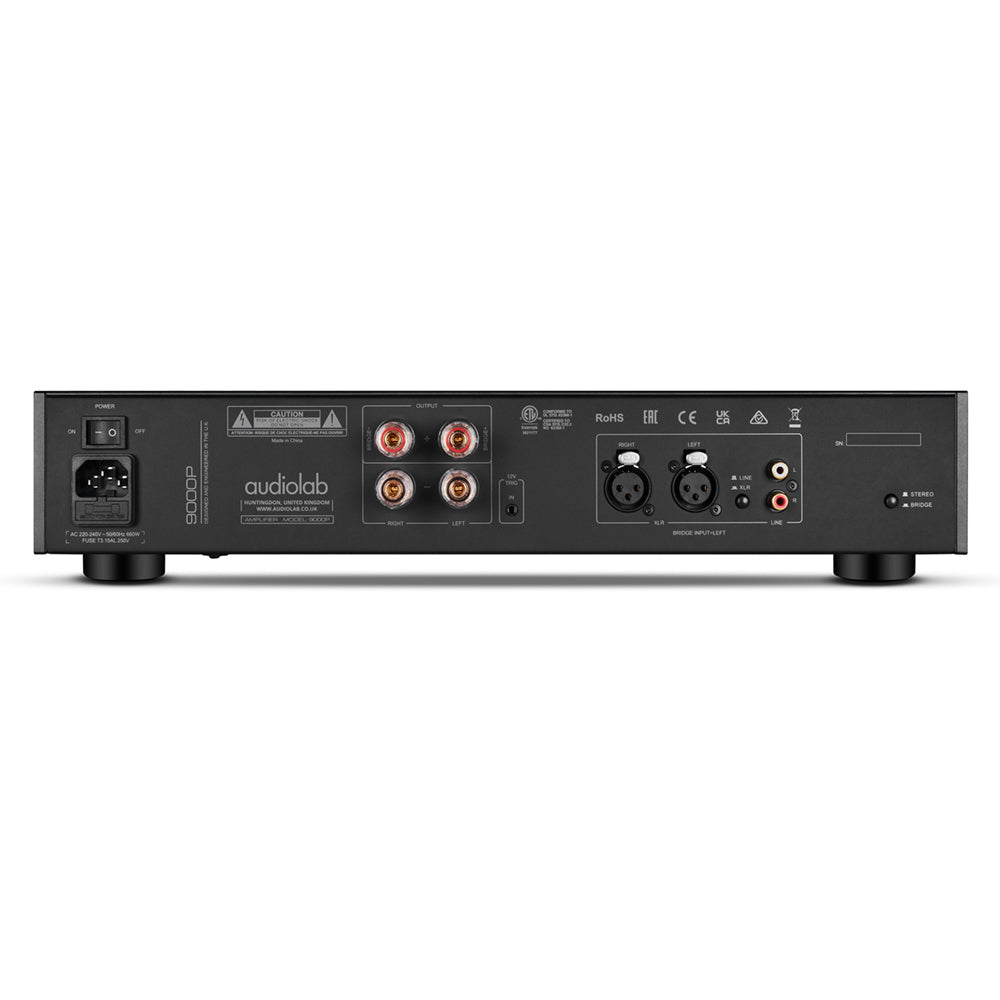

• Inputs: 1 x Analogue, 1 x XLR, 1 x 12V Trigger
• Outputs: 1 x Stereo Speaker

Power Amplifier Section (STEREO)

• Gain: 29dB (RCA) / 23dB (XLR)
• Rated Power Output: Stereo: 2 x 100W (8 ohms, THD <1%), 2 x 160W (4 ohms, THD <1%); Bridged (Mono): 300W (8 ohms, THD <1%), 380W (4 ohms, THD <1%)
• Frequency Response: 20Hz - 20kHz (+/-0.3dB)
• Total Harmonic Distortion (THD): <0.002% (1kHz)
• Input Sensitivity: 1Vrms (RCA), 2Vrms (XLR)
• Input Impedance: 10k ohms
• Signal-to-Noise Ratio (S/N): > 112dB (A-weighted)
• Max. Output Current: 15A

General

• Standby Power Consumption: <0.5W
• Net Weight: 9.2kg
• Gross Weight: 10.6kg
• Dimensions (mm) (W x H x D): 444 x 90 x 327
• Carton Size (mm) (W x H x D): 514 x 165 x 470
• Finish: Black / Silver
• Power Requirements (depending on region): 220-240V - 50/60Hz, 100-120V - 50/60Hz
• Standard Accessories: Power Cord, User Manual
