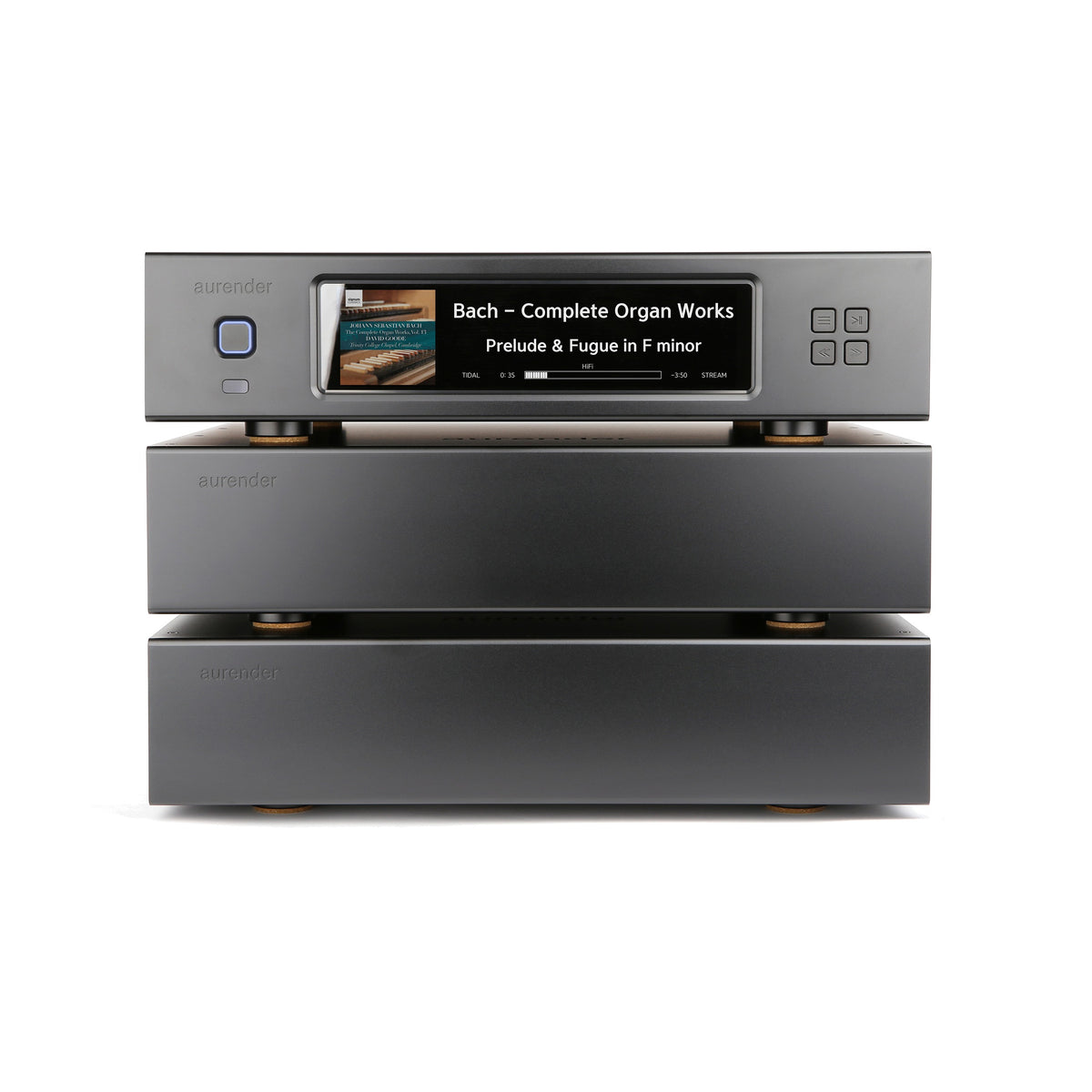

Aurender N50 Reference Music Server Black

The N50 sets a new standard in high-end music servers, combining advanced design and precise tuning for pure,
accurate performance.

A Masterpiece of Musical Refinement

At the heart of the N50 lies a commitment to sound quality, delivering a quiet, natural sound, characterized by a jet-black background and vast soundstage.

Designed for Noise-Free Operation

The N50’s architecture is fundamentally designed to eliminate noise at its source — ensuring that nothing interferes with the music:

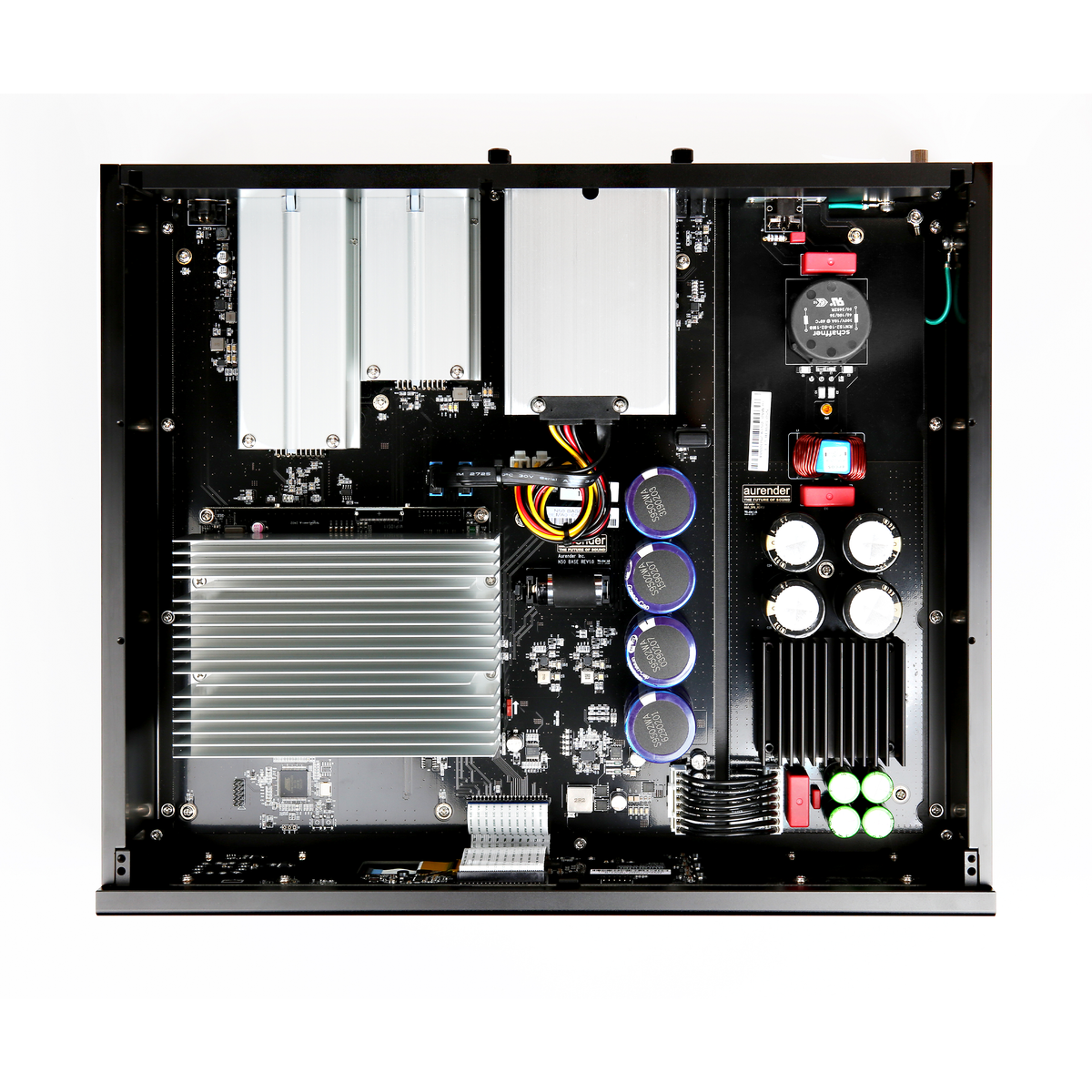

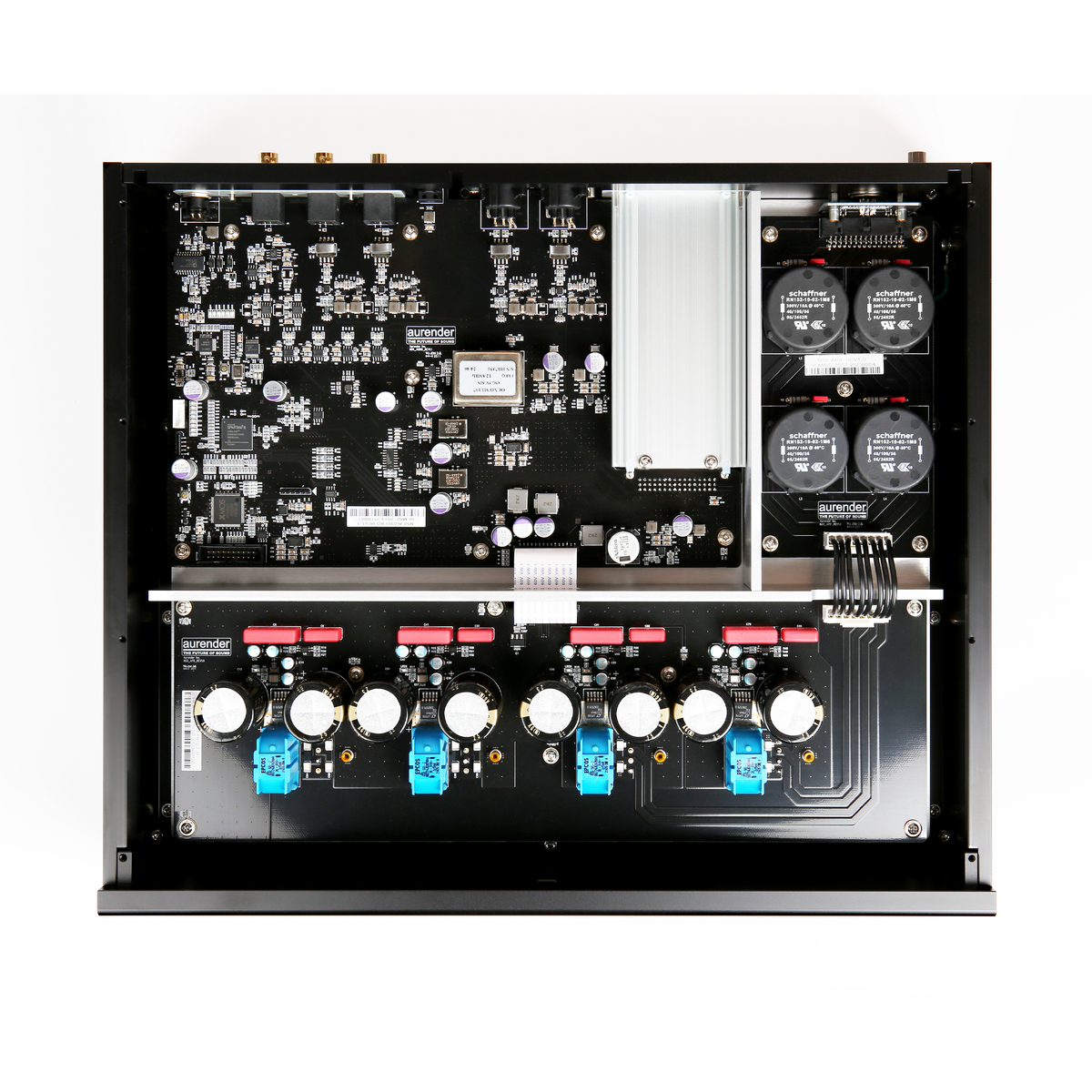

• Triple-chassis Architecture (Server / Power / Audio): By physically separating critical functional blocks, each chassis operates in complete isolation, dramatically reducing internal interference.

• Isolated Network Ports: Independent network connections ensure clean signal paths and enhanced noise immunity, preserving the full integrity of the source.

Ultra-Precise Timing for Unmatched Musical Flow

Precision clocking is at the core of the N50’s musical performance:

• OCXO Clock with FPGA Control: A high-stability OCXO clock, controlled by a dedicated FPGA, delivers ultra-low jitter and precise timing.

• External Clock Input: For even greater precision, the N50 supports an external master clock — ideal for high-precision systems.

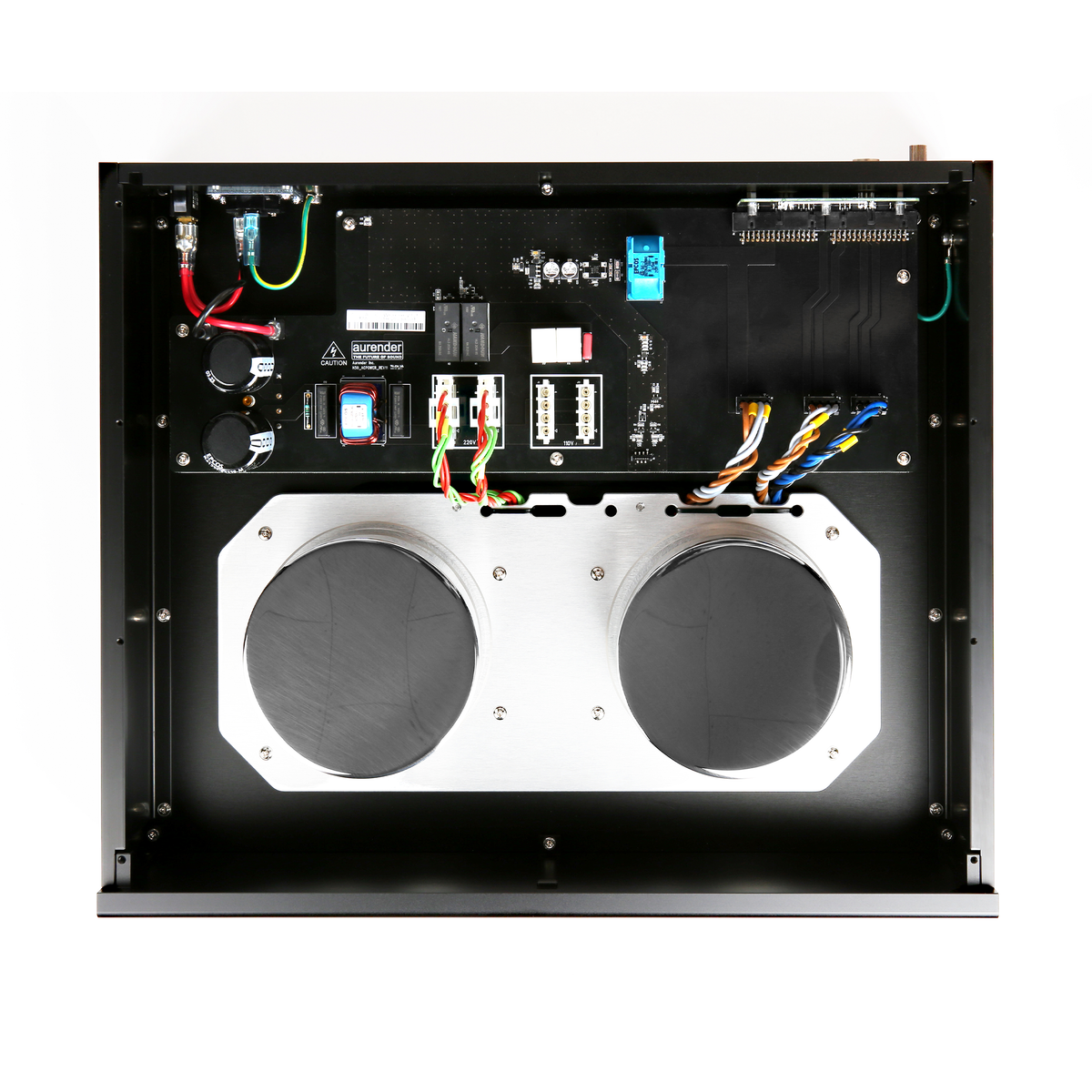

Dual Supreme Toroidal Transformers with Multi-Layer Filtering

• To achieve the cleanest possible power delivery to the audio block, the N50 is equipped with two laboratory-selected, high-inductance toroidal transformers.

• Each transformer is vacuum-encapsulated and epoxy-filled within a polished stainless-steel enclosure, ensuring maximum isolation and durability.

• Multi-layer AC and DC filtering further eliminates power-line noise, providing a pristine foundation for uncompromised sonic performance.

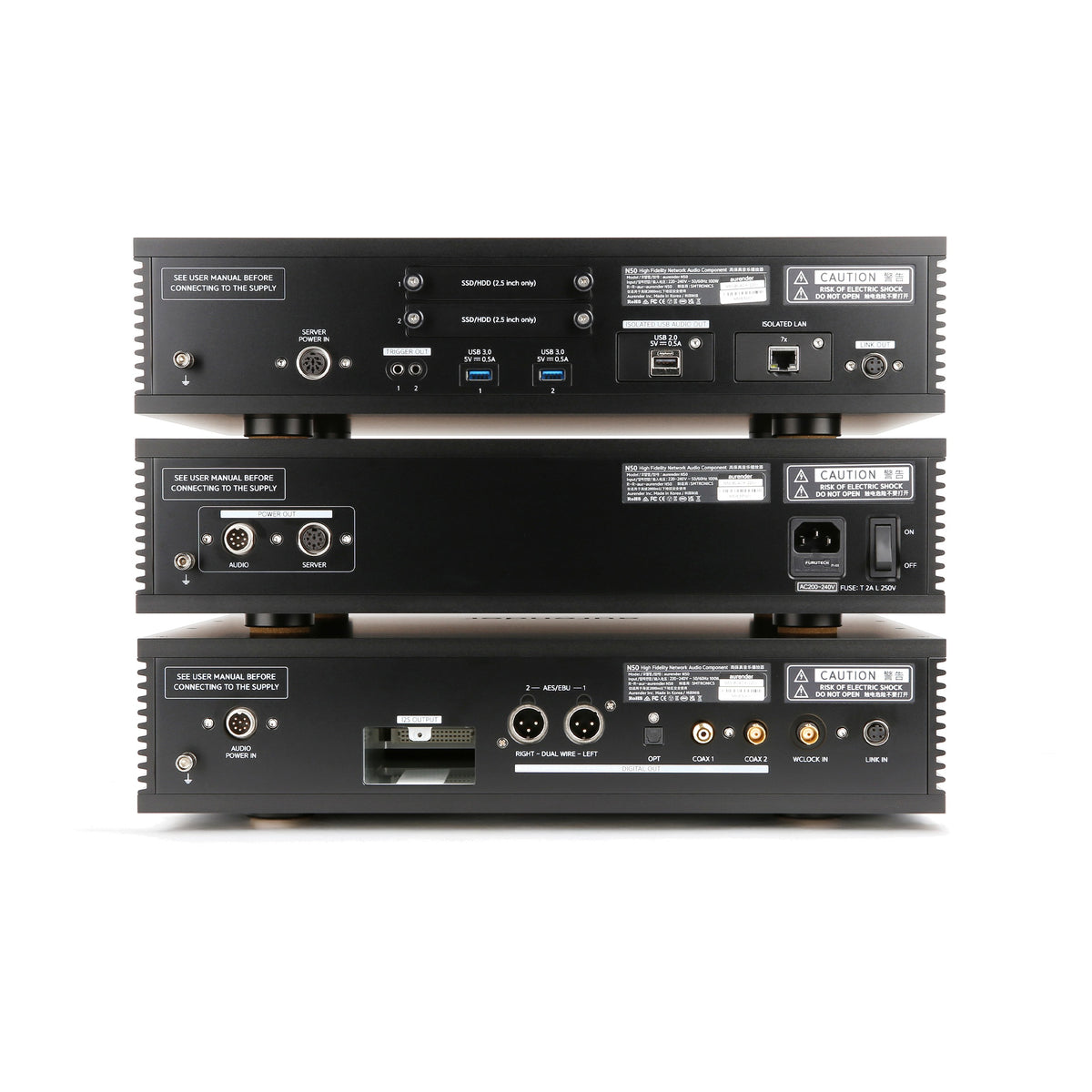

Expanded Connectivity, Greater Flexibility

The N50 expands upon Aurender’s renowned digital audio interface options, offering versatile outputs to suit a wide range of high-end system configurations:

• I2S Output

• Dual AES/EBU Outputs

• Newly Designed USB Output that Reduces Jitter and Noise

• Optional Expansion module: MSB Pro ISL

Seamless Integration with Premium Streaming Services

Whether you prefer curated playlists or high-resolution libraries, the N50 is designed for effortless integration:

• Supports TIDAL, Qobuz, and Spotify natively

• Fully Roon Ready – Ensuring smooth integration into advanced streaming ecosystems

The Aurender N50 is more than just a music server — it is a statement of engineering excellence and sonic clarity. Designed without compromise, it delivers everything a true high-end audio system demands: excellent performance and an immersive experience.

MQA Core-Decoder Upgrade Available

Specifications

• Dimensions: Unit with foot : 430 x 106 x 353 mm / 16.9 x 4.2 x 14.0 inch Unit only : 430 x 93 x 353 mm / 16.9 x 3.7 x 14.0 inch
• Weight: Audio Unit : 14.92 kg (32.89 lb) Server Unit : 14.16 kg (31.23 lb) Power Unit : 18.61 kg (41.03 lb)
• Material: Triple Machined Aluminum Chassis
• Front Panel Display: 8.8″ 1920 x 480 Wide IPS Color LCD
• Power Supply: 1x80W -CPU Board ,1x80W (4 cores) for Digital Output Board – 2 Supreme AUDIO Grade Toroidal transformers
• CPU: Intel Quad Core
• RAM: 8GB
• Library Storage Capacity: 2X 2.5″ Compartment (User-Installable Storage)
• SSD for System & Cache: 480GB NVME
• Data USB Ports: 2X USB 3.0 (Rear)
• Software Suite: Aurender Conductor
• Ethernet Port: 7-fold -Galvanic Isolated Gigabit LAN Module
• Audio USB Ports: Fully Galvanic isolated Audio Class USB 2.0 Modue
• Uninterruptible Power Supply: Yes (Super Capacitors)
• Power Consumption: Play (40W), Peak (70W), Standby (3.5W)
• Digital Outputs: USB Audio (Dedicated), Dual AES/EBU (OCXO Controlled), BNC Coax SPDIF(OCXO Controlled), RCA Coax SPDIF (OCXO Controlled), Optical/TosLink SPDIF(OCXO Controlled), 1-I2S module slot (can choose between installing the MSB Pro ISL and HDMI I2S module)
• USB Output Supported Format: 768kHz/32bit PCM, DSD1024 (Native), DSD256 (DoP)
• SPDIF & AES/EBU Output Supported Format: PCM: Up to 32-bit / 192 kHz; Dual-Wire AES/EBU: Up to 32-bit / 384 kHz DSD: Up to DSD64 ; Dual-Wire DSD128 via DoP
• I2S out (PRO ISL or HDMI): PCM up to 768kHz, DoP up to DSD256, up to DSD512 Native
• Master Clock Input: Coaxial BNC 75Ω – 10MHz, 12.8MHz, 44.1-48kHz (multiples from 1-512x)
• MQA Support: MQA Core-Decoder Upgrade Available
• Compatible Formats: DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE and others
• DSD-to-PCM Conversion (Non-USB Digital Outputs): Up to DSD512
