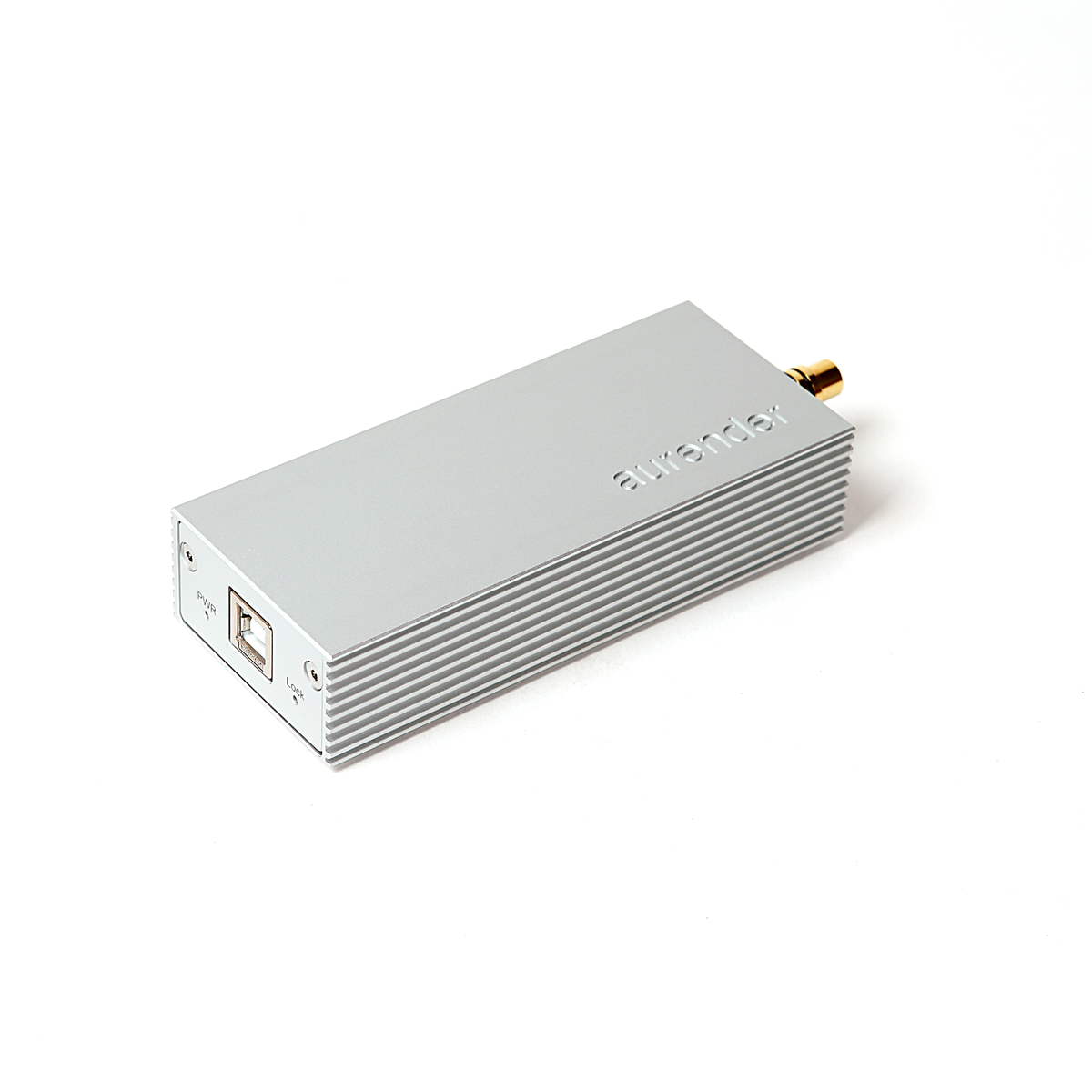

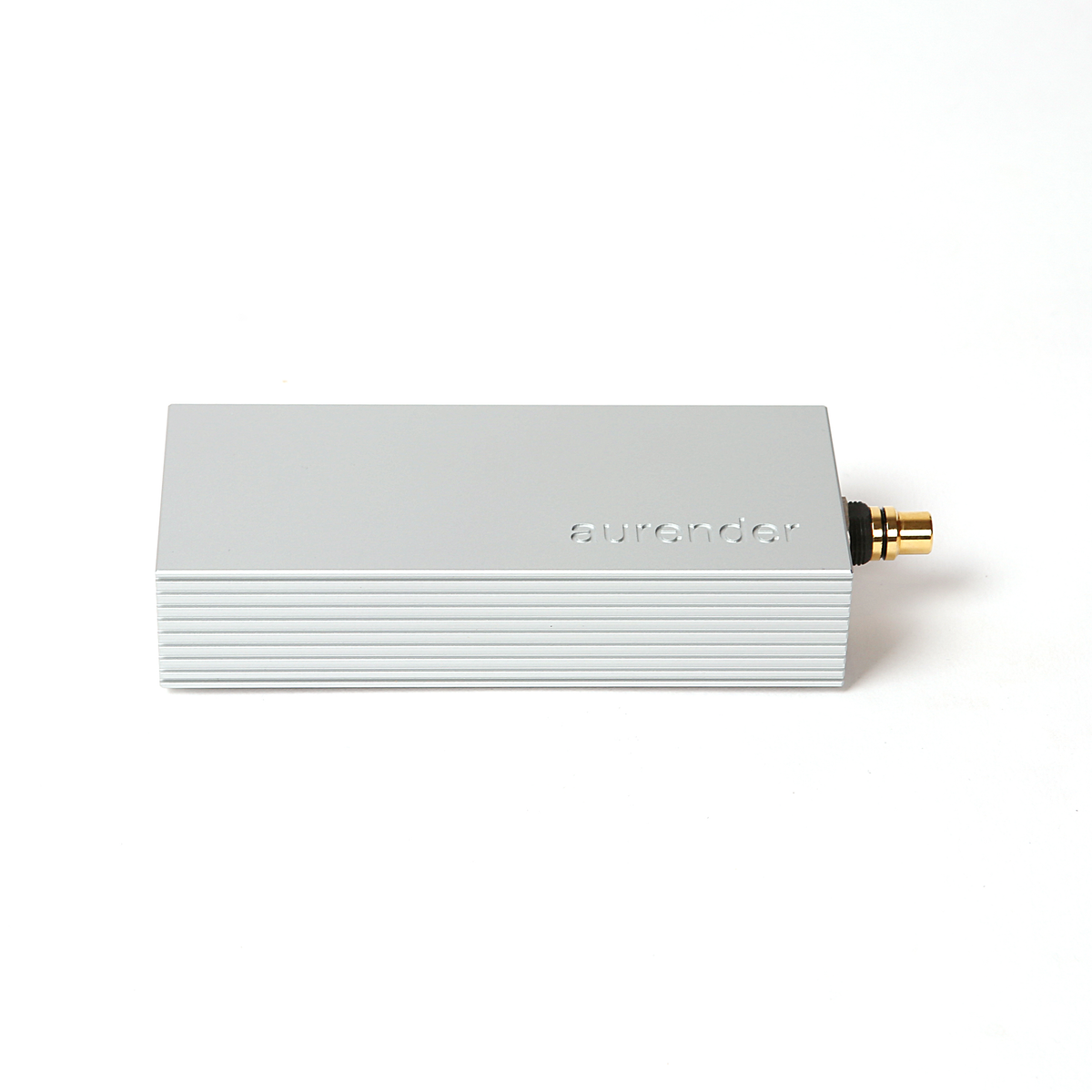

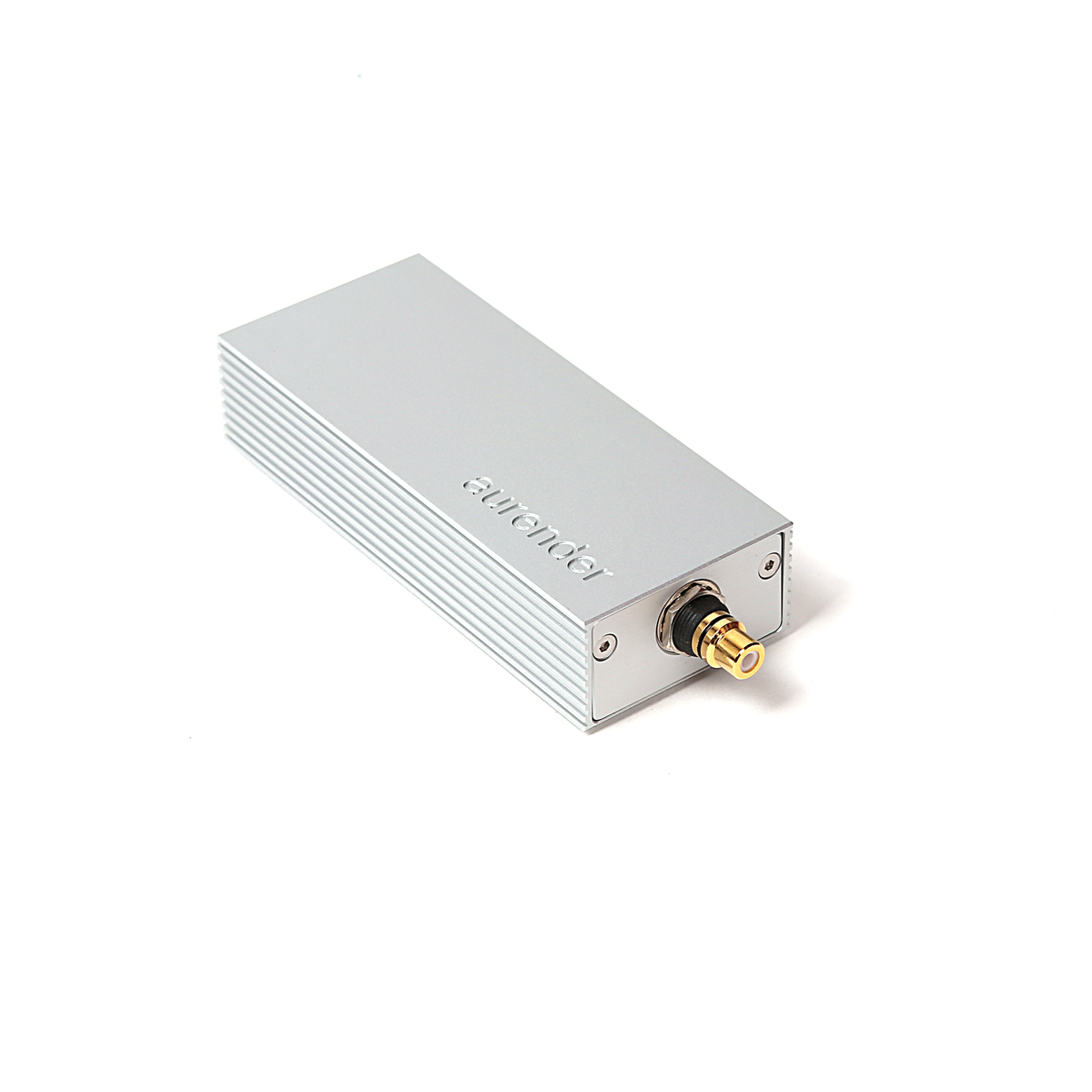

Aurender UC100 USB-to-SPDIF Converter

Premium USB-to-SPDIF (RCA Coax) Converter

USB-to-SPDIF Conversion

UC100 is a high-quality USB to SPDIF conversion interface. Connect a USB cable from your Aurender’s USB Audio output, and UC100 will convert the signal to SPDIF with a coaxial RCA output.

The maximum input/output signal type is 24-bit/192kHz. UC100 is compatible with Aurender models N150, ACS10, ACS100, A200, A15, A20 and A30. It is for use with Aurender only and not compatible with other USB devices.

Specifications

• Dimension: 145 x 30 x 54 mm / 5.7 x 1.18 x 2.12 in
• Weight: 280 g / 0.62 lb
• Input: High-Speed USB 2.0, USB Audio Class 2.0
• Output: SPDIF (Coaxial RCA 75 Ohms)
• Supported Word Lengths: up to 24-bit
• Supported Sampling Rates: up to 192 kHz
• Supported DSD: DSD64 supported with DoP
• Power: USB VBUS 5 V/200 mA
