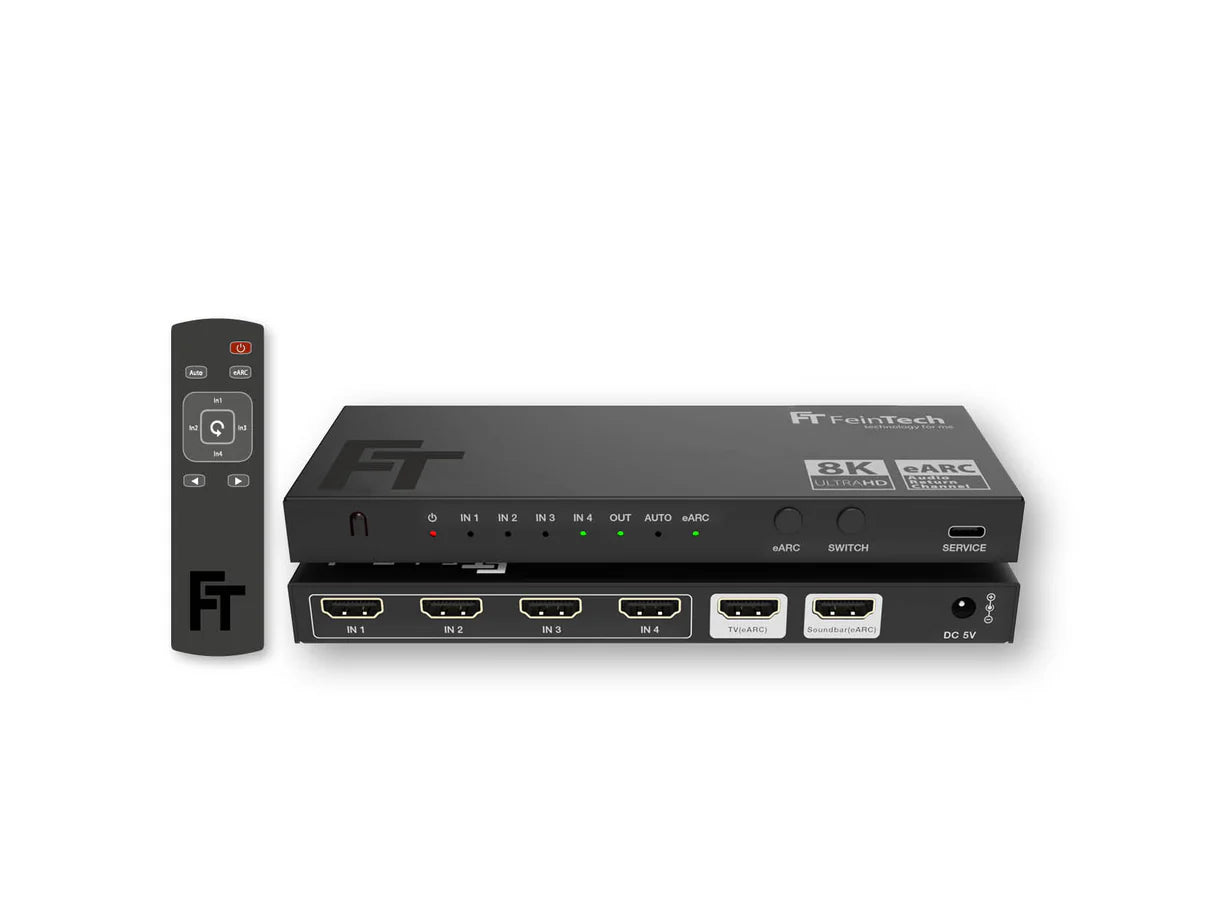

FeinTech AX340 HDMI 2.1 eARC Pass Switch 4 In 1 Out for eARC Soundbar | 4K 120Hz | eARC

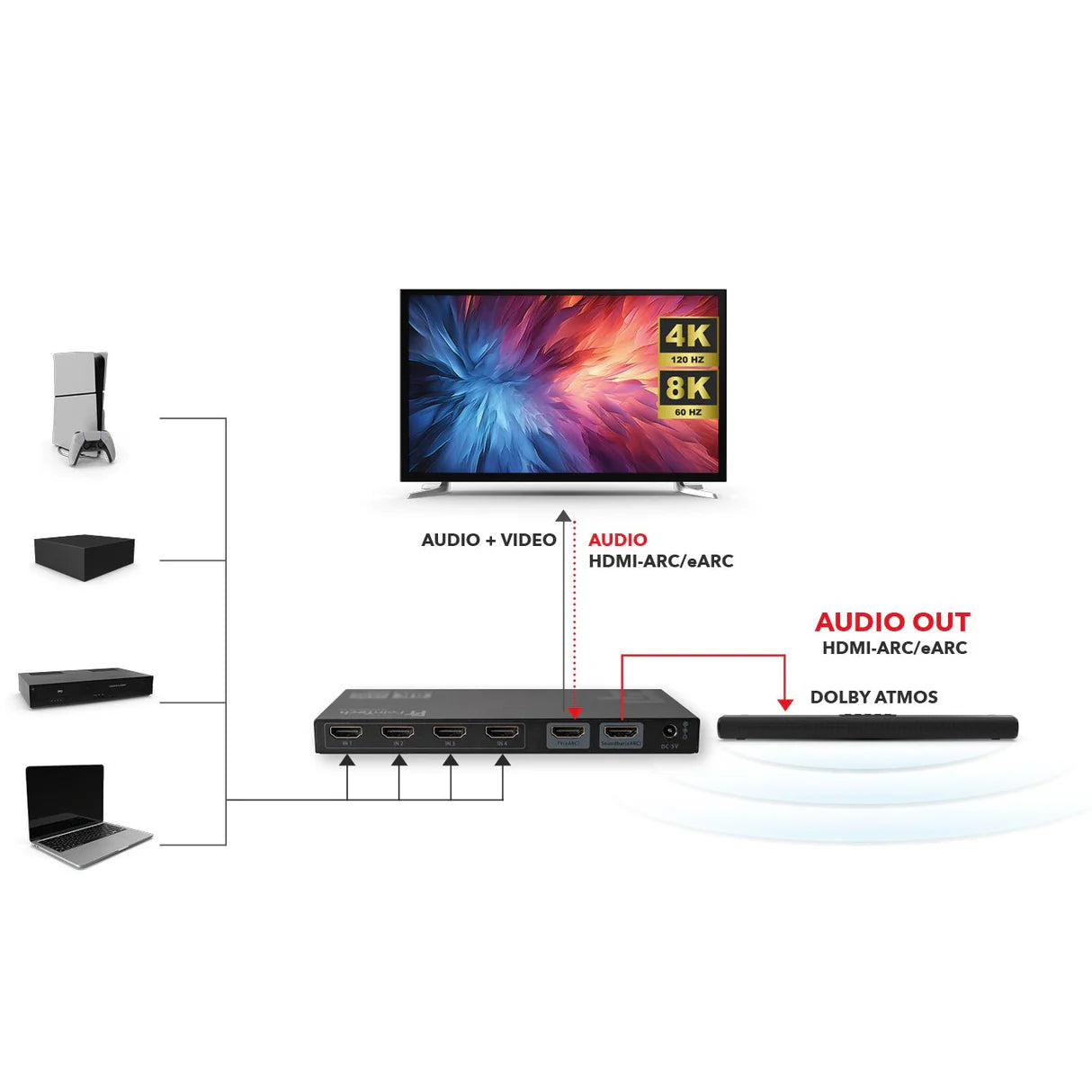

The FeinTech HDMI 2.1 eARC Pass Switch 4 In 1 Out is a high-performance switch designed to connect up to four HDMI 2.1 sources to a single eARC-enabled soundbar, facilitating seamless audio pass-through and 4K video switching at high refresh rates. It is ideal for advanced home entertainment systems requiring easy management of multiple HDMI inputs with eARC support. - Supports HDMI 2.1 with eARC for uncompressed, high-bitrate audio transmission - Allows switching between 4 HDMI inputs to one output without signal degradation - Supports 4K UHD resolution at 120Hz and bandwidth up to 48 Gbps - Compatible with HDR formats including HDR10, HDR10+, and Dolby Vision - Provides automatic source detection with manual switching button for user control - Ensures backward compatibility with HDMI 2.0 and earlier versions Compatibility: Compatible with HDMI 2.1 devices such as gaming consoles, Blu-ray players, streaming devices, and eARC-enabled soundbars or AV receivers. Control options: Manual switching button and automatic input detection. Music sources: Supports all HDMI audio formats, including Dolby Atmos, DTS:X, PCM, and other high-resolution audio standards via eARC. Inputs: 4 HDMI 2.1 inputs Output: 1 HDMI 2.1 output with eARC pass-through Suitable voltage: Powered by 5V DC via included power adapter. Cable lengths supported: Supports HDMI cable lengths up to 3 meters without signal loss; longer extensions depend on cable quality. Connectors: Standard HDMI Type A female connectors for input and output; DC power input. Product weight: Approximately 150 grams. Dimensions: 120 x 60 x 25 mm (L x W x H). In the box: FeinTech HDMI 2.1 eARC Pass Switch unit, 5V power adapter, user manual. Technical specifications: - HDMI Version: 2.1 - HDCP Support: 2.3 - Max Resolution: 4K UHD (3840x2160 @120Hz) - Bandwidth: 48 Gbps - Audio Support: eARC, Dolby Atmos, DTS:X, PCM - HDR Support: HDR10, HDR10+, Dolby Vision - Power Consumption: Approximately 4W - Operating Temperature: 0°C to 40°C
