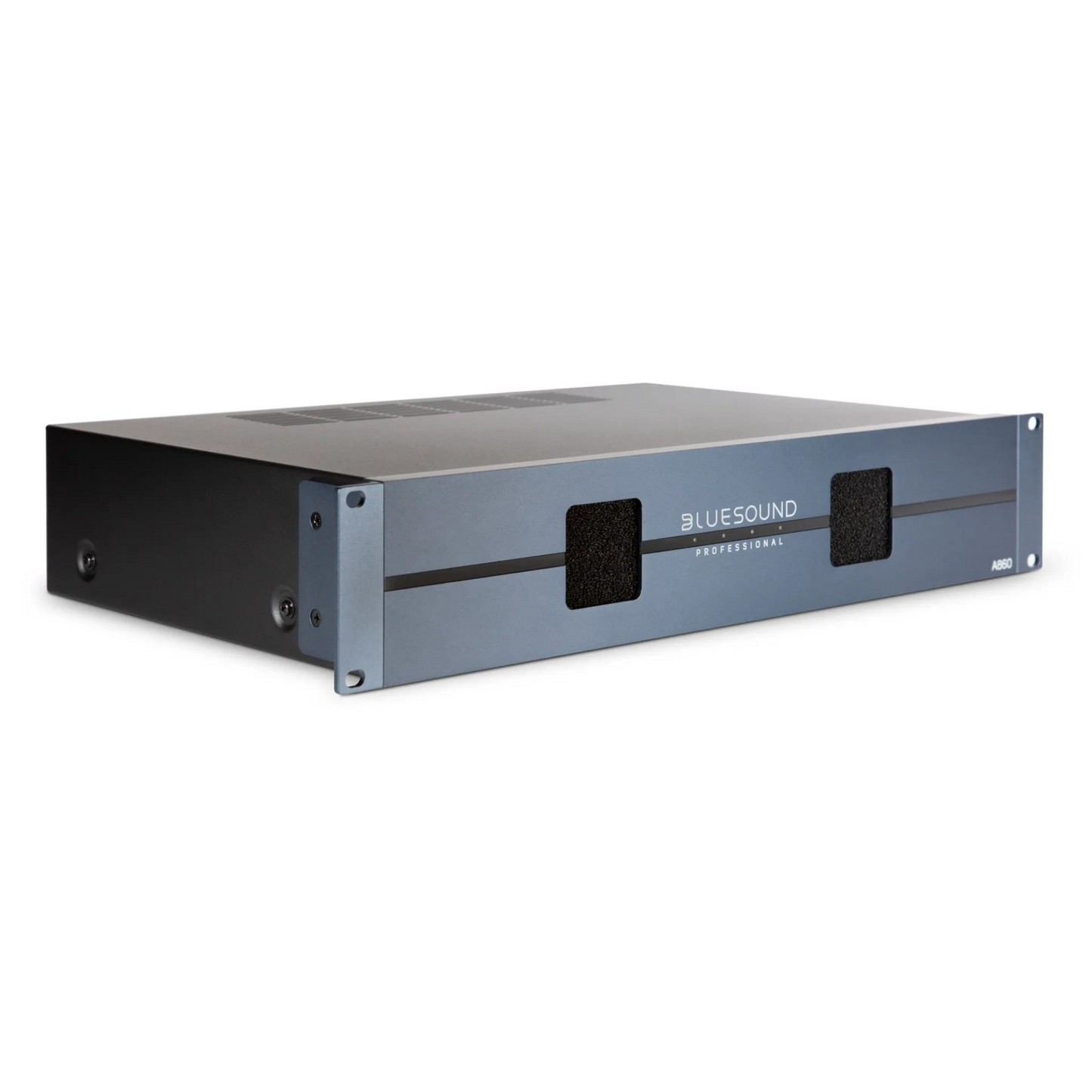

Bluesound Pro A860 8-channel Audio Power Amplifier for Rack Mount

4-zone 8-channel Audio Amplifier with 2U Rack Profile for Low Impedance Residential & Commercial Installations

4 stereo zones | 8 channels | Gain control | Low noise cooling | Global input | Pass-through | 2U rack size | Status indicators

The Bluesound Professional A860 is a high quality 8-channel power amplifier for use in commercial installations.

Playback Control Options:
12V trigger, Signal Autosense

Contents & compatibility:
What's in the box - Bluesound Pro A860, EU powercord, US powercord, Phoenix terminals, Feet with screws The product will work on EU, UK & US mains power supply with corresponding power cord, check if your region power cord is supplied above.
Is this a complete audio system? - No, you will need to add music source component & passive speakers of your choice

Important features:
Sound character - good detail, neutral, balanced timbre
Setup & use is simple & easy
Sound format & channels - 4x stereo, 8 sound channels
Amplifier power - 8x50W @8Ω, 8x60W @4Ω, 120W bridge mode @8Ω (per channel)
Amplifier technology - Class D (digital sound amplification - very efficient)
Amplifier damping factor - >150
Audio inputs - Global balanced analog (Phoenix), 4x Zone balanced analog (Phoenix)
Audio outputs - Speaker ports (Phoenix)
Signal to noise ratio - 100dB
Power consumption - <0,5W in standby, 26W while idle (not playing), 600W max peaks

A standby mode can be triggered remotely or automatically for low power consumption when not in use. A global input can be assigned to multiple outputs and global and local output facilitate multiple amplifier installations. Thermostatically controlled fans ensure trouble-free operation in a wide range of conditions.

8 channels of high-quality amplification
Balanced line inputs for commercial use
Automatic or remotely triggered standby mode for 0.5W low power consumption
Thermostatically controlled low noise fans ensure reliable operation
Global balanced input routable to multiple outputs
Pass-through global and local balanced line level outputs for multi-amplifier installations
Compact 2U rack-mount form factor
Indicators for amplifier and channel status

Easily Create Branded Environments
With hardware that supports nearly unlimited zones of audio and a natively-integrated commercially-licensed music streaming service in SoundMachine, Custom Channels, SiriusXM for Business, Qsic and Tunify, Bluesound Professional makes easy work of creating branded environments for your clients.

Plays Nicely with Others
Standard rack sizes and a wide range of standard inputs and outputs means that installation is quick and simple. The ecosystem&rsquo;s modular design allows it to work seamlessly as an audio system on its own, or with audio components from other brands.

Add Audio Streaming to Existing or New Installations
Bluesound Professional&rsquo;s decentralized processing capabilities gives designers and installers maximum flexibility to add audio streaming to installations, whether existing or new.

Easy to Configure
Self-discovery makes set-up and configuration painless, as Bluesound Professional players placed onto the same network will find each other automatically. A few taps on the intuitive icons in the BluOS Controller app will group players to create zoned audio content and lock-out unauthorized users.

EAN 0786357000619<br>
SKU BSP.A860<br>
<br>

Specifications:<br>
CONTINUOUS OUTPUT POWER
8 Ohms: 8 x 50W (ref. rated THD, 20Hz-20Hz, all channels driven)
4 Ohms: 8 x 60W
8 Ohms Bridge mode: 120W
Rated THD (250mW to rated power, CCIF IMD, DIM 100): &lt;0.03% (ref. 20Hz-20kHz)
Clipping Power: &gt;155W (ref. 1kHz, 8 Ohms, 0.1% THD)
Damping Factor: &gt;150 (ref. 8 Ohms, 50Hz and 1kHz)
Input Sensitivity: 1.1V (ref. rated power)
Voltage Gain: 33dB

GENERAL
Signal/Noise Ratio, A-Weighted: &gt;80dB (ref. 1W/8 Ohms), &gt;100dB (ref. 50W)
Minimum Input Signal to Trigger (auto sense mode): &gt;20mV
Time to Automatic Standby (without signal at input sense mode): 10 minutes
Rated Power: 600W (120V 60Hz, 230V 50Hz)
Idle Power: &lt;26W
Standby Power: &lt;0.5W
