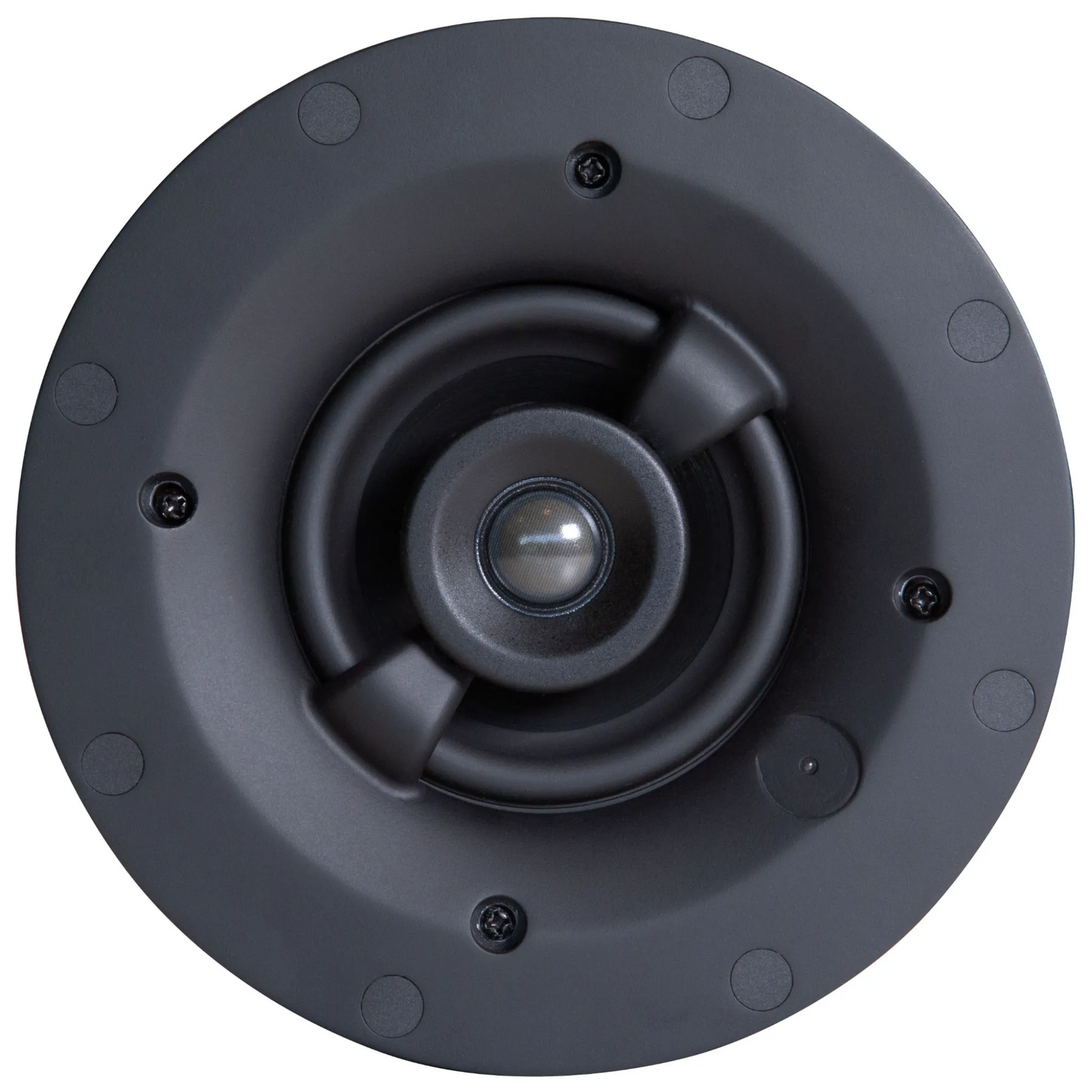

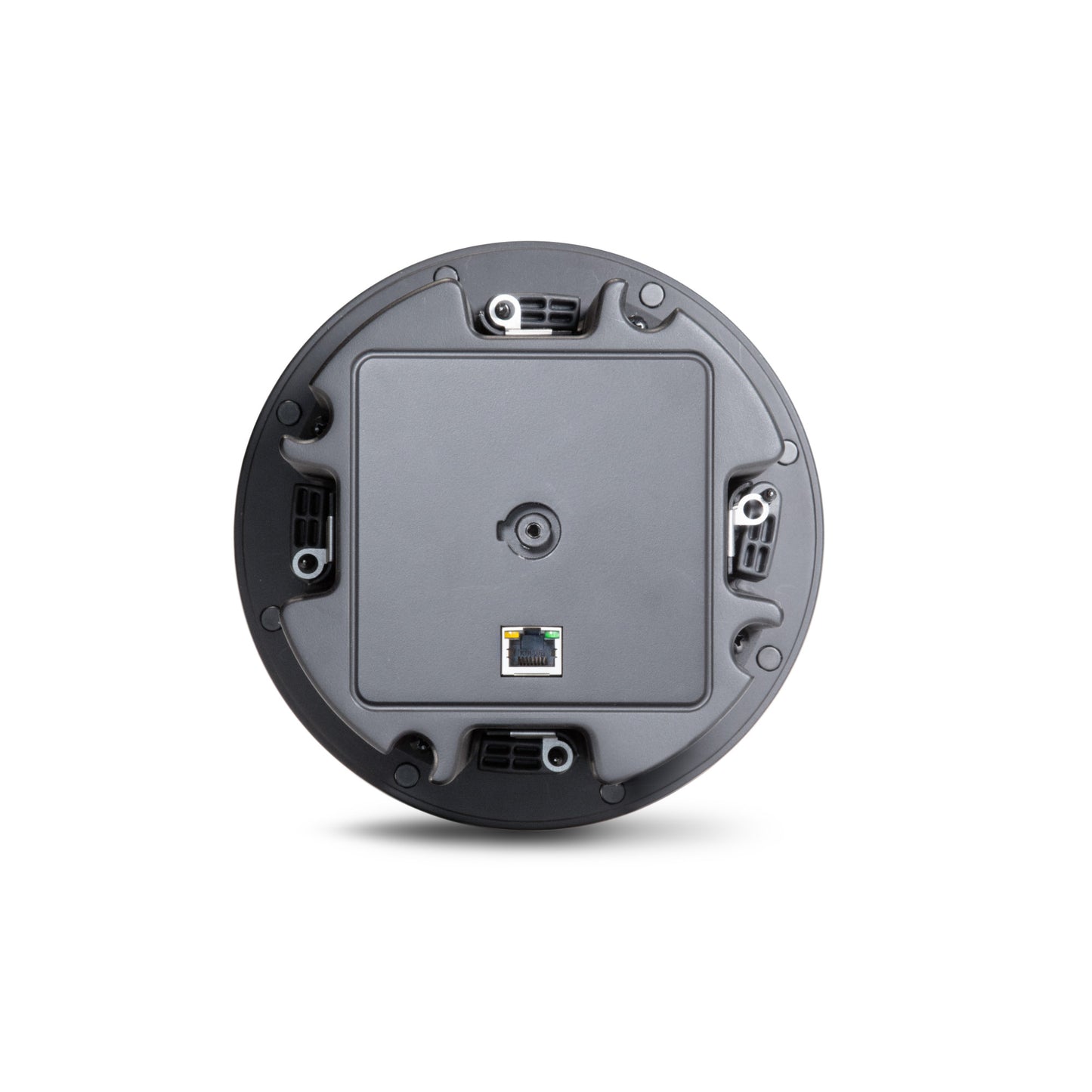

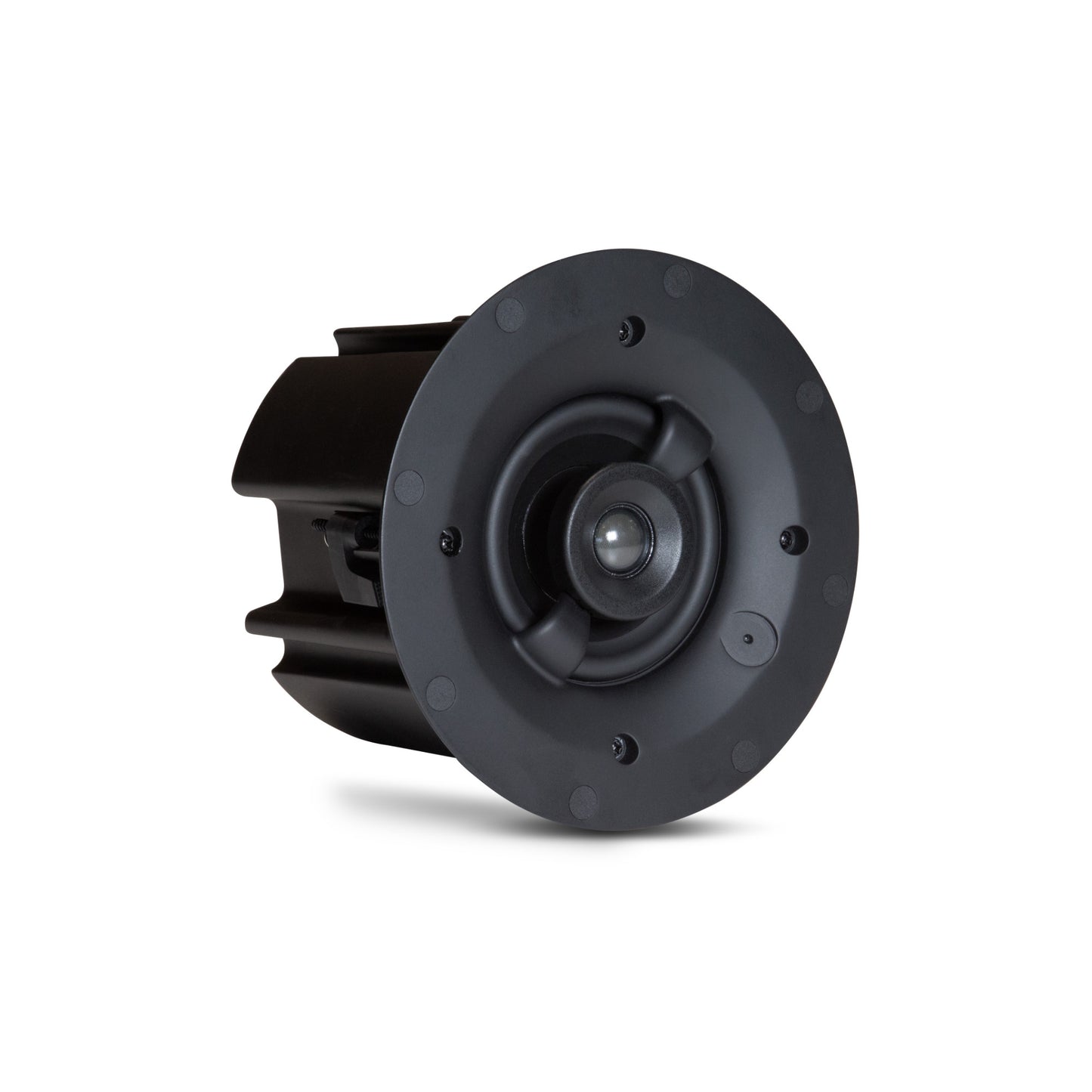

Bluesound Pro BCS300 Smart In-Ceiling Network Speaker with PoE Power Supply

All-in-one In-Ceiling Architectural Smart Streaming Amplified Network Speaker with PoE Power Supply

BluOS streaming | Hi-Res audio | Mono or Stereo Pair | Pendant Kit Available | Commercial Music Services | PoE+ Power | Multiroom Installations | Magnetic Grille

The BCS300 is a seamlessly integrated, all-in-one in-ceiling or hanging pendant speaker solution featuring a built-in music streamer and amplifier. Using power over ethernet technology, it efficiently delivers audio to its desired destination in a discreet and simplified manner, requiring only a single ethernet cable connection to deliver both power and network connection.

Available Music Options:
Music sources - internet radio, music services, network music library, third party apps
Music services compatibility - Soundmachine, CustomChannels, Qsic, Tunify, Spotify, Tidal, Amazon, Deezer, Qobuz, and many more, full list here.
Hi-Res Audio Compatible - yes
Thirdparty app compatibility - Spotify, TIDAL

Playback Control Options:
BluOS app, on-wall keypad, third party apps, third party control systems

Contents & compatibility:
What's in the box - Bluesound Pro BCS300, White circular grille (PoE power adapter not included), Quickstart guide The product will work on EU, UK & US mains power supply with corresponding power cord, check if your region power cord is supplied above.
Is this a complete audio system? - Yes
Network connection - RJ45 LAN cable
Installation mounting cutout - 125mm
Installation mounting depth - 127mm

Important features:
Sound character - good detail, neutral, balanced timbre
Setup & use is simple & easy
max 16 (WiFi) or 64 (wired to LAN) zonesmax 16 (WiFi) or 64 (wired to LAN) zones
yes
Max. sound pressure level - 102dB (PoE+) @ 1m distance
Sound format & channels - mono, 1 sound channels
Amplifier power - 23W (per channel)
Amplifier technology - Class D (digital sound amplification - very efficient)
Frequency response - 45Hz-20kHz (-10dB)
Drivers - 1 tweeter (25mm), 1 woofer (89mm)
MP3, AAC, WMA, OGG, WMA-L, ALAC, OPUS, FLAC, MQA, WAV, AIFF
Power consumption - 3,3W while idle (not playing)

Using power over ethernet technology, it efficiently delivers audio to its desired destination in a discreet and simplified manner, requiring only a single ethernet cable connection to deliver both power and network connection. Unlike traditional setups, this decentralized solution eliminates the need for an audio rack, functioning as an independent unit. Moreover, its flush mounted design allows it to seamlessly blend with any interior design or décor. Its high-performance build includes a UL 2043 plenum rating, fully certifying it for commercial installation. The optional pendant kit allows the BCS300 to be ceiling suspended and allows positioning of speakers at a lower height if there is nothing available to mount it at a typical height, especially in the case of exposed ceilings. Based on the award-winning BluOS multi-room platform, the BCS300 enables multi-zone control, speaker grouping and integrated networked music streaming from Bluesound Professional’s business music partners: SOUNDMACHINE, Qsic, Custom Channels, SiriusXM for Business and Tunify.

Patent No. :US 11,277,687

EAN 0786357002507<br>
SKU BSP.BCS300<br>
<br>

Specifications:<br>
Full-range network streaming speaker system
3.5” LF driver and 1” HF driver
45Hz – 20kHz frequency range
003% THD+N at full rated power
Maximum SPL of 102db (PoE+)
DSP providing equalization and other audio processing
2 x BCS300’s can pair in stereo configuration
Flexible and unlimited grouping of zones within a BluOS system
Integration with local network content storage
Integration with many streaming services including Custom Channels, SoundMachine, Qsic, SiriusXM Music for Business, Spotify, Tidal and Qobuz
Integration with a wide variety of internet radio platforms
PC/Mac, iOS/Android and third-party control
Security preventing unauthorized control
Specialist Bluesound Professional control panels
Support of hi-res audio up to 192kHz/24 bit
Support of MQA content
Streaming via ethernet for increased reliability with PoE+ providing one-wire connectivity and power
Slim profile requires only 5 inches of depth
UL 2043 Plenum Rated

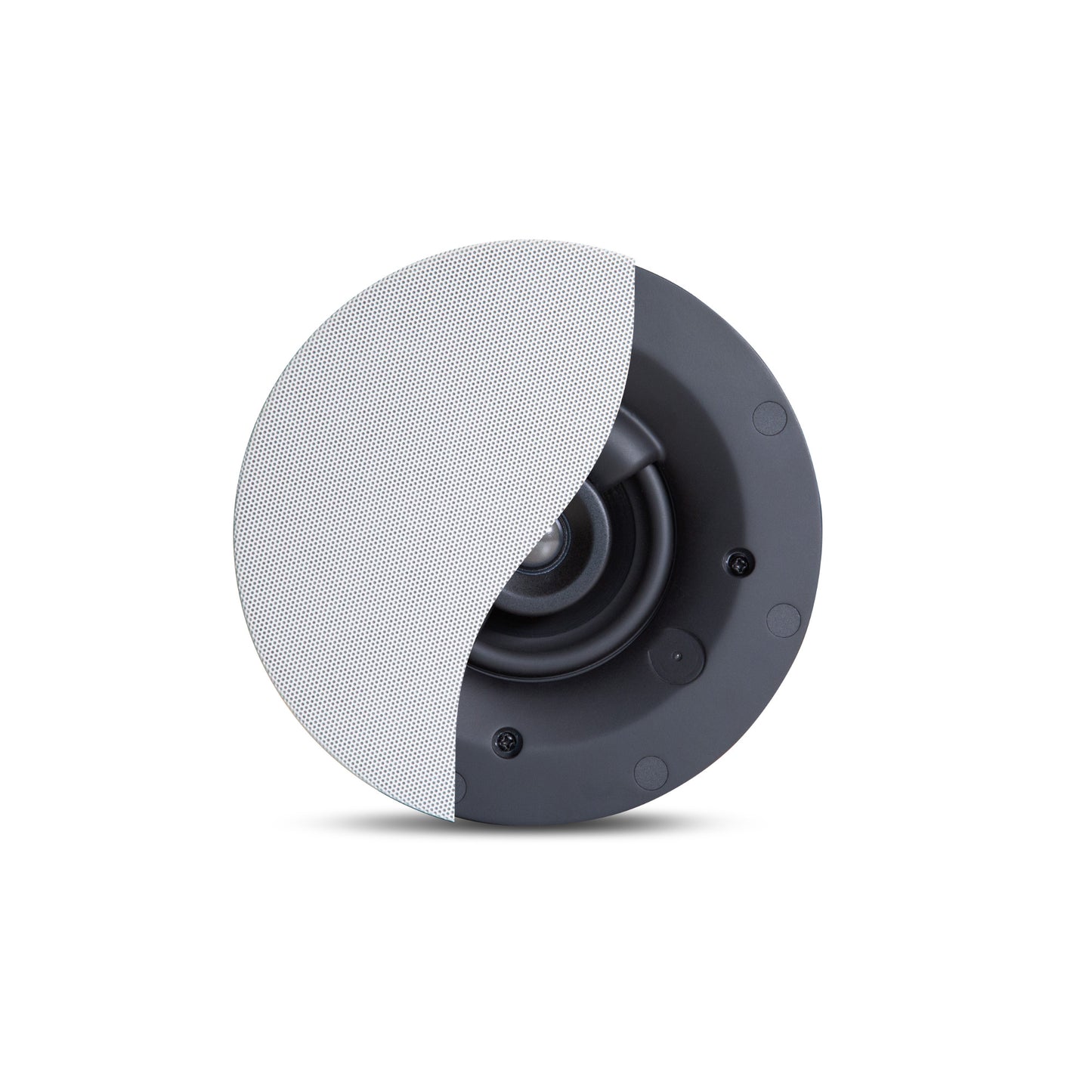

White magnetic grille included and optional black grille available
Available in Black with White Grille
Optional BCS Pendant Kit available in Black or White
