Bluesound Pro BSW150 Smart Network Subwoofer for Bluesound system

Smart Amplified Network Subwoofer for Bluesound Professional Audio System

BluOS streaming | Hi-Res audio | For any Bluesound Speaker | Commercial Music Services | Multiroom Installations

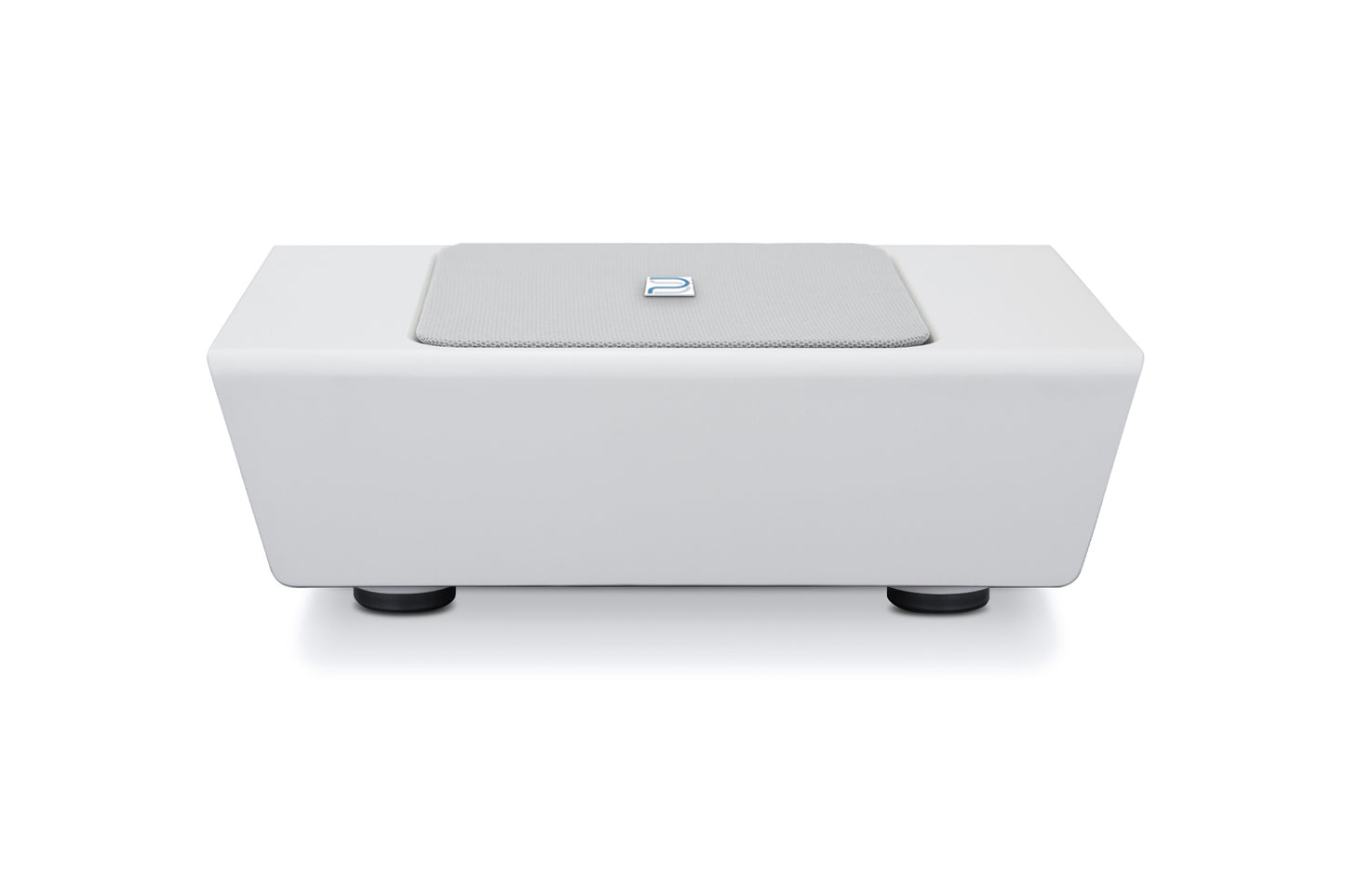

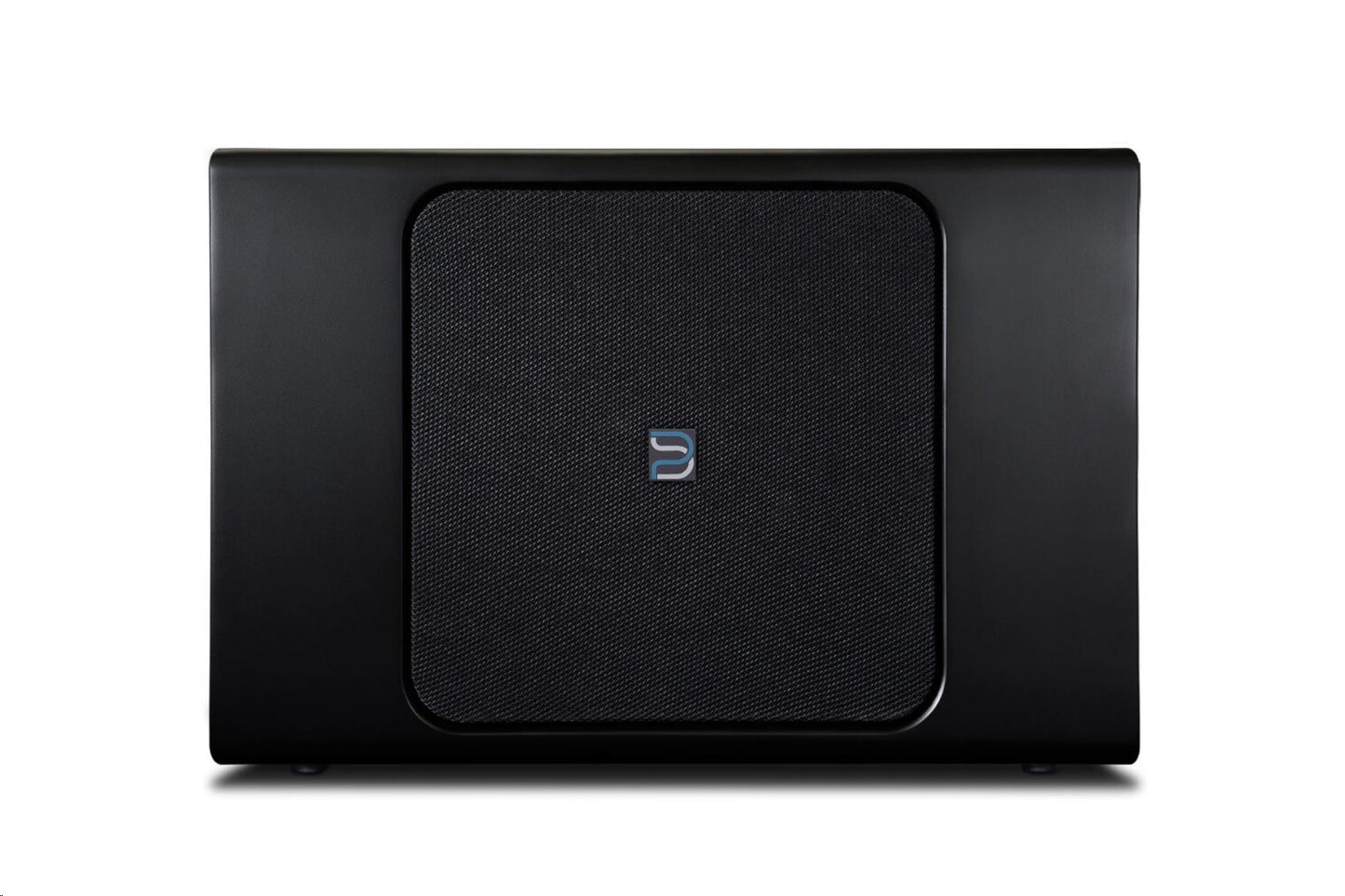

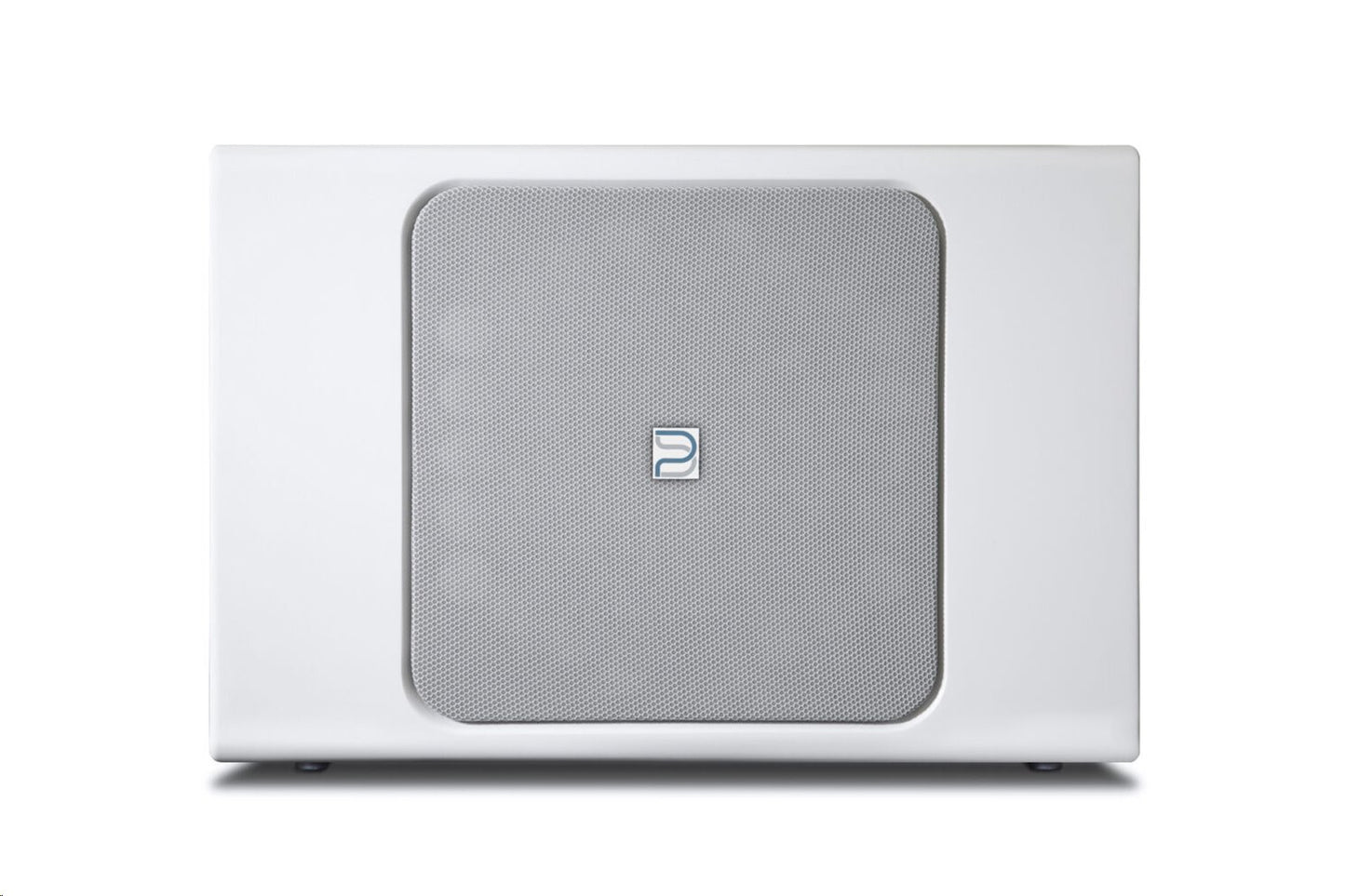

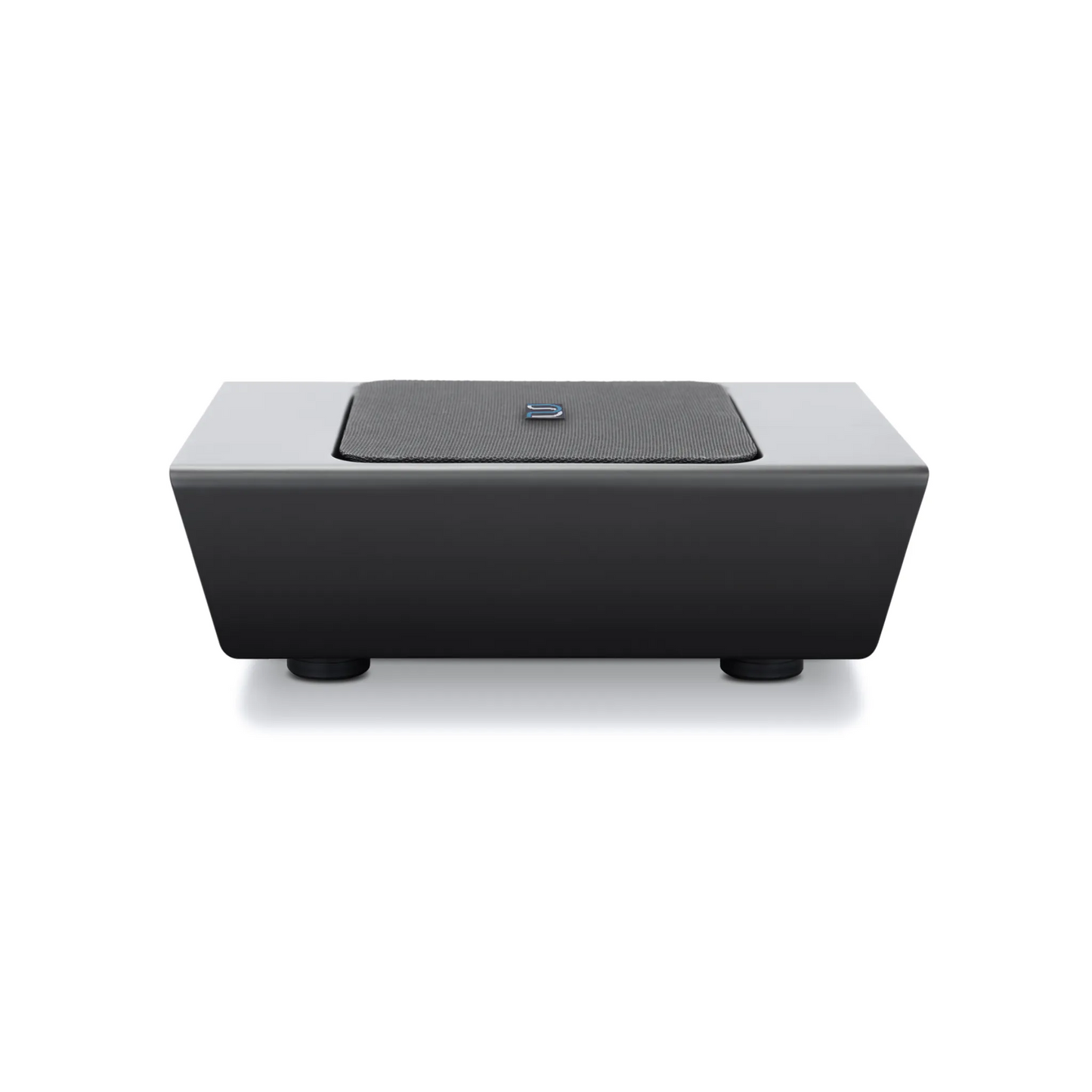

The Bluesound Professional BSW150 is a network active subwoofer with streaming capability designed specifically for use in commercial installations. The BSW150 is so discrete you’ll forget where you put it. Designed to fit neatly in boardrooms or small commercial establishments, this compact subwoofer digs deeper and plays louder than its bulkier rivals, and can be easily positioned featuring several clever installation options, the BSW150 will fit perfectly into your location of choice.

Contents & compatibility:
What's in the box - Bluesound Pro BSW150, EU powercord, US powercord, Magnetic Rubber Feet 2x, Wall Mount Bracket, Quickstart guide The product will work on EU, UK & US mains power supply with corresponding power cord, check if your region power cord is supplied above.
Is this a complete audio system? - No, you will need to add Bluesound player of your choice
Network connection - WiFi, RJ45 LAN cable

Important features:
Setup & use is simple & easy
Sound format & channels - mono, 1 sound channels
Amplifier power - 200W max (per channel)
Amplifier technology - Class D (digital sound amplification - very efficient)
Frequency response - 22Hz-150Hz (+-2dB, -10dB @20Hz)
Drivers - 1 woofer (203mm)
Power consumption - <0,5W in standby

The loudspeaker features a 8&rdquo; LF driver powered by a high efficiency amplifier including a low power standby mode. The frequency response of the speaker is 22Hz &ndash; 150Hz. Inbuilt DSP allows for equalization as well as other audio processing. Access to content is via wired ethernet or WiFi for glitch-free streaming.

Control of the speaker can be accomplished by any Windows/Mac computer as well as any iOS/Android phone or tablets and the Bluesound Professional CP100 wall mount controller. Customize volume, crossover and phase control directly in the BluOS Controller app. Third party control is also possible with any of the leading systems. Security provisions prevent any authorized control of the system. The BSW150 is available in black or white finishes.

Network streaming Subwoofer speaker system
8&rdquo;LF driver
150w power amplifier
22Hz &ndash; 150Hz frequency range
DSP providing equalization and other audio processing
Volume, crossover (50-150 HZ) and phase control directly in the BluOS Controller app
Flexible and unlimited grouping of zones within a BluOS system
Integration with local network content storage
Integration with many streaming services including SoundMachine, Custom Channels, QSIC etc.
The side panel control is defeatable via the BluOS app
Integration with a wide variety of internet radio platforms
PC/Mac, iOS/Android and third-party control
Security preventing unauthorized control
Specialist Bluesound Professional control panels
Support of Hi-Res audio up to 192kHz/24 bit
Support of MQA content
Streaming via ethernet for increased reliability (wireless streaming also supported)
USB input for replay from local connected drives

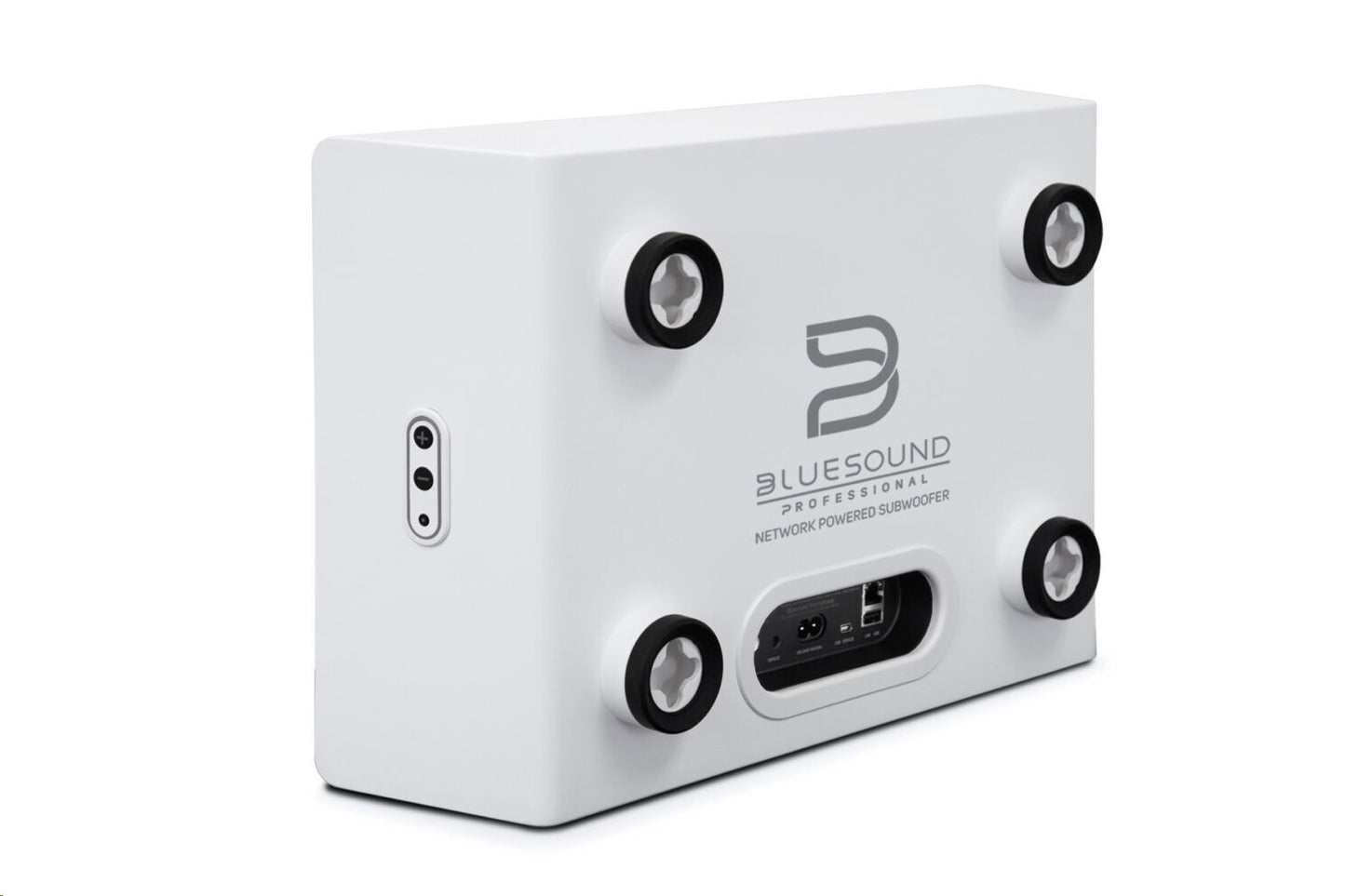

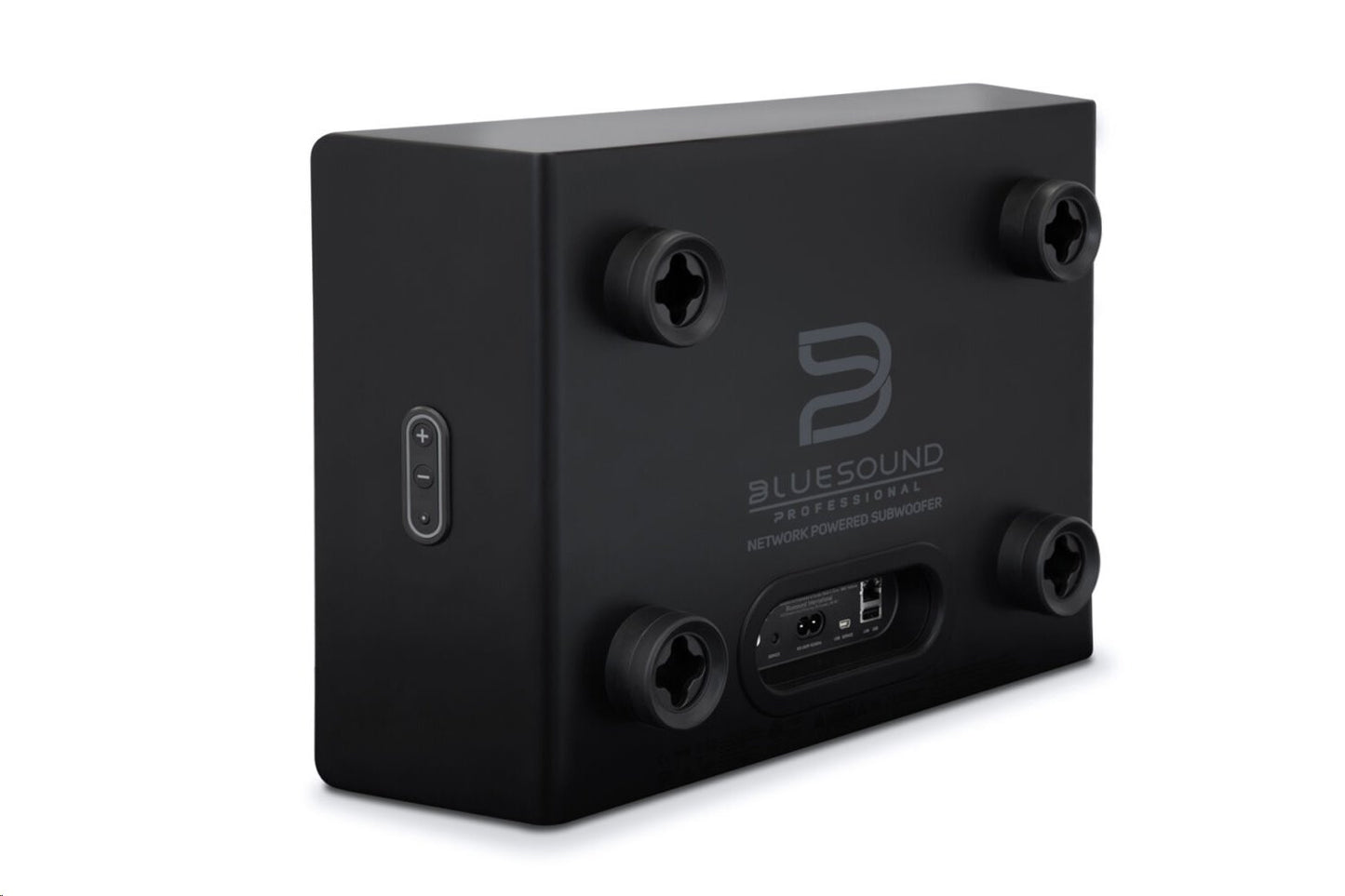

Wall mounting with provided bracket
Black or White finish

Easily Create Branded Environments
With hardware that supports nearly unlimited zones of audio and a natively-integrated commercially-licensed music streaming service in SoundMachine, Custom Channels, SiriusXM for Business, Qsic and Tunify, Bluesound Professional makes easy work of creating branded environments for your clients.

Add Audio Streaming to Existing or New Installations
Bluesound Professional&rsquo;s decentralized processing capabilities gives designers and installers maximum flexibility to add audio streaming to installations, whether existing or new.

Easy to Configure
Self-discovery makes set-up and configuration painless, as Bluesound Professional players placed onto the same network will find each other automatically. A few taps on the intuitive icons in the BluOS Controller app will group players to create zoned audio content and lock-out unauthorized users.

EAN 0786357001456<br>
SKU BSP.BWS150.B<br>
<br>

Specifications:<br>
FEATURES
Physical Controls: Volume +/-, Function Mode
App Controls: Volume +/-, Variable Crossover Frequency, Variable Phase
Universal Voltage: 100V-240V, 50/60Hz
Low Power Mode: Network Standby
Finish: Black, White
Mobile Operating System: BluOS - Free Android and iOS App available online at Google Play and Apple App Store
Processor: ARM&reg; CORTEX&trade; A9, 1 GHz
Amplifier Power: Continuous 150W, Dynamic 150W, Dynamic Peak 200W
Type: CLASS D
Network: Gigabit Ethernet RJ45, Wi-Fi 5 (802.11ac, dual-band)
USB: Type-A (upgrade only); Type B (mini) for service
Audio Input: Mono Low/Line Level Input
Power: Universal bi-pin AC Cord input (100 - 240AC)
Storage Environment: -10&deg; C to 50&deg; C, 20% to 80% relative humidity
Operating Environment: 0&deg; C to 40&deg; C

FREQUENCY RANGE
Frequency Response: Response-On Axis @ 0 degrees +/- 2dB: 22Hz &ndash; 150Hz, LF Cutoff -10dB: 20Hz

ACOUSTIC DESIGN

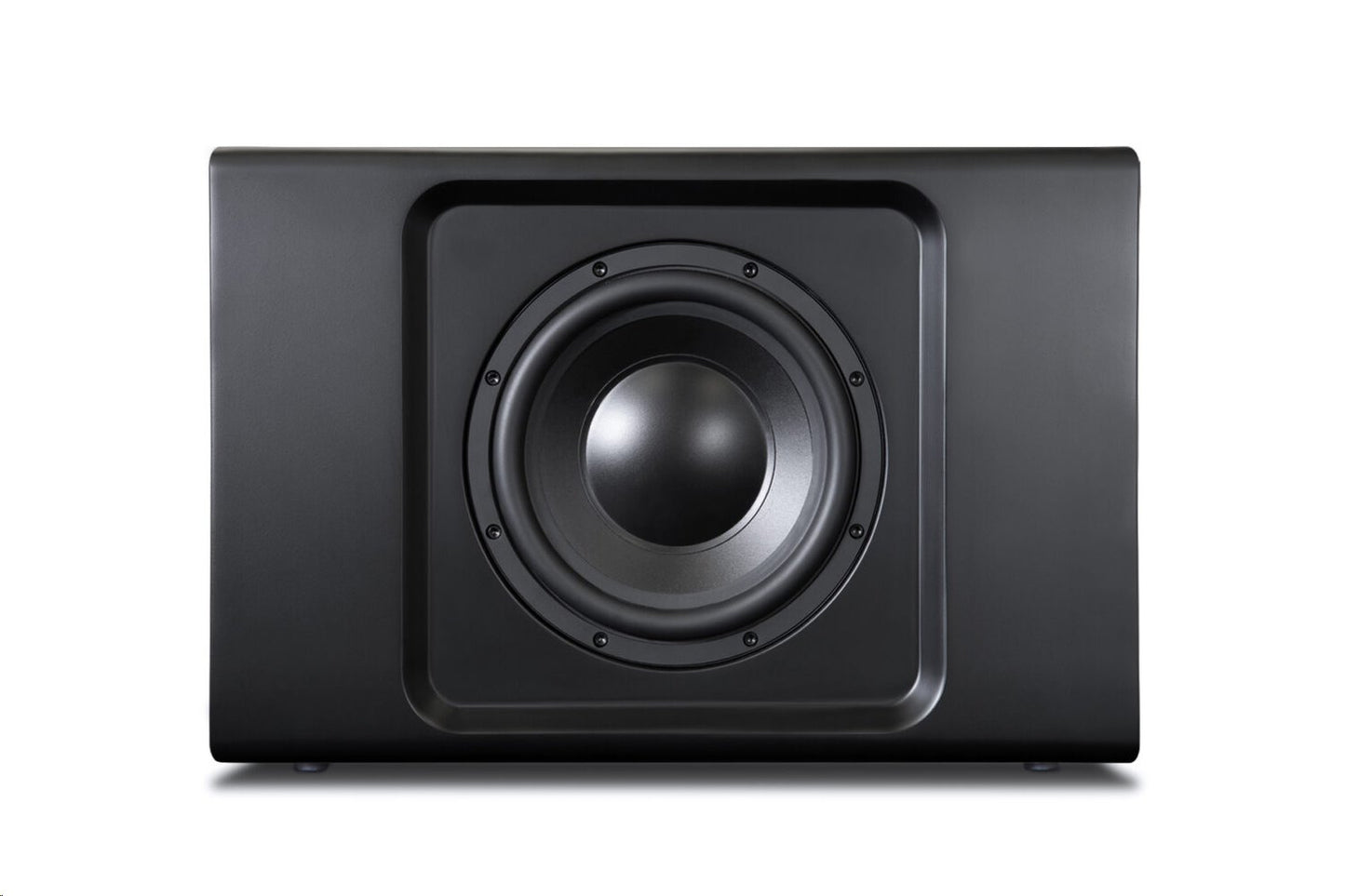

Woofer (Nominal): 203mm (8&rdquo;) Polyproplene cone, Rubber Surround
Crossover: 50Hz - 150Hz, LFE setting

DIMENSIONS (UNIT)
W x H x D: 447mm x 285mm x 122mm (17.6&rdquo; x 11.25&rdquo; x 4.8&rdquo;), (not including feet or wall bracket)
Gross Dimensions: 555mm x 440mm x 235mm (21.8&rdquo; x 17.3&rsquo; x 9.25&rdquo;)
Net Weight: 7.9 kg (17.5 lbs)
Shipping Weight: 12.69 kg (28lbs)
