Bluesound Professional CP200 Wall Mount Control Panel

Wall Mount Control Panel

4" glass touchscreen | 720×720 resolution | PoE powered | BluOS control APIs

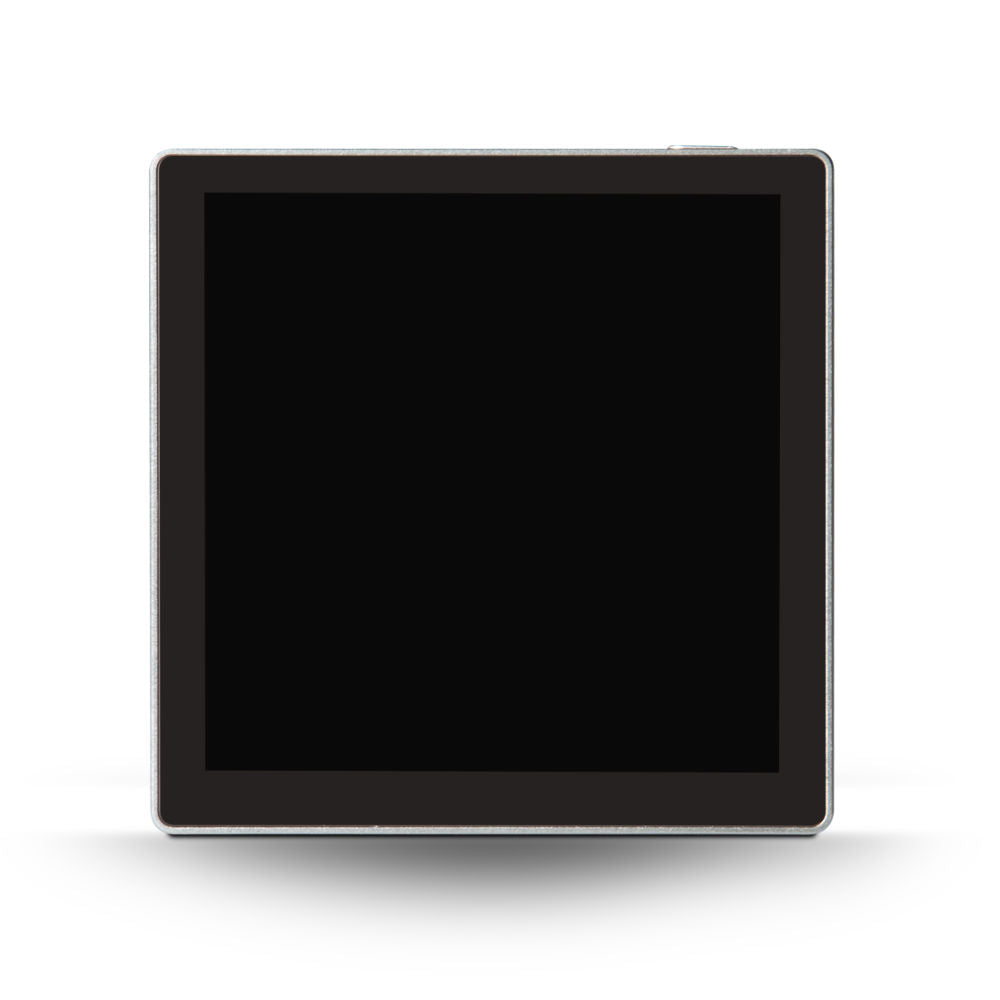

The Bluesound Professional CP200 is a sleek, low-profile wall-mounted control panel designed for tailored audio control in commercial spaces. Featuring a vivid 4-inch glass touchscreen and Power over Ethernet (PoE), the CP200 offers a fully customizable interface for intuitive, zone-specific control of Bluesound Professional systems.

Feature Highlights:

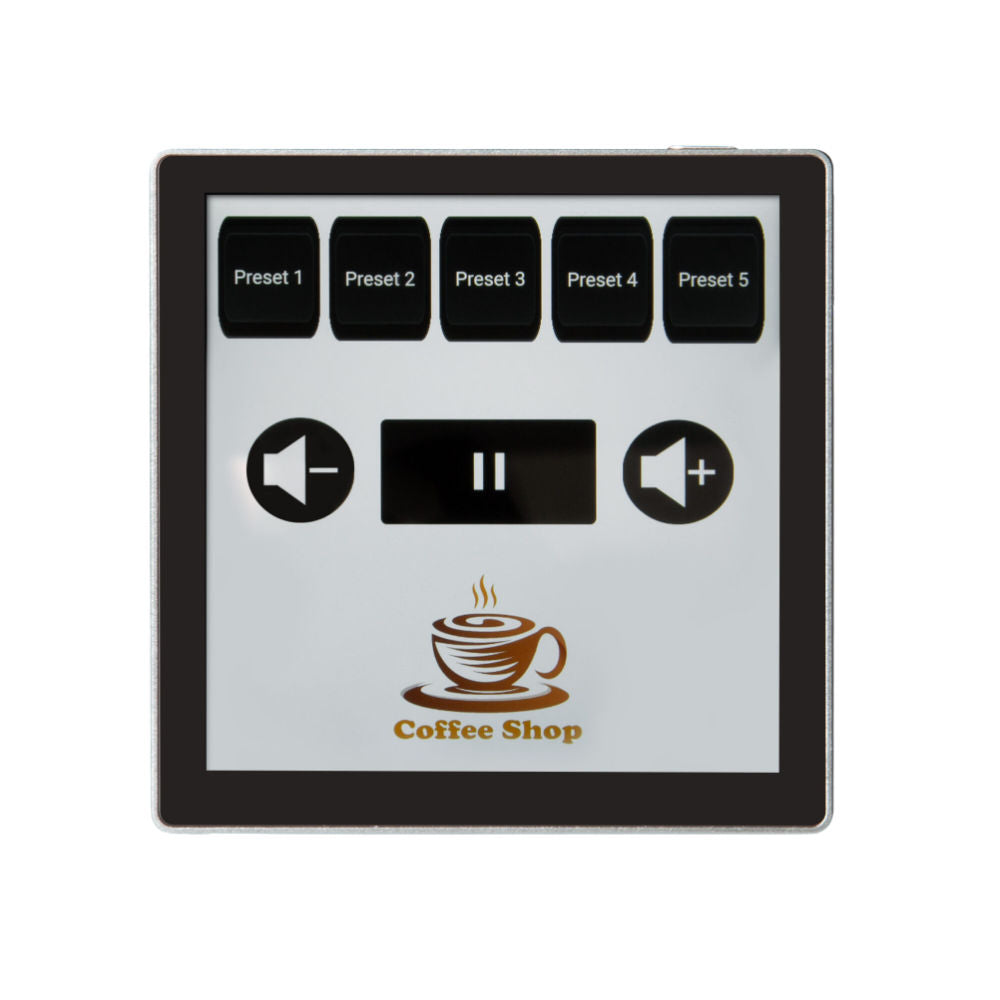

- Customizable UI - design a user interface with branded visuals, background colors, and access-limited functions
- Multi-Zone Control - assign unique pages and controls per zone to match operational needs
- Touchscreen Simplicity - navigate functions on a sharp 720×720 resolution display with capacitive touch
- Discreet Installation - slim form factor with stud-free mounting bracket for flexible wall placement
- PoE Powered - one RJ45 connection handles both power and data, no AC outlet required
- Easy Integration - configure using included design software and BluOS control APIs
- Scalable Deployment - deploy multiple CP200s across locations or zones for distributed control

Contents & compatibility:
Compatible with - Bluesound Professional players

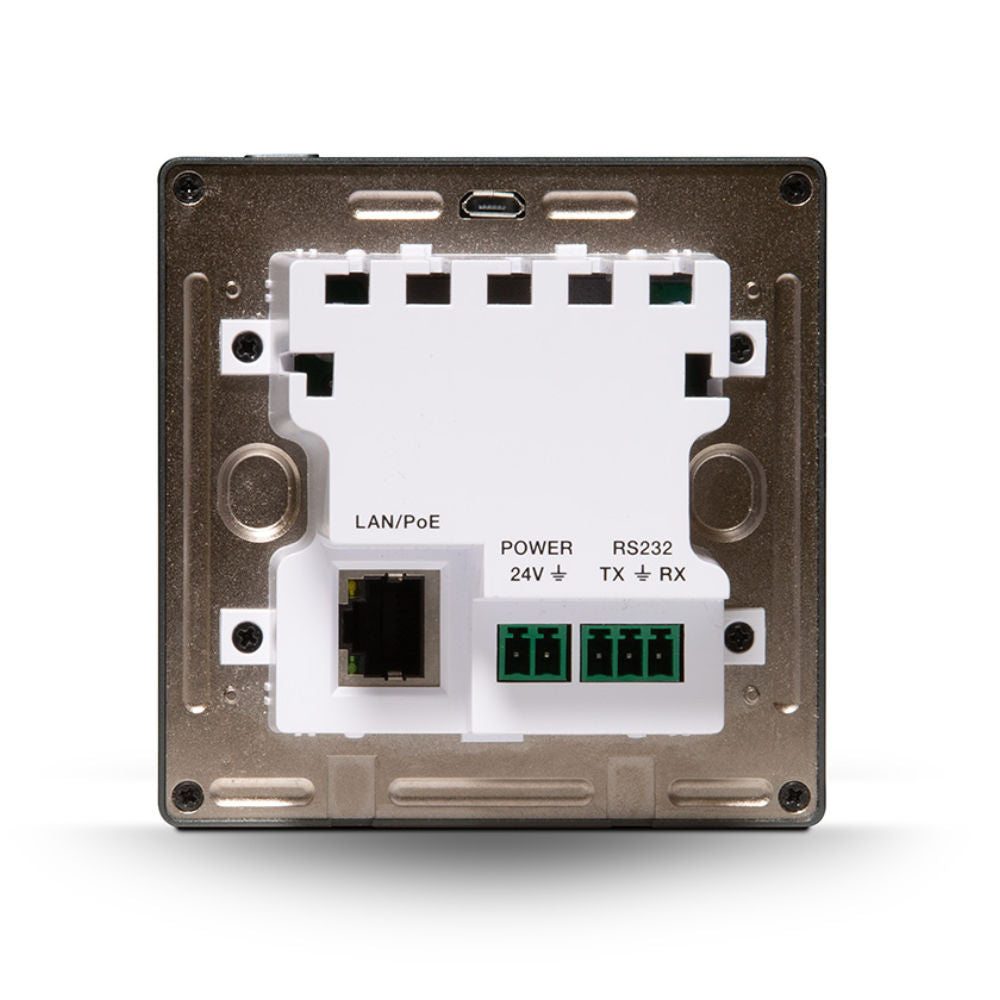

Network connection - 1x RJ45 PoE
Other connections - 1x Euroblock 24V power input, 1x Euroblock TX/RX RS232 input

Important features:
Control options - 4" capacitive glass touchscreen, 720×720 resolution

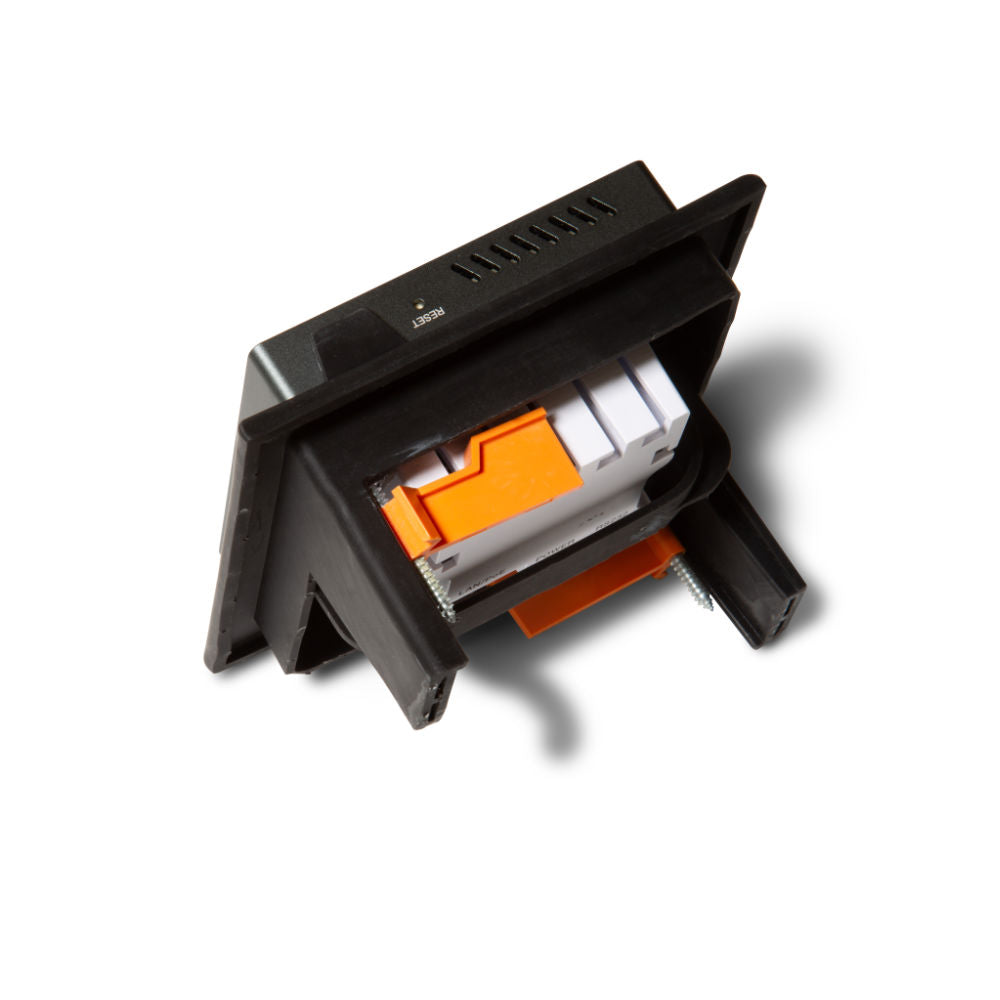

Installation - low-profile, stud-free wall mounting bracket, single RJ45 cable for power and data
Setup - configured via included design software and BluOS control APIs
Suitable for restaurants, hotels, retail, offices and meeting rooms
