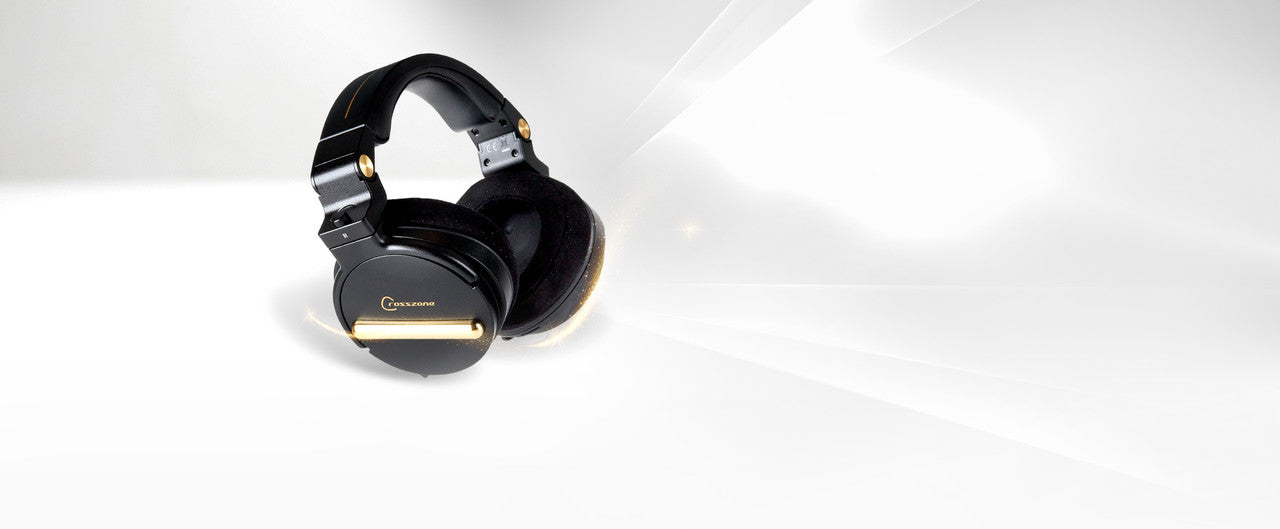

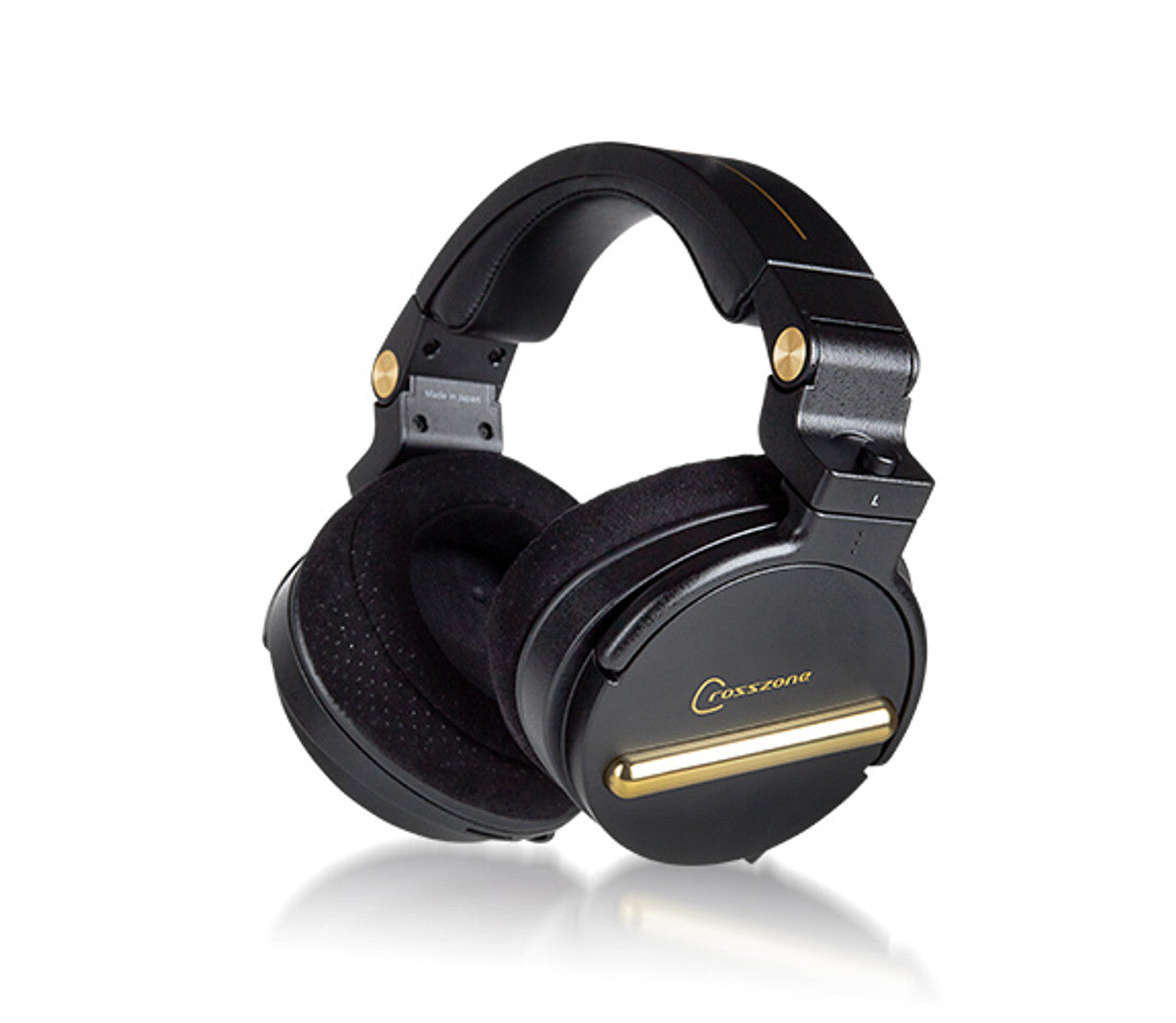

Crosszone CZ-10 (Like New) Enhanced - Real Sound Closed Dynamic Over-Ear Headphones

Natural Sound Field
Crosszone’s CZ-10 is a unique headphone that achieves the External Sound Localization effect with an original technology. Different from conventional headphones that have a problem known as internal sound localization (in which the sound sources seems to be located inside the head), the CZ-10 uses Acoustic Resonance Technology (ART) and Acoustic Delay Chambers (ADC) to achieve this natural and spatial sound field. It simulates the experience and sound pathway listening with stereo speakers.

Three different pathways are created using ART and ADC technology. Two drivers (for high and low frequencies) create the direct sound. Another 35mm driver creates the reverse channel sound. The two air chambers for mainly the reflected and reverse sounds are used to create this delay. Sounds from the reverse and reflected chamber are mixed with the direct sounds, which generates a spatial sound field and a wide sound stage (external sound localization).

Comfortable Fitting Design
Smaller and lightweight housing structure with well-contained sound.


Rigid Headband Design with Reduced Lateral Pressure
・Stabilization
・Fulcrum shape head pad
・Torsion springs

Wide Rotational Angle for Easy Storage
Torsion springs built into the hinge on both sides reduces the lateral pressure and allows for a comfortable listening experience.

Effect linearity and low-side pressure
By fundamentally reviewing the general side pressure mechanism and devising a mechanism using high stiffness of the head band and spring pressurization, we were able to obtain comfortable side pressures with little differences between individuals.

BE Coating for All Drivers with New Diaphragm Shape

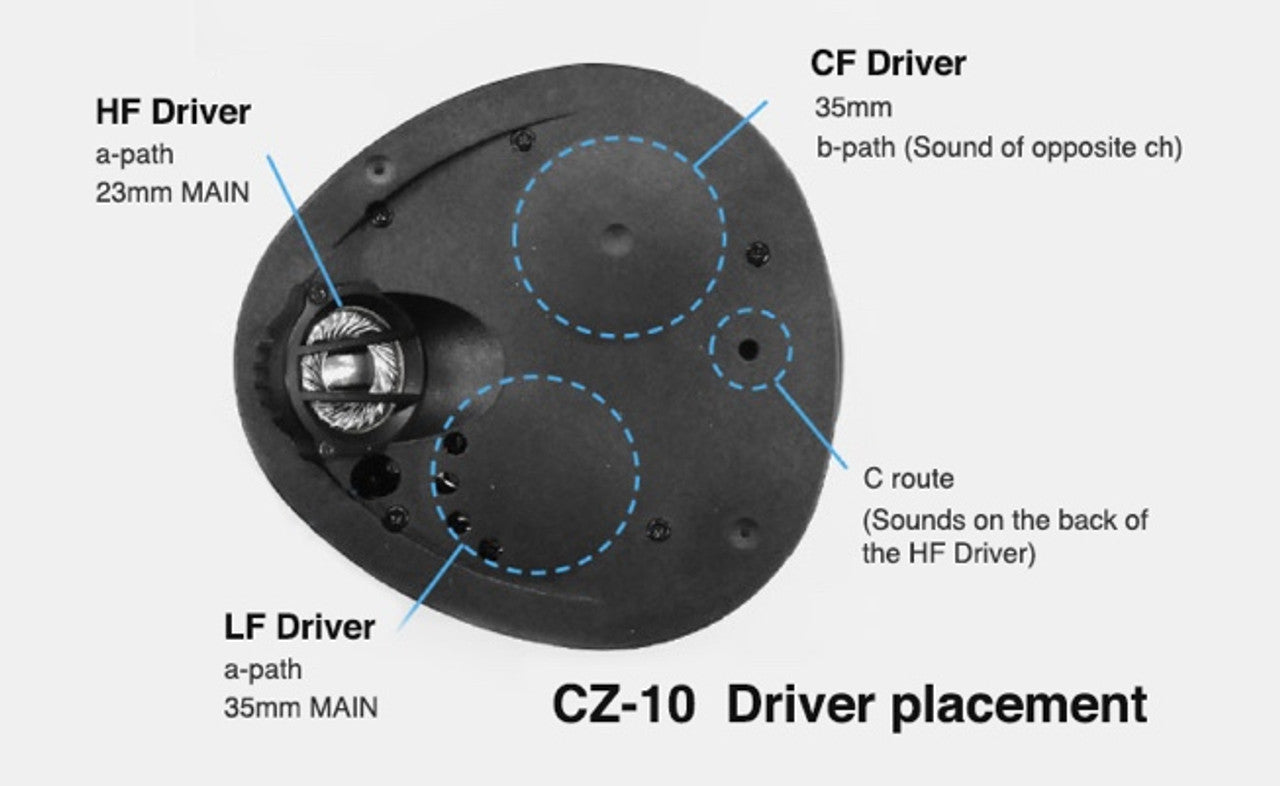

The diaphragm plates of the two drivers (HF 23mm/LF 35mm) for main sound source and the CF driver (35mm) for opposite channel sound source are beryllium coated. Brass rings on the driver frame can ensure product durability and eliminate unnecessary oscillation. Through the original ART technology, these designs effectively playback sounds from LF to HF.

High Frequency    Low Frequency
23mm    35mm

Dedicated Cables to Support High Sound Quality and High-Resolution
The standard accessories of CZ-10 include two OFC cables; 1.5 m (with Φ3.5mm small plug）and 3.5m（with Φ6.3mm standard plug）in length, which can be easily mounted to any portable players and amplifiers. The solid, spiral OFC cables have strong anti-noise capacity. To ensure the separation of the left and right channel signals, the connecting cables have 8 separate wires (4 wires * 2 sets).

Main Specifications of CZ-10

Type    Closed type
Frequency Range    20Hz-40kHz
Sensitivity    99dB
Impedance    75Ω
Weight    385g（Body only）
Accessories    Specific cables 1.5m（Φ3.5mm mini plug）
3.5m（Φ6.3mm standard plug）
User Manual
Warranty
