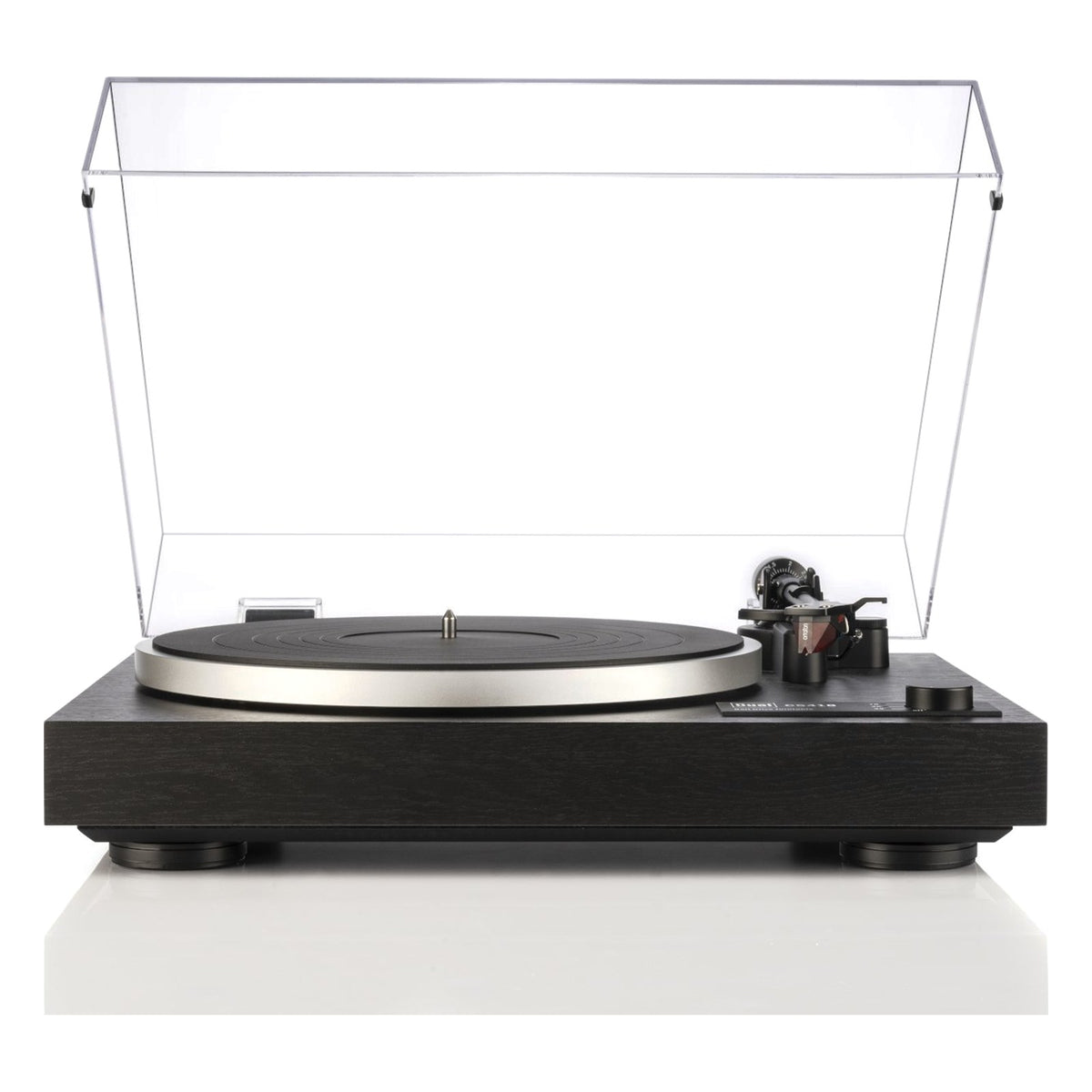

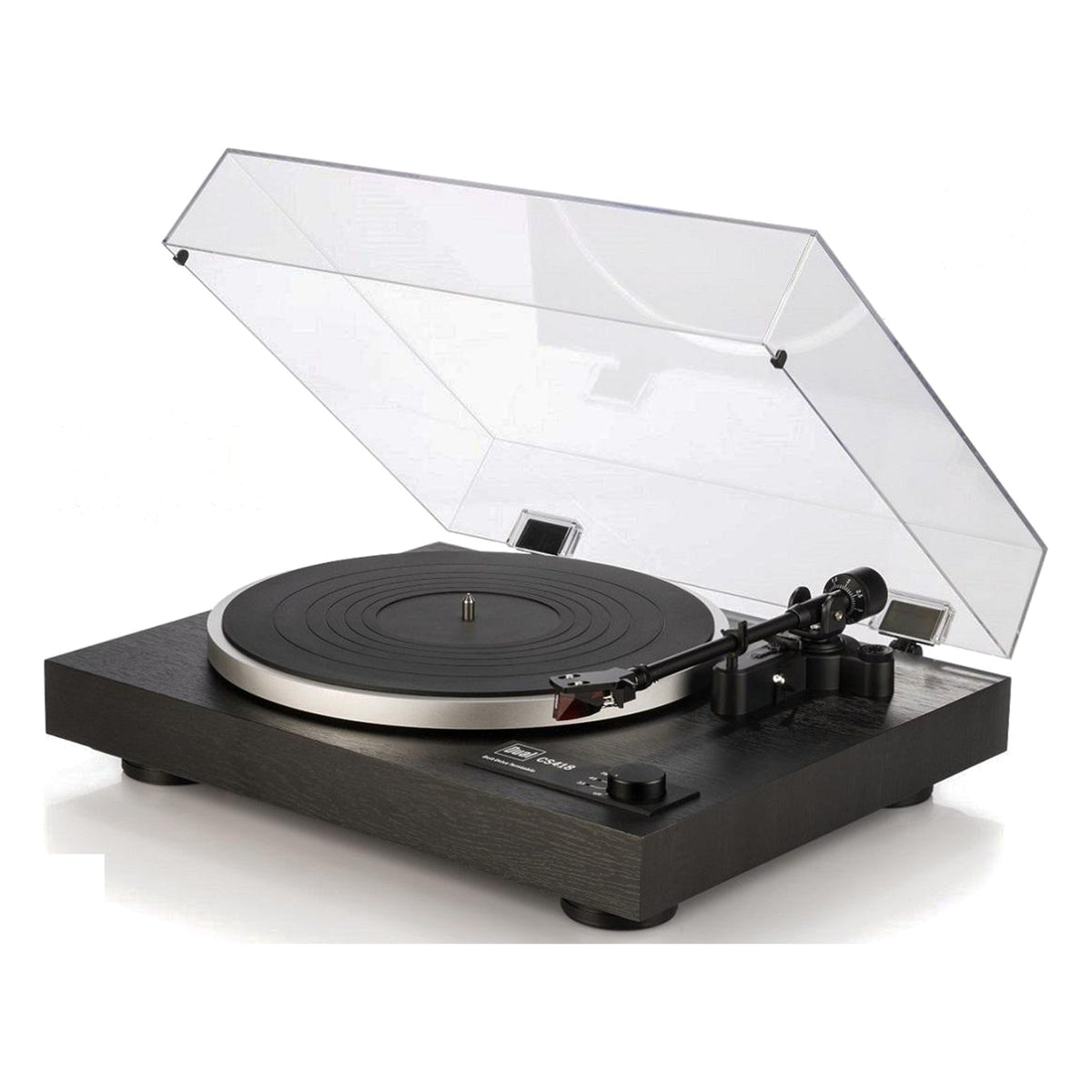

DUAL CS 418 Manual Turntable with Ortofon Cartridge

Robust, precise, reliable, with a 5-year warranty for carefree music enjoyment

The turntable series starts with the CS 418, which integrates high-quality components from the larger models and already places the highest emphasis on precision.

With an Ortofon 2M cartridge and switchable MM phono preamplifier, the CS 418 not only offers outstanding value for money, but also a very balanced sound.

Ease of use is guaranteed with the characteristic features of the CS series. The stepless antiskating can be easily adjusted using a rotary knob with a clear scale. The electronic adjustment of the three speeds is conveniently carried out via a rotary switch, while the appropriate pickup can be easily changed using the headshell.

Plinth

• MDF construction with a black vinyl veneer
• Elastomer vibration absorber inside the feet
• Removable dust cover

Platter

• Aluminium die-cast, long-term precision
• Heavy rubber mat for resonance damping
• Hardened steel spindle in a brass bushing

Tonearm

• Straight, statically balanced
• Solid aluminium construction with ball-bearings
• Damped tonearm lift
• Accurate spring-loaded antiskating

Drive

• DC motor / belt
• Selector switch for 33 / 45 / 78
• Rubber mountings for vibration decoupling
• Precision-cut belt for lower wow & flutter

Specifications:

• Drive: belt
• Speed settings: 33 / 45 / 78 rpm
• Wow & flutter: < ±0.1 % (DIN rated)
• Platter: aluminium die-cast, 305 mm, 850 g incl. mat
• Mat: rubber 2.5 mm
• Bearing: hardened steel spindle, brass bushing
• Auto-start/stop function: no
• Tonearm bearing: ball-bearing
• Headshell: removable
• Tonearm tube: aluminium
• Effective length: 221.5 mm, height adjustable
• Offset angle: 25.6°
• Overhang: 19 mm
• Tracking force: statically balanced
• Stylus pressure range: 0 – 4 g
• Cartridge weight range: 5 – 9 g
• Factory-installed cartridge: Ortofon 2M Red or Ortofon 2M Blue
• Plinth: MDF, black vinyl veneer
• Feet: Ø 62 mm, elastomer
• Connection: RCA socket – to phono input or line input (switchable phono preamplifier)
• Digital output: no
• Dimensions with closed dust cover: 435 x 367 x 145 mm
• Dimensions with open dust cover: D 415 mm / H 400 mm
• Weight: 5.8 kg
