DUAL CS 800 Manual Turntable with Ortofon 2M Red

A completely new generation of DUAL turntables – the CS 800 high-end turntable with an Ortofon 2M Red cartridge included.

The DUAL CS 800 from St. Georgen in the Black Forest took its engineers four years to develop. It is a completely redesigned turntable that lays the foundations for a new Dual series.

The goal was to develop a high-end manual turntable based on advanced technical functionality and quality materials with exceptional sound quality, while remaining affordable.

The turntable combines a heavy base chassis with a floating sub-chassis in a completely new, modern design. Despite its slim design, the base chassis has the mass needed to isolate unwanted noise and vibration from the outside, guaranteeing perfect tracking and playback in all circumstances. The aluminium sub-chassis "floats" on four special parabolic springs and is decoupled from the rest, further minimising external interference. The turntable stands on three specially damped aluminium feet and features a completely new tonearm with high-quality Dual E internal wiring and an improved High Precision Surface bearing, which allows very precise groove tracking and setting of tracking force and antiskating. The motor is new too: a precise electronically controlled DC motor is operated by a newly developed touch switch, with the selected speed indicated by an LED.

Key features:

• Completely redesigned tonearm mounting with a new high-precision gimbal bearing (High Performance Lager)
• Massless tracking force adjustment via a high-precision torsion spring
• New tonearm with high-quality Dual E(asy)motion Wire internal wiring
• New motor and electronic control with speed indication
• Floating aluminium sub-chassis
• Gold-plated output terminals
• Reinforced aluminium platter with antistatic felt mat
• Torsionally rigid carbon-fibre composite headshell with 1/2" mounting
• New tonearm geometry with 211 mm effective length and 10 Hz resonance frequency
• Fitted with the Ortofon 2M Red cartridge

With the CS 800 a whole new era of DUAL quality begins. Thanks to numerous technical changes, the sound has been raised to a new level – even more brilliant, clearer and more natural than before.

Specifications:

• Speeds: 33 / 45 rpm
• Wow & flutter: ±0.06 / 0.035 % DIN / WRMS
• Platter: aluminium
• Signal-to-noise ratio: 72 dB
• Cartridge: Ortofon 2M Red
• Frequency range: 20 Hz – 22 kHz

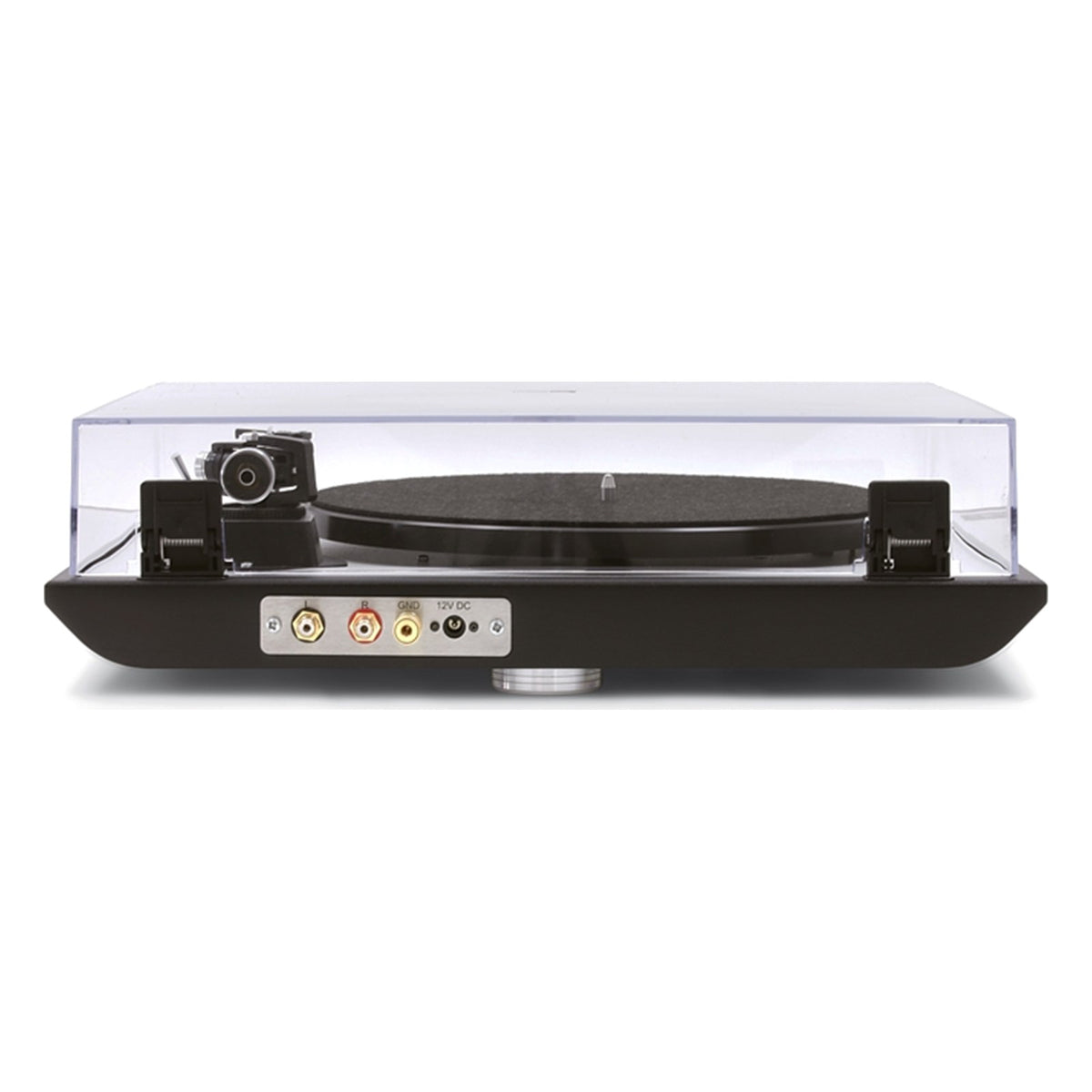

• Connection: 1 x RCA stereo cable, 1 x ground cable
• Dimensions (W x H x D): 440 x 130 x 370 mm
• Weight: 5.5 kg
• Power supply: 12 V DC, 150 mA
• Finish: aluminium – black or aluminium – silver
• Hand made in Germany
