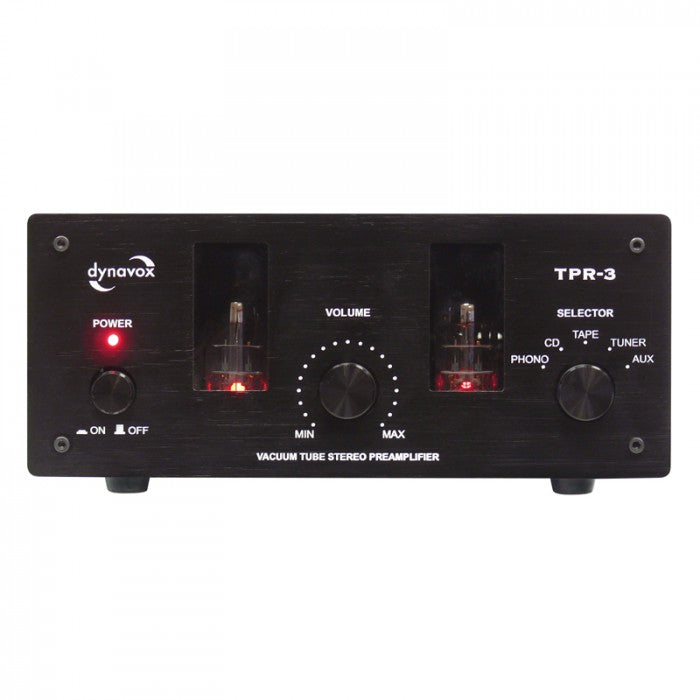

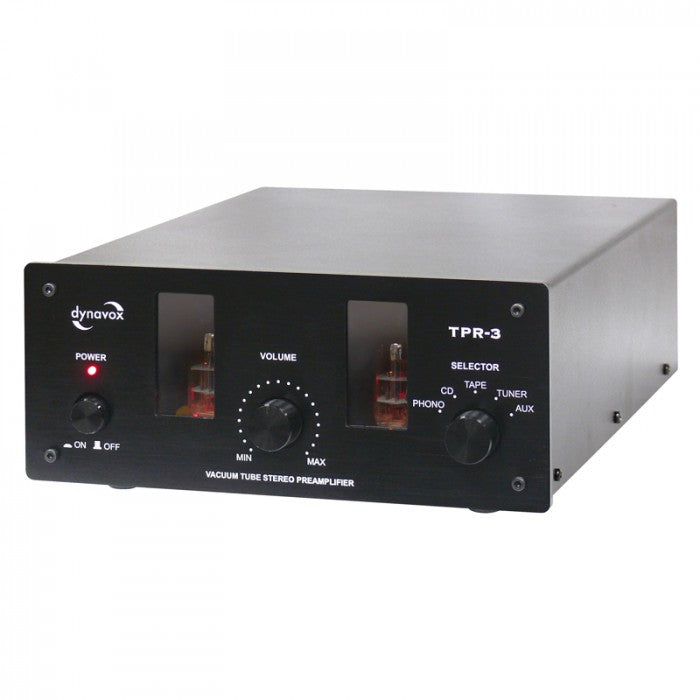

Dynavox TPR-3 Tube Preamplifier Black

The Dynavox TPR-3 preamplifier is the ideal partner for the ET-100 power amplifier, but it is of course also perfectly suited to the VR-70, VR-80 and other amplifiers/power amplifiers. The symmetrically designed TPR-3 has 5 inputs, one of which is a phono input (switchable MM/MC). The phono section is additionally shielded in a separate housing inside the unit to guarantee absolutely interference-free signal processing. The TPR-3 works with 2 tubes of type 6N3. Front panel of 5 mm thick aluminium.

Technical Specifications

• Tubes: 2 x 6N3
• Input sensitivity: -20 dB
• Frequency response: 20 Hz - 50 kHz
• THD: < 0.5 %
• Signal-to-noise ratio: > -70 dB
• Gain: MM 40 dB, MC 60 dB, line 12 dB

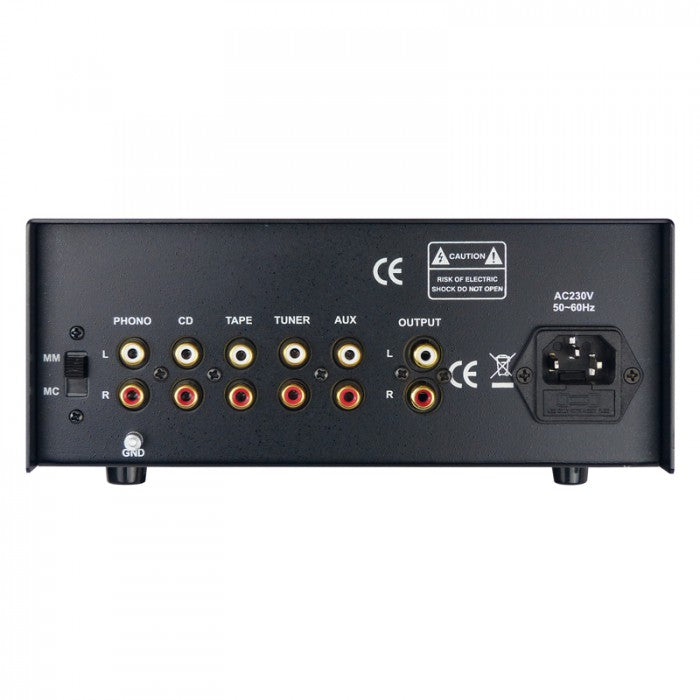

• Inputs: 5 x stereo RCA (1 of them phono)
• Output: 1 x stereo RCA
• Operating voltage: 230 V / 50 Hz
• Dimensions (W x D x H): 300 x 220 x 100 mm
• Weight approx.: 2.8 kg
