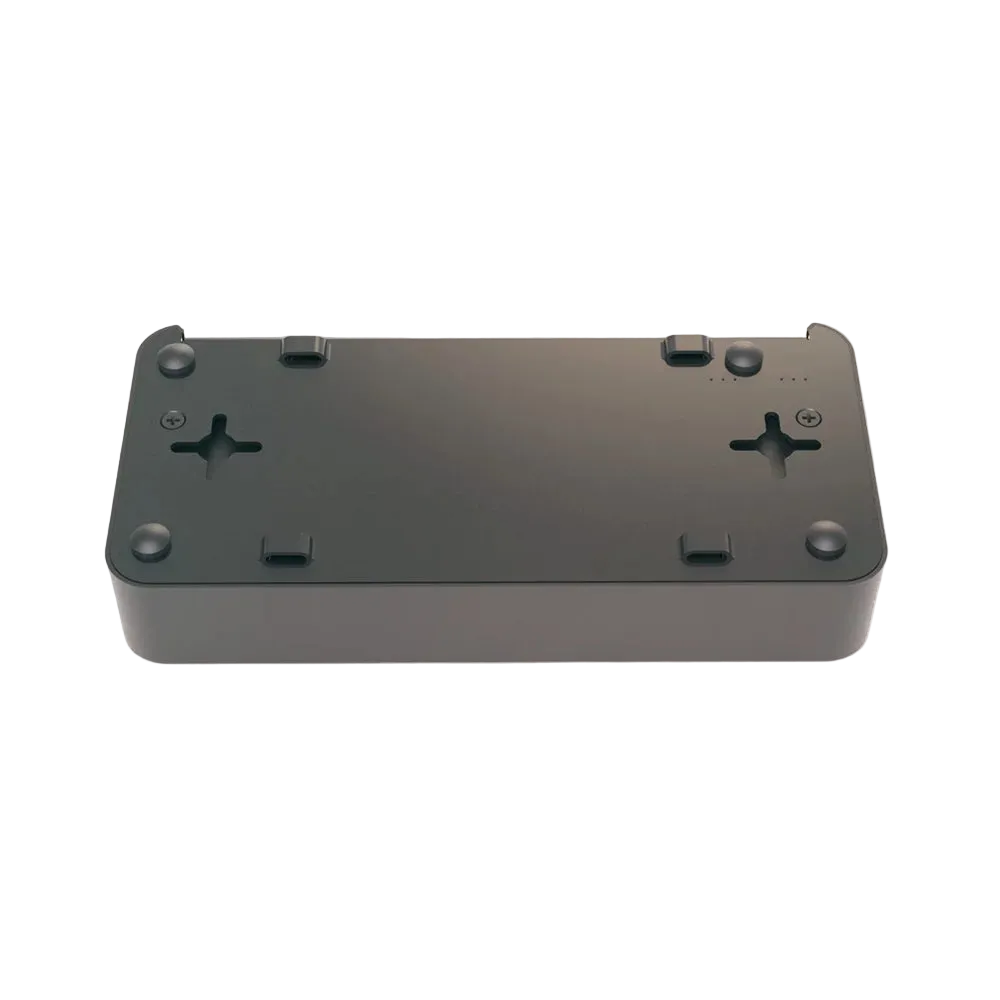

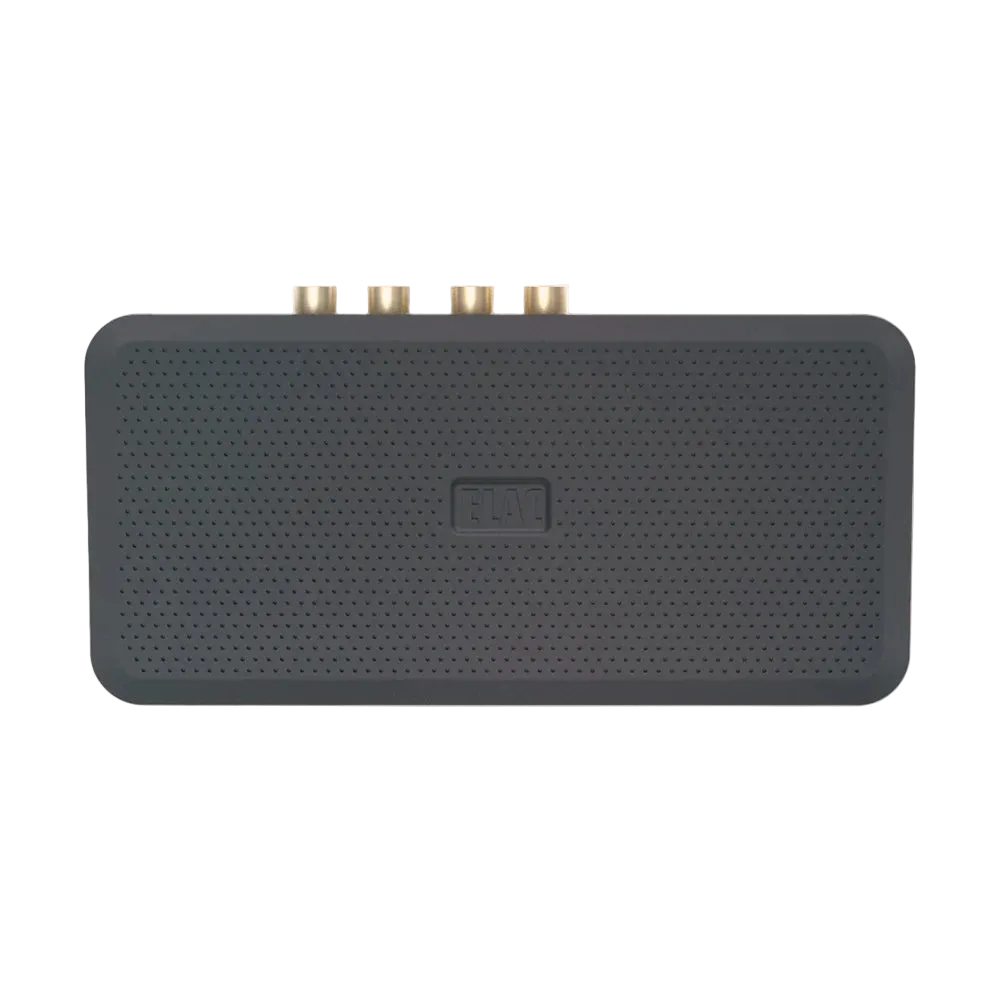

Elac HDX21 HDMI ARC to Variable Analog Converter

HDX21 HDMI ARC to Variable Analog Converter

The ELAC HDX21 is the perfect solution for providing variable analog audio from modern televisions featuring HDMI ARC connectivity. Using the television's standard remote control, users can now control the volume to connected powered speakers or external amplifiers without the need for a complex home automation system.

With the advent of Smart Televisions, connectivity has changed. Analog outputs have been removed, meaning audio must be connected via eARC or Optical. Optical is a fixed output and therefore has no volume control, and HDMI needs to be connected to a capable system - forcing users to upgrade the entire audio system when they only need a simple analog out. HDX21 solves this problem.

Key Features:
- Easily converts HDMI ARC Audio into an analog stereo signal
- Secondary Analog In with Threshold Adjustment for volume matching
- Priority Auto-Switching ensures you hear the correct source when it's being played
- Adjustable Delay for Switching Mechanism and built-in 12V Trigger
- Control external speakers with your existing TV remote

Specifications:

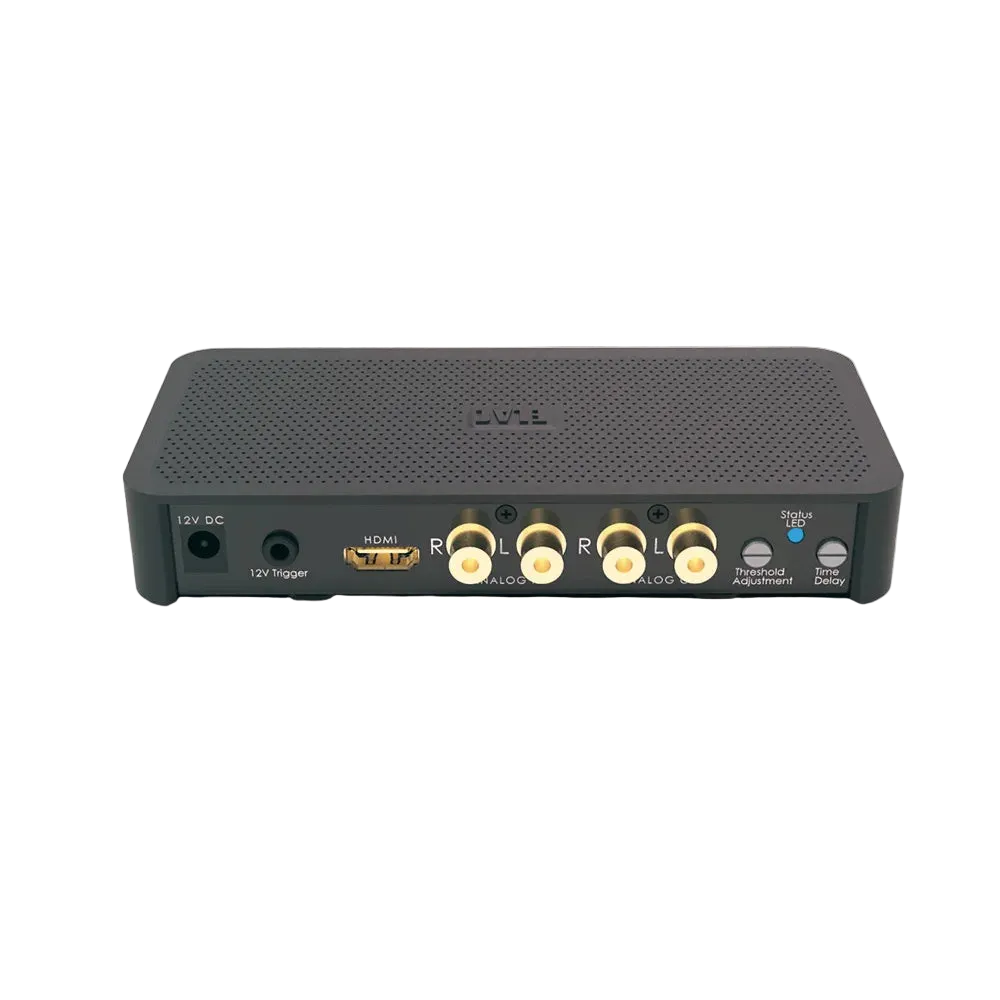

Inputs - HDMI ARC/eARC, Analog L/R
Outputs - Analog L/R
Voltage Threshold - 2 to 200 millivolts
Time Delay - 0.5 to 130 seconds
12V Trigger - Yes (100mV)
Dimensions - 155 x 74 x 22 mm
Net Weight - 0.68 kg
