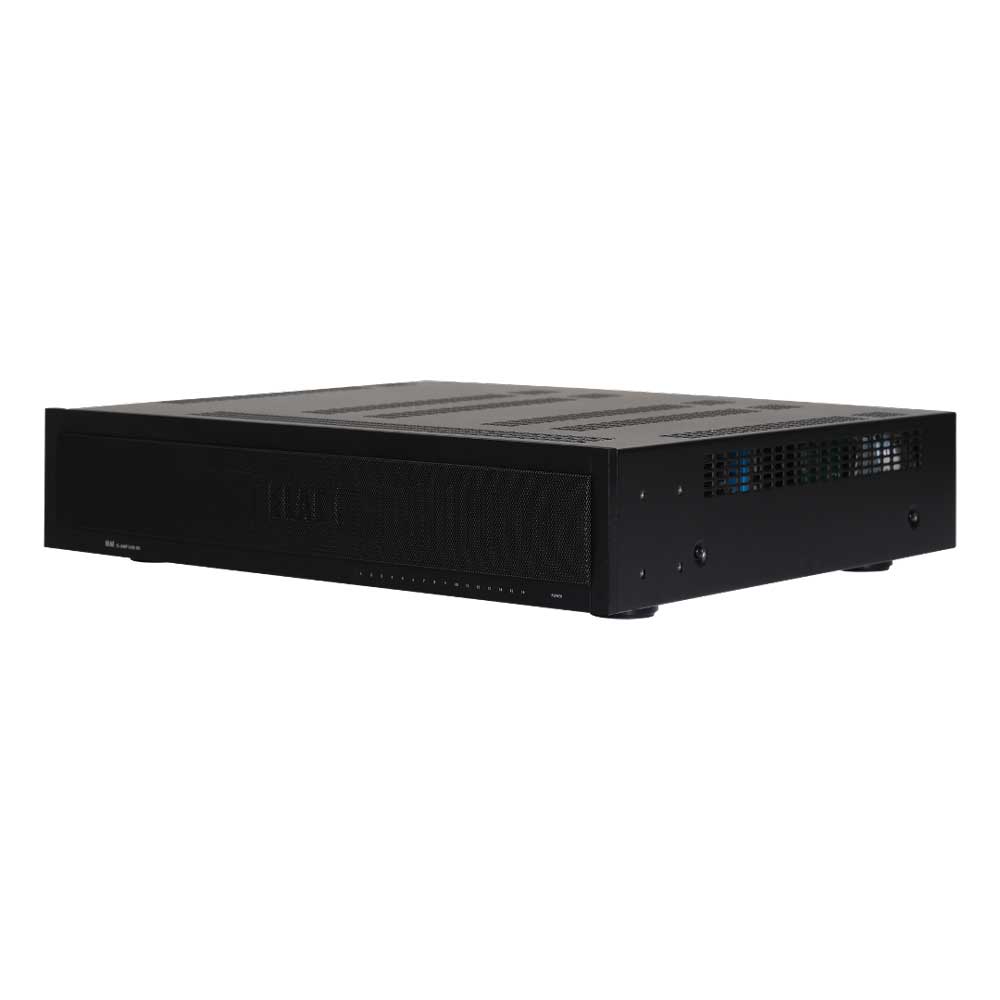

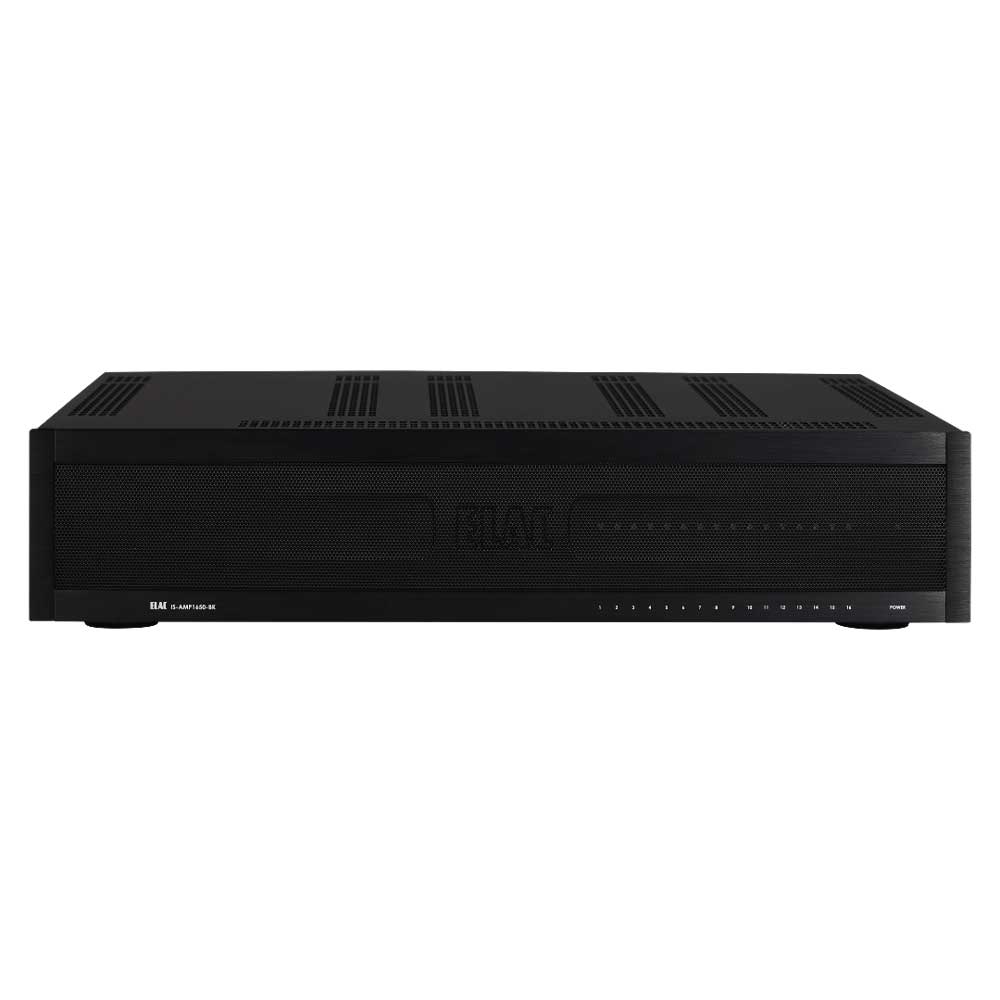

Elac Integrator IS-AMP1650 16 Channel DSP Multi-Zone Amplifier

Integrator Series 16 Channel Multi-Zone Amplifier

ELAC's multi-channel amplifiers provide full matrix capability, any input to any output. The Integrator Series Rack Mount Amplifier with Matrix Switching and Assignable Outputs uses discrete Class D amplifiers that ensure robust power even under the most demanding loads. Unique assignable outputs allow for the easy addition of powered subwoofers and amplifiers to multiple zones.

Key Features:
- Full Matrix Audio Routing - route any input to any output, with a web-based GUI that makes customizing the amplifier simple
- 16 Channels of Premium Power - modular design with efficient Class D amplifiers, delivering up to 50W per channel
- Configurable Audio Outputs - assignable outputs (16-channel, 8 outs) for flexible multi-room projects, power in-ceiling/in-wall speakers and assign an output to a powered subwoofer, with selectable high-pass filters
- Advanced DSP - full parametric EQ per output, or use built-in presets for ELAC speakers
- Web GUI - easy setup and tuning, with a status screen showing the state, input and output levels of every channel, and settings that can be saved for easy replication of projects
- Sophisticated monitoring system - monitors 10 thermal points with 10 microprocessors, 3 DSPs and 1 CPLD for continuous, reliable operation

Specifications:

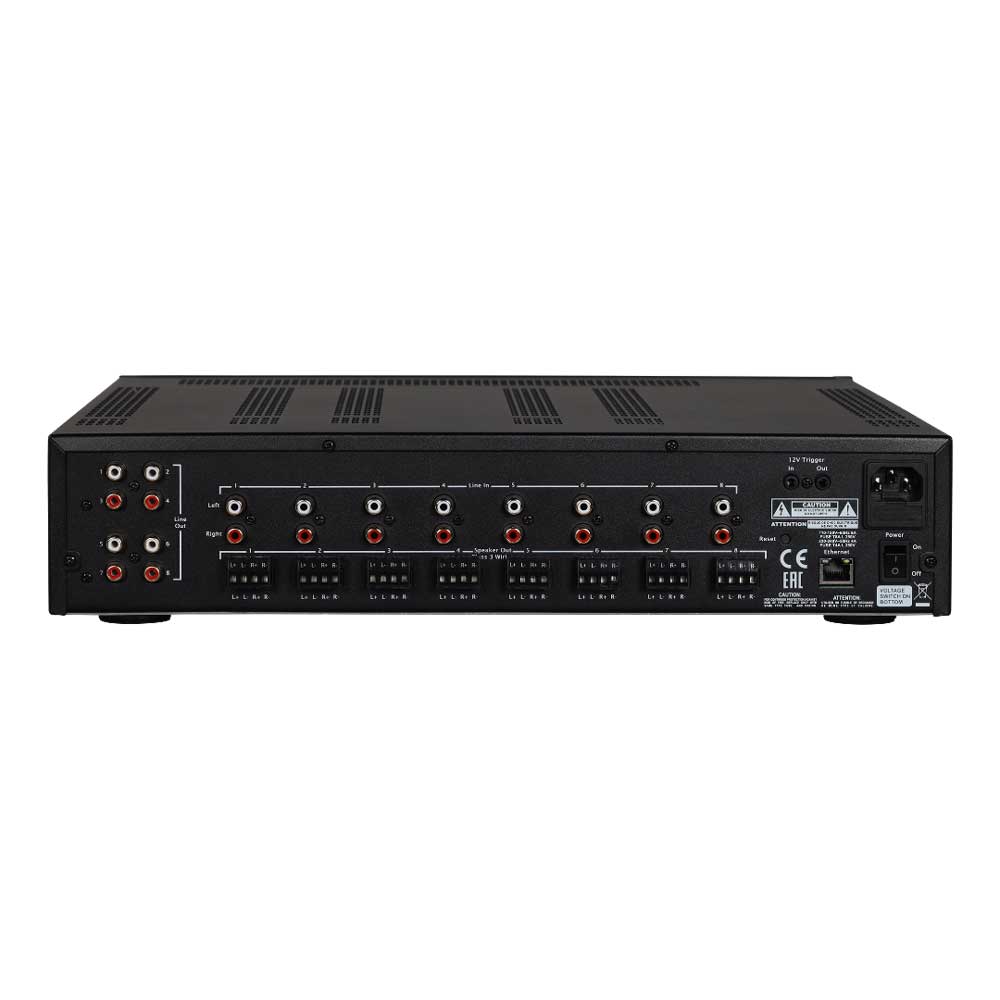

Input Channels - 8 pair stereo RCA
Output Channels - 16
Assignable Outputs - 8
Power Output per Channel @ 4Ω - 50W
Power Output per Channel @ 8Ω - 50W
Power Output Bridged @ 8Ω - 100W
Topology - Discrete Class D
Frequency Response - 20Hz - 20kHz
Dimensions (W x D) - 425.45 x 346.08 mm
Rack Spacing - 2 RU
IP Commands (third-party control) - Yes
DSP - Yes
Ethernet Connection - Yes
Power - 110/230V switchable
