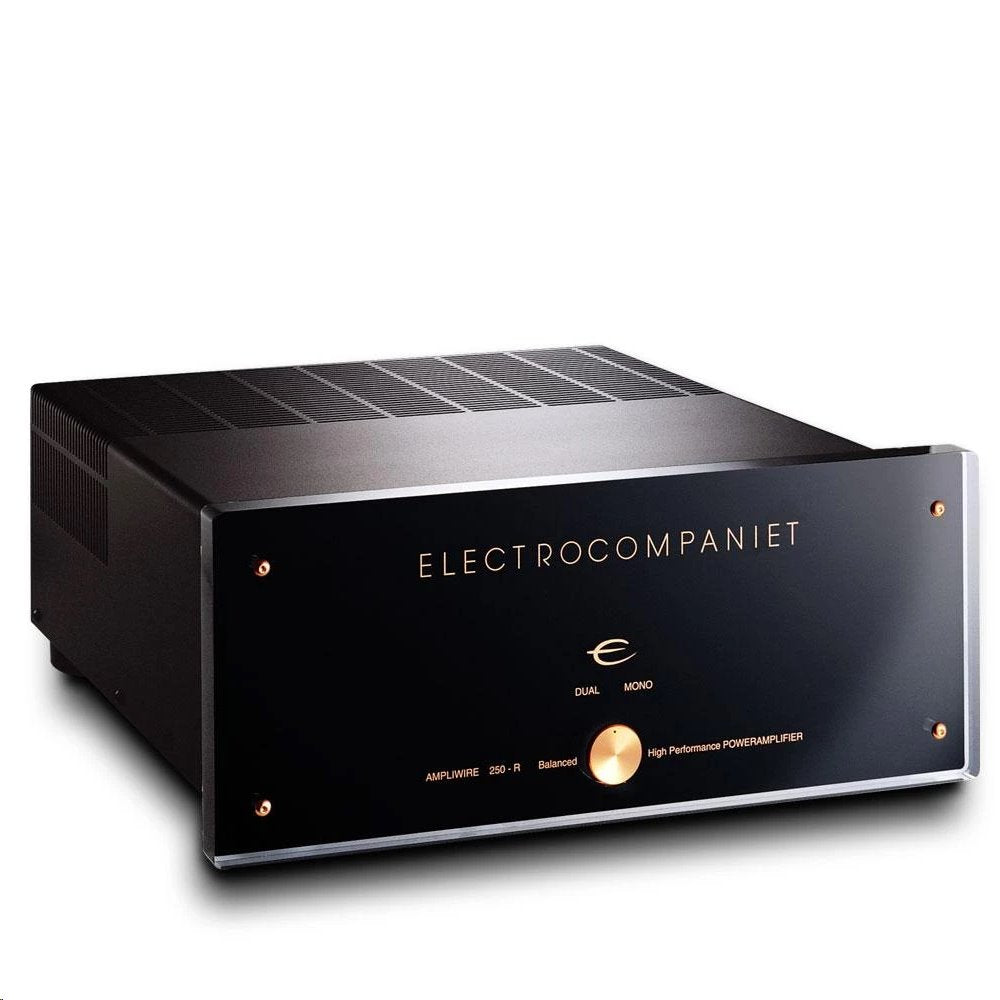

Electrocompaniet AW 250 R Stereo Power Amplifier

The Electrocompaniet AW 250 R power amplifier is known for its uncoloured and excellent reproduction qualities. From the first note of any familiar recording, you will be captivated by the AW 250 R and by the musical enjoyment it gives you.

Floating Transformer Technology
The AW 250 R incorporates refined features such as the FTT (Floating Transformer Technology) power supply, capable of delivering twice the current of conventional power supply designs, together with first-class circuit design and state-of-the-art components. Compared to more expensive high-end power amplifiers with lesser performance, you will truly cherish the AW 250 R.

Bi-amping and bridged mode

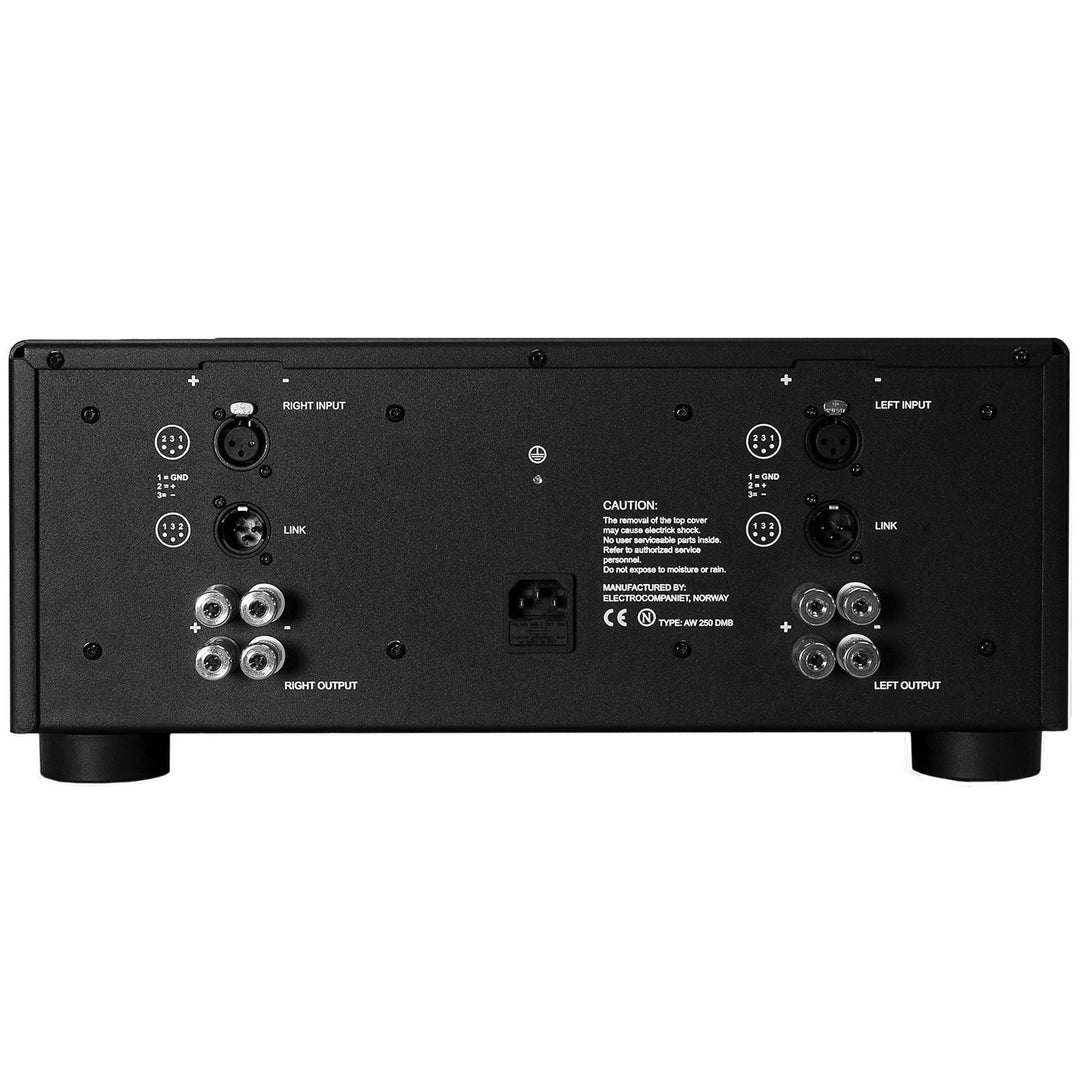

The AW 250 R features a balanced link to additional amplifier(s) for bi-amping. It can also easily be used in bridged mode, delivering up to four times the power.

Technical specifications
Rated output power: 2 x 250 W / 8 Ω, 2 x 380 W / 4 Ω, 2 x 625 W / 2 Ω, 2 x 1100 W / 1 Ω
Output impedance (20 Hz – 20 kHz): < 0.008 Ω
XLR (balanced) input impedance: 110 kΩ
Input sensitivity for rated output: 1 V
Max. peak current: > 100 A
THD (1 kHz, half power): < 0.001 %
Noise (inputs shorted): 90 µV (400 Hz – 30 kHz), 100 µV (10 Hz – 30 kHz)
Power consumption (no load or signal): 230 W
Dimensions (W x D x H): 483 x 450 x 210 mm
Weight: 39 kg
