Electrocompaniet AW 300 M Mono Power Amplifier

The AW 300 M is Electrocompaniet's latest mono power amplifier. It features an updated, yet unmistakable Electrocompaniet design that pairs beautifully with both current and earlier Electrocompaniet products.

Re-designed power amplification
The AW 300 M uses Electrocompaniet's direct-coupled, high open-loop bandwidth topology with high slew-rate and extended bandwidth amplifier stages. A novel output stage isolates the input and driver stages from the load, giving exceptional rigidity, load independence and exceptionally low distortion.

Heavily updated power supply
The power supply offers 110,000 µF of supply filtering, fed by an 800 VA transformer with magnetic and electrostatic shielding. The mains input is heavily filtered for both DC and RF noise. The internal ground reference is over-dimensioned and isolated from rectifying and output currents, resulting in a rock-stable soundstage with unparalleled background silence.

Improved construction and design

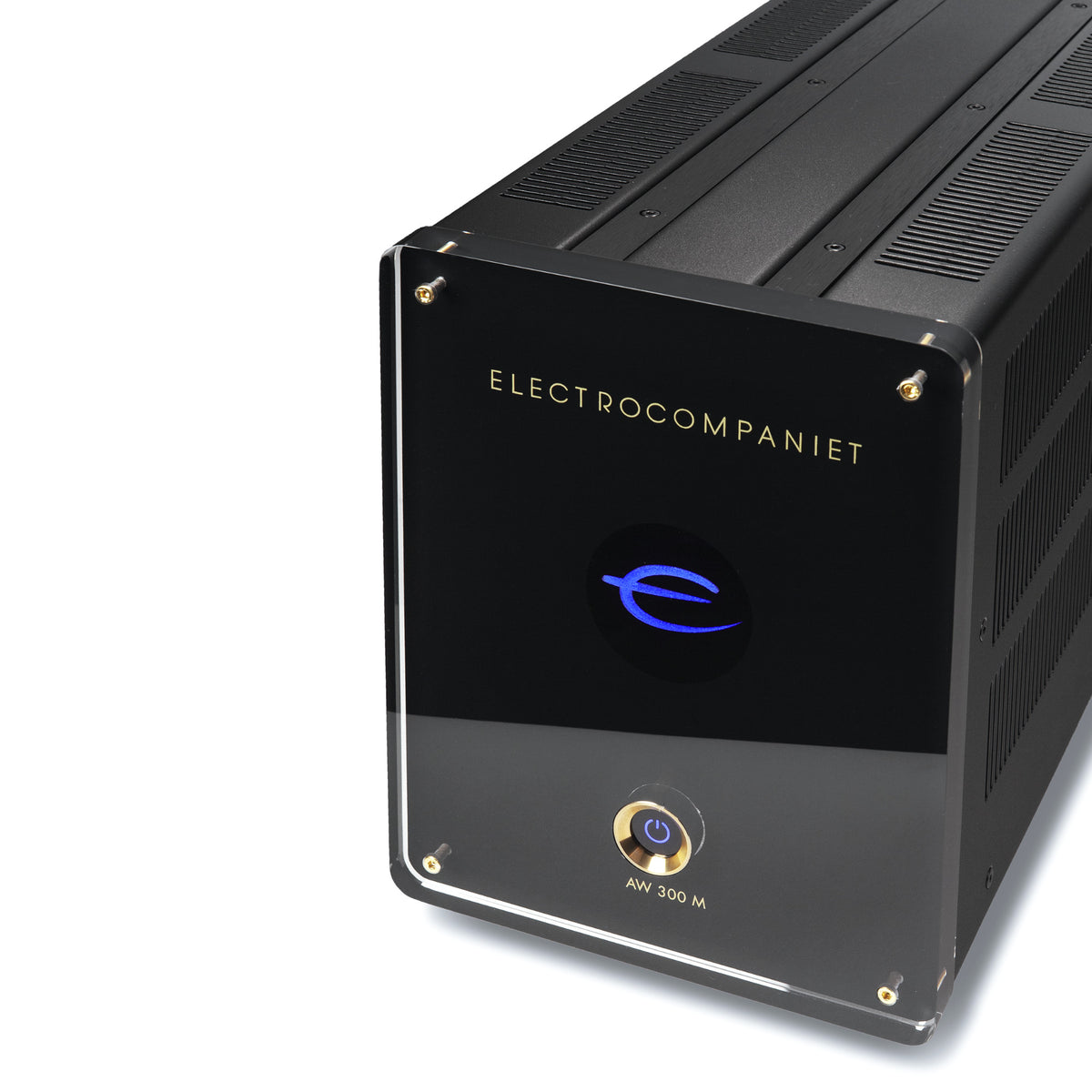

A new front plate with 3D logo and a redesigned power button. The modular chassis is reinforced with two brushed aluminium rods for added rigidity and keeps the luxurious matte finish typical of Electrocompaniet. Designed and produced in Norway, supplied with Soundcare Superspikes isolation feet.

Technical specifications
Output power: 300 W / 8 Ω, 600 W / 4 Ω, 1000 W / 2 Ω
Input impedance: 330 kΩ
Frequency response (filter active): 0.5 Hz – 220 kHz
Frequency response (filter disabled): 0.5 Hz – 1.1 MHz
Voltage gain (balanced input): 29 dB (x28)
Input-referred noise (20 Hz – 20 kHz): < 2 µV
SNR (ref. 1 W / 8 Ω): 95 dB
SNR (ref. full power): 120 dB
Slew-rate (filter disabled): 140 V/µs
IMD: < 0.001 %
THD+N: 0.0006 %
Damping factor (8 Ω): > 1000
DC output voltage: < 5 mV
Power consumption (standby): < 0.5 W
Protection: DC, overload, temperature
Inputs: balanced XLR
Trigger: 12 V in / out
Dimensions (W x D x H): 470 x 490 x 210 mm
Weight: 30 kg

Note
Price is per one mono amplifier.
