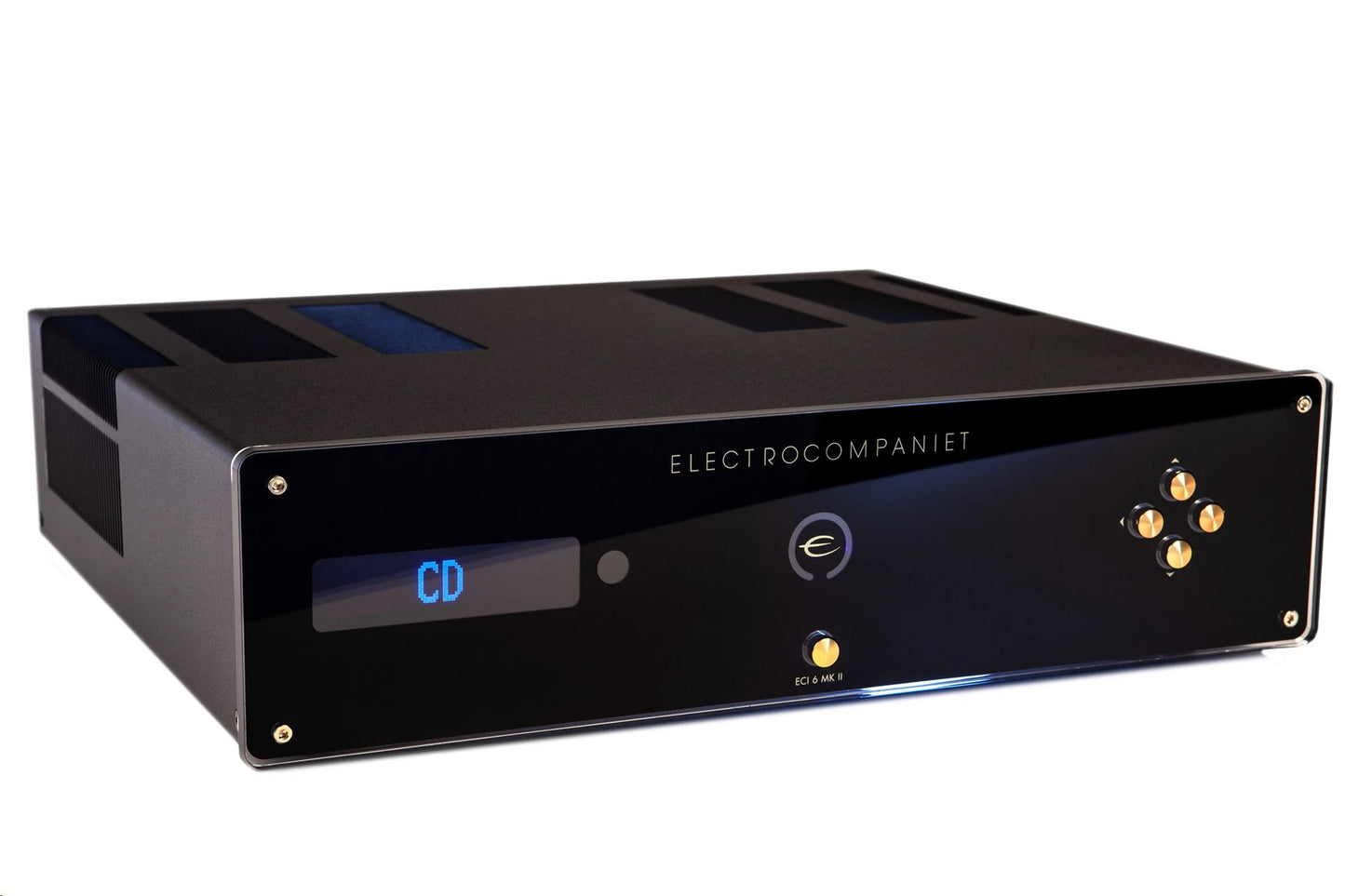

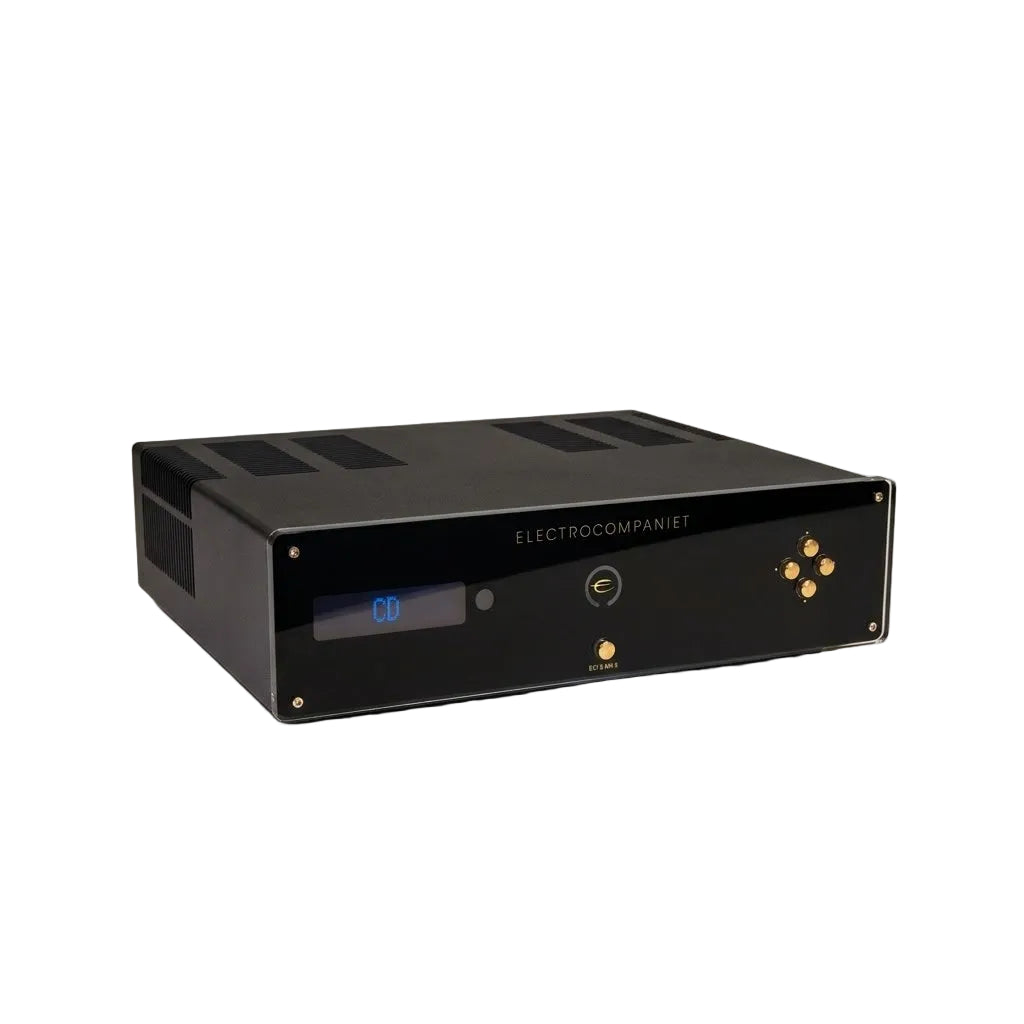

Electrocompaniet ECI 6 MKII Integrated Amplifier

The ECI 6 MKII is a powerful integrated amplifier with 4 analogue inputs and 2 x 125 W of output power. It is based on the successful ECI 5 MKII and enhanced with an even better power supply and a more sophisticated preamplifier module.

The result is an extremely substantial and dynamic amplifier, capable of controlling a wide range of loudspeakers on the market.

Technical specifications
Preamplifier section
Input impedance (balanced): 47 kΩ
Maximum input level: 10 Vrms
Noise floor (1 Vrms, 20 Hz – 20 kHz, balanced): -135 dB
THD+N (1 Vrms, 20 Hz – 20 kHz, balanced): < 0.004 %
Gain (balanced): 0 dB

Amplifier section
Rated output power: 2 x 125 W / 8 Ω, 2 x 200 W / 4 Ω, 2 x 370 W / 2 Ω
Output impedance: < 0.02 Ω
Frequency response: 1 Hz – 150 kHz
Channel separation: > 120 dB
THD (20 Hz – 20 kHz): < 0.004 %
Maximum peak current: > 100 A
Damping factor (8 Ω): > 350
Input sensitivity (120 W output): 1.3 Vrms
Input sensitivity HT (120 W output): 1 Vrms
Gain HT input: x36 (31 dB)
Power consumption: 110 W
Standby (no load or signal): 1 W
Dimensions (W x D x H): 470 x 430 x 128 mm
Weight: 20.5 kg
