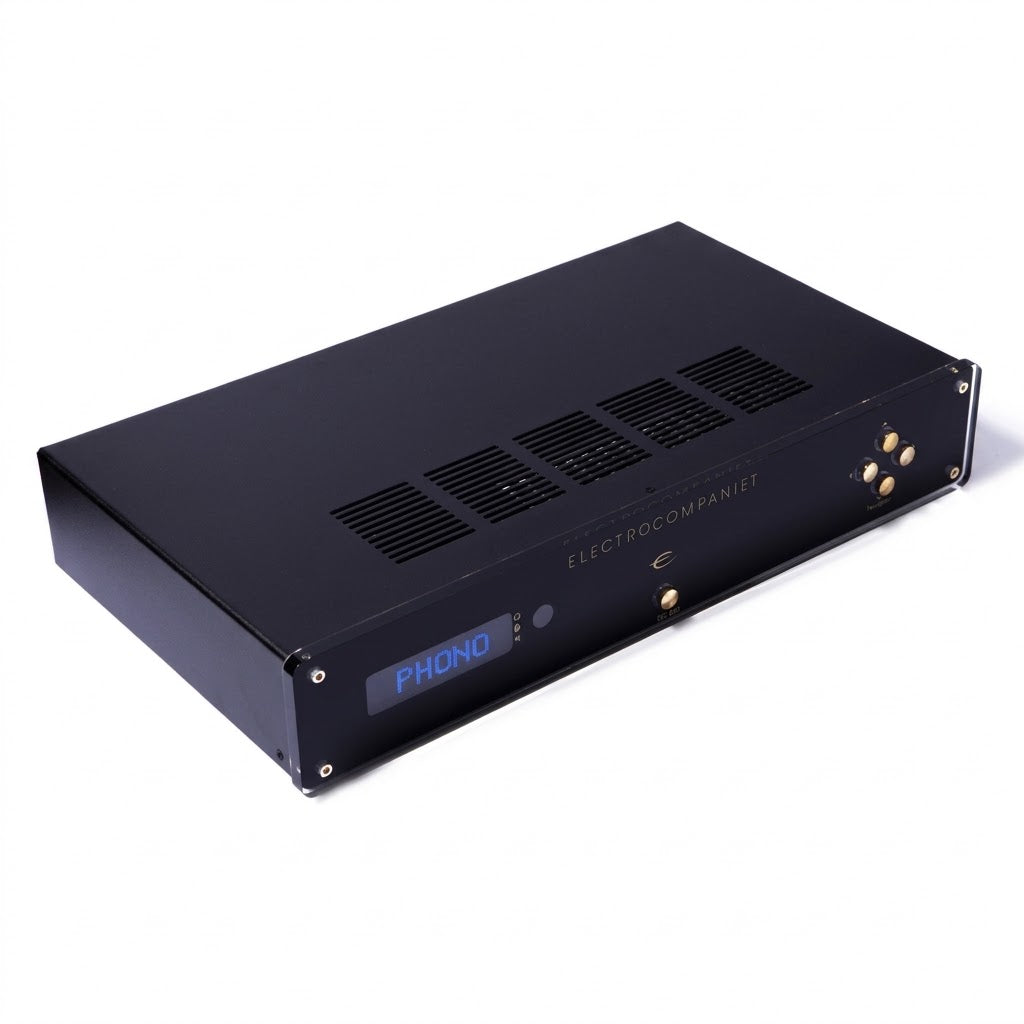

Electrocompaniet ECI 80D Integrated Amplifier

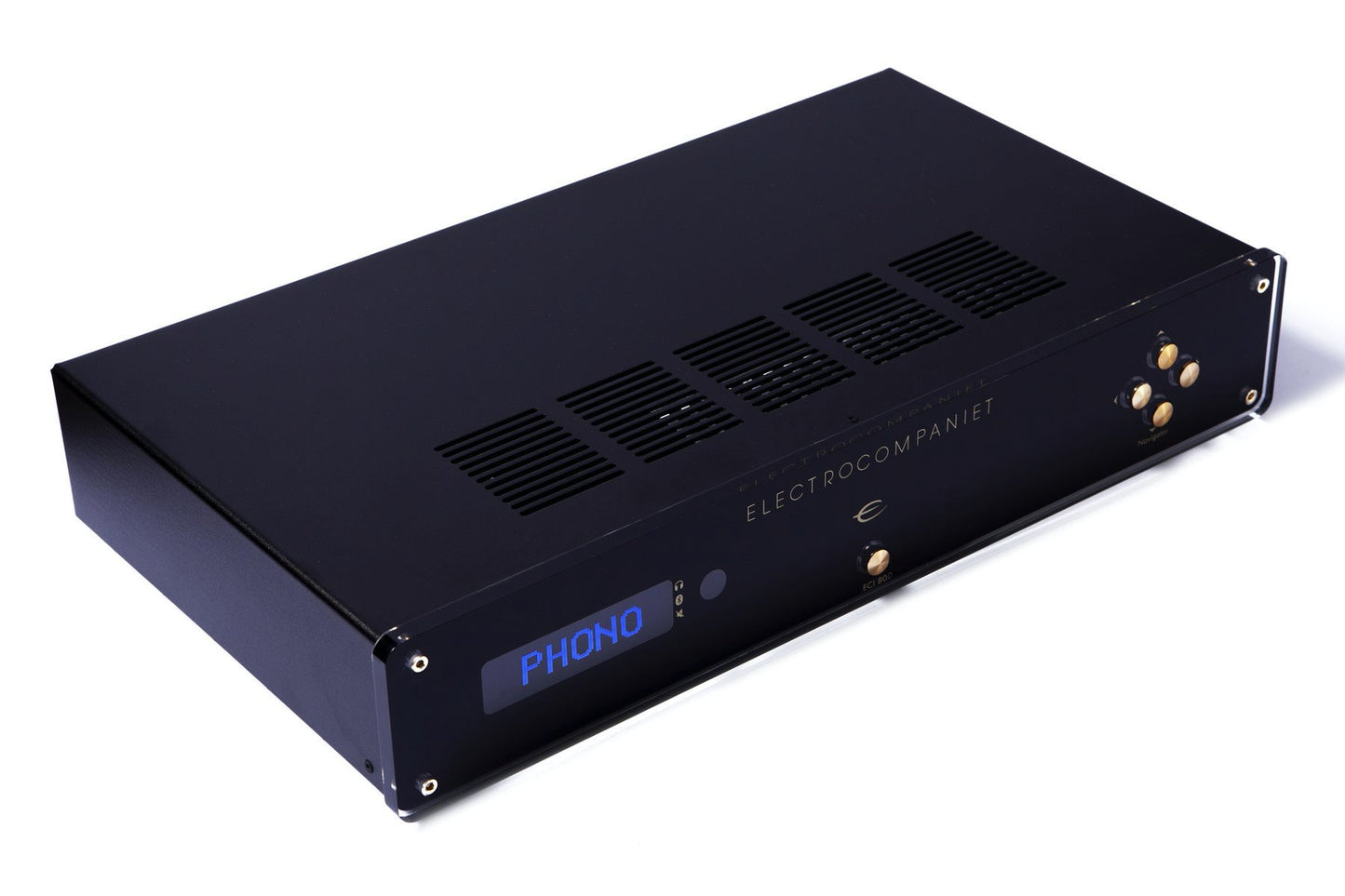

The ECI 80D is an all-in-one integrated amplifier offering 2 x 80 W into 8 Ω from an in-house developed Class A/B amplifier. It is equipped with a built-in RIAA phono preamplifier (MM), two-way HD Bluetooth for streaming from your iOS or Android device, Mac or PC as well as to high-end wireless headphones, and a 5-input DAC (3x Toslink, 2x coaxial).

Works with your turntable
The built-in phono preamplifier with moving magnet cartridge support lets you connect your record player directly to the ECI 80D and enjoy your vinyl collection.

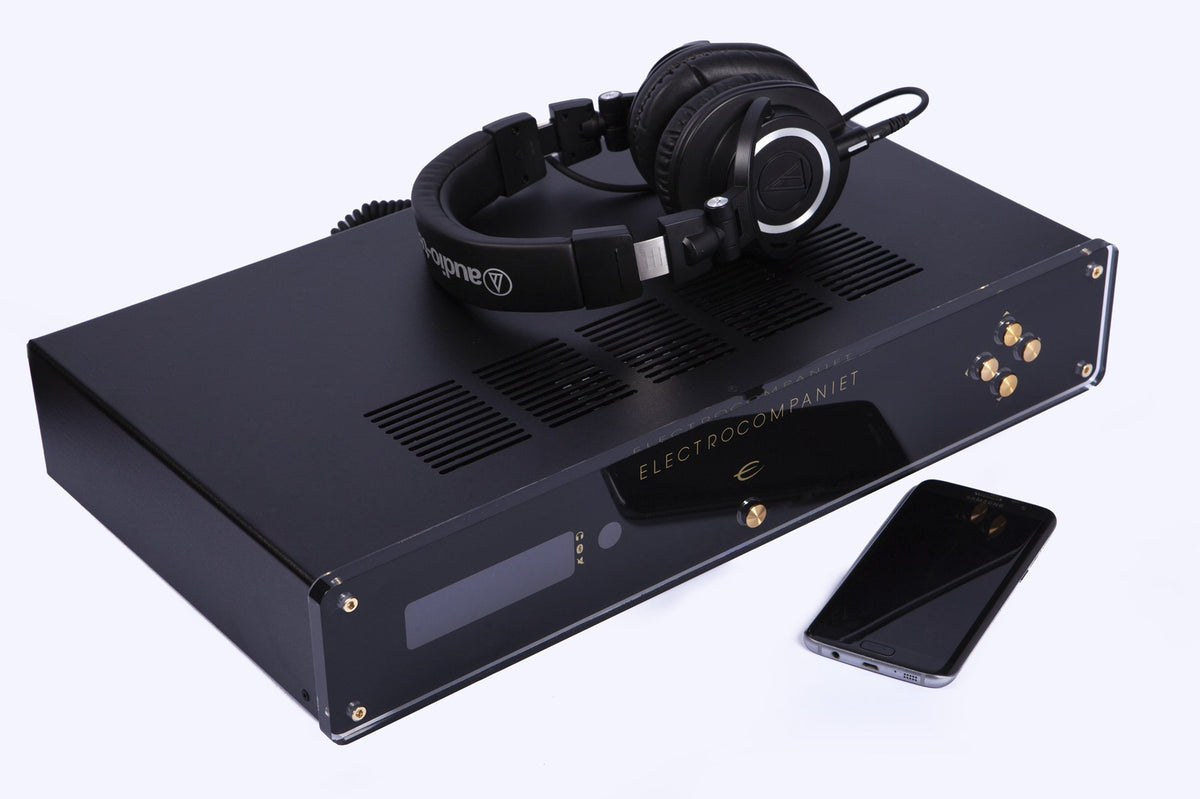

Headphone output
A built-in double headphone amplifier allows cabled listening on two pairs of headphones simultaneously.

HD Bluetooth streaming
Supports HD Bluetooth streaming from your phone, tablet, PC or Mac, and also streaming to HD wireless Bluetooth headphones.

Take control
Supplied with a remote control, so you can operate all functions from the comfort of your chair or sofa.

Attractive form factor
An extremely substantial and dynamic integrated amplifier in an attractive form factor, capable of controlling a wide range of loudspeakers. Designed and manufactured in Norway.

Technical specifications
Preamplifier
Input impedance: 75 kΩ
Noise floor: < -130 dB
THD+N: < 0.002 %
Frequency response (-3 dB): 1 Hz – 150 kHz
Volume adjustment range: -110 dB to +15 dB

Output amplifier
Output power: 2 x 80 W / 8 Ω, 2 x 150 W / 4 Ω
THD+N: < 0.005 %
Damping factor (8 Ω): > 300
Frequency response (-3 dB): 1 Hz – 150 kHz
SNR (ref. 1 W / 8 Ω, A-weighted): 102 dB
Gain: 25 dB
Protection: DC, overload, temperature

RIAA phono
Cartridge support: moving magnet (MM)
Gain: 40 dB @ 1 kHz
Input impedance: 47 kΩ || 100 pF
RIAA correction accuracy: ±0.1 dB (25 Hz – 20 kHz)
Subsonic filter: -3 dB @ 14 Hz
THD: < 0.001 %
SNR: 83 dB (A-weighted)
Overload margin: 30 dB @ 1 kHz

Headphone amplifier
THD+N: < 0.001 %
Load impedance: > 16 Ω (one output), > 32 Ω (both outputs)
Max output power (16 Ω): 0.4 W
Output impedance: 10 Ω
Protection: DC, overload

Digital and streaming
Optical / coaxial inputs: PCM 44.1 kHz / 16 bit up to 192 kHz / 24 bit
Bluetooth: BT 5.0, A2DP, SBC, AAC, aptX HD

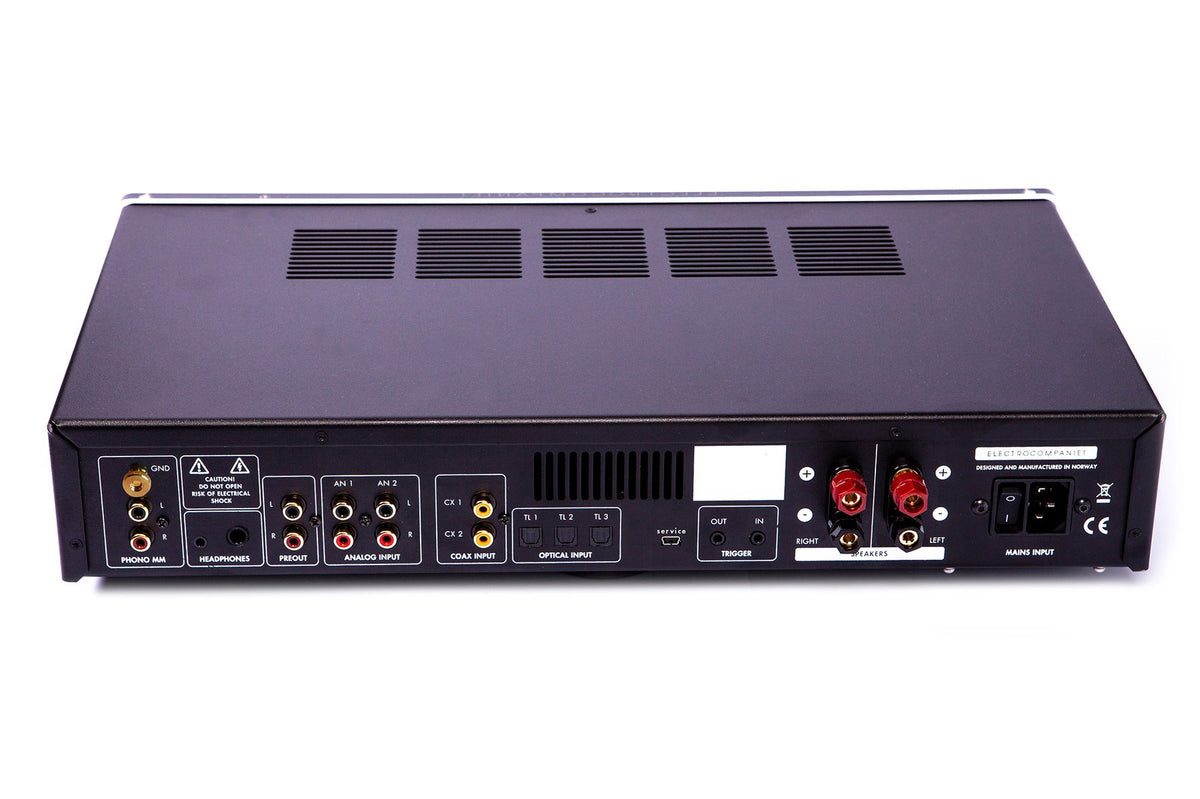

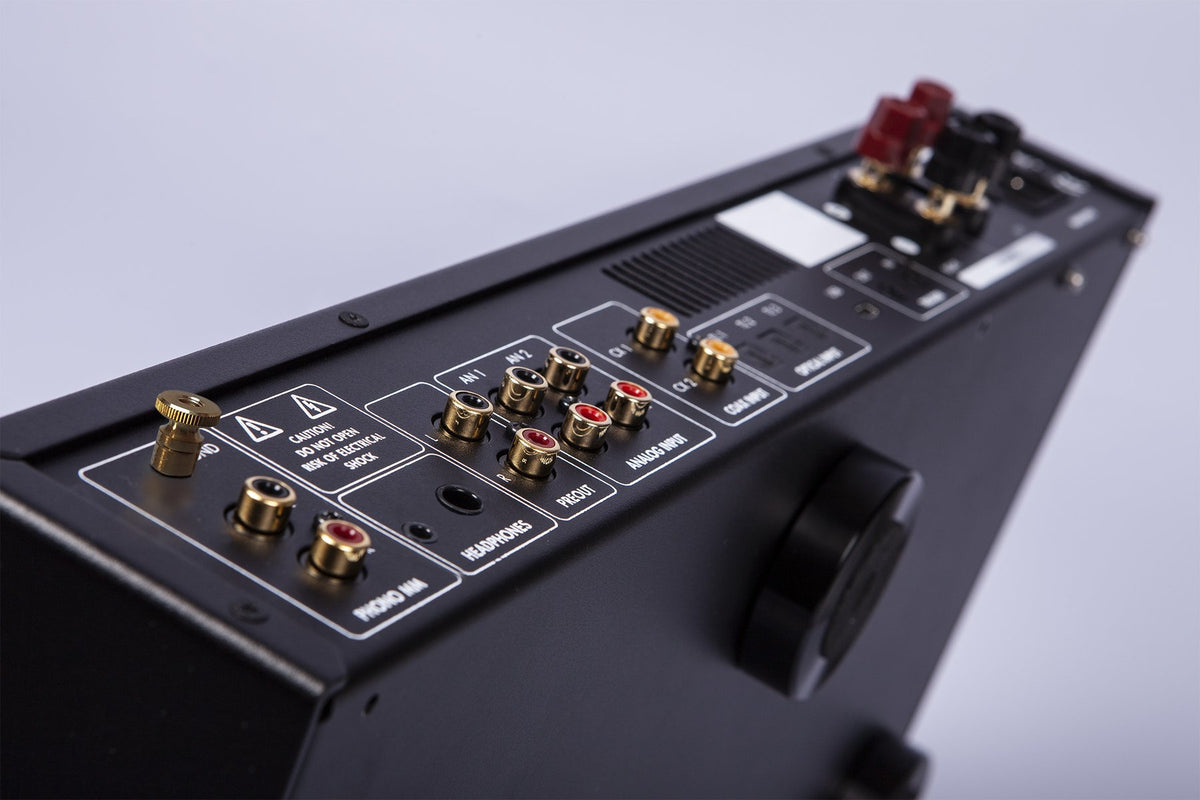

Connectivity
Digital inputs: 2x coaxial, 3x optical
Analogue inputs: 2x RCA
Phono MM input: 1x RCA
Preamplifier output: 1x RCA
Headphone outputs: 3.5 mm + 6.35 mm jack
Speaker outputs: 1 pair of binding posts
12 V trigger: 1x in, 1x out
Service port: 1x USB

Power and dimensions
Mains input: 100–240 VAC, 50/60 Hz
Power consumption (idle): 30 W
Standby: < 0.5 W
Dimensions (W x D x H): 470 x 262 x 90 mm
Weight: 8 kg
