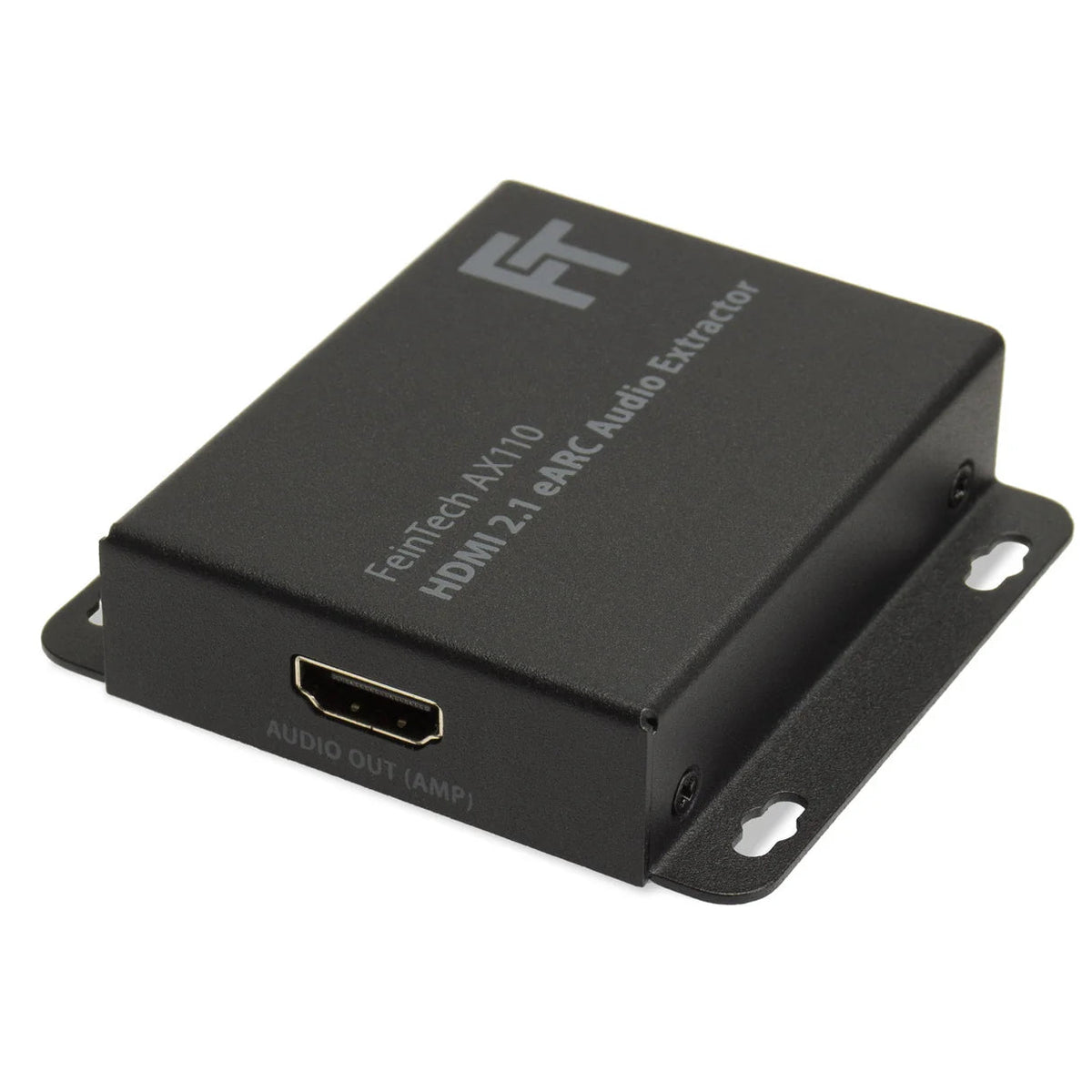

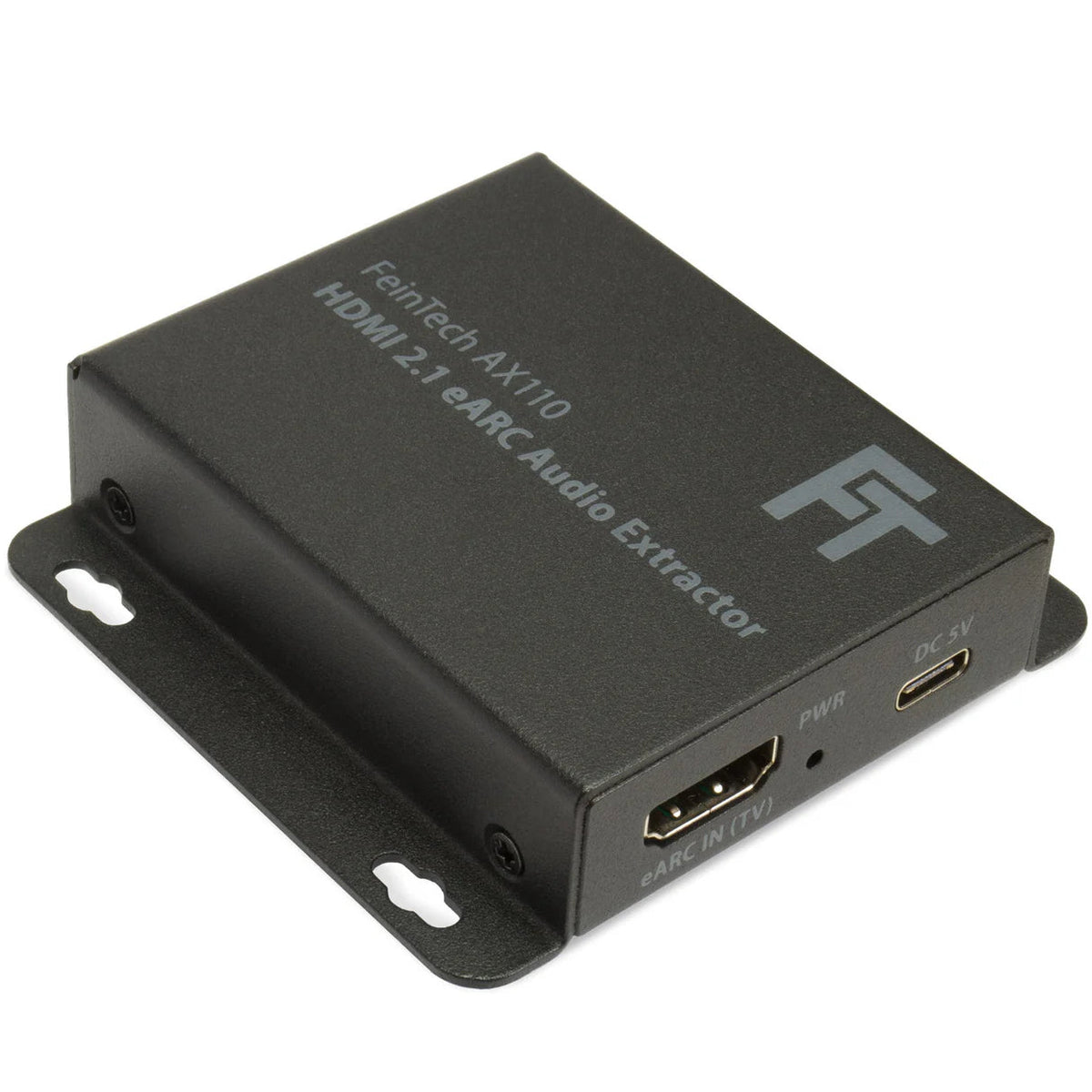

FeinTech AX110 (Like New) HDMI eARC Audio Converter | Convert TV sound for HDMI sound systems

Like new, open box, no signs of use, full warranty, complete packaging

The FeinTech AX110 HDMI eARC audio converter lets you use a modern TV with HDMI eARC together with an existing AV receiver or soundbar that only has normal HDMI inputs. It takes the eARC audio from the TV and outputs it as a standard HDMI signal, so you can enjoy high-quality sound from smart TV apps and all devices connected to the TV – without replacing your receiver.

Key Features

• Converts the TV's HDMI eARC audio into a standard HDMI signal for AV receivers and sound systems
• Sound from smart TV apps and from players connected to the TV (Apple TV, Fire TV, Xbox, PlayStation)
• Game consoles stay connected directly to the TV with all HDMI 2.1 features such as 4K 120Hz and VRR
• Supports Dolby Digital Plus and Dolby TrueHD with Atmos, Dolby MAT, DTS-HD, DTS:X and LPCM up to 7.1
• HDMI-CEC volume control and power on/off with the TV remote (on compatible devices)
• Compact, plug & play, powered via USB

eARC for existing sound systems

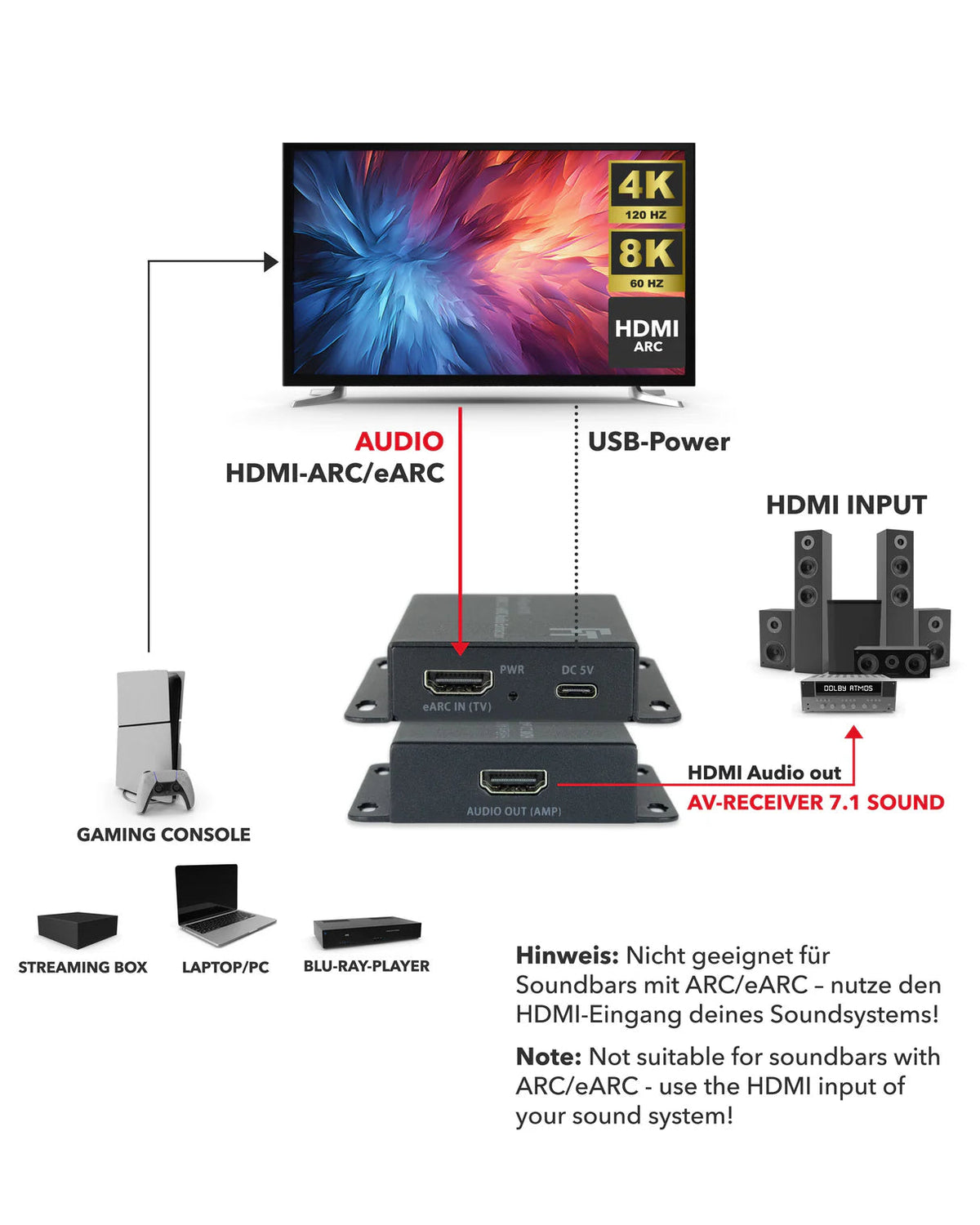

Many AV receivers do not support eARC or HDMI 2.1. With the AX110 you connect your new consoles and players directly to the TV and keep using your receiver for sound. The AX110 converts the eARC audio into a normal HDMI signal (black picture plus audio), so the receiver does not need to support the video format – a standard HDMI input is enough. To pass PCM 5.1 or 7.1 sound, the TV usually needs to be set to audio passthrough.

Control with your TV remote

If your sound system supports HDMI-CEC on its HDMI inputs – as most AV receivers from the last 10 years do – you can adjust the volume and mute with the TV remote. Automatic switching on and off of the receiver together with the TV works with most device combinations.

Good to know

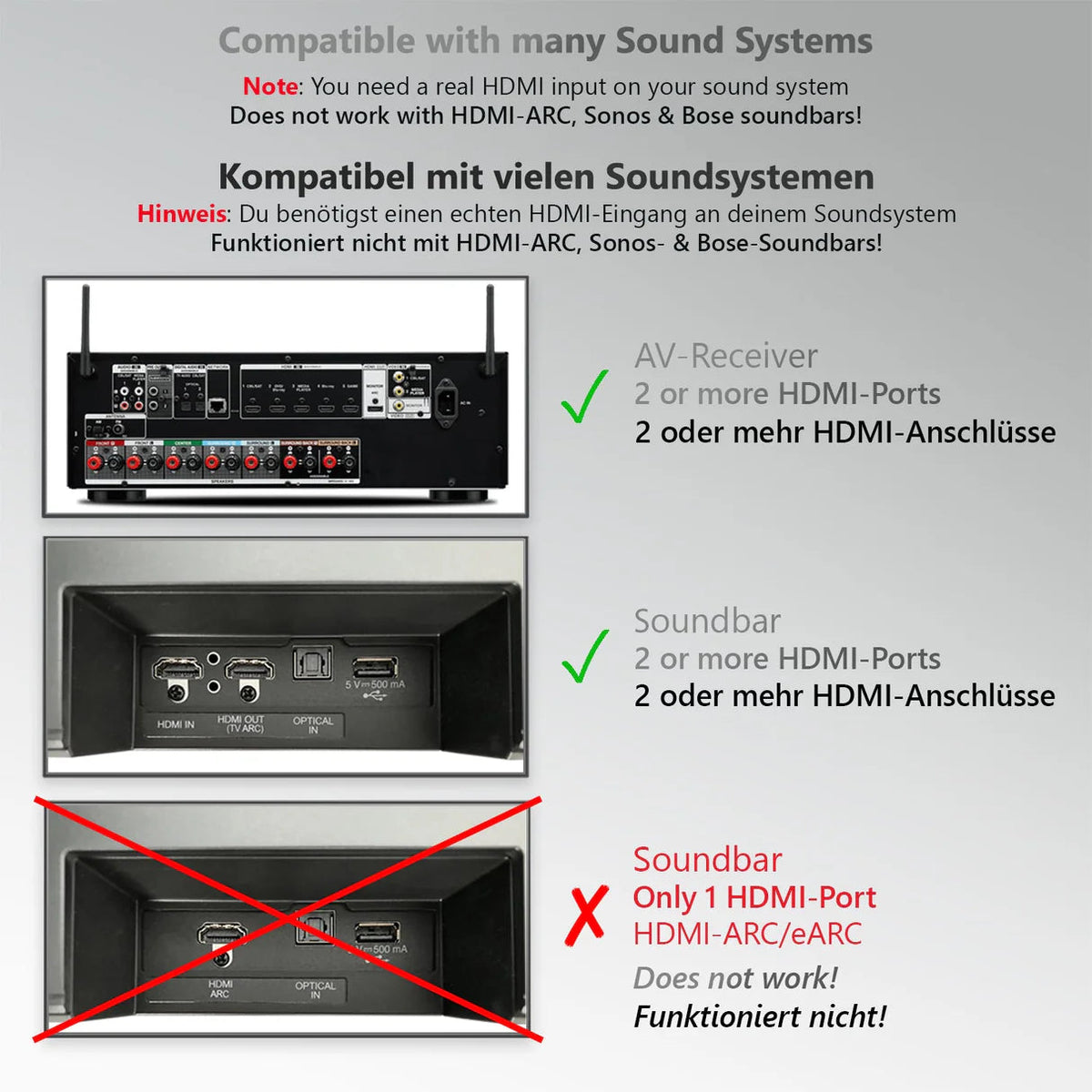

• The sound system needs a normal HDMI input. The HDMI ARC port of a soundbar is an output and cannot be used, so the AX110 is not suitable for Sonos or Bose soundbars.
• Some TVs do not pass DTS / DTS-HD via eARC. In that case set your Blu-ray player or Xbox to output PCM multichannel instead of DTS bitstream.
• Power via USB (5 V, 350 mA) from a USB port or USB power adapter (adapter not included).

Specifications

• HDMI version: HDMI 2.1
• Connections: 1x HDMI eARC (to TV, input), 1x HDMI (to AV receiver, output), micro USB power
• Audio formats: Dolby Digital Plus (incl. Atmos), Dolby Digital 5.1, Dolby TrueHD (incl. Atmos), Dolby MAT, DTS, DTS-ES 6.1, DTS-HD, DTS:X, LPCM 2.0 / 5.1 / 7.1
• HDMI-CEC control
• Recommended HDMI cable length: under 5 m
• Power: micro USB 5 V, typical consumption 0.7 W
• Dimensions: 70.5 x 75 x 18.4 mm

In the box

• AX110 eARC audio converter
• 1 m USB power cable
• 0.5 m 8K HDMI cable (48 Gbps)
