FeinTech SX430 (Like New) HDMI 2.0 Splitter 1 In 4 Out over CAT Extender 60m Loop Out 4K 60Hz

Like new, open box, no signs of use, full warranty, complete packaging

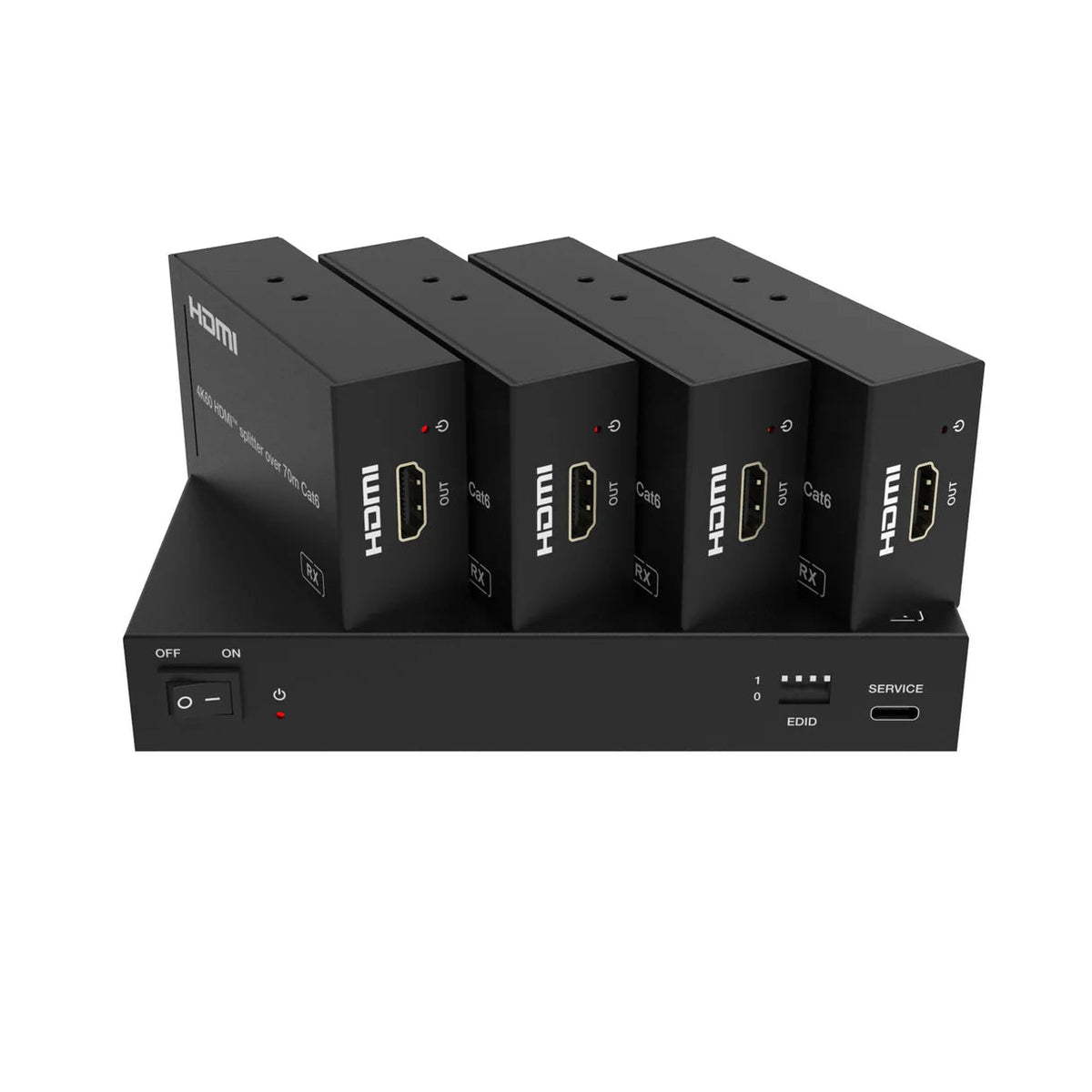

The FeinTech SX430 is an HDMI over LAN splitter and extender set that sends one 4K 60Hz HDMI signal to up to five displays at the same time – one local screen via HDMI loop out on the transmitter and four remote screens via network cable. Transmission is lossless and without noticeable delay, reaches up to 70 metres, and thanks to Power over Cable the whole system runs from a single power supply.

Key Features

• 1 HDMI input distributed to 1 local HDMI loop out and 4 remote receivers
• HDMI over LAN up to 70 m at 4K 30Hz and up to 60 m at 4K 60Hz (one CAT6 or better cable per receiver)
• 4K 60Hz with full 4:4:4 colour, HDR10, HDR10+, HLG and Dolby Vision
• HDMI 2.0b, 18 Gbps, HDCP 2.2
• Power over Cable – receivers are powered through the LAN cable, only one power supply needed
• 16 selectable EDID modes for optimal compatibility
• Plug & play, no software required

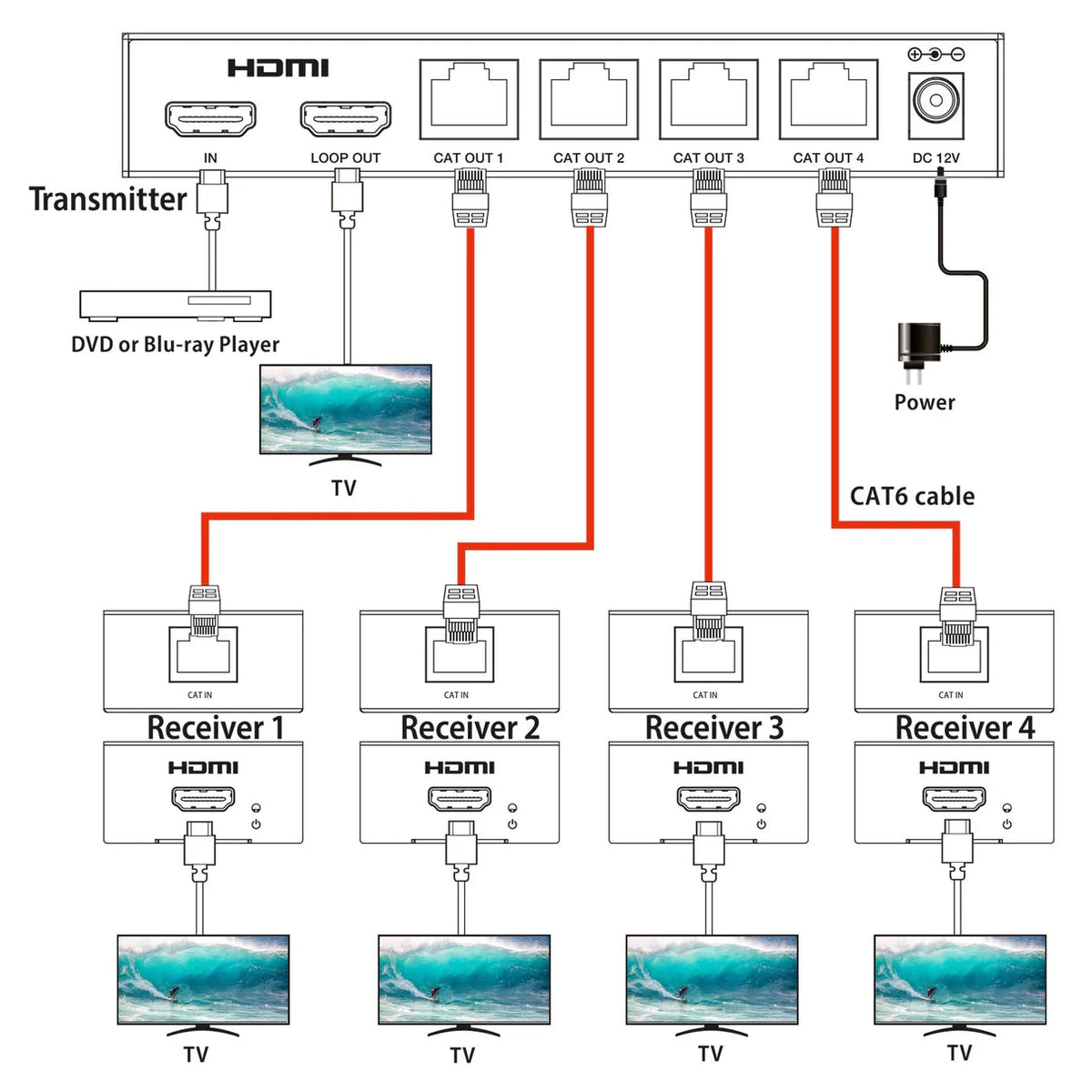

One source, five displays

The SX430 works as an HDMI splitter: a local display connects directly to the HDMI loop out on the transmitter – ideal as a control monitor – while four further TVs or projectors receive the same picture via LAN cable. This makes it a great solution for shops, offices, restaurants, conference rooms or multi-room home installations.

Long range over network cable

Each of the four receivers is connected with its own CAT6 or better network cable and can be placed up to 70 m (4K 30Hz) or 60 m (4K 60Hz) from the transmitter. Network cabling is easy to route through walls and ceilings, so you can reach other rooms or floors with a clean, discreet installation.

4K HDR picture and rich audio formats

With the full HDMI 2.0 bandwidth of 18 Gbps, the SX430 transmits 4K 60Hz with 4:4:4 colour and supports HDR10, HDR10+, HLG and Dolby Vision. The HDMI loop out passes all common audio formats including PCM 7.1, Dolby TrueHD and Dolby Digital Plus with Atmos, DTS-HD and DTS:X, while the receivers output PCM 2.0, Dolby Digital, Dolby Digital Plus (incl. Atmos) and DTS.

Power over Cable and EDID control

The transmitter is powered by one 12 V adapter and supplies the four receivers through the LAN cables, so no extra power supplies are needed at the displays. Using DIP switches you can choose from 16 EDID modes – from 4K 60Hz HDR with 7.1 audio down to 1080p or computer resolutions with stereo sound – or copy the EDID of the display connected to the loop out, avoiding typical compatibility problems.

Specifications

• HDMI 2.0b, HDCP 2.2, max. data rate 18 Gbps
• Video: up to 4096 x 2160 / 3840 x 2160 at 60Hz (YUV 4:4:4), HDR10, HDR10+, HLG, Dolby Vision
• Audio (loop out): PCM 2.0–7.1, Dolby Digital, Dolby Digital Plus (incl. Atmos), Dolby TrueHD (incl. Atmos), Dolby MAT, DTS, DTS-HD, DTS:X, DSD
• Audio (receivers): PCM 2.0, Dolby Digital, Dolby Digital Plus (incl. Atmos), DTS
• Range with CAT6: 70 m at 4K 30Hz, 60 m at 4K 60Hz
• Transmitter: 1x HDMI in, 1x HDMI loop out, 4x RJ45 out, DC 12 V
• Receivers: 1x RJ45 in, 1x HDMI out each
• Power supply: 12 V DC, 2.5 A; consumption max. 10.4 W
• Dimensions: transmitter 150 x 70 x 24.5 mm, receiver 81 x 49 x 25 mm

In the box

• SX430 transmitter
• 4 x receiver
• 12 V power supply
