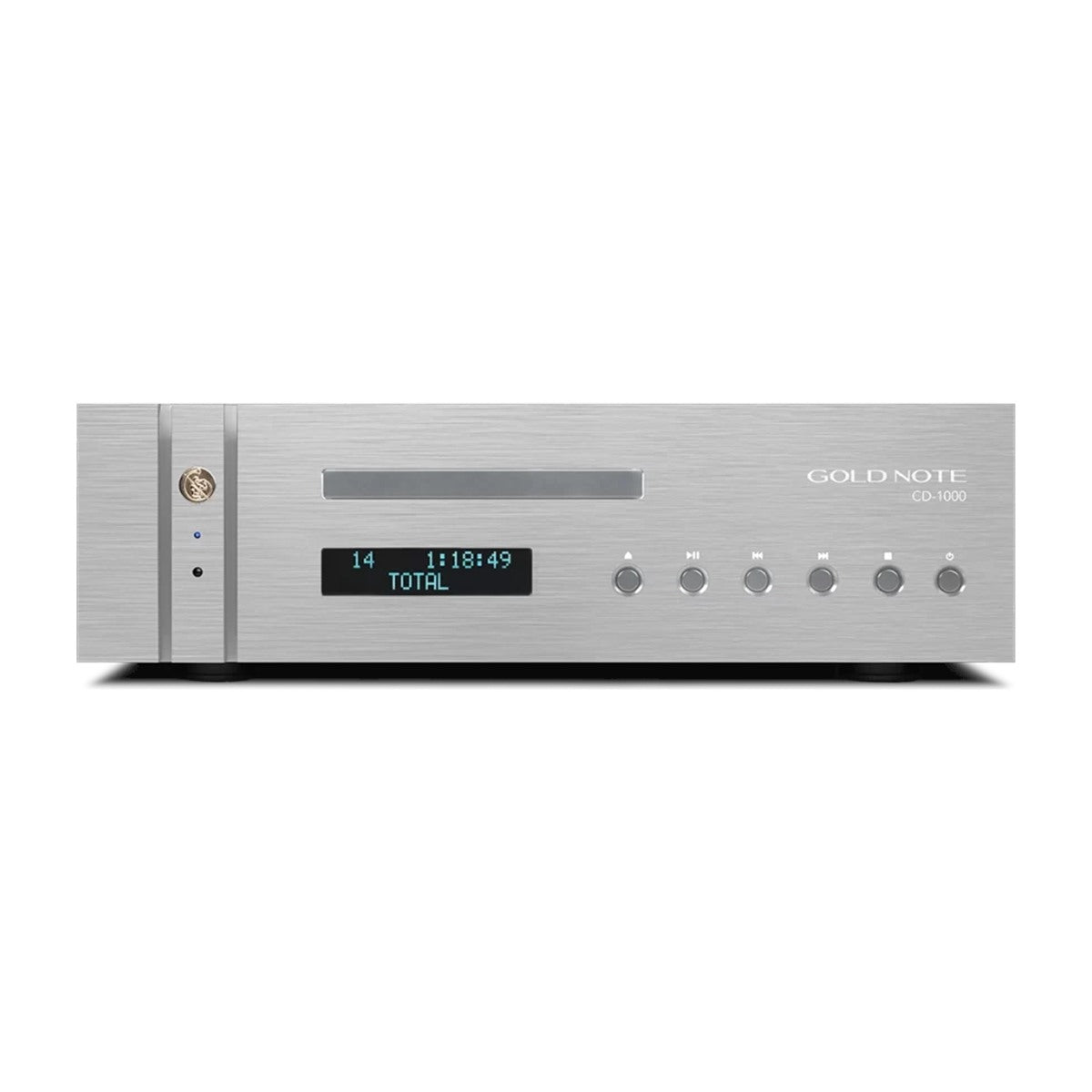

Gold Note CD-1000 MkII Deluxe DSD CD Player Silver

Ultimate performance CD Player

The CD-1000 MkII Deluxe DSD, housed in a beautiful brushed aluminium chassis, integrates a digital and an analogue stage into a single, elegant device. It is designed to listen to music from a CD as well as to play audio files from a TV or DVD player connected via optical or coaxial input. The CD-1000 MkII delivers a natural, detailed and powerful sound, and can be easily integrated into any Hi-End stereo system. CD-1000 MkII Deluxe DSD supports Gapless playback and is equipped with a top-of-the-range 24bit/192kHz digital converter and digital inputs such as the S/PDIF coaxial and the TOS optical to get the best out of your system. The aluminium JPL-2800 transport mechanism made in Austria by Stream Unlimited is one of the best in the world and ensures maximum stability avoiding fluctuations or loss of definition. The CD-1000 MkII Deluxe DSD integrates our Zero-ClockTM technology which allows for an effective reduction of jitter, and features a digital volume control that can be used to drive directly a power amplifier or active speakers.

The CD-1000 MkII Deluxe DSD equipped with the integrated DAC BurrBrown PCM1792A and a USB-B port (supporting up to DSD256 and PCM 32bit/384kHz).

The CD-1000 MkII Deluxe DSD can be paired with external units that allow further improvement of its exceptional audio performance: – TUBE-1012 – class A valve output stages developed with 12 valves – PSU-1250 – super inductive external power supply dedicated to the Gold Note series 1000.

MAIN FEATURES

• CD-PLAYER: CD transport with integrated D/A converter
• DAC: STANDARD model: 24bit/192kHz DAC PCM1796, DELUXE model: 24bit/192kHz DAC PCM1792A
• FREQUENCY RESPONSE: 20Hz-20kHz @ +/-0.3dB
• THD – TOTAL HARMONIC DISTORTION: 0.001% max
• SIGNAL TO NOISE RATIO: 128dB
• DYNAMIC RESPONSE: 127dB
• VOLUME CONTROL: Switchable On/Off digital partializer
• MECHANIC: Aluminium JPL-2800 Stream-Unlimited
• SPEED FLUCTUATION: 0.0001%
• CD FORMATS: Red Book
• DISC COMPATIBILITY: CD, CD-R, CD-RW
• GAPLESS PLAYBACK: Supported
• REMOTE CONTROL: Multifunctional remote included

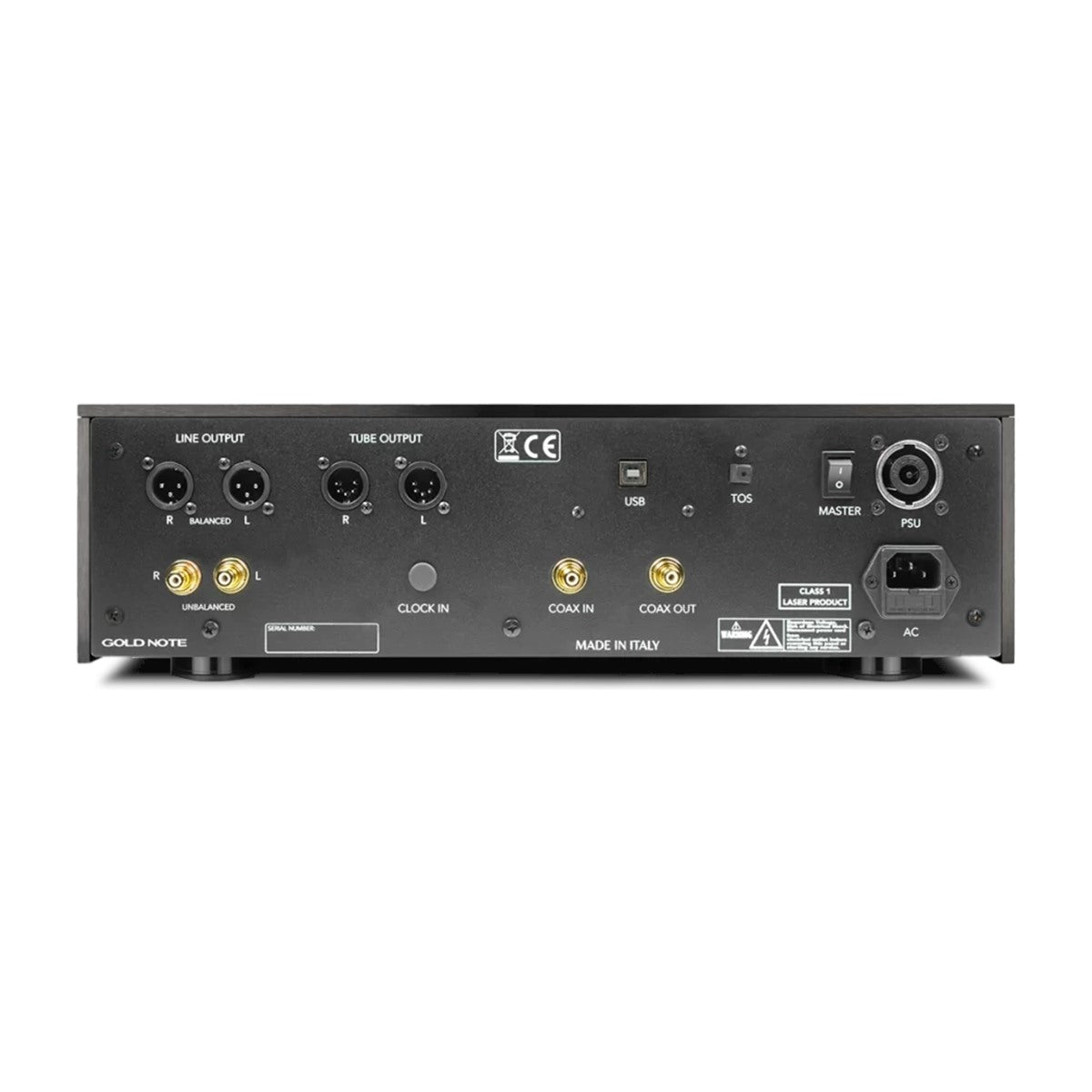

INPUTS AND OUTPUTS

• DIGITAL INPUTS: 1x RCA S/PDIF coaxial, 1x TOS 24bit/192kHz, 1x USB-B DSD256 and 32bit/384kHz (CD-1000 MKII DSD model only)
• ANALOGUE OUTPUTS: 1x unbalanced RCA, 1x balanced XLR, 1x TUBE-1012
• DIGITAL OUTPUTS: 1x S/PDIF Coax 75Ω
• OUTPUT IMPEDANCE: 50Ω
• LINE OUTPUT LEVEL: RCA 2Vrms, XLR 2Vrms

POWER

• POWER CONSUMPTION: 30W
• POWER SUPPLY: 100-120V or 220-240V, 50/60H, Dual-Mono power supply
• FUSE (220/240V): 1A F/T
• FUSE (100/120V): 2A F/T

DIMENSIONS AND WEIGHT

• DIMENSIONS: 430mm W | 135mm H | 375mm D
• WEIGHT: Kg. 12 – net, Kg. 16 – boxed

FINISHES

• BLACK Black anodised aluminium with a traditional brushed finish
• SILVER Silver anodised aluminium with a traditional brushed finish
• GOLD Gold anodised aluminium with a traditional brushed finish

REMOTE CONTROL

• REMOTE CONTROL: Multifunctional remote control included

UPGRADES

• EXTERNAL POWER SUPPLY: PSU-1250: external inductive Dual-Mono power supply (300W), PSU-1000: external inductive Dual-Mono power supply (200W)
• VALVE OUTPUT STAGES: TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply, TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply
