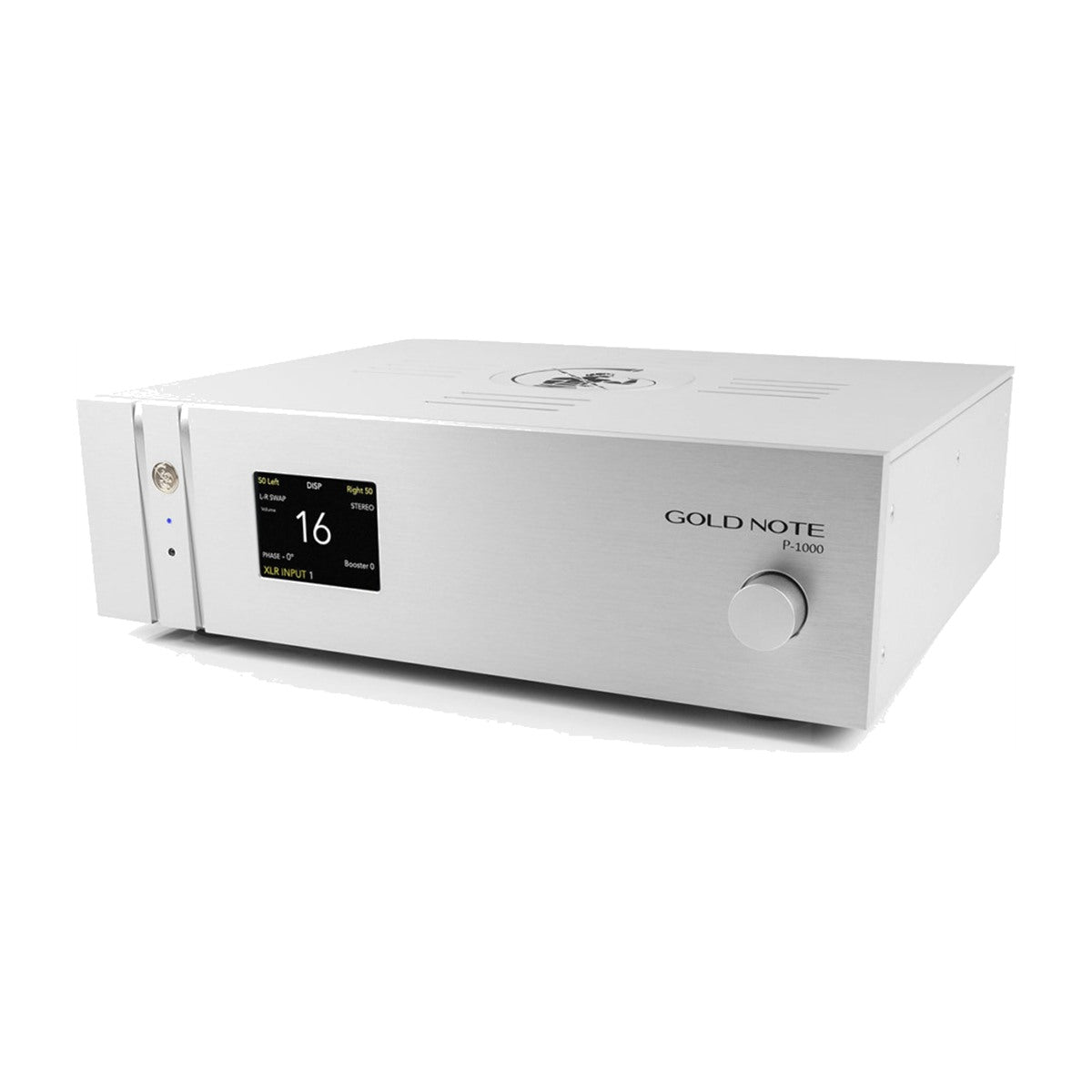

Gold Note P-1000 MkII Deluxe Preamplifier Silver

State-of-the-art technology for the Class A preamplifier dedicated to true music lovers

Designed for High-End audio systems, the P-1000 MkII Deluxe is an innovative Class A preamplifier developed with a new proprietary six-stage ultra-balanced design with relays and ALPS optical encoder volume control. The P-1000 MkII Deluxe features a design with three independent linear power supplies and 8 stereo inputs: 4 fully balanced XLR and 4 RCA. It also offers numerous advanced functions: Mono/Stereo selection, left/right channel swap, absolute phase swap, Booster technology and excellent left/right balance. The P-1000 MkII Deluxe is equipped with noise-canceling coils and capacitors on the six output stages, derived from military technologies, secured in place with custom copper clips. To perfectly reproduce even the oldest recordings, the preamplifier can be set in both Mono and Stereo mode. It also allows for playback of inverted recordings.

Absolute phase shift (0°/180°) can be useful when integrating the preamplifier into your system. The Booster technology of the P-1000 MkII Deluxe allows you to get the best out of speakers that require additional power, increasing the emission of energy in a very specific range of low frequencies. The function is completely bypassed in OFF mode. Easy to use thanks to the color display that clearly and intuitively shows all the functions and allows precise and fast adjustments both through the use of the knob on the front panel and the remote control. To further improve its performance, the P-1000 MkII Deluxe can be paired with the external super inductive PSU-1250 power supply and the TUBE-1012 valve stage.

MAIN FEATURES

• FREQUENCY RESPONSE: 2Hz – 200kHz @ ± 3dB
• THD (TOTAL HARMONIC DISTORTION): < 0.001% @ 1kHz
• GAIN: +19dB
• SIGNAL TO NOISE RATIO: 110dB
• CHANNEL SEPARATION: > 118dB
• CHANNEL LEFT/RIGHT: Selectable swap
• MONO/STEREO: Yes
• ABSOLUTE PHASE: 0°/180°
• BOOSTER: 3 adjustable levels (by-passable/off)
• VOLUME: 100 steps
• REMOTE CONTROL: Included – IR receiver on front and back

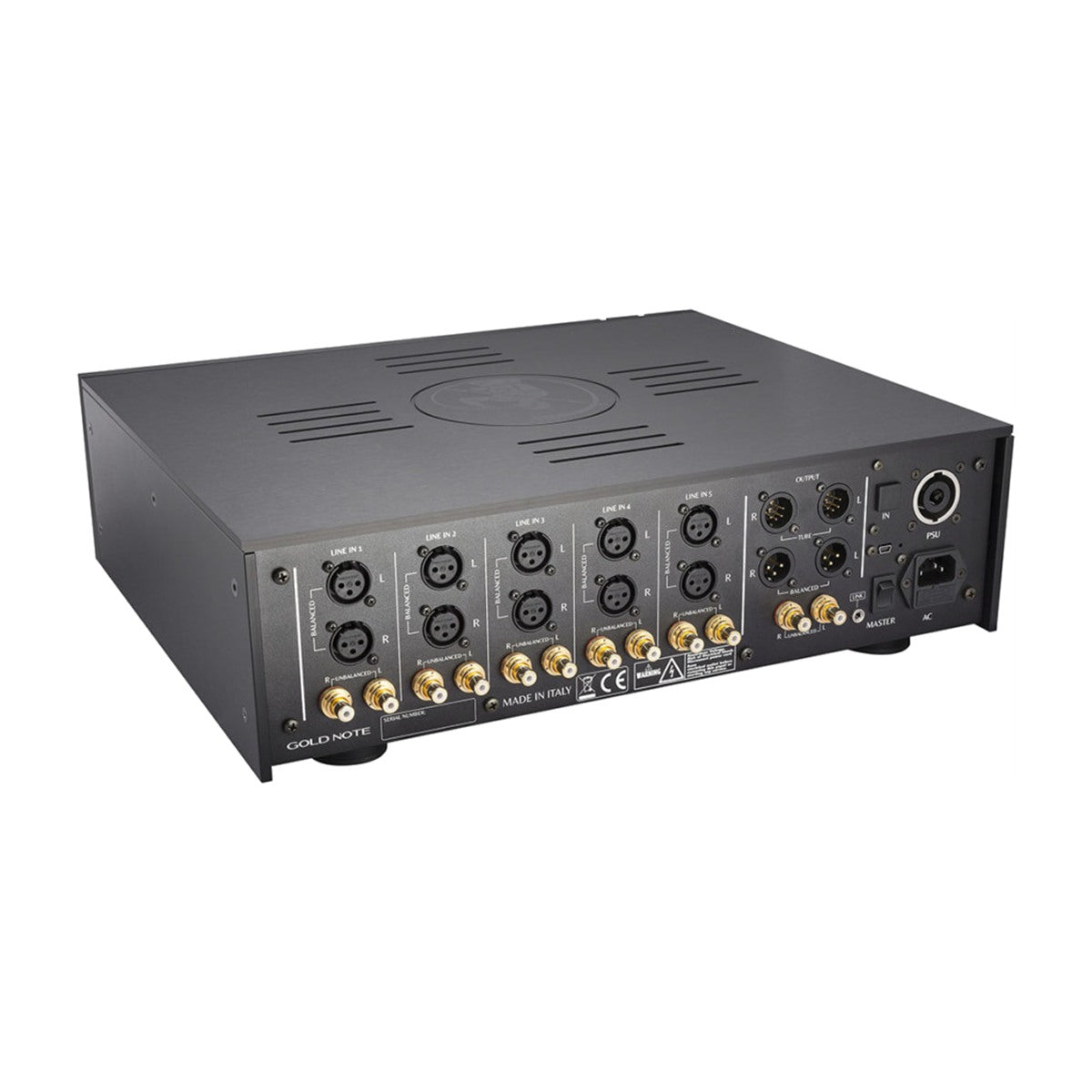

INPUTS AND OUTPUTS

• ANALOGUE INPUTS: 4x RCA unbalanced, 4x XLR balanced
• INPUT LEVEL: RCA – nominal 2Vrms, max up to 5Vrms, XLR – nominal 2Vrms, max up to 10Vrms
• INPUT IMPEDANCE: 100kΩ XLR & RCA
• AUDIO OUTPUTS: 2x RCA unbalanced, 2x XLR balanced, 1x TUBE-1012
• OUTPUT LEVEL: Max up to 20Vrms on XLR & 10Vrms on RCA
• OUTPUT IMPEDANCE: < 50Ω XLR & RCA

POWER

• POWER SUPPLY: 100-120V or 220-240V, 50/60Hz, Ultra Linear power supply with 3 transformers
• POWER CONSUMPTION: max 30W
• PSU INPUT: 1 Input for external inductive power supply PSU-1250/1000
• FUSE (220/240V): 1A F
• FUSE (100/120V): 2A F

DIMENSIONS AND WEIGHT

• DIMENSIONS: 430mm W | 135mm H | 375mm D
• WEIGHT: Kg. 11 – net, Kg. 16 – boxed

FINISHES

• BLACK Black anodised aluminium with a traditional brushed finish
• SILVER Silver anodised aluminium with a traditional brushed finish
• GOLD Gold anodised aluminium with a traditional brushed finish

BOOSTER

• The Booster is a feature designed to reproduce the lower range of frequencies with power and control. It works as a custom equalisation, increasing the gain around 50Hz to provide a richer and more full-bodied sound. The 50Hz frequency has been chosen since lower frequencies are more difficult to obtain with small speakers.
• The Booster provides a richer and more full-bodied sound, for better realism and dynamic. It’s particularly useful in case of speakers that require more energy in the bass frequencies, for night-time listening at lower volumes, or even to achieve a more realistic headroom. The Booster is completely by-passed when set to OFF, applied to 50% when set to 1, applied to 100% when set to 2.

REMOTE CONTROL

• REMOTE CONTROL: Multifunctional remote control included

UPGRADES

• VALVE OUTPUT STAGES
• TUBE-1006: Class-A 6 Tubes output stages with Dual Mono/inductive tube power supply TUBE-1012: Class-A 12 Tubes output stages with Dual Mono/inductive tube power supply
• EXTERNAL POWER SUPPLY
• PSU-1250: external inductive Dual-Mono power supply capable (300W) PSU-1000: external inductive Dual-Mono power supply capable (200W)
