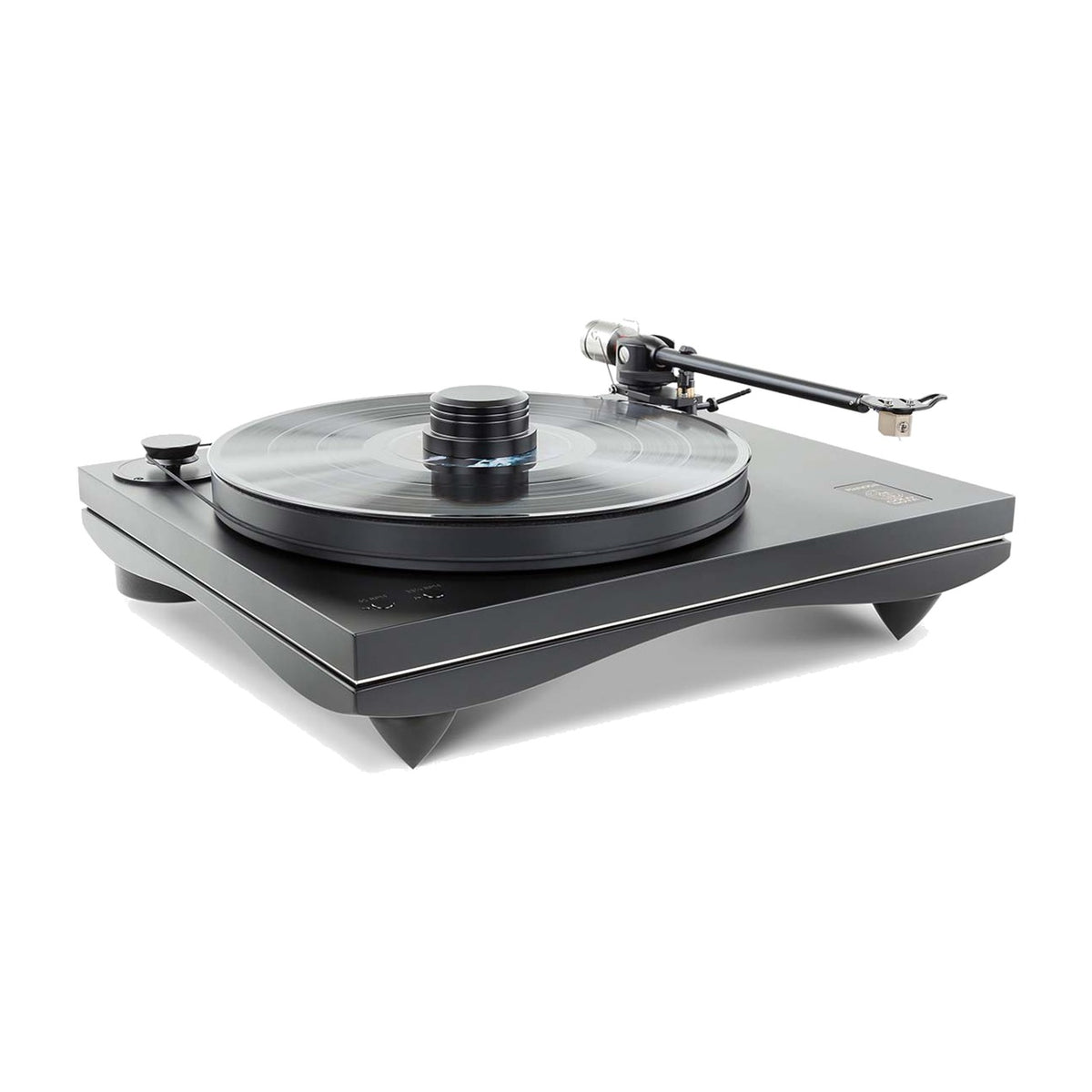

Gold Note Pianosa Turntable Black Lacquered

Attention to every detail awakens new musical sensations

Pianosa’s philosophy reflects the entire range of Gold Note turntables: innovative shapes and materials of the highest quality in service of the best sound experience. The lower plinth, whose shape is inspired by the catenary curve, is available in walnut wood or black lacquered MDF and is handmade by the best Italian craftsmen: every single piece is carefully selected and carefully worked in a crucial working process thanks to which the “heart” of each turntable takes shape. The upper plinth is produced in black lacquered MDF, 20 mm thick and reinforced by a 3 mm stainless steel plate, which guarantees its rigidity. The result is an audio performance that exceeds all expectations.

The 12V synchronous motor control system and materials chosen for Pianosa are directly derived from the top-of-the-line Gold Note models. The result is a device that eliminates vibrations while reproducing the smallest details and excellent dynamic response. Pianosa features a high-precision pivot system with very low tolerance to minimize friction during operation. The tempered steel platter spindle perfectly mates with the chrome steel ball bearing, achieving perfect rotation fluidity and low noise.

MAIN FEATURES

• WOW & FLUTTER: 0.1%
• RUMBLE: -77db
• SPEED: 33⅓rpm and 45rpm ±0,1%
• SPEED CHANGING: Electronic with fine pitch control
• TRANSMISSION: 70 shores rectified NBR belt
• MOTOR: high torque 12V synchronous
• PLATTER: 23mm Dampened Poly-Vinyl
• PLATTER SPINDLE: Split-Spindle™ clamping design
• PLATTER BEARING: Chromed Steel 5mm ball bearing
• TONEARM: Gold Note B-5.1
• DUST COVER: Transparent with hinges

POWER

• POWER SUPPLY: 18V DC, 100-240V / 50-60Hz
• POWER CONSUMPTION: max 27W

DIMENSIONS AND WEIGHT

• DIMENSIONS: 425mm W | 170mm H | 360mm D, 550mm W | 480mm H | 480mm D – boxed
• WEIGHT: Kg. 13,5 – net, Kg. 18 – boxed

FINISHES

• GOLD LEAF With black MDF upper plinth, black anodized aluminium metal parts and black platter
• BLACK LACQUERED With black MDF upper plinth, black anodized aluminium metal parts and black platter
• ITALIAN WALNUT With black MDF upper plinth, black anodized aluminium metal parts and black platter
• WHITE With black MDF upper plinth, black anodized aluminium metal parts and black platter

UPGRADES

• EXTERNAL POWER SUPPLY: PST-10 external inductive power supply for turntables
• TONEARM: B-7 Ceramic
