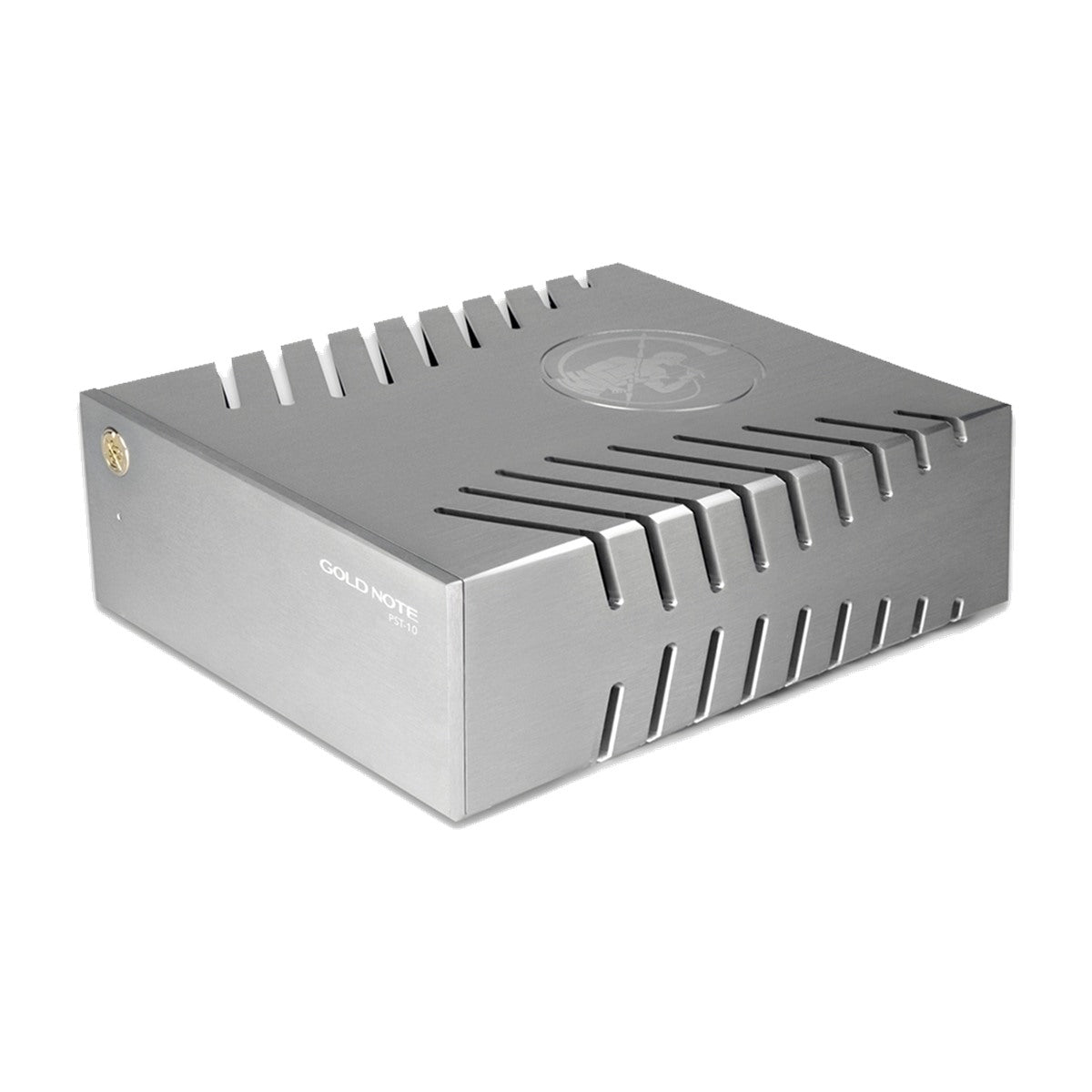

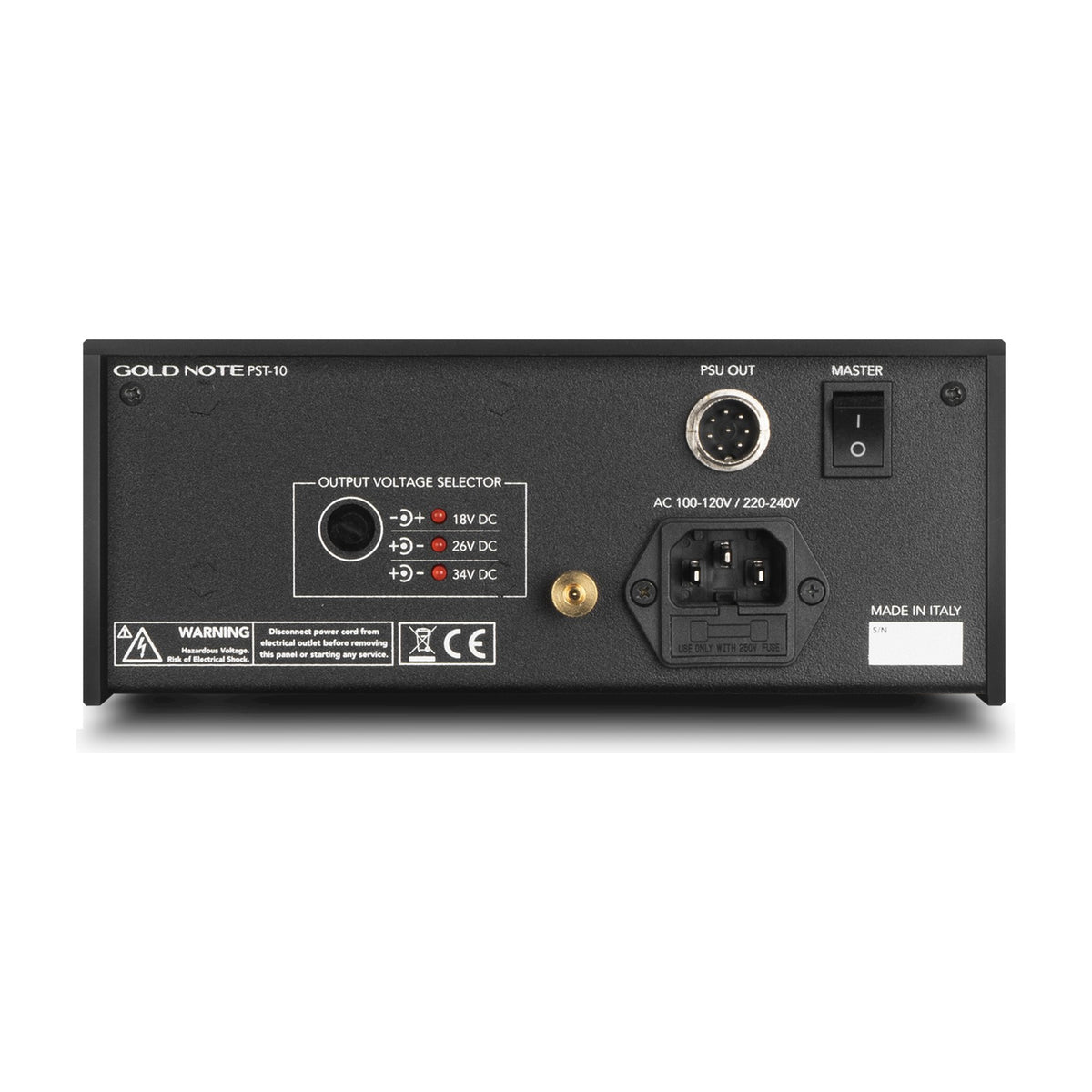

Gold Note PST-10 External Power Supply Silver

The external power supply for your turntable

The PST-10 comes to light with the explicit intention of offering enthusiasts an external power module designed to enhance the performance of your turntable. This special power supply uses a hybrid super inductive dual coil design, with a filter on the analogue stage. The proprietary Dual-Choke design filters the voltage to eliminate the slightest interference and any noise from the power system, thus providing effective protection from the electrical grid and creating the ideal conditions to ensure the perfect operation of the turntable.

The power and cleanliness of sound generated by this external power supply allow for reduced interference, ensure better dynamics and restore the smallest sound details, reproducing the musical event in an extremely realistic way. Specifically designed for your turntable, PST-10 features a 4-stage architecture with 4 ultra-low noise voltage regulators. The power supply uses 4 transformers, 3 of which are dedicated to the power supply and 1 to the inductive filter. To ensure the best performance, PST-10 is supplied with a custom 1.5m power cable made with silver conductor cable.

MAIN FEATURES

• TECHNICAL FEATURES: 4 audio grade transformers, 4 ultra low noise voltage regulators
• MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
• LINE NOISE REJECTION: >80dB
• COMMON MODE NOISE REJECTION: >80dB
• FULL POWER RESPONSE TIME: <2,5µsec
• CONNECTING CABLE: Silver custom cable powering the turntable

COMPATIBLE TURNTABLES

• UPGRADE FOR: Mediterraneo, Giglio, Pianosa, Valore 425 Plus, Valore 425 Lite
• INCLUDED WITH: Bellagio Conquest, Bellagio Reference

POWER

• POWER SUPPLY: 100-120V / 220-240V with auto sense, 50/60Hz
• POWER CONSUMPTION: 25W
• DYNAMIC POWER: >50W
• STAND BY POWER: <1W
• FUSE: 0,5A T

DIMENSIONS AND WEIGHT

• DIMENSIONS: 200mm W | 80mm H | 260mm D
• WEIGHT: Kg. 3 – net, Kg. 4 – boxed

FINISHES

• BLACK Black anodised aluminium with a traditional brushed finish
• SILVER Silver anodised aluminium with a traditional brushed finish
• GOLD Gold anodised aluminium with a traditional brushed finish
