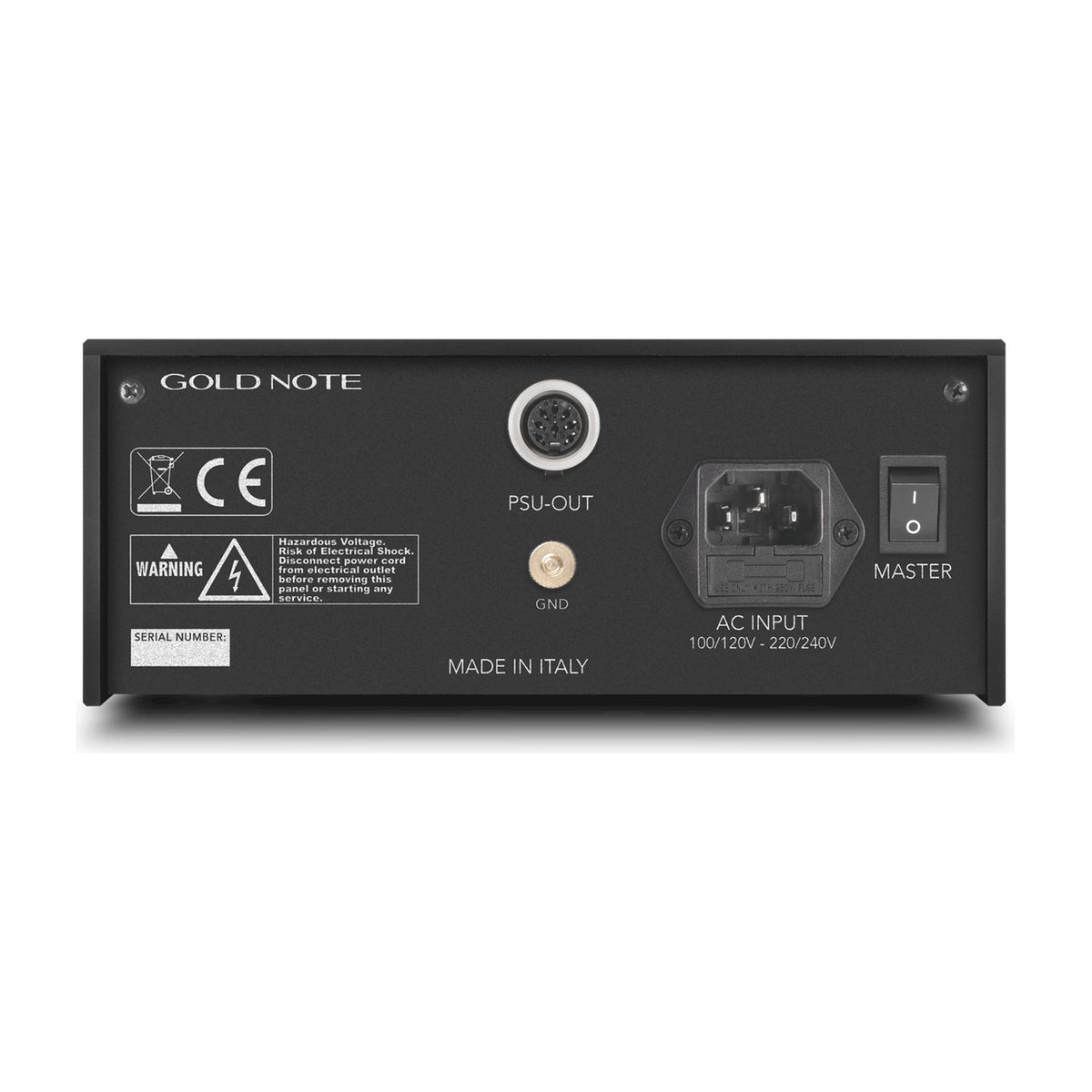

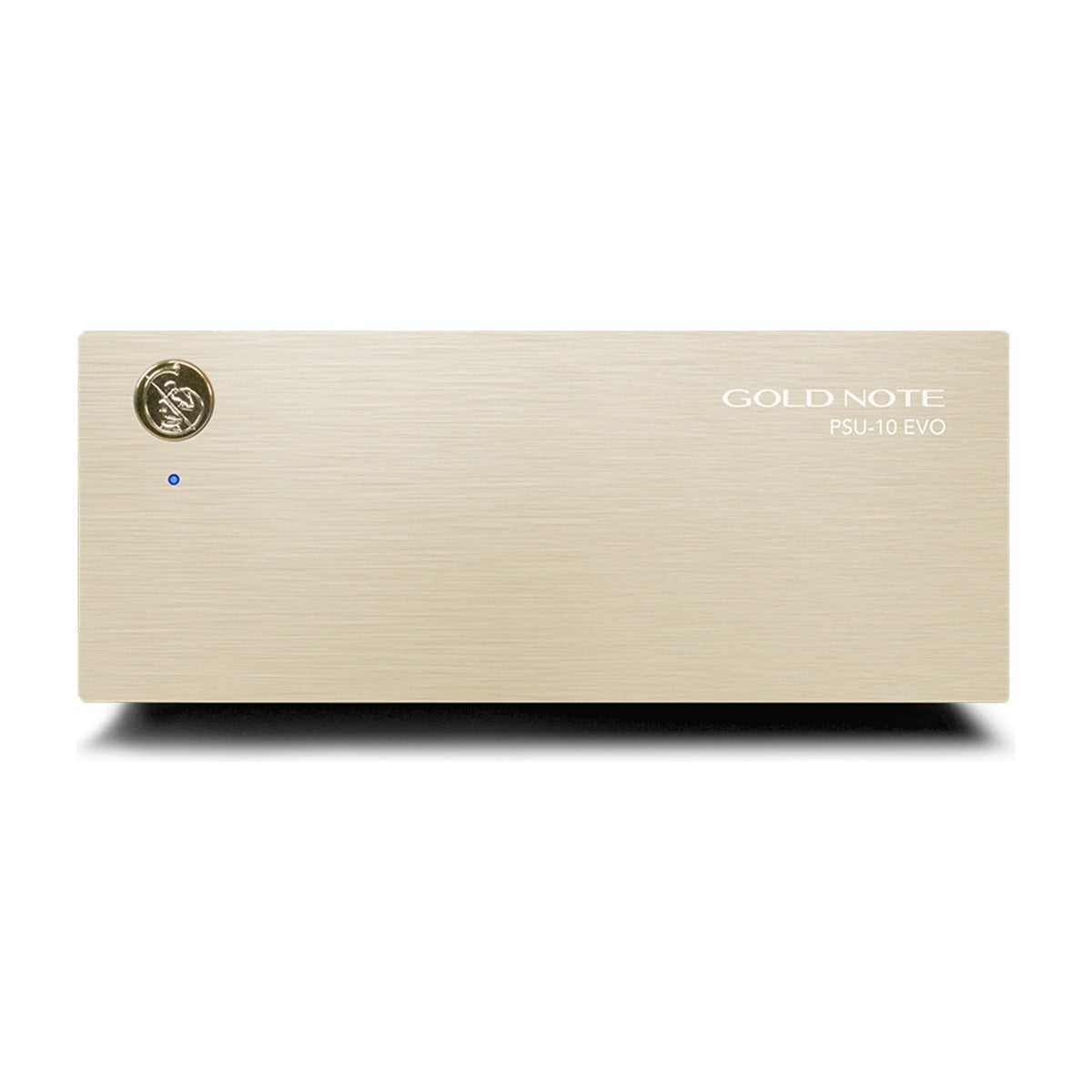

Gold Note PSU-10 EVO External Power Supply Gold

High-Performance external power supply

PSU-10 EVO was developed with the best components for high-quality audio applications, selected to boost the performance of all DS-10 models (DS-10/DS-10 PLUS, DS-10 EVO/DS-10 EVO LINE), HP-10, CD-10 and CD-5. PSU-10 EVO is equipped with a 4-transformer power supply stage enhanced with low-noise voltage regulators. The power supply uses a 4-transformer model, 3 of which are entirely dedicated to the power supply and 1 to the inductive filter. Dual Choke Hybrid technology features an inductive filter on the analogue stage and is powered by a dual inductor driving both the negative and positive high-current stages. By perfectly filtering the current, it eliminates interference and noise from the AC power supply, thus ensuring perfect isolation and creating the ideal environment for the electronics to perform at their best.

The power and clarity of the sound generated by the PSU-10 EVO enable to reduce interference, provide better dynamics and resolution, and restore the smallest sonic details by reproducing the musical event in an extremely realistic way. Please note: PSU-10 EVO is not compatible with the PH-10 phono preamplifier.

MAIN FEATURES

• TECHNICAL FEATURES: Four rail audio grade power supply, Two ultra-low-noise voltage regulators
• MAXIMUM VARIATION OF OUTPUT VOLTAGE: 0,05 %
• LINE NOISE REJECTION: >80dB
• COMMON MODE NOISE REJECTION: >80dB
• FULL POWER RESPONSE TIME: <2,5µsec

POWER

• POWER SUPPLY: 100-120V / 220-240V with auto sense, 50/60Hz
• POWER CONSUMPTION: 70W
• DYNAMIC POWER: >100W
• STAND BY POWER: <1W
• FUSE: 2A T

DIMENSIONS AND WEIGHT

• DIMENSIONS: 200mm W | 80mm H | 260mm D
• WEIGHT: Kg. 4 – net, Kg. 5 – boxed

FINISHES

• BLACK Black anodised aluminium with a traditional brushed finish
• SILVER Silver anodised aluminium with a traditional brushed finish
• GOLD Gold anodised aluminium with a traditional brushed finish
