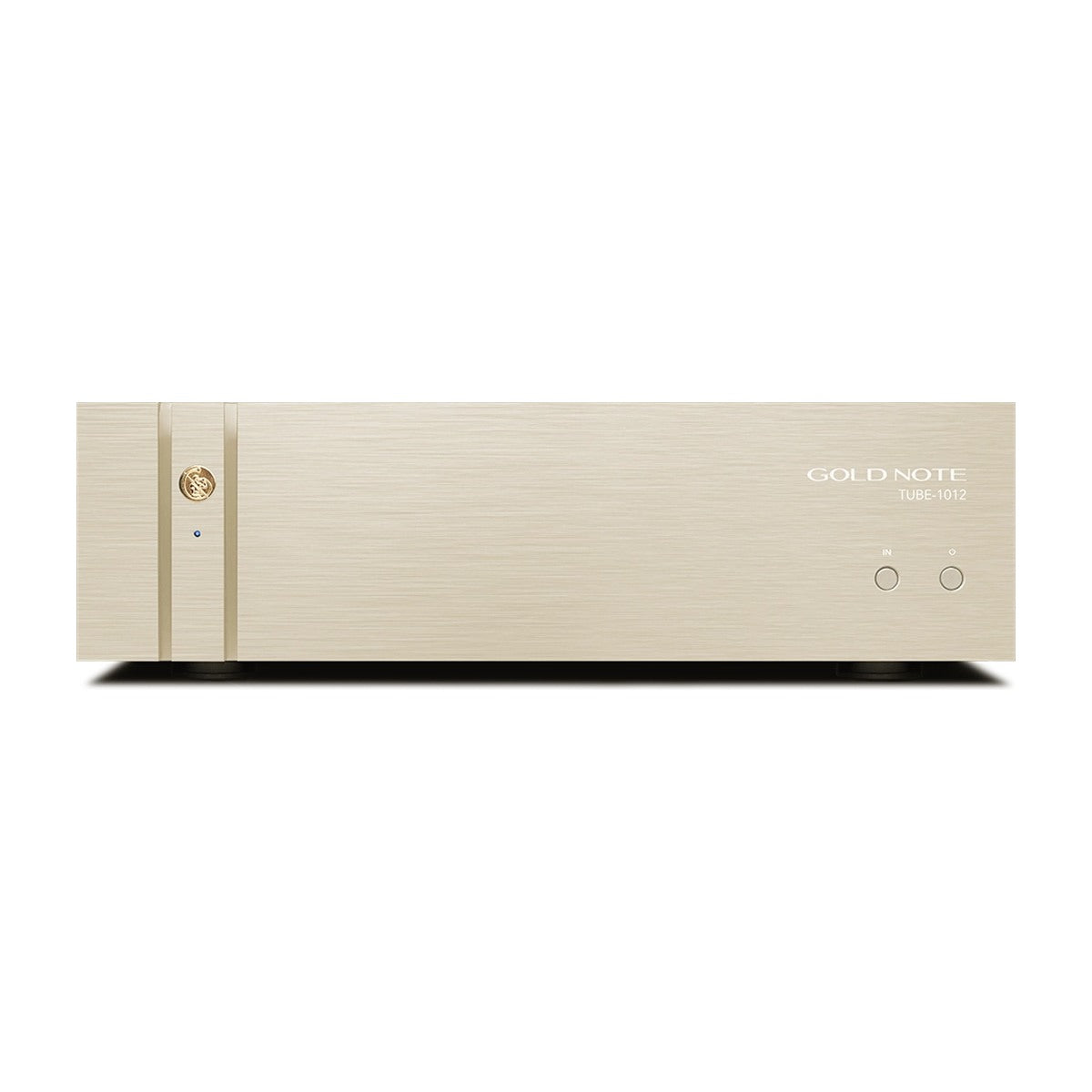

Gold Note TUBE-1012 Tube Output Stage Gold

To add warmth to electronics

TUBE-1012 improve the performance of Gold Note electronics, reaching a completely new level thanks to the 12-valve class A output stages. Gold Note sources and amplifications guarantee great control and definition while providing exceptional realism in recreating the musical event. But those who love the warm sound of valves and want to bring their system to its maximum performance will find TUBE-1012 the right choice. Working in perfect synergy with Gold Note electronics, you can have a wonderfully natural sound and a High-End listening experience.

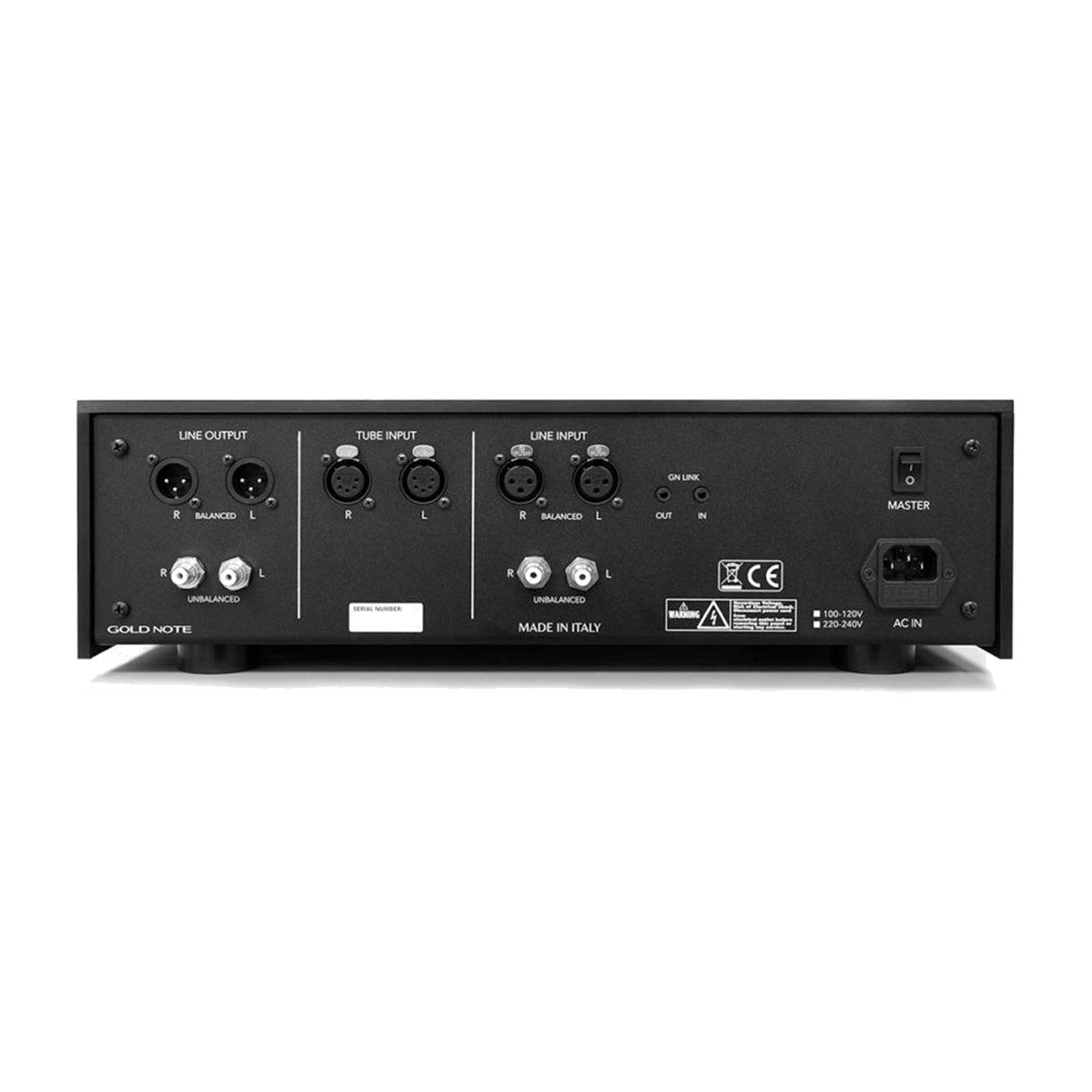

The proprietary Totem-Pole design, with six independent audio stages per Tube, ensures an ultra-wide bandwidth response and ultra-low distortion, guaranteeing a pure audio signal. Thanks to the new audio inputs on the rear panel, our valve output stages can be connected simultaneously to two sources: using the Tube input for Gold Note sources and the line input for those from other manufacturers. The input is selectable from the front panel for maximum convenience and ease of use.

MAIN FEATURES

• TUBE-1012: Totem-Pole Output Stage design
• MAX INPUT (THD < 1%): RCA 6Vrms, XLR 12Vrms
• MAX OUTPUT (THD < 1%): RCA 8Vrms, XLR 16Vrms
• OUTPUT IMPEDANCE: <600Ω
• GAIN: 2dB
• RECOMMENDED LOAD: >10kΩ
• TUBES: 12 valves 6n1p
• THD+N: 0.0028% @ 1kHz – 1.736V
• S/N: >100dB @ 1kHz – 1.736V

INPUTS AND OUTPUTS

• INPUTS TUBE
• 1x XLR Line In 1x RCA Line In 1x Tube In (5-pole XLR for Gold Note sources only)

POWER

• POWER CONSUMPTION: 80W
• POWER SUPPLY: 100-120V or 220-240V, 50/60Hz, Super Linear Vacuum Tube Regulator with 4 Inductive Choke filters
• FUSE (220/240V): 2A F
• FUSE (100/120V): 3,15A F

DIMENSIONS AND WEIGHT

• DIMENSIONS: 430mm W | 135mm H | 370mm D
• WEIGHT: Kg. 16 net – Kg. 21 boxed

FINISHES

• BLACK Black anodised aluminium with a traditional brushed finish
• SILVER Silver anodised aluminium with a traditional brushed finish
• GOLD Gold anodised aluminium with a traditional brushed finish
