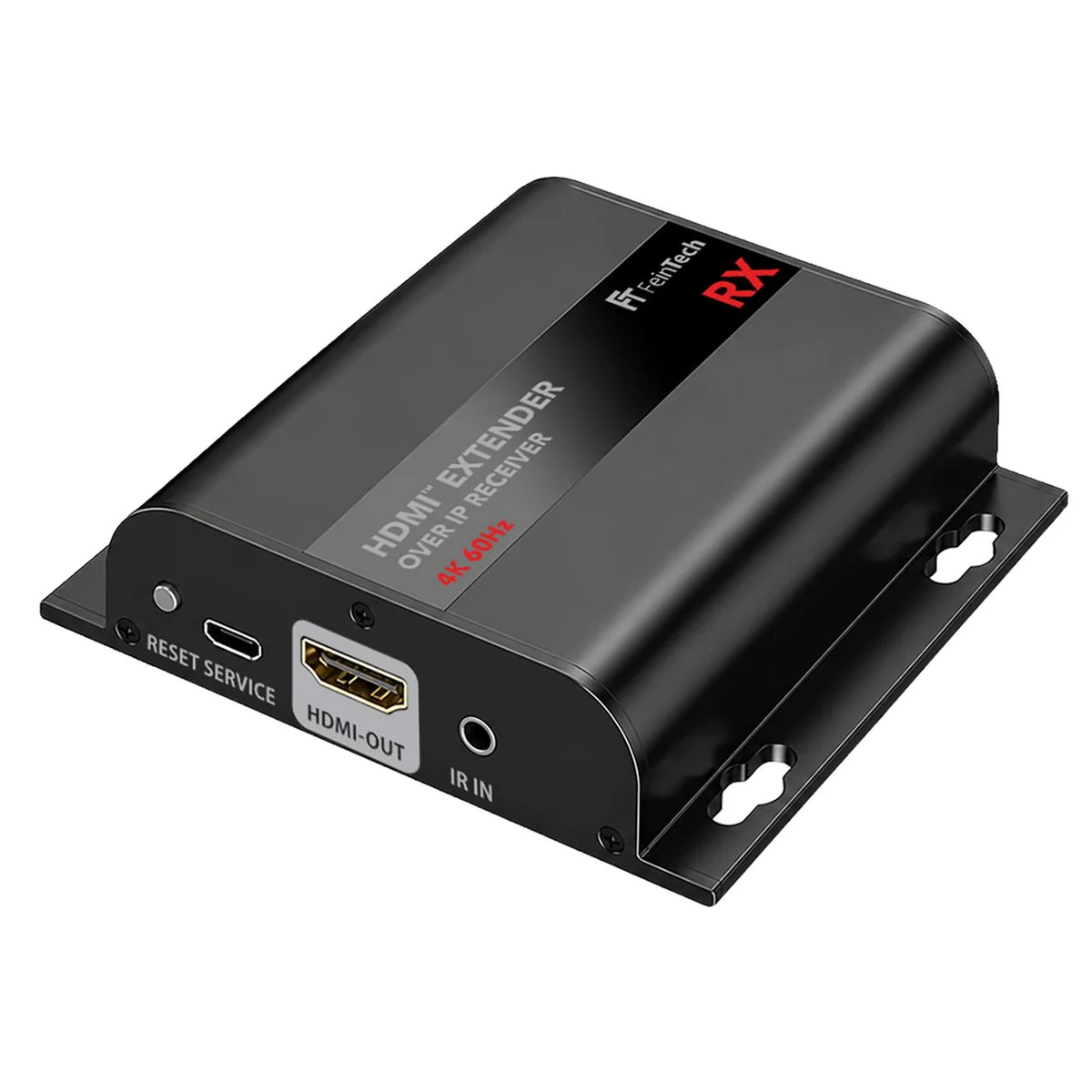

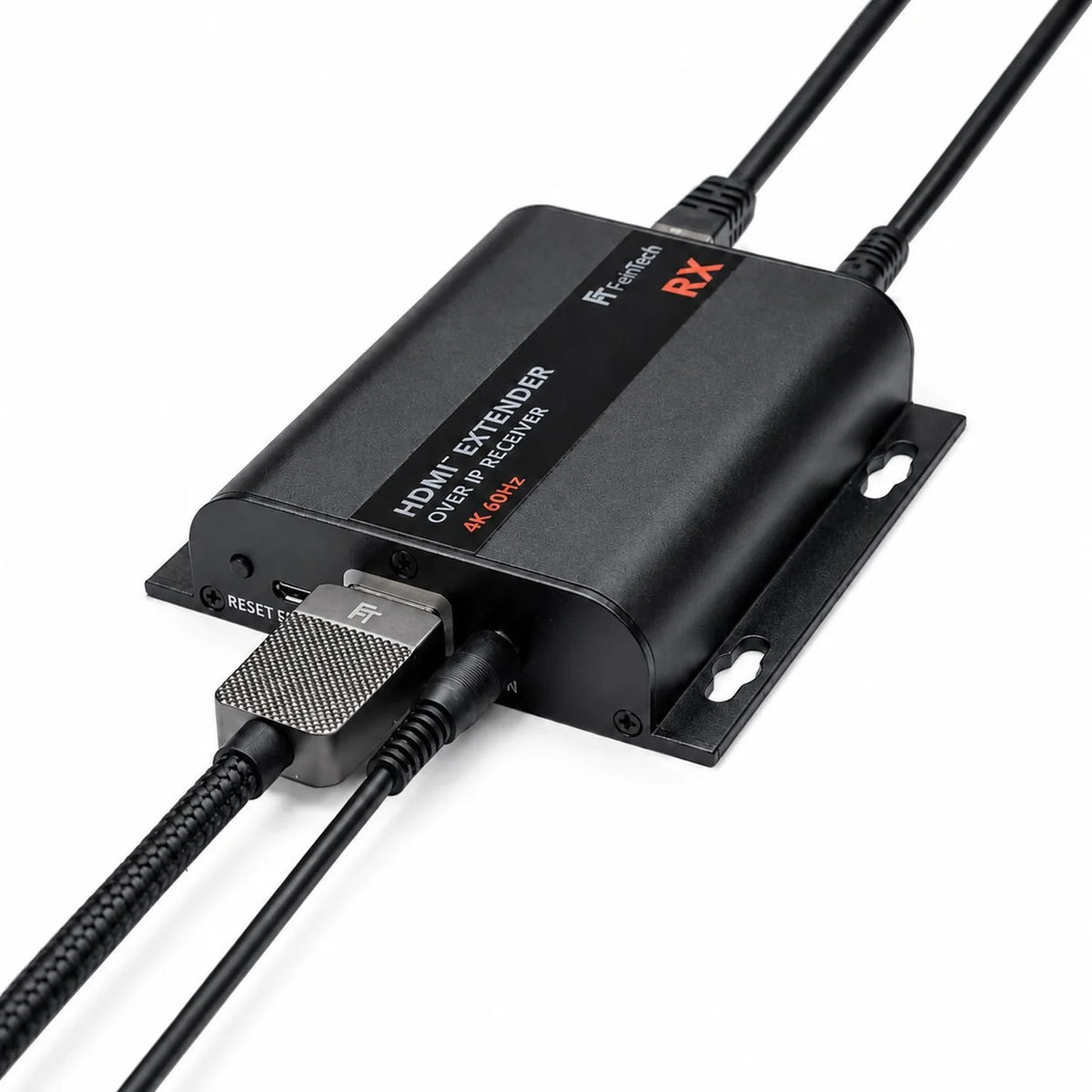

FeinTech HX530RX HDMI over IP Receiver | 4K 60Hz | IR | 120m

The HX530RX Receiver expands the HX530 HDMI over IP system with additional displays. It receives the IP stream from an HX530TX Transmitter via a Gigabit network and outputs video and audio via HDMI to TVs, monitors, or projectors. This allows you to flexibly expand existing AV-over-IP installations with additional displays. With support for 4K 60Hz, ranges up to 120 meters over CAT6, and convenient app management, the HX530RX is ideal for digital signage, conference rooms, training environments, as well as demanding home cinema and professional AV installations.

Easy integration of additional displays

The HX530RX receives the IP stream from an HX530TX Transmitter via a Gigabit network and outputs video and audio via HDMI to a display. With additional receivers, extra TVs, monitors, projectors, or LED displays can be integrated into the existing AV-over-IP system at any time. This allows content to be displayed on multiple screens simultaneously or existing installations to be expanded with additional output devices at any time.

4K 60Hz AV-over-IP over the network

The HX530RX receives the IP stream from an HX530TX Transmitter via a Gigabit network and outputs video and audio in up to 4K 60Hz 4:4:4 via HDMI. In network operation, distances of up to 120 meters are achieved with CAT6 cables, and up to 200 meters with a direct connection between transmitter and receiver. Transmission occurs with a typical network load of 200 to 500 Mbps per 4K stream.

Scalable to a complete AV-over-IP matrix

The HX530RX is part of the modular HX530 system. Depending on the number of transmitters and receivers used, one-to-one, one-to-many, many-to-one, or complete many-to-many installations with up to 253 devices can be realized within a network. New transmitters or receivers can be added at any time, allowing the system to grow flexibly with the requirements of the installation.

Flexible signal distribution via app

If multiple HX530TX Transmitters or HX530RX Receivers are used, assignment is conveniently done via the iMMS smartphone app. Displays can be flexibly assigned to the desired HDMI sources via drag & drop and reconnected at any time without making changes to the cabling.

Easy integration into existing networks

The HX530RX uses the existing network infrastructure to flexibly output HDMI signals to additional displays. Instead of laying long HDMI cables, existing CAT network cables and Gigabit networks are utilized. This saves installation effort and enables flexible signal distribution even across multiple rooms or floors. For smaller one-to-one installations, the transmitter and receiver can also be connected directly via a network cable.

IR control over long distances

The HX530 system supports the transmission of infrared signals. This allows an HDMI source to be controlled with the original remote control even if it is located in another room or equipment cabinet. This ensures that media players, SAT receivers, or other playback devices remain conveniently operable.

Notes for optimal operation

At least one HX530TX Transmitter is required for the operation of the HX530RX. For reliable signal transmission, we recommend HDMI cables with a length of up to 5 meters and network cables of CAT5e or higher, ideally CAT6. In installations with multiple devices, distribution is done via a standard Gigabit switch. If this switch supports IGMP Snooping, multicast data streams are optimally managed, and network load is further reduced. For control via the iMMS smartphone app, the router, smartphone, and all HX530 Transmitters and Receivers must be on the same IP network.

Specifications

• HDMI/HDCP compliance: HDMI 2.0b / HDCP 1.4 / 2.2
• Maximum data rate: 18 Gbps
• Maximum video resolution: 4096 × 2160 at 60 Hz RGB
• Colour formats & colour depth: YUV 4:2:0, YUV 4:2:2, YUV 4:4:4, RGB / 8 bit
• HDR: no
• Audio format: LPCM 2.0, 16 / 20 / 24 bit, 44 / 48 kHz
• Network switch: IGMP-enabled 1-Gigabit switch or better
• Range: 120 m with CAT6, 100 m with CAT5e, 80 m with CAT5
• HDMI cable length: under 5 m
• Transmission latency: 1080p: 80–130 ms, 4K 60 Hz: 150–220 ms
• Supported control: app for Android & iOS
• Infrared transmission: 20–60 kHz
• Power consumption: max. 2.5 W
• Power supply: 5 V / 1 A DC
• Operating temperature: -20 °C to +60 °C
• Dimensions: 97 × 94 × 24 mm
• Scope of delivery: 1 × HX530RX Receiver, 1 × power adapter, 1 × IR receiver
