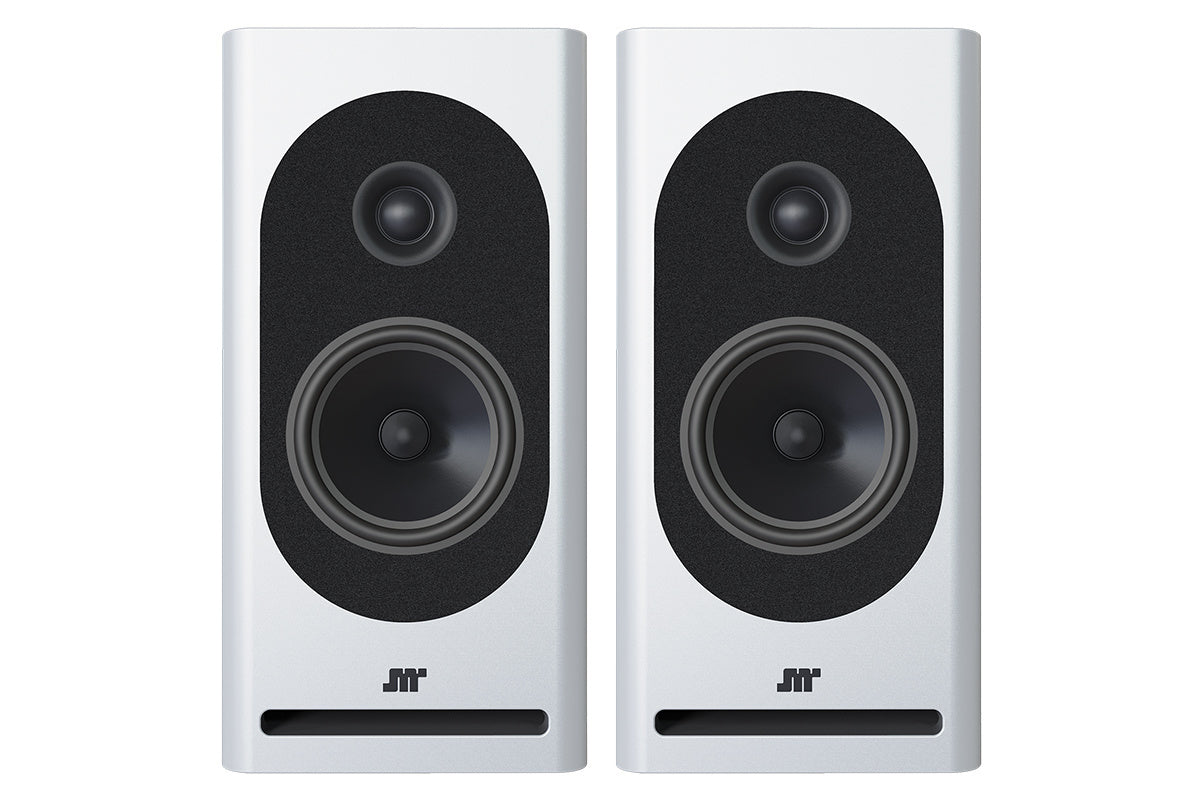

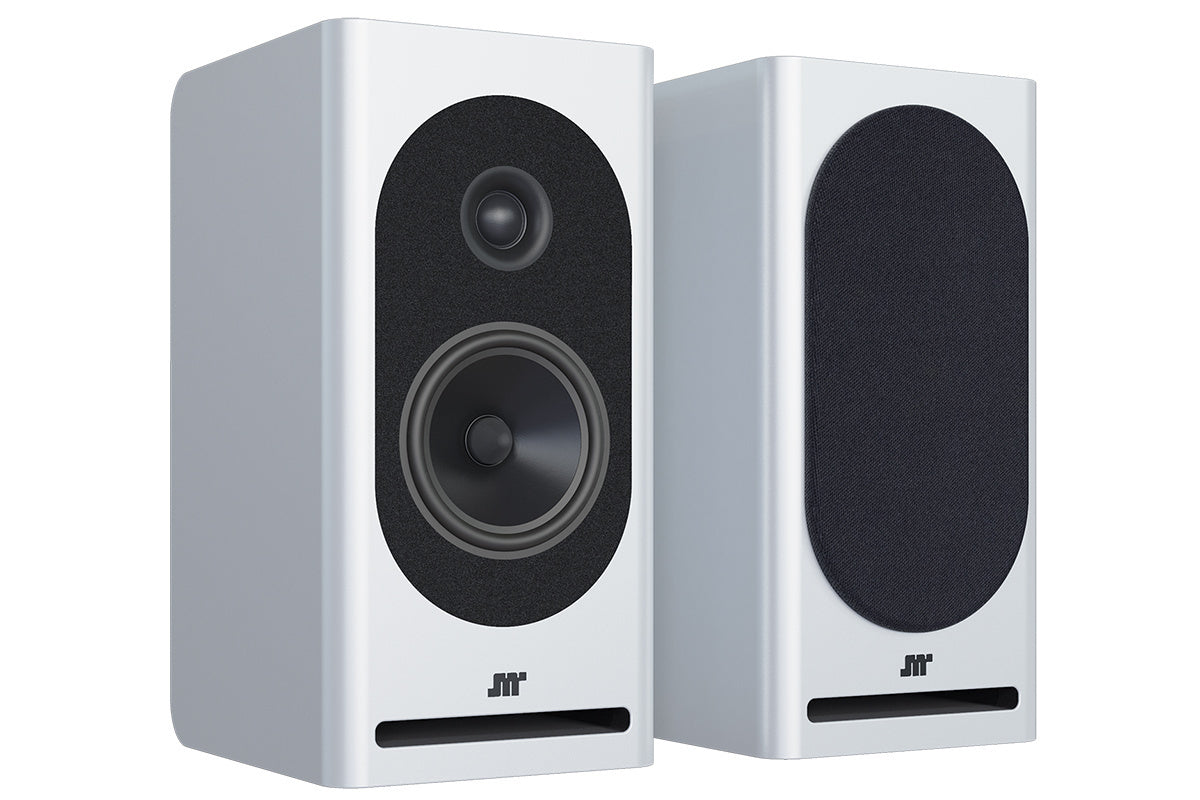

Jean Marie Reynaud (JMR) Lucia (Like new) Bookshelf Speakers (1 pair)

Designed with the same rigor as the most successful models of our range, it concentrates all the know-how of the JMR brand.
In keeping with our traditions, we wanted to develop a small, very affordable, but also very musical speaker with realistic timbres and a very good spectral balance.
We’ve optimized its performance so that it can be used as a true bookshelf speaker on a shelf or even a desk.

In keeping with our traditions, we wanted to develop a small, very affordable but also very musical speaker, offering realistic timbres and a very good spectral balance.
We’ve optimized its performance so that it can be used as a true bookshelf speaker on a shelf or even a desk.

It offers a warm sound articulated around a rich medium and a very silky treble without projection or hardness. Its energy is sufficient to fill a room of 10 to 20 m² with a very lively and embodied music.
Designed to work in conjunction with affordable electronics, its electroacoustic characteristics make it very easy for amplifiers to load.

Its installation will not require any special precautions, as it can be installed near a wall thanks to its front laminar vent.
It offers a beautiful stereophonic image, credible and very stable thanks to a very good phasing of its components.

It allows you to enter the rich and lively world of JMR sound.

ACOUSTIC CHAMBER :

Bass-reflex loading principle leading to a front laminar vent.
Medite of 19 mm. Rounded edges on the front avoiding edge effects. Large adhesive felt on its front face to difract at best the first reflections on the cabinet around the speakers.
Pressed assembly guarantees a total inertia of the structure.

WOOFER :

French speaker using a treated paper cone.
25 mm coil on aluminum support. Anti-resonant ABS salad bowl. Central anti-whirling head made of soft inert rubber. Double magnet.

TWEETER :

French speaker using an impregnated fabric dome. Neodymium magnet, 25mm coil cooled by Ferro fluid. Textured ABS horns to optimize its performance and directivity.

FILTER :

2 channels, 12 db/octave. Connection frequency 3500 hz.
Hand-assembled crossover without printed circuit board using polypropylene capacitors and a ferrite coil for the bass with a 1 mm copper cable section guaranteeing a fast bass and low distortion. Internal wiring in pure copper of 0.8 mm section for the tweeter and 1 mm for the bass.

USE ADVICE:

Thanks to the low directivity, it is not necessary to converge the two speakers to the ideal listening point, pinching them very slightly in order to make the most of the system’s phase.
It can be installed on a stand of about 50 cm in height or placed directly on a shelf or desk.
The spacing will be determined experimentally. In theory, it is ideal to have a distance of about 1.5 m from axis to axis, but this distance can be reduced or increased (min. 1 m, max. 2.5 m). Thanks to its front laminar vent, LUCIA can be installed close to the rear wall without being completely leaning against it, a distance of 10 to 15 cm is recommended.

Impedance    6 ohms (min)
Bandwidth    65 to 18khz
Power of use    from 20 to 100W
Sensibility    85db/W/m (2V)
Type of filtering    12db/octave connection frequency at 3500hz
Connection    Mono wiring
Dimensions    L : 18cm P : 23cm H : 37cm
Weight    7,5 Kg
