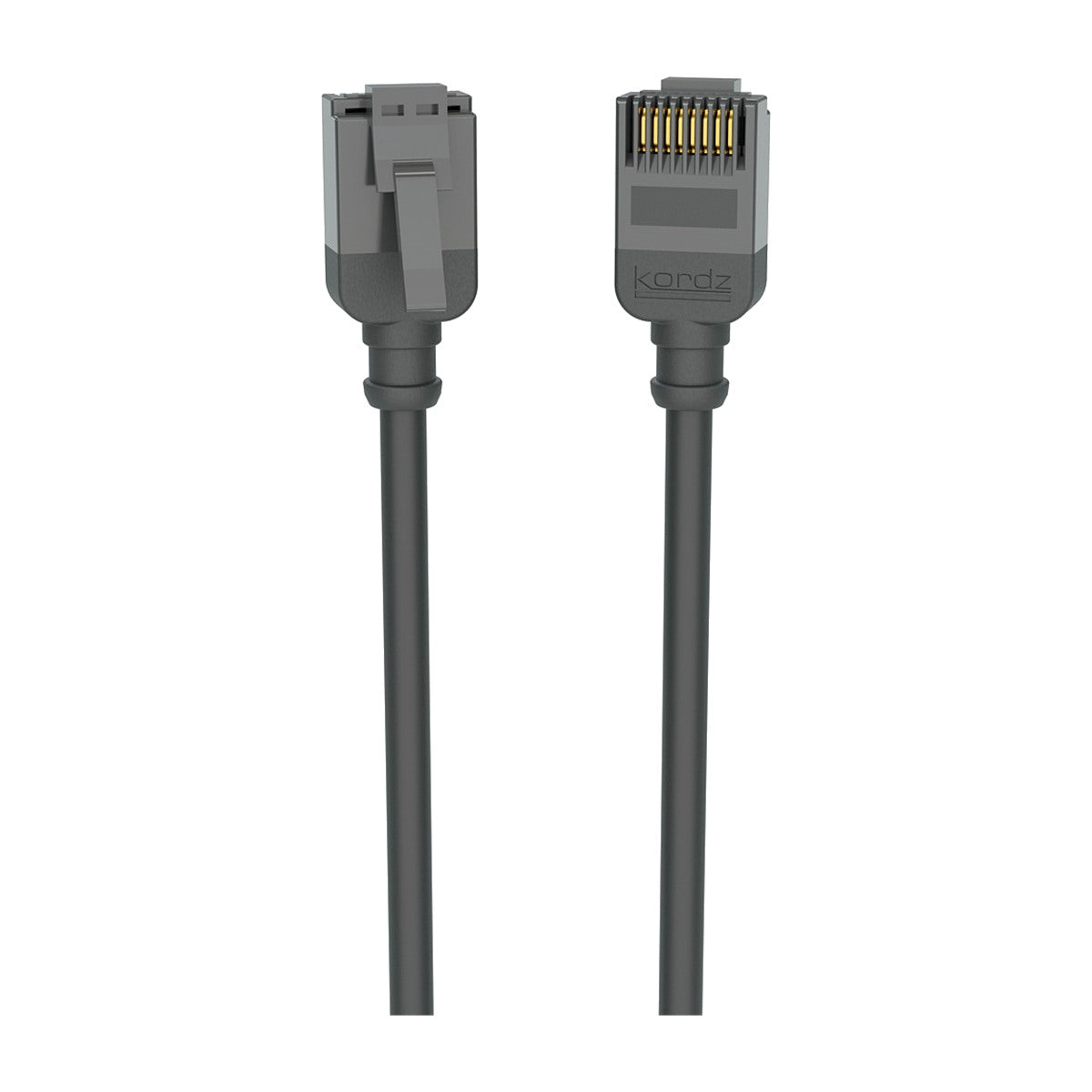

Kordz PRO SlimCat Cat6 U/UTP Patch Cord 0.15 m Black

Kordzify your Cat 6 networking projects with the Kordz PRO SlimCat Network Patch Cords, engineered to deliver all the power of Cat 6 in half the size. With a mere 3.9mm cable diameter, and a small profile nylon composite connector featuring the snap-proof latch that withstands 2,000 bend cycles, these cables offer unprecedented space-saving advantages without compromising the guaranteed 1 Gbps and PoE++ 100W performance. Also available in installation-friendly and 100% recyclable, patent-pending BeltPak 10-packs, which won Top New Technology and Best of Show Awards at ISE 2024. Backed by the Kordz Lifetime Warranty, PRO SlimCat™ Network Patch Cords are the professional’s choice for networking installations.

PRODUCT OUTLINE

• High-performance patch cords that are individually tested and exceed all ANSI/TIA 568.2-D Category 6 standards.
• Ultra-slim design with a 3.9mm cable diameter and small form-factor connector, ideal for space-conscious network installations.
• Robust durability ensured by a patented connector design with composite nylon snap-proof latch that can withstand an impressive 2,000+ bend cycles.
• Fully support IEEE802.3bt PoE++ 100W, making them suitable for power-hungry devices and applications.
• Choose from 16 different lengths (0.15m to 30.0m) and 8 easy to identify colours to match your specific installation needs and aesthetics.

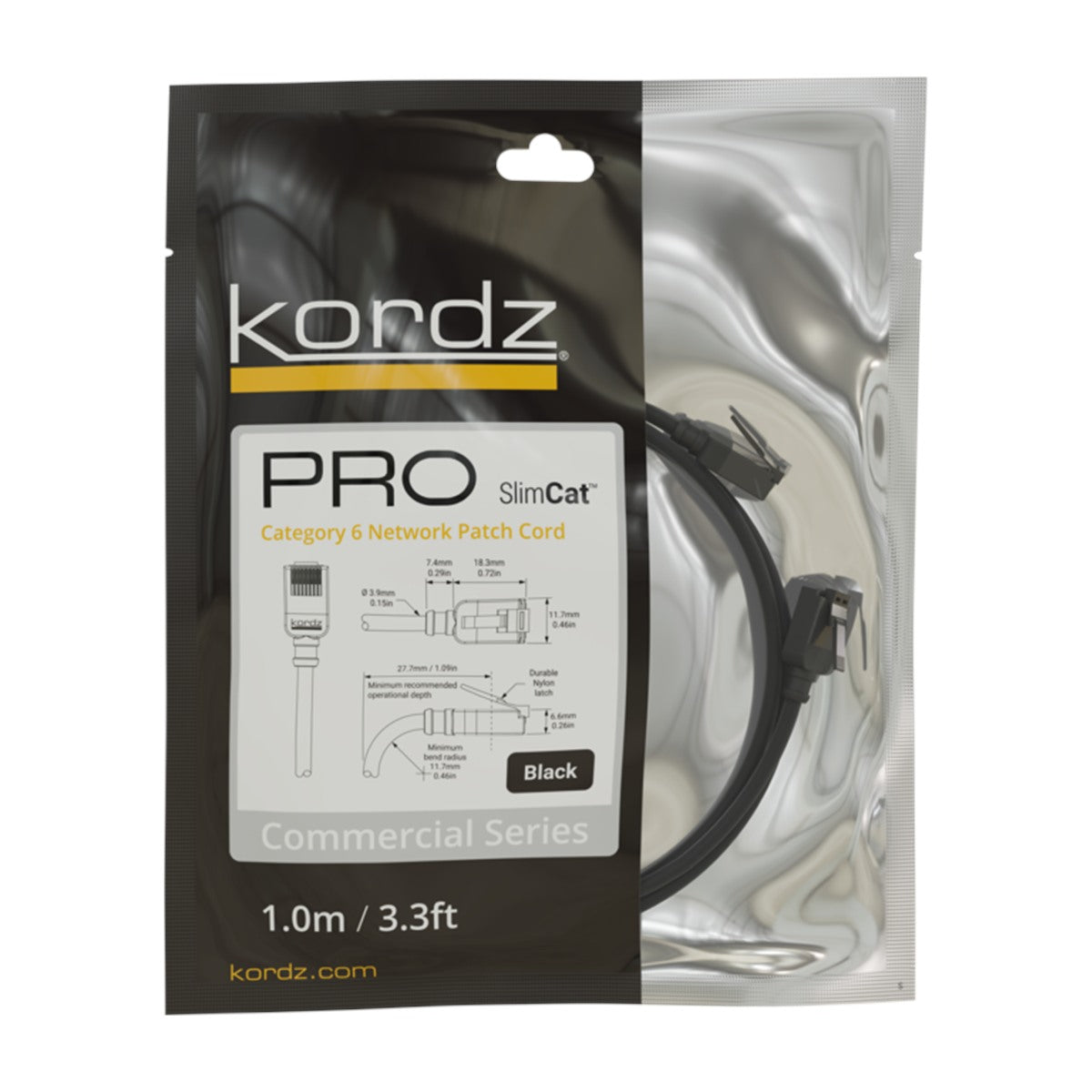

• Available in 100% recyclable, installation-friendly Kordz BeltPak 10-packs in all colours
• Reliable connectivity backed by Kordz’s product performance guarantee and a lifetime warranty.

TECHNICAL INFO

Category 6 Network Patch Cord Specification Standard

• Application Standards:
• ANSI/TIA-568.2-D
• IEC11802
• EN50173
• PoE++ 80W
• Performance Standard:
• ≤ 10.0m – Category 6 Component Tested
• > 10.0m – Category 6 Channel Tested
• Wiring method: T568-B
• Certified Data Rate: 1 Gbps (Gigabit ethernet)
• Supported Data Rate: ≥ 1 Gbps (Gigabit ethernet)
• Certified Bandwidth: 1 to 250 MHz
• Supported Bandwidth: ≥ 250 MHz

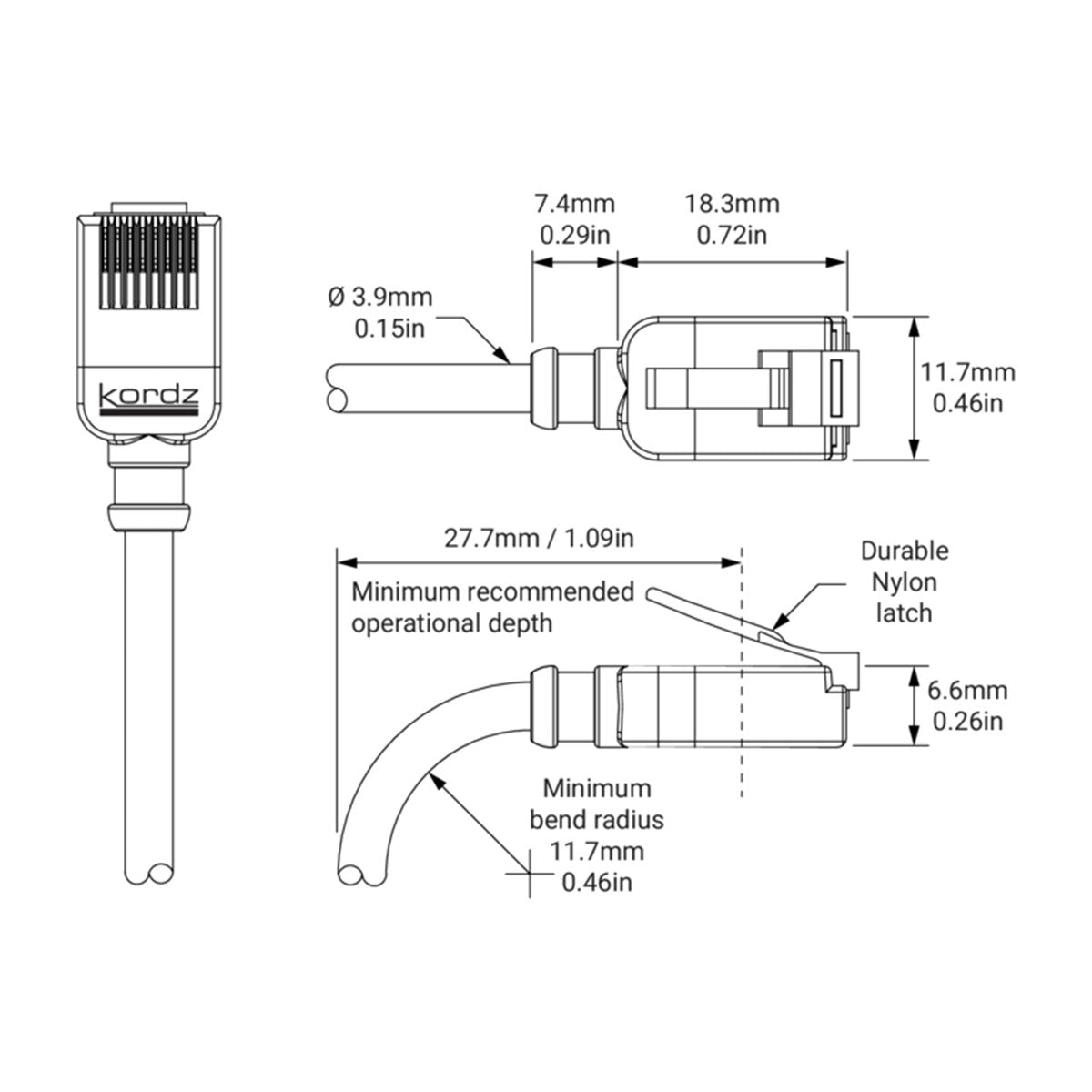

MECHANICAL

• Cable Diameter: 28 AWG, 3.9mm/0.15”Ø
• Maximum Cable Pulling Tension: 80 kgf/cmÇ
• Cable to Plug Tensile Strength: TBC
• Cable Bend Radius: 11.7mm | 0.46in
• Recommended Total Mounting Depth: 27.7mm | 1.09in
• Mating Cycles (max.): 1000 cycles
• Temperature range: UL Temp rating – 75ºC

CONSTRUCTION

• Conductors: Solid 28 AWG Oxygen Free Stranded Copper
• Conductor Insulation: Polyolefin
• Shielding: Not Applicable
• Cable Jacket Material: UL CM-rated PVC
• Connector Material: Nylon
• Contact Type: 3-prong for solid/stranded conductors
• Strain Relief: Injection-moulded PVC

ELECTRICAL CHARATERISTICS

• Conductor Resistance: 223Ω/km
• Insulation Resistance: 10MΩ min @100V DC
