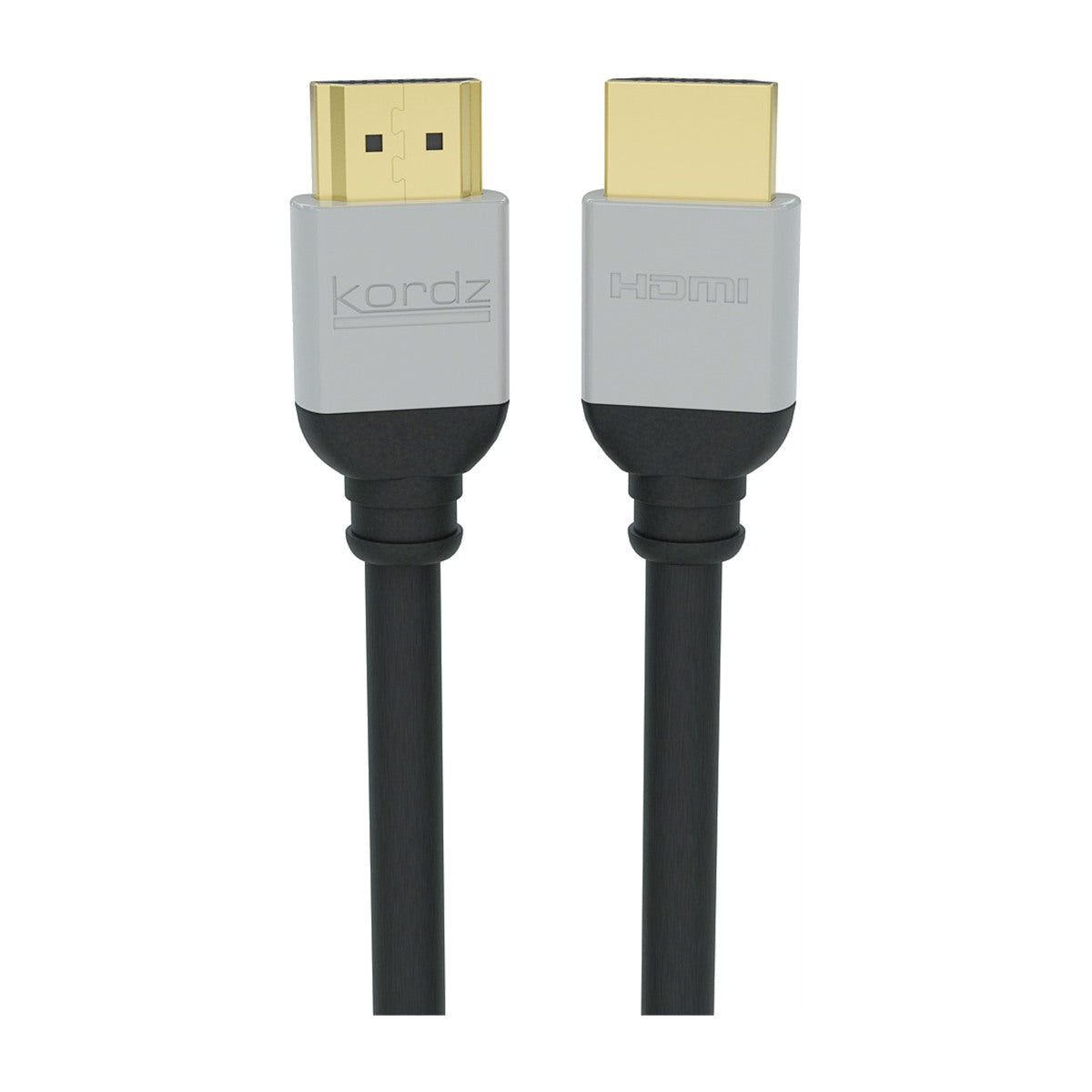

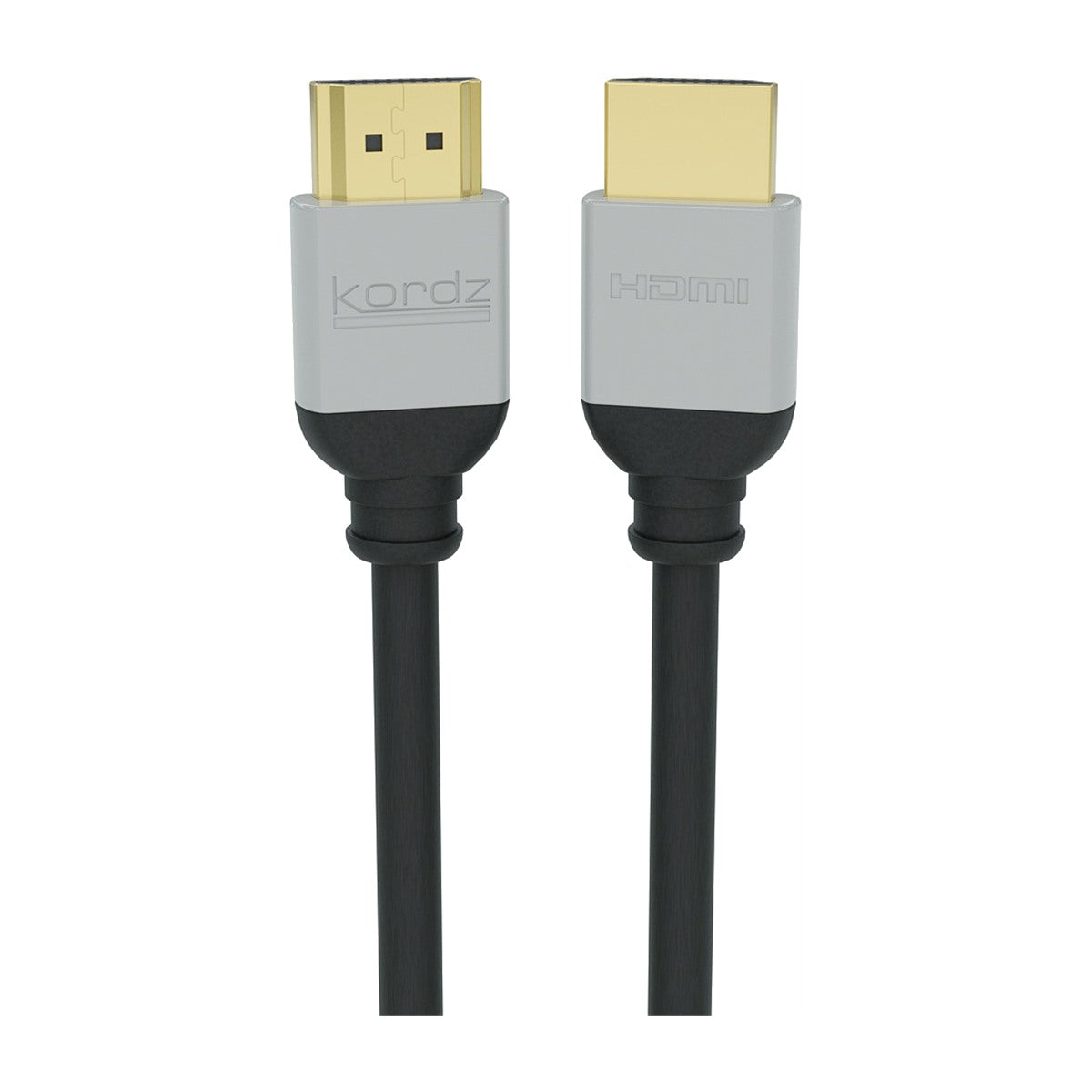

Kordz PRO3 Passive HDMI Cable 4 m Charcoal

Kordz PRO3 Passive 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free and electronics-free installation experience with compact, gold-plated 1kg retention HDMI connectors and a highly flexible fire-rated cable. Supporting 18Gbps 4K60 HDR up to 9m, they’re backed by the Kordz promise of ‘Connectivity Assured’.

PRODUCT OUTLINE

• Certified High Speed with Ethernet HDMI Cable.
• All lengths support resolutions requiring 18Gbps transfer rates, including 4K60 HDR or 8K/30 4:2:0.
• Lightweight ABS connector assembly with gold-plated HDMI connector rated for 1kg retention force.
• Every cable individually production tested.
• Highly flexible, UL CMG fire-rated jacket perfect for almost every installation.
• Lifetime warranty.

APPLICATION

• Data Rate: Up to 18.2Gbps (TMDS mode)
• Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
• Video Refresh Rate: Up to 240 frames per second
• Colour Depth: Up to 16 bits
• Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
• Content Protection: Up to HDCP 2.2 supported
• Audio Sample Rate / Channel: Up to 192KHz
• Audio Sample Size: Up to 24 bits
• Audio Channels: Up to 32 channels
• Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
• Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Ethernet channel, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)

TECHNICAL INFO

HDMI CERTIFICATION – 0.5m – 9.0m Lengths

• HDMI CTS (Certified Test Specification): High Speed with Ethernet
• Certified Data Rate: 6.0Gbpsc, 17.82Gbps agg
• Supported Data Rate: ≥ 6.0Gbpsc, 17.82Gbps agg (4K UHD)
• HDMI Clock: 27-340MHz

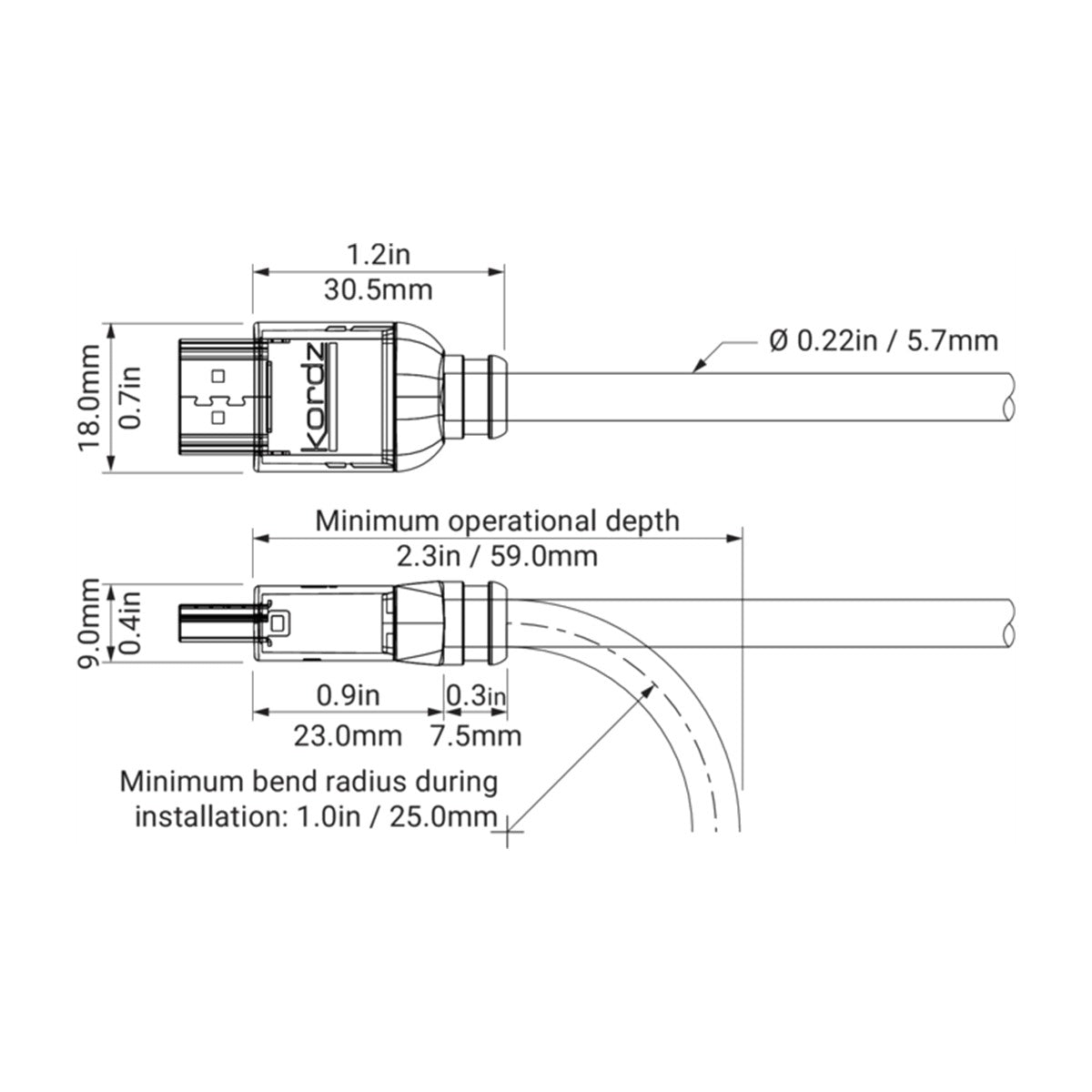

MECHANICAL

• Cable Diameter: 30AWG 5.7mm/0.22”Ø| 28AWG 6.5mm/0.26”Ø| 24AWG 9.0mm/0.35”Ø
• Mounting Length: 30AWG 59.0mm/23.0” | 28AWG 66mm/2.6” | 24AWG 112.5mm | 4.3”
• Cable Bend Radius: 30AWG 25.0mm/1.0” | 28AWG 32.0mm/1.3” | 24AWG 72mm | 2.8”
• Retention Force (nominal): 9.9N (1kg / 2.2lbs) +10/-5%

CONSTRUCTION

• Primary Conductors: Solid 30-24AWG OFC, length dependent
• Insulation on TMDS: HDPE, Foamed-PE, length dependent
• Insulation on 4C + HEAC Pairs: HDPE
• Shielding on TMDS Pairs: Al / Mylar, 125% coverage
• Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 85% coverage
• Cable Jacket: UL CMG fire-rated PVC composite materials
• HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
• Termination: High Frequency Soldering
• Connector Assembly: ABS connector shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRO3 Passive HDMI Cable comes with our product Lifetime Warranty that promises maintained product functionality and performance for your lifetime.
