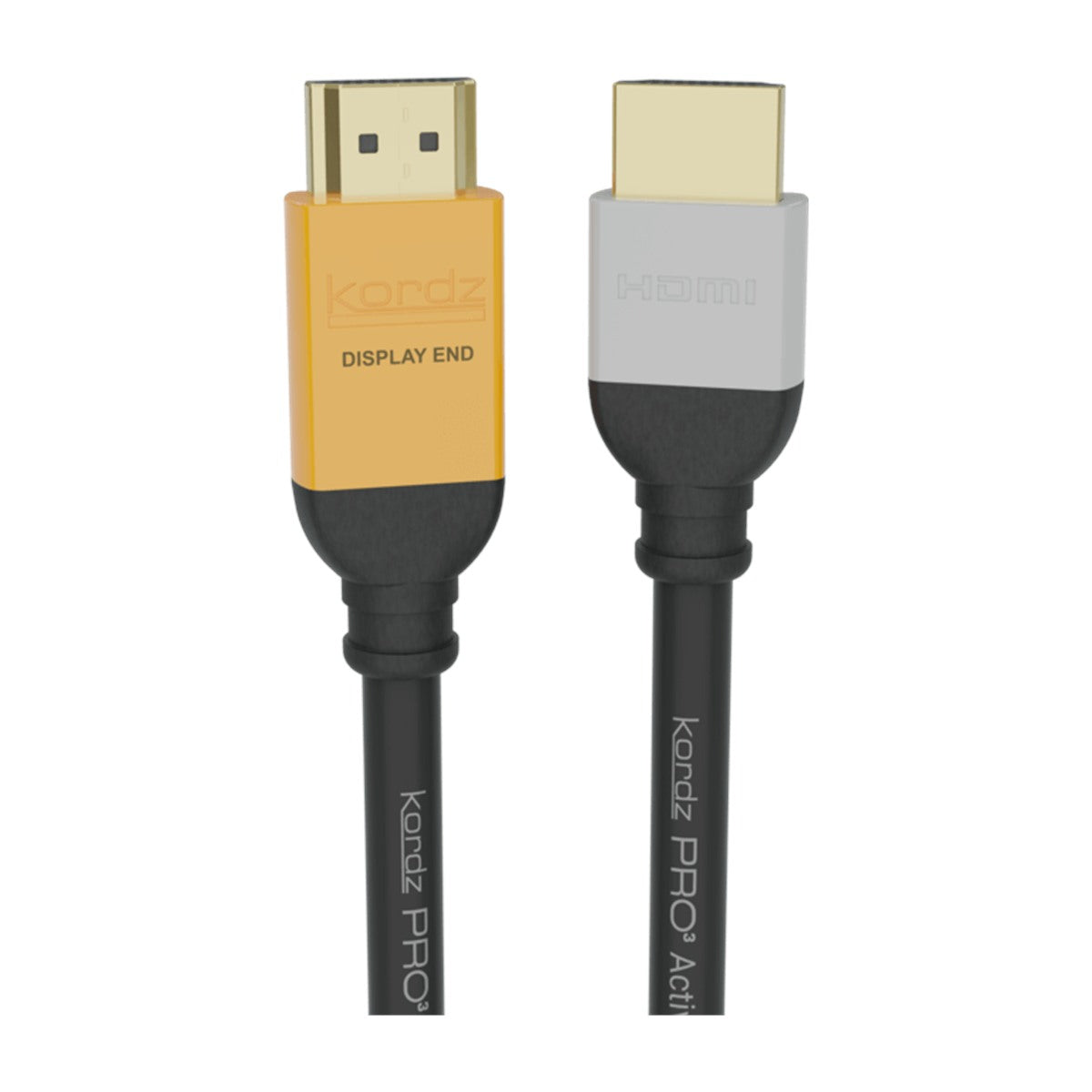

Kordz PRO3 Active Copper HDMI Cable 12.5 m Charcoal

Kordz PRO3 Active Copper 18Gbps HDMI Cables are expertly designed for professional AV integrators, providing a hassle-free installation experience with compact, gold-plated 1kg retention HDMI connectors, and a flexible fire-rated cable. DPL certified to support 18Gbps 4K60 HDR from 7.5m to 12.5m, they’re backed by the Kordz promise of ‘Connectivity Assured’.

PRODUCT OUTLINE

• DPL Labs certified for 18Gbps applications, supporting 4K60 HDR or 8K/30 4:2:0 resolutions.
• Lightweight ABS connector assembly with gold-plated HDMI connector rated for 1kg retention force.
• Active Copper technology with no external power dependencies, works just like a normal passiveHDMI cable.
• Every cable individually production tested.
• Flexible, UL CMG fire-rated jacket perfect for almost every installation.
• 2 Year Warranty.

APPLICATION

• Data Rate: Up to 18.2Gbps (TMDS mode)
• Video Resolution: Up to 8K (7680 x 4320) / 10K (10240 x 4320)
• Video Refresh Rate: Up to 240 frames per second
• Colour Depth: Up to 16 bits
• Colour Formats: RGB 4:4:4 / Y’CBCR 4:2:2 / Y’CBCR 4:2:0
• Content Protection: Up to HDCP 2.2 supported
• Audio Sample Rate / Channel: Up to 192KHz
• Audio Sample Size: Up to 24 bits
• Audio Channels: Up to 32 channels
• Audio Formats Supported: DTS Master, DTS:X, Dolby TrueHD, Dolby Atmos
• Auxiliary HDMI Features Supported: Consumer Electronic Control (CEC), Auto Lip-Sync Correction, Audio Return Channel (ARC), Enhanced Audio Return Channel (eARC), High Dynamic Range (HDR)

TECHNICAL INFO

HDMI CERTIFICATION 7.5m – 12.5m ACTIVE COPPER

• DPL Labs Certified Data Rate: 6.0Gbpsc, 17.82Gbps aggregate
• Supported Data Rate: > 6.0Gbpsc,17.82Gbps (4K UHD)
• Supported HDMI Clock: 27-340MHz

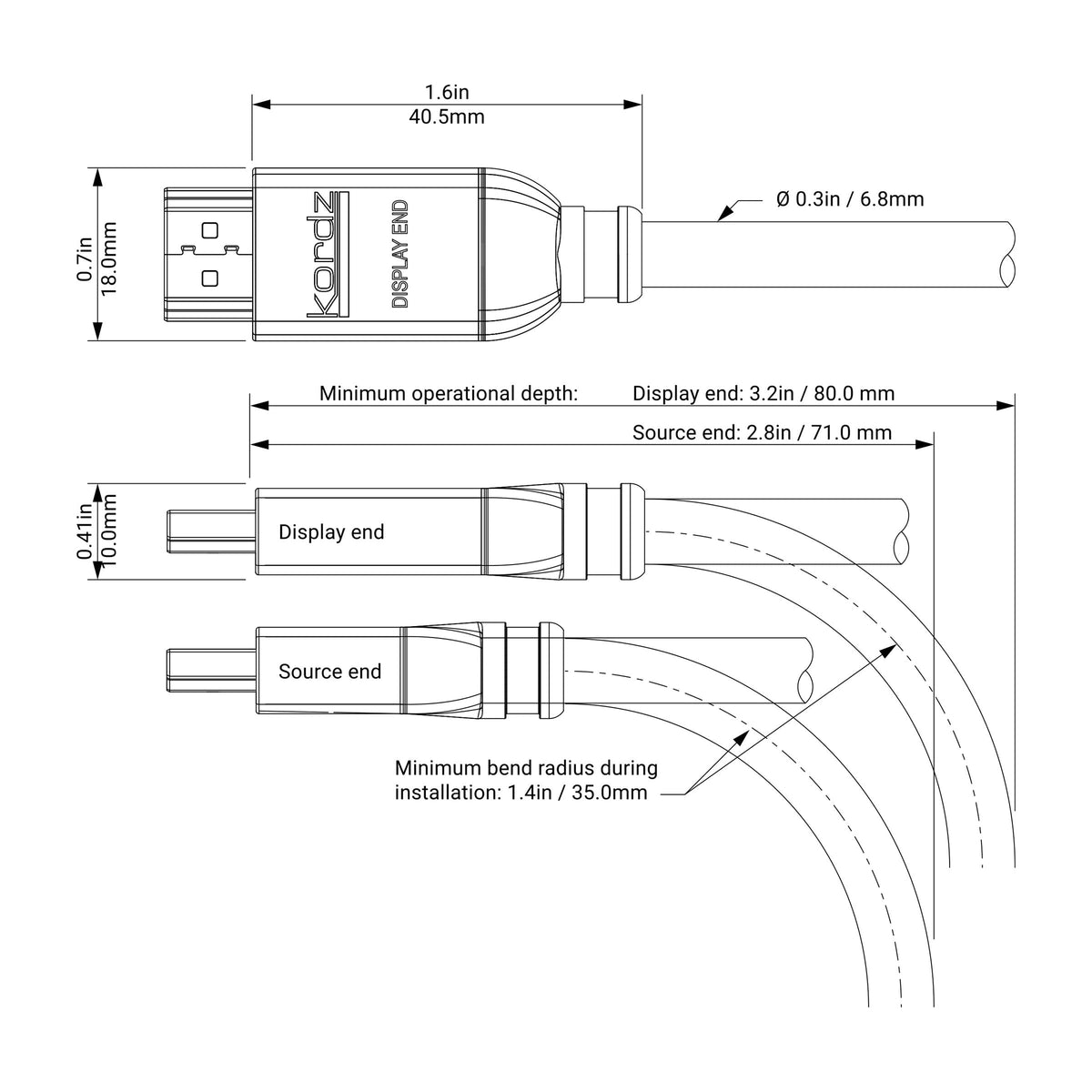

MECHANICAL

• Cable Diameter: 28 AWG 6.8mm | 0.26in Ø
• Mounting Length Display-end: 80.0mm/3.2 in
• Mounting Length Source-end: 71.0mm/2.8 in
• Cable Bend Radius: 35.0mm | 1.4in
• Retention Force (nom): ≥ 9.8N (1kg / 2.2lbs) +10/-5%

CONSTRUCTION

• TDMS: HDPE, Foamed-PE, length-dependent
• Conductors: Solid 28 AWG OFC, length dependent
• Insulation on 4C + HEAC Pairs: HDPE
• Shielding Overall: AL/Mylar, 100% coverage + Al-Mg alloy braid, min 65% coverage
• Cable Jacket Material: UL CMG fire-rated PVC composite materials
• HDMI Connector Shell: Premium Gauge folded steel, 1µ” 24K Gold-plated
• HDMI Connector Pins: Solid OFC, 15µ” 24K Gold-plated
• Termination: High-Frequency Soldering
• HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRO3 Active Copper HDMI Cable is backed by our 2 Year Product Guarantee.
