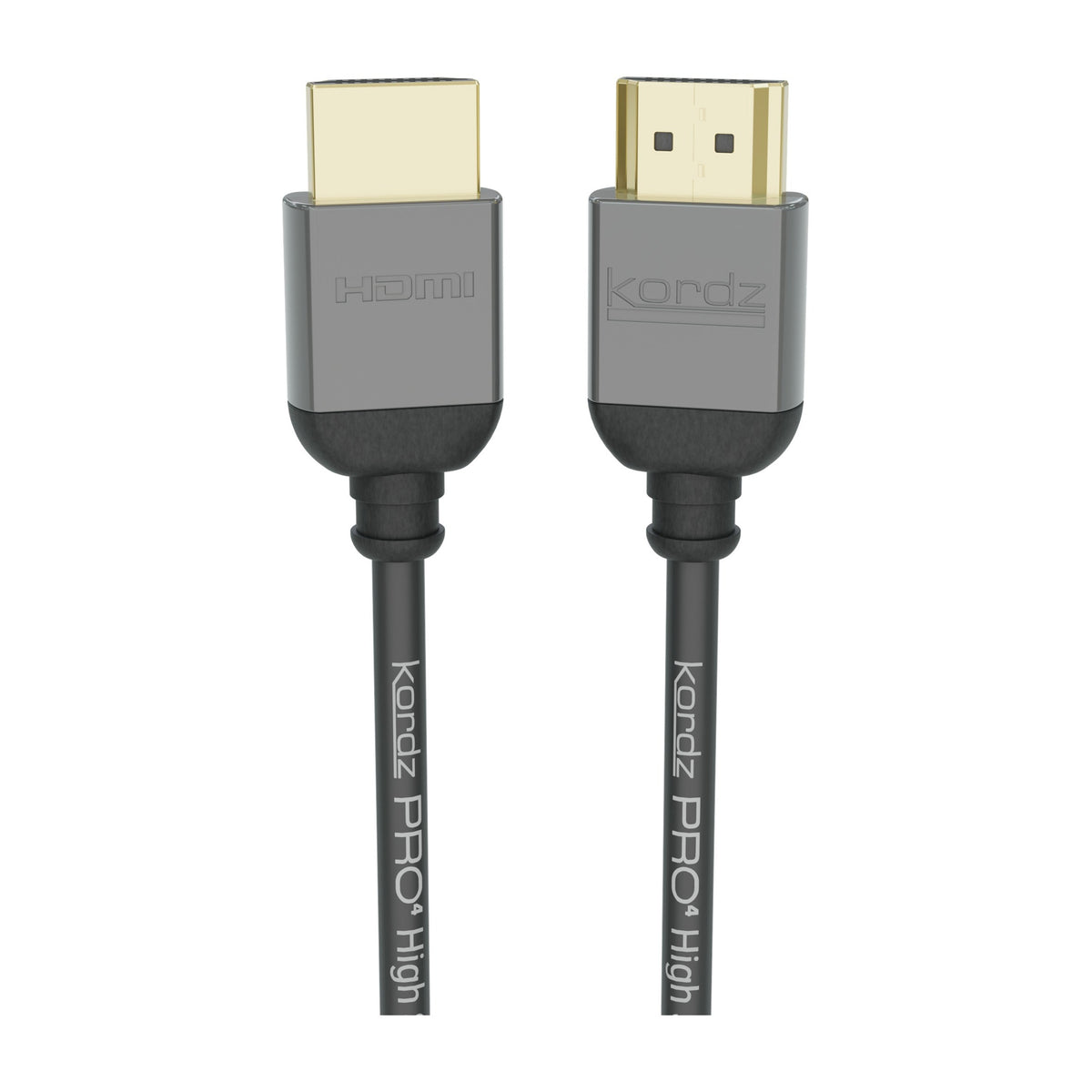

Kordz PRO4 48Gbps Passive HDMI Cable 3 m Charcoal

The Kordz PRO4 Passive HDMI Cable is the professional grade solution for uncompressed 8K/10K HDMI signal transmission, supporting full 48Gbps bandwidth and eARC compatibility for flawless audio-visual performance in short to medium length installations up to 9m. Its lightweight ABS connector assembly features a secure 1kg retention force, ensuring stable connections, while the flexible, fire-rated cable is designed for easy, hassle-free installation. Each cable undergoes individual production testing for ‘Connectivity Assured’ performance. Built for durability and backed by a lifetime warranty, the PRO4 Passive HDMI Cable is the ideal choice for professional AV installations.

PRODUCT OUTLINE

• All lengths support resolutions requiring 48Gbps transfer rates, including 8K60 or 10K60 HDR
• Lightweight ABS connector assembly with 1kg retention force
• UL CMG fire-rated cable (3m and above) for safe in-wall installations
• Flexible design ideal for professional AV setups
• Individually tested for consistent performance that’s ‘Connectivity Assured’
• Gold-plated connectors for optimal signal integrity and longevity
• Lifetime warranty for peace of mind

TECHNICAL INFO

Performance 0.5m – 9.0m PASSIVE

• HDMI Certification: High Speed with Ethernet
• Supported Data Rate: 48Gbps (12Gbps per lane)
• Other HDMI Features: Supports HDMI2.1 features

MECHANICAL

• Cable Diameter: 0.5m–2.0m: 4.5mm/0.18in Ø | 3.0m: 6.5mm/0.26in Ø | 4.0m–5.0m: 8.0mm/0.31in Ø | 7.0m–9.0m: 9.0mm/0.35in Ø
• Mounting Length: 0.5m–2.0m: 67.0mm/2.6in | 3.0m: 83.0mm/3.3in | 4.0m–5.0m: 101mm/4.0in | 7.0m–9.0m: 109mm/4.3in
• Cable Bend Radius: 0.5m–2.0m: 36.0mm/1.4in | 3.0m: 52.0mm/2.0in | 4.0m–5.0m: 64.0mm/2.5in | 7.0m–9.0m: 72.0mm/2.8in

CONSTRUCTION

• Primary Conductors: Solid 34 – 24 AWG OFC, length dependent
• Insulation on TMDS: Polyethelyene
• Insulation on 4C + HEAC Pairs: HDPE / Polyethylene
• Shielding on TMDS Pairs: AL/Mylar, 125% Coverage
• Shielding Overall: AL/Mylar, 125% Coverage + Tinned copper braid, min 85% coverage
• Cable Jacket: 0.5m-2.0m: VW-1/ 3.0m-9.0m UL CMG, fire-rated PVC composite materials
• HDMI Connector Shell: Premium gauge folded steel, 1μ” 24K Gold plated
• HDMI Connector Pins: Solid OFC, 15μ” 24K Gold plated
• Termination: High Frequency Soldering
• HDMI Backshell: ABS front shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRO4 Passive HDMI Cable is backed by our Lifetime Guarantee that promises maintained product functionality and performance for your lifetime.
