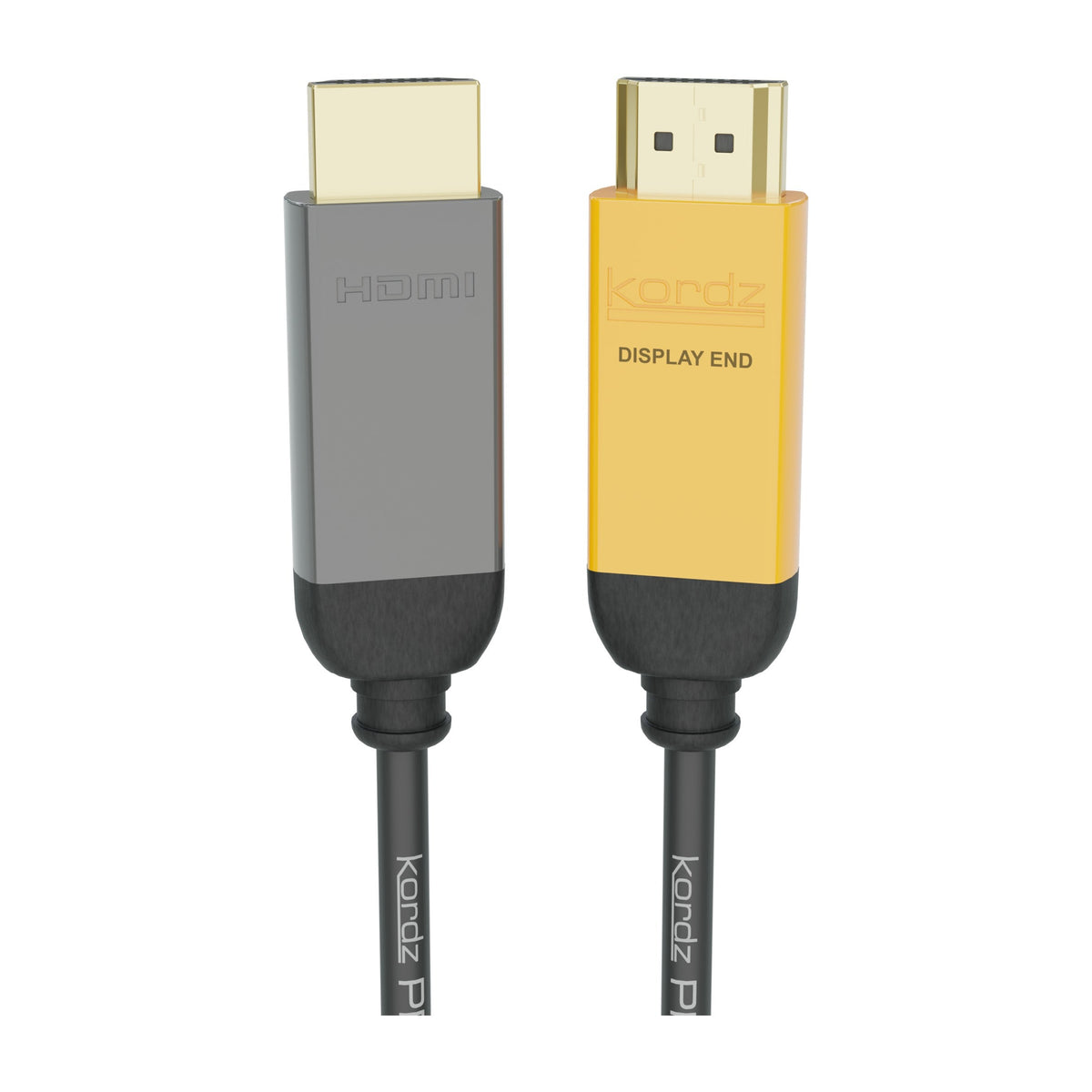

Kordz PRO4 48Gbps Active Optical HDMI Cable 30 m Charcoal

The Kordz PRO4 Active Optical HDMI Cable is the professional grade solution for uncompressed 8K/10K HDMI connectivity over ultra long distances. Supporting full 48Gbps data rates, it delivers seamless performance from 7.5m up to 100m, with minimal latency and no external power required. Its lightweight ABS connector assembly with gold-plated HDMI connector ensure secure, reliable connections, while the robust 4.7mm cable diameter and 20kg pull-force rating provide exceptional durability. Individually tested and DPL Labs certified for true 48Gbps performance, the PRO4 AOC HDMI Cable is the professional’s choice for demanding AV installations.

PRODUCT OUTLINE

• Supports uncompressed 48Gbps for 8K/10K video transmission up to 100m
• No external power required for ease of installation
• Lightweight ABS connector assembly with 1kg retention force
• Inner metallic shell for component protection and EMI shielding
• 4.7mm cable diameter with 20kg pull rating for durability
• Individually tested and DPL Labs certified for guaranteed performance
• Fire-rated to UL CMG standards for fire safety
• Backed by a 2-year warranty
• Eco-friendly packaging

TECHNICAL INFO

Performance 7.5m – 100.0m ACTIVE OPTICAL

• HDMI CTS Certification: High Speed with Ethernet
• Supported HDMI Data Rate: DPL Labs certified 48Gbps (12Gbps per lane)
• Other HDMI Features: eARC not supported
• Cable Diameter: 4.7mm | 0.19in Ø
• Mounting Length: 7.5m-20m: 70.1mm / 2.76in | 25m-100m: 84.8mm / 3.34in
• Cable Bend Radius: 37.6mm
• Connector Retention Force: 1kgf / 10N (nominal)

CONSTRUCTION

• FRL/TMDS Conductors : OM3 (50/125) optical fibre
• 4C + HEAC Pairs Conductors: Tinned Copper, 30 – 26 AWG
• 4C + HEAC Pairs Insulation: Foamed PE / HDPE
• Shielding Overall: AL / Mylar
• Cable Jacket Material: UL CMG fire-rated PVC composite materials
• HDMI Connector Shell: Premium gauge folded steel, 1µ” 24K Gold-plated
• HDMI Connector Pins: Solid OFC, 18µ” 24K Gold-plated
• Active Optical Technology: Directional, In-shell Optical Light Engine
• HDMI Backshells: ABS front shell with PVC injection moulded boot and strain relief

WARRANTY

The Kordz PRO4 Active Optical HDMI Cable is backed by our 2 Year Product Guarantee
