Kordz PRS SlimCat Cat6A U/FTP Patch Cord 15 m White

Kordz PRS SlimCat™ Cat6A Patch Cords are engineered to be flexible, slim and ideal for fast Gigabit Ethernet in high performance AV installations with stranded 28AWG copper. The Kordz PRS SlimCat™ Patch Cord features a custom designed compact RJ45 connector (Patent Pending) with a robust 2000 cycle latching tab, is designed to be the most resilient connector in the world. Its slim profile and minimal operational depth challenges what’s possible in high performance installations.

All Kordz PRS SlimCat™ Patch Cords exceed ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500Mhz and individually performance tested with a unique downloadable test report.

PRODUCT OUTLINE

• Exceeds ANSI/TIA-568.2-D Category 6A standards for all frequencies from 1 to 500Mhz
• 28AWG stranded U/FTP Category 6A shielded slim-profile network patch cord
• Each cable is individually performance tested with its own unique downloadable test report
• Anti-corrosion gold-plated shielded connector
• Suitable for 10BASE-T, 100BASE-TX, 1000BASE-T/1000BASE-TX (Gigabit) & 10GBASE-T, PoE, PoE+ & PoE++
• UL 444 (CMG) fire-rating
• 568B wire connection configuration
• Overall diameter of 4.8mmØ
• World’s smallest minimal operational depth and most flexible CAT6A U/FTP patch cord
• Available in 8 Colours – Black, Blue, Grey, Green, Purple, Yellow, Red & White
• Patent Pending

APPLICATION

Category 6A U/FTP Shielded Network Patch Cord Specification Standard

• Application Standards:
• ANSI/TIA-568.2-D
• IEC11801
• EN50173
• Performance Standard:
• ≤ 10.0m – Category 6A Component Tested
• ≥ 15.0m – Category 6A Channel Tested
• Wiring method: T568-B
• Certified Data Rate: 10 Gbps (Gigabit ethernet)
• Supported Data Rate: ≥ 10 Gbps (Gigabit ethernet)
• Certified Bandwidth: 1 to 500 MHz
• Supported Bandwidth: ≥ 500 MHz

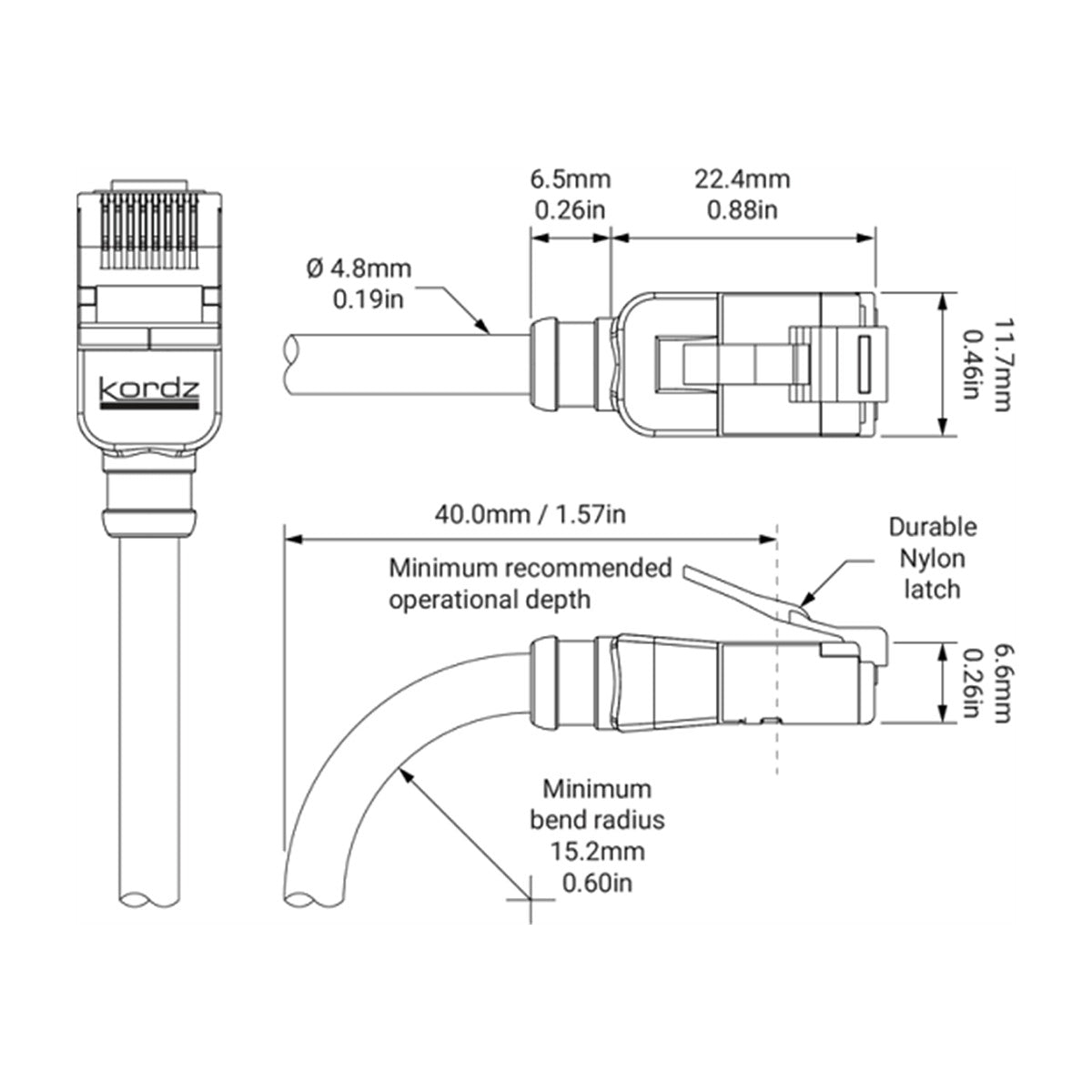

MECHANICAL

• Cable Diameter: 28 AWG, 4.8mm/0.19”Ø
• Maximum Cable Pulling Tension: 80 kgf/cm²
• Cable to Plug Tensile Strength: TBC
• Cable Bend Radius: 20.0mm | 0.79in
• Recommended Total Mounting Depth: 40.0mm | 1.57in
• Mating Cycles (max.): 1000 cycles
• Temperature range: UL Temp rating – 75ºC

CONSTRUCTION

• Conductors: Solid 28 AWG Oxygen-Free Stranded Copper
• Conductor Insulation: Skinned Foam PE
• Shielding: Individual pairs AL-Mylar shielded 100% Coverage
• Cable Jacket Material: UL CMG-rated PVC Composite
• Connector Material: Nylon Composite
• Contact Material: Solid Oxygen-free Copper, 50μ” Gold-plated
• Contact Type: 3-prong for solid/stranded conductors
• Strain Relief: Injection-moulded PVC

ELECTRICAL CHARATERISTICS

• Conductor Resistance: 223Ω/km
• Insulation Resistance: 10MΩ min @100V DC
• Characteristic Impedance : 100 Ω
• Dielectric Strength : 500V AC / 1min
